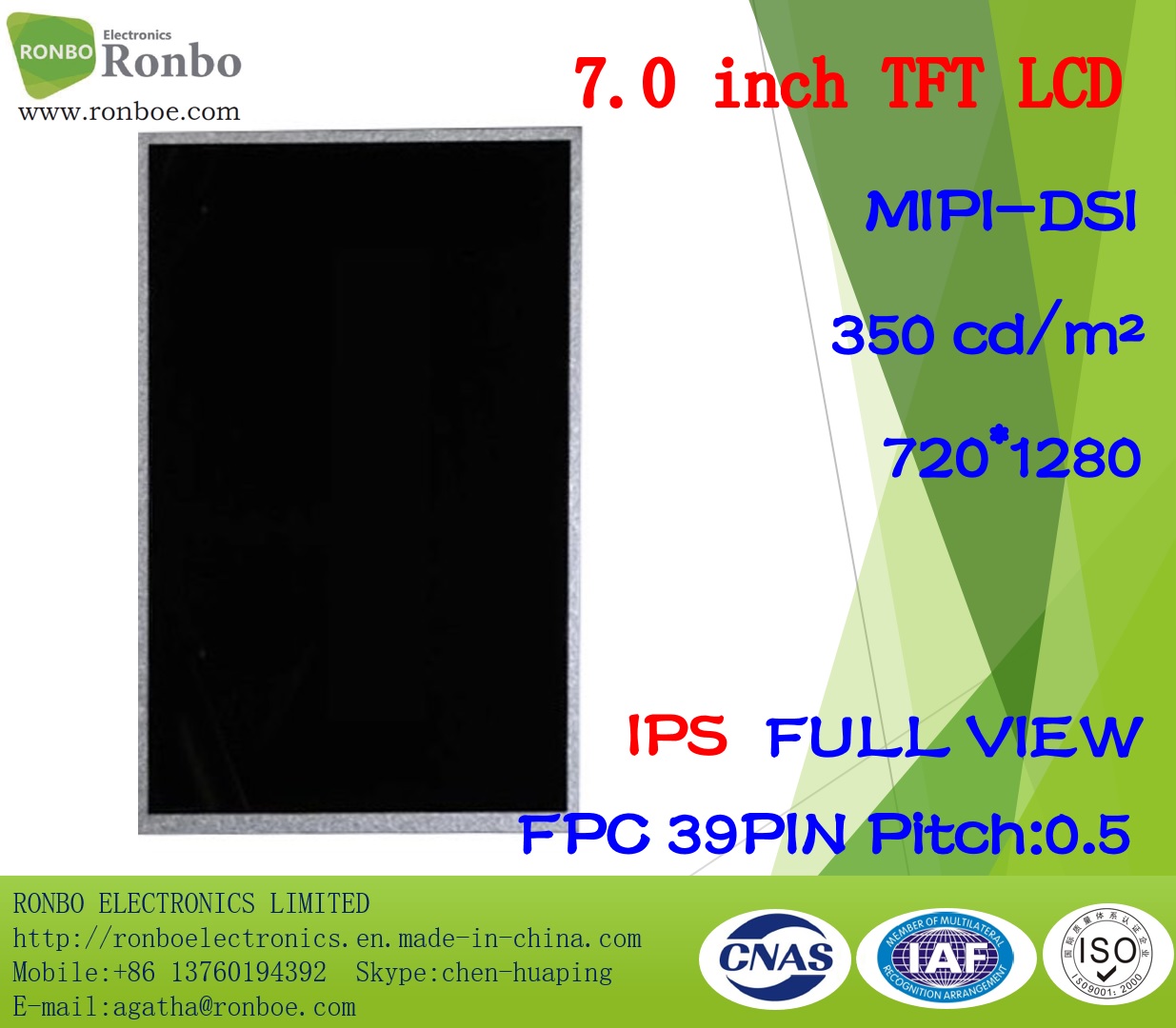

Model: 7.0 Inch IPS 720X1280 Mipi 39pin 350cd/m² TFT LCD Display
Specification:
Model NO.: | RB070D39N02A |
Screen Size: | 7.0" |
Resolution: | 720*1280 |

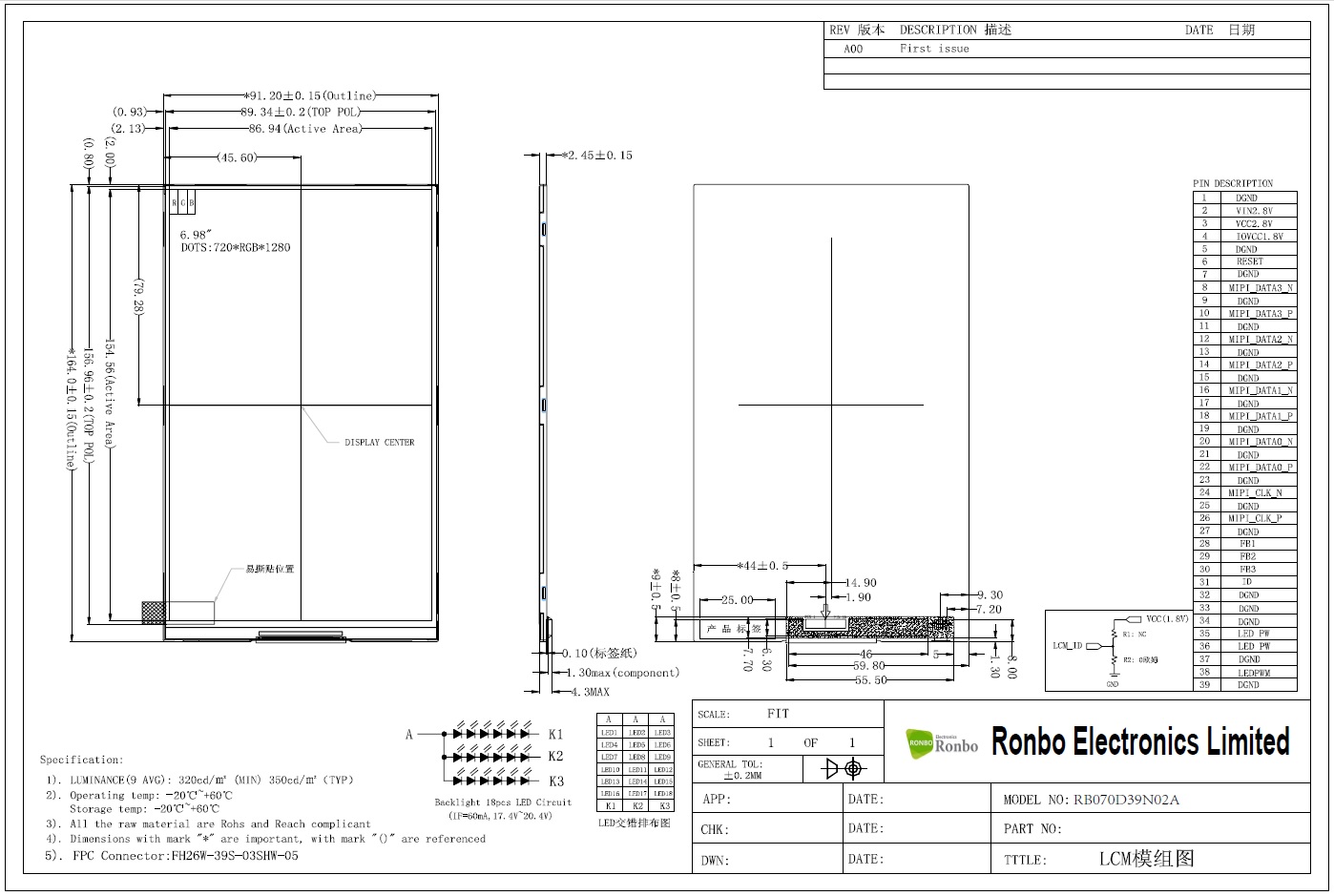

Module size(W*H*T): | 91.2*164*2.45mm |
Active area (W*H): | 86.94*154.56mm |
Controller: | TBD |

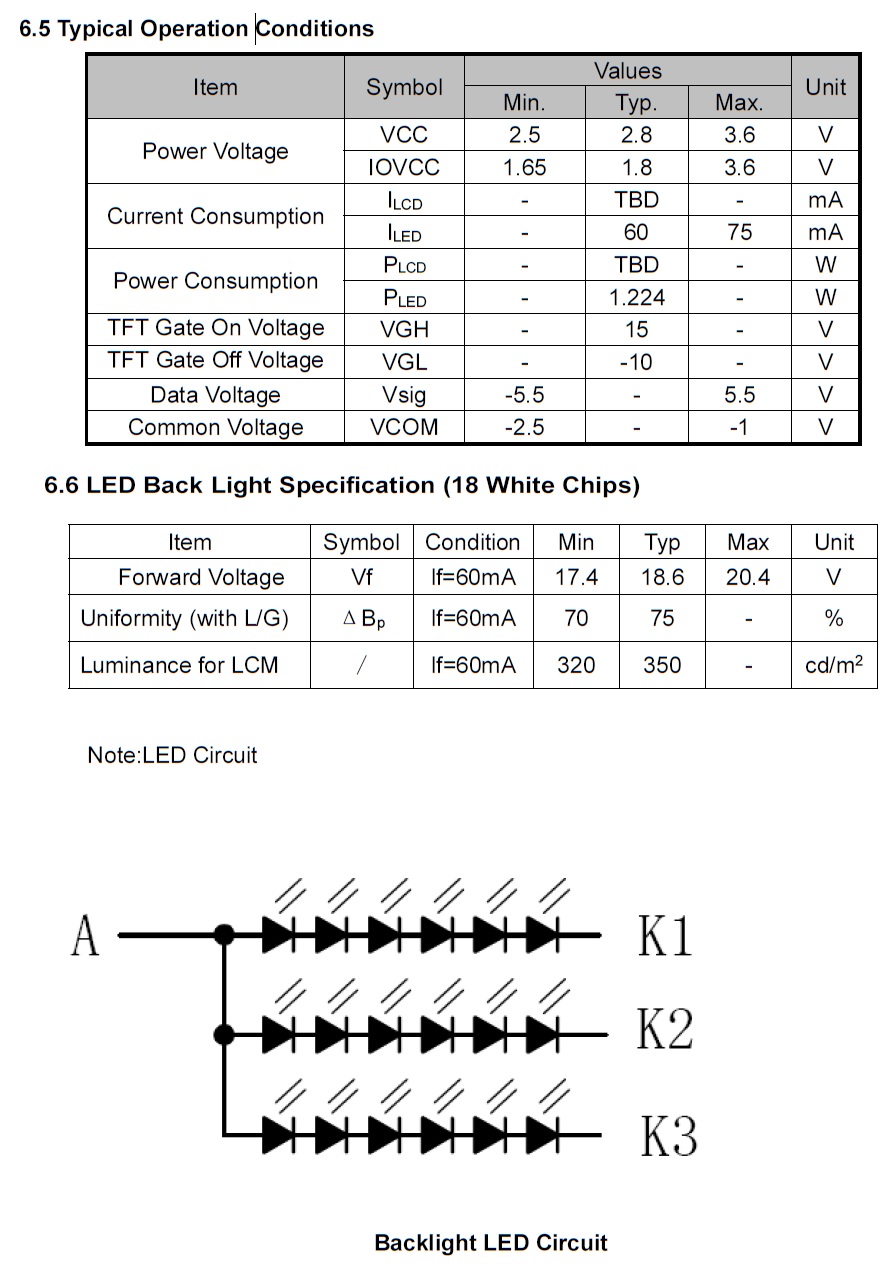

Brightness: | 18 White LED /350 cd/m² |
Display Type: | 16.7M COLORS |
Operating Temperature: | -20 ~ 70ºC |

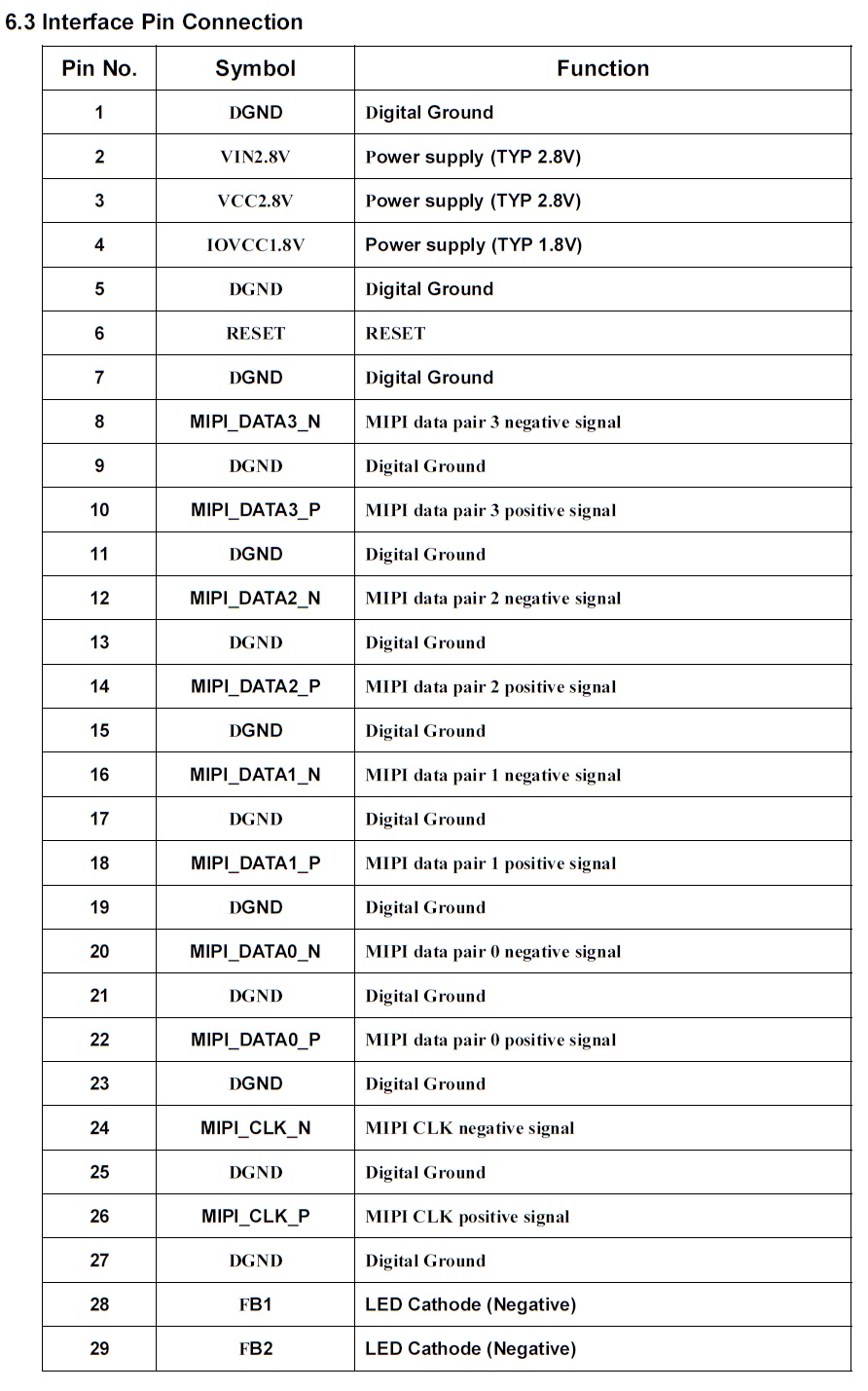

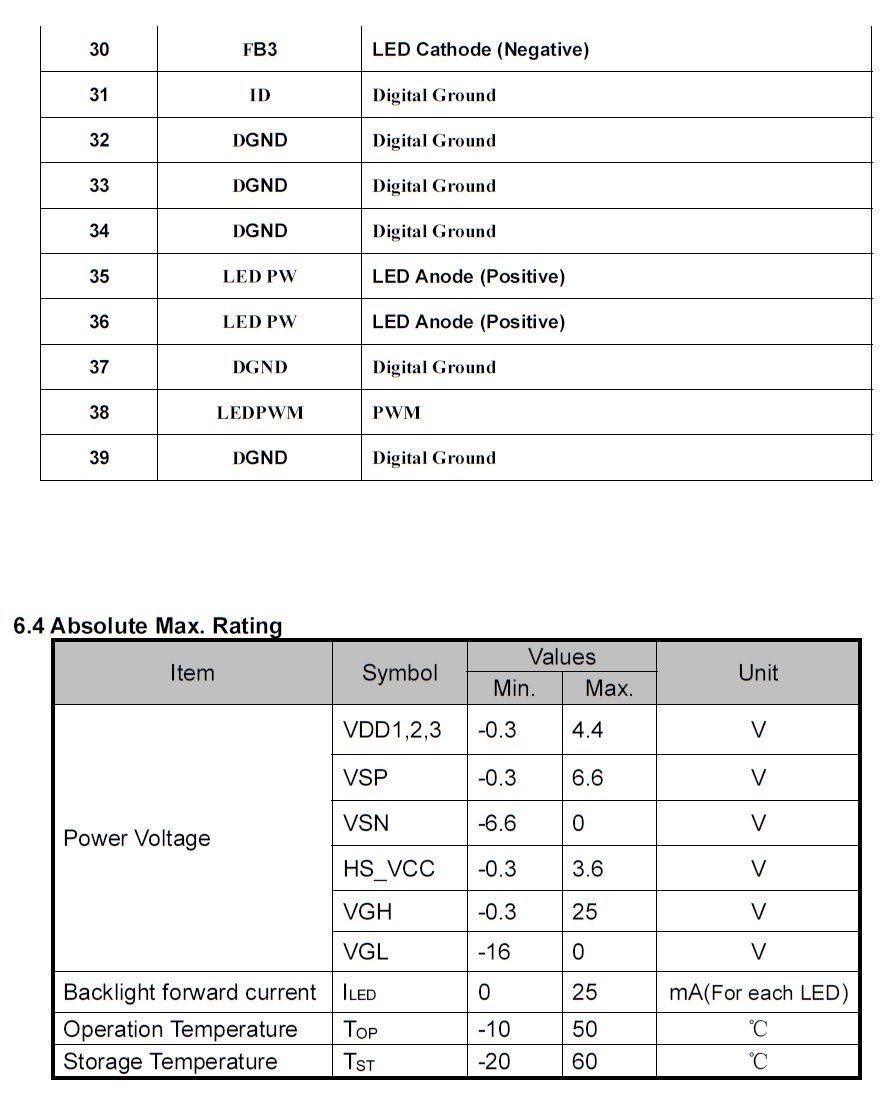

Interface: | MIPI-DSI,FPC 39PIN,SPACE:0.5mm CONNECTOR:FH26W-39S-03SHW-05 |
Ronbo Electronics Ltd., located at Dongguan, China, is one of the leading display suppliers. Its production line includes small to medium size LCD, TFT, and OLED modules for a variety of industrial and consumable application. We are one of the leading display providers of monochrome character LCD modules, graphic LCD modules, alphanumeric LCD panel & TFT modules. High-quality LCD modules are made based on our experienced engineering knowledge, well-managed supply chain.
Besides standard modules, our experience R&D staff can either support you value-added program or make customized product according to your specification
Moreover, our company has passed ISO 9001, ISO14001 certifications as well as RoHS.
Our website is http://www.ronboe.com
