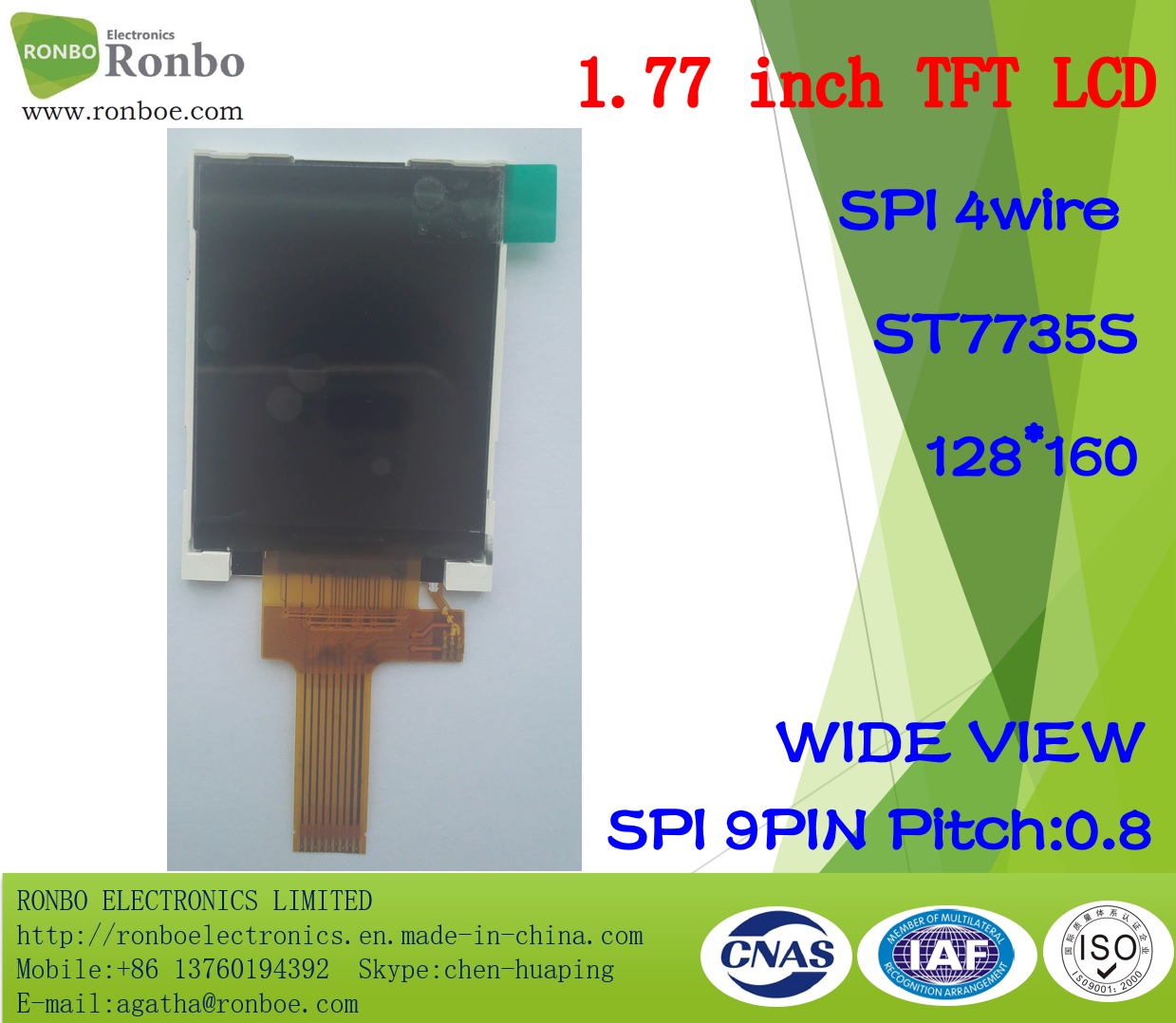

Model:1.77"128*160 SPI 4wire TFT LCD Display,IC: ST7735S, SPI 9PIN

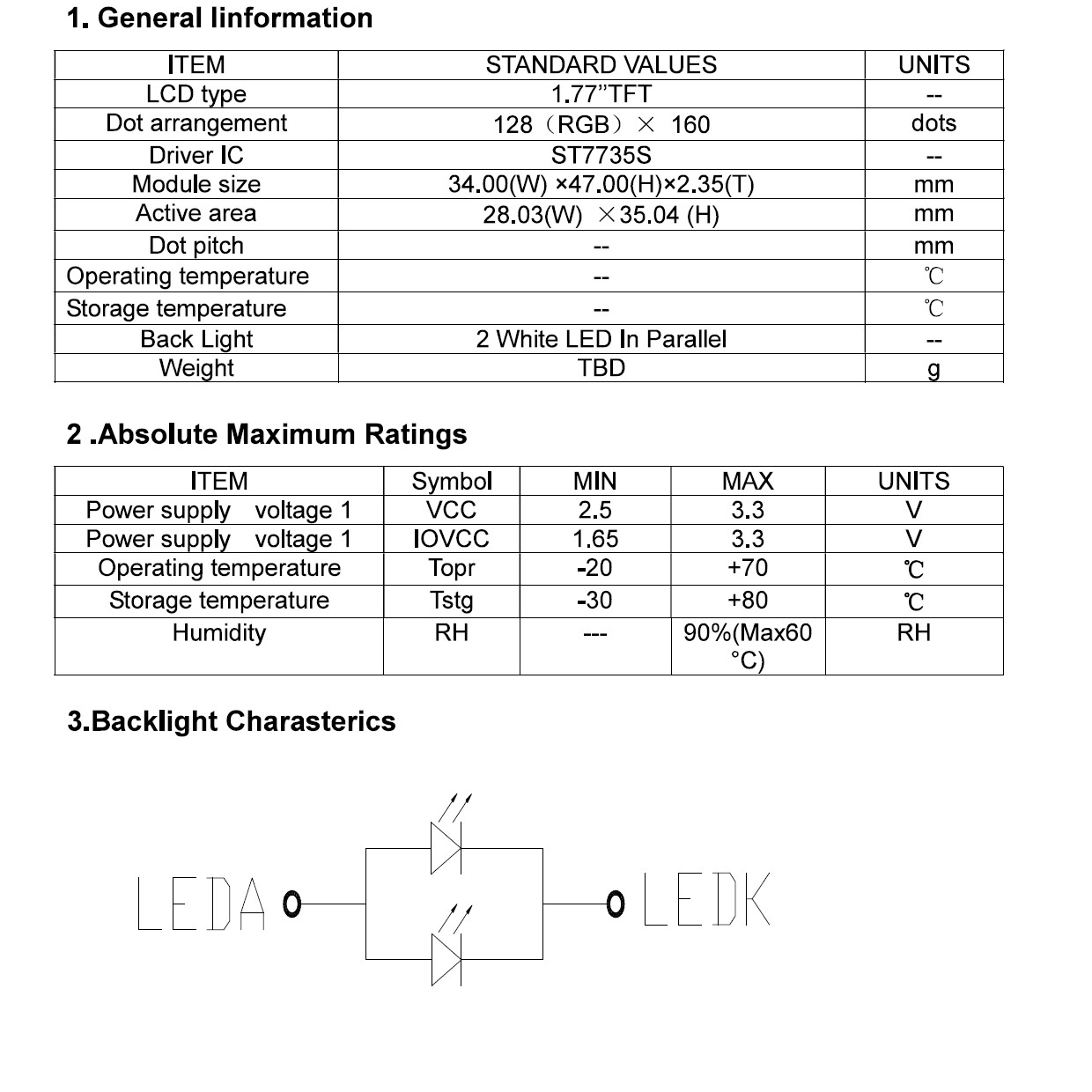

Specification:
Model NO.: | RB017D09N01A |
Screen Size: | 1.77" |
Resolution: | 128*160 |

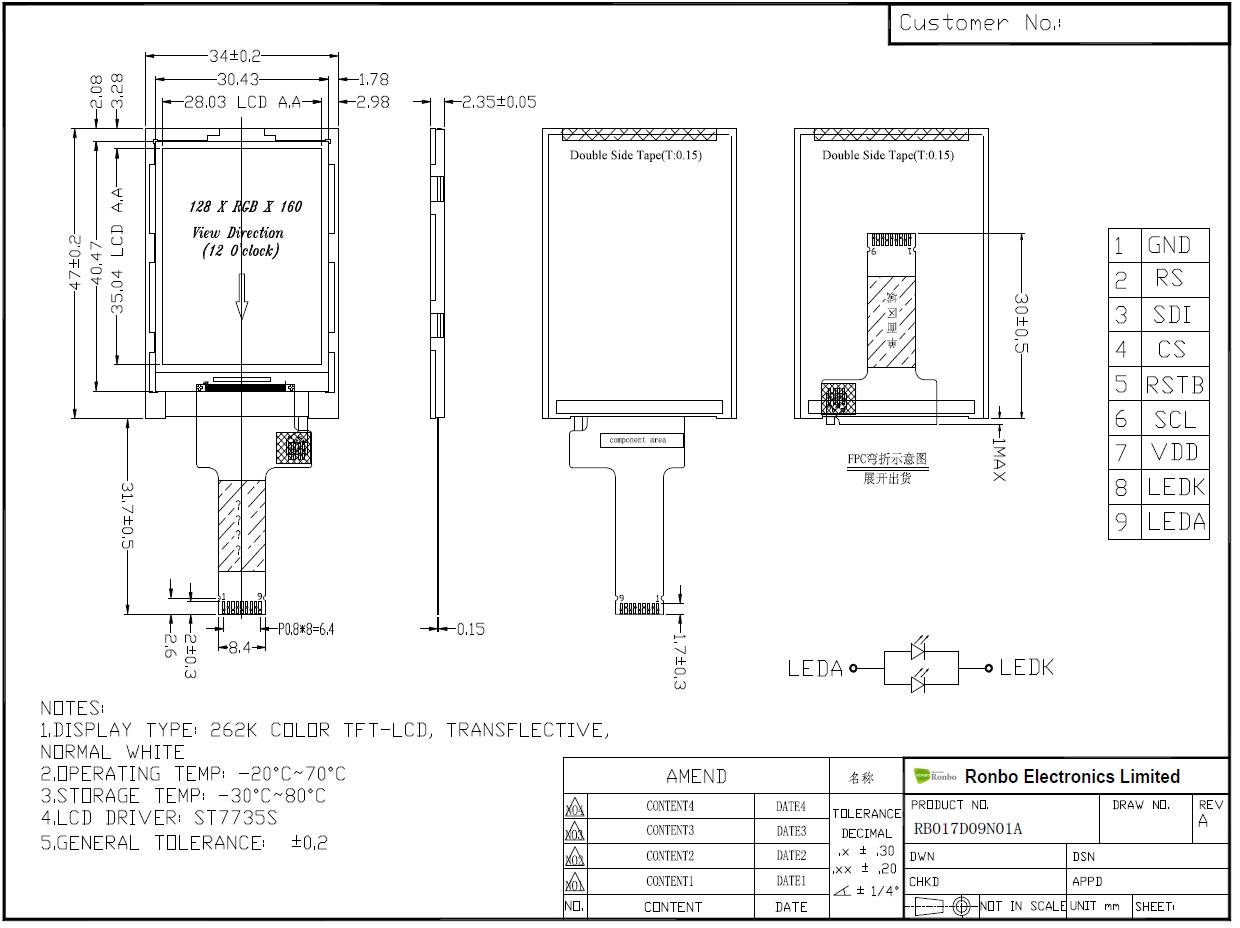

Module size(W*H*T): | 34.0*47.0*2.35mm |
Active area (W*H): | 28.03*35.04mm |
Controller: | ST7735S |
Brightness: | 2 White LED |
Display Type: | 65K/262K |
Operating Temperature:- | -20 ~ 70ºC |

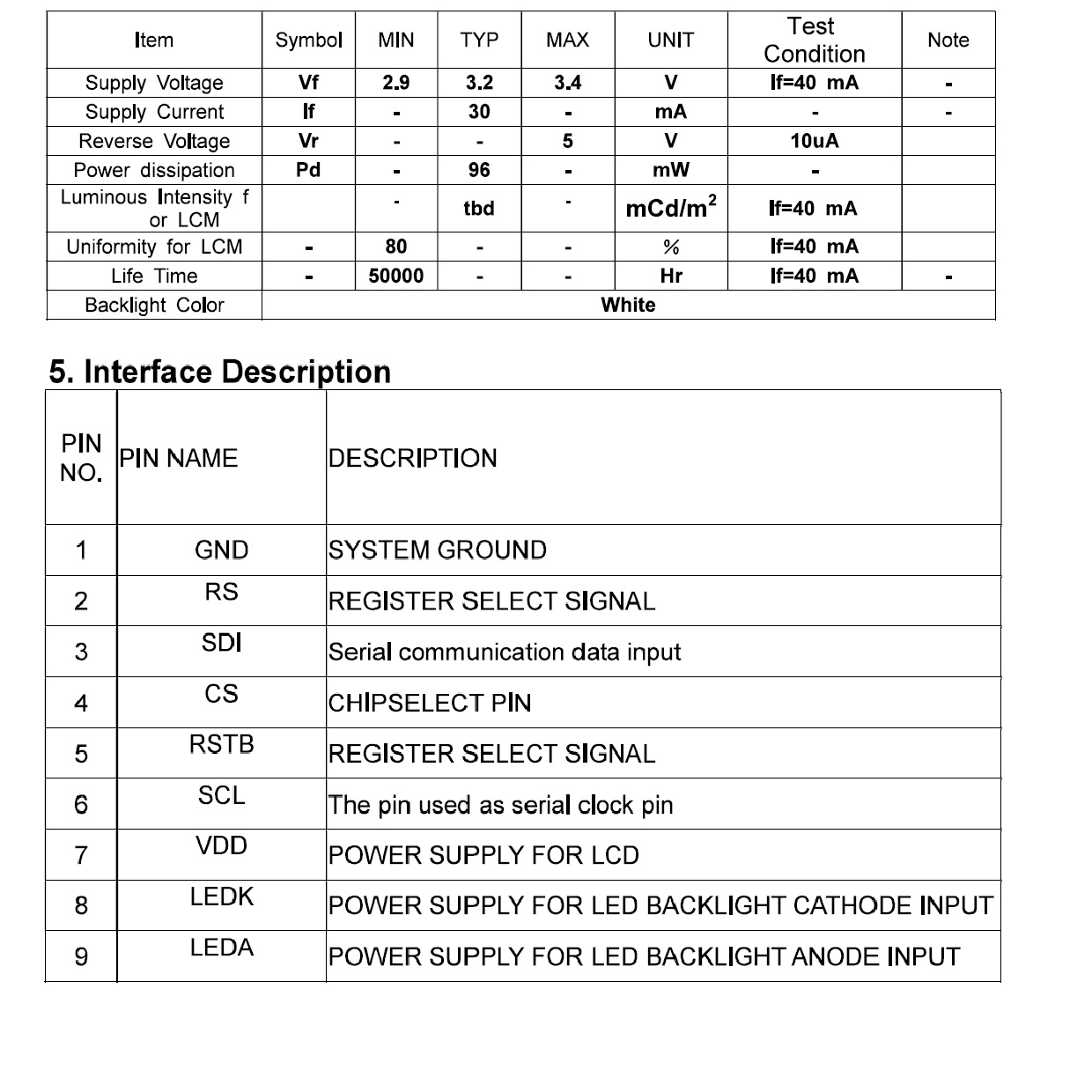

Interface: | SPI 4wire SPI 9PIN Pitch:0.8mm |
RB101L40N09A
RB101D50N05A
RB101D50N04A
RB101D50N06A
RB090D50N02A
ZJ080NA-08A
RB080D50N03A
RB080D50N02A
Its production line includes small to medium size LCD, TFTand OLED modules for a variety of industrial and consumable application.
