Touch Screen LCD Display

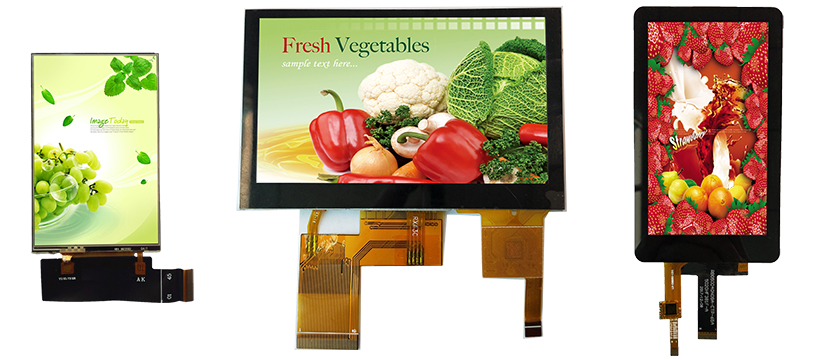

3_Touch Screen LCD Display_横幅.jpg

       Touch Screen LCD Display is an input and output device normally layered on the top of an electronic visual display of an information processing system. A user can give input or control the information processing system through simple or multi-touch gestures by touching the screen with a special stylus or one or more fingers.

       Ronbo can offer Various Size LCD Displays bonding with Resistive or Capacitive touch Screen using OCA or Double Tape,

       The list below is our standard offering, please click into detail informaiton. However, We also can support custom touch screen LCD displays. If you are in need of a custom solution due to a unique size or functionality, please contact us.

Image Size Model No Resolution Module size
(W*H*Tmm) 		Active Area
(W*Hmm) 		Controller IC Brightness Display Type Interface

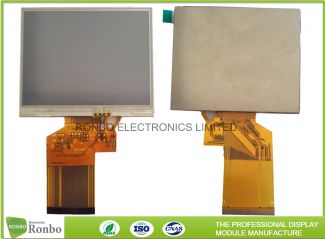

3.5" RB035D54T06A 320*240 76.9x63.9x4.4 70.08x52.56 HX8238D 300cd/m² TN,6H(With RTP) RGB 24Bit，FPC 54PIN, Pitch:0.5

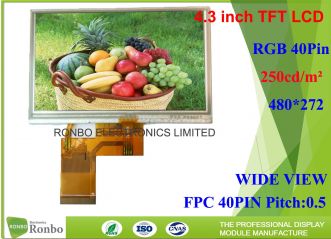

4.3" RB043D40T03A 480*272 105.5*67.2*4.1 95.04*53.86 - 250cd/m² TN, 12H (With RTP) RGB 24Bit，FPC 40PIN, Pitch:0.5

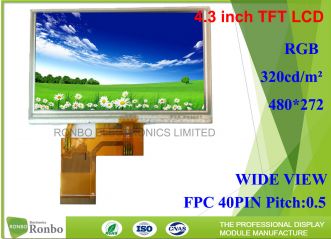

4.3" RB043D40T06A 480*272 105.5*67.2*4.1 95.04*53.86 - 320cd/m² TN, 12H (With RTP) RGB 24Bit，FPC 40PIN, Pitch:0.5

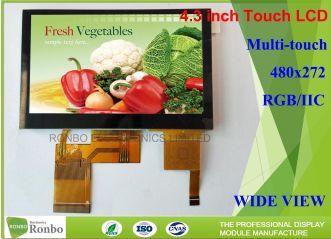

4.3" RB043D40N06A-GG01 480*272 105.5*67.2*4.6 95.04*53.86 HX8257A, FT5306 360cd/m² TN, 12H (With CTP) RGB 24Bit，FPC 40PIN, Pitch:0.5

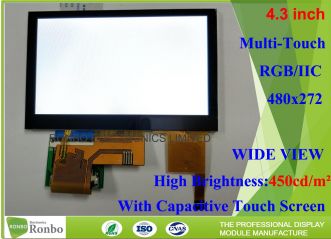

4.3" RB043D40N07A-GG01 480*272 105.5*67.2*4.6 95.04*53.86 HX8257A, FT5306 450cd/m² TN, 12H (With CTP) RGB 24Bit，FPC 40PIN, Pitch:0.5

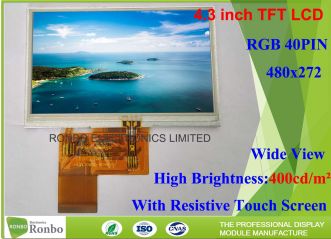

4.3" RB043D40T07A 480*272 105.5*67.2*4.1 95.04*53.86 - 400cd/m² TN, 12H (With RTP) RGB 24Bit, FPC 40PIN Pitch:0.5

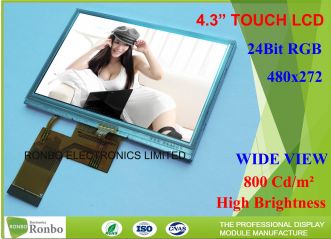

4.3" RB043H40T10A 480*272 105.5*67.2*4.1 95.04*53.86 - 800cd/m² TN, 12H (With RTP) RGB 24Bit，FPC 40PIN, Pitch:0.5

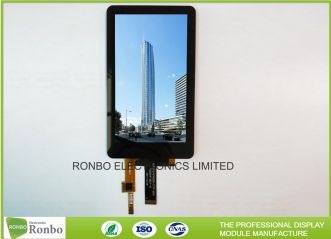

5.0" RB050D40N09A-GG65A 480*854 76.1*131.2*3.98 61.63*109.65 ILI9806E, GT911 460cd/m² IPS(With CTP) MIPI, FPC 20Pin, Pictch:0.5

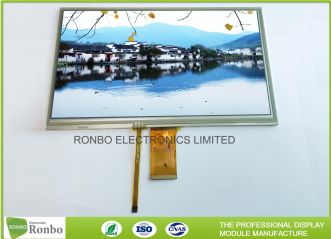

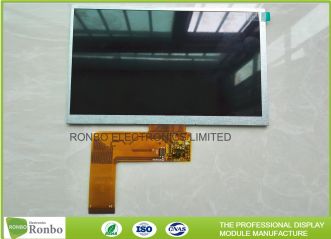

7.0" RB070D40T08A 800*480 164.9*100*4.5 154.08*85.92 - 350cd/m² TN, With RTP RGB 24Bit，FPC 50PIN, Pitch:0.5mm
10.1" RB101D50N04A-01T 1024*600 235.0*143.0*4.0 222.72*125.28 - 200cd/m² TN, 12H RGB 50PIN, Connector Pitch:0.5
