Its production line includes small to medium size LCD, TFTand OLED modules for a variety of industrial and consumable application.Cell Phone LCD Display

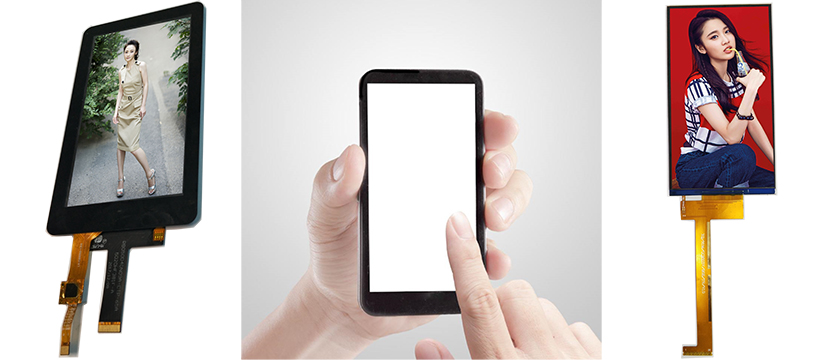

Ronbo can provide LCD Displays for Cell Phone, Protable Device, Comsumption and Home Application and so on, these LCD Displays have very good picture quality with IPS LCDs, High Resolution and Brightness, and also have narrow and thin Backlight with high Luminance.
They are available in various resolutions including WVGA (480x800), FWVGA (480x854), QHD (540x960), HD (720x1280), FHD (1080x1920) and son on. and there are various interface available including MCU, RGB, MIPI Interface and so on.
These LCD Displays are options of bonding with Resistive or Capacitive touch Screen using OCA or Double Tape, and are options of Driver Board and assistant funtion samples.
The list below is our standard offering, please click into detail informaiton. However, We have many more customized solution and special sizes available as options. Please contact us for more information.
| Image | Size | Model No | Resolution | Module size (W*H*Tmm) |
Active Area (W*Hmm) |
Controller IC | Brightness | Display Type | Interface |
 |

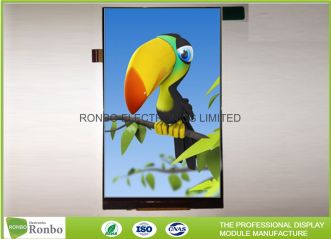

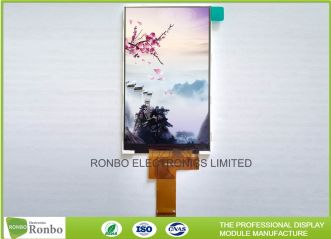

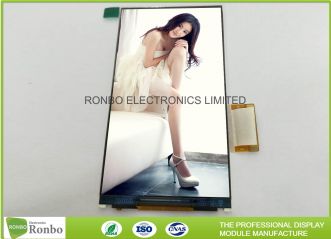

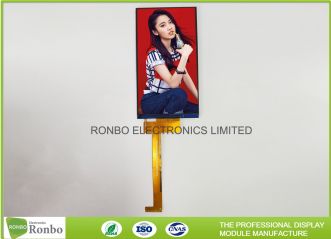

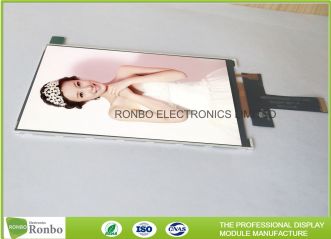

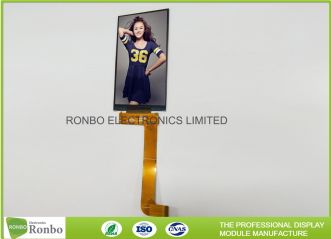

5.0" | RB050M24N07A | 480*854 | 66.56*121.0*2.2 | 62.1*110.4 | ST7701 | 400cd/m² | TN,12H | MIPI, FPC 24PIN, Pitch:0.4 |
 |
5.0" | RB050M39N08A | 720*1280 | 65.26*119.3*1.65 | 62.1*110.4 | JD9365AA | 400cd/m² | IPS | MIPI, FPC 39PIN, Pitch:0.3 |
 |

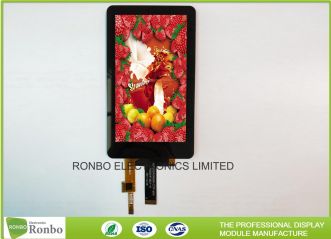

5.0" | RB050D40N09A-GG65A | 480*854 | 76.1*131.2*3.98 | 61.63*109.65 | ILI9806E, GT911 | 460cd/m² | IPS(With CTP) | MIPI, FPC 20Pin, Pictch:0.5 |
 |
5.0" | RB050D40N09A | 480*854 | 65.26*119.3*1.65 | 62.1*110.4 | ILI9806E | 400cd/m² | IPS | MIPI, FPC 39PIN, Pitch:0.5 |
 |
5.0" | RB050D40N10A | 480*854 | 66.2*120*2.0 | 62.1*110.4 | ILI9806E | 300cd/m² | IPS | 24Bit RGB, FPC 40PIN, Pitch:0.5 |
 |
5.0" | RB050D50N329A | 480*854 | 65.26*119.3*1.67 | 61.56*109.53 | JD9161 | 400cd/m² | TN, 12H | RGB, FPC 50PIN, Pitch:0.5 |
 |
5.0" | RB050M20N373A | 480*854 | 65.26*118.9*2.05 | 62.06*110.42 | GC9503V | 500cd/m² | TN, 12H | MIPI, FPC 20Pin, Pitch:0.8 |
