IPS LCD Display

2_IPS LCD Display_横幅.jpg

      IPS (in-plane switching) is a screen technology for liquid-crystal displays (LCDs), IPS LCD Displays can display consistent, accurate colour from all viewing angles.

      Unlike TN LCDs, IPS LCD Displays do not lighten or show tailing when touched, This is important for touch-screen devices, such as smartphones and tablets, and IPS panels offer clear images and stable response time.

     These LCD Displays are options of bonding with Resistive or Capacitive touch Screen using OCA or Double Tape, and are options of Driver Board and assistant funtion samples.

     The list below is our standard offering, please click into detail informaiton. However, We have many more customized solution and special sizes available as options. Please contact us for more information.

Image Size Model No Resolution Module size
(W*H*Tmm) 		Active Area
(W*Hmm) 		Controller IC Brightness Display Type Interface

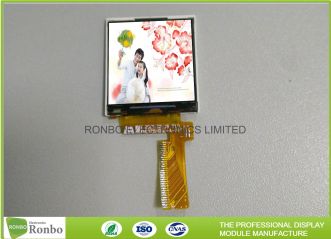

1.3“ RB013A1509A 240*240 26.0*29.15*1.9 23.4*23.4 ST7789V 250 cd/m² IPS SPI, FPC 13PIn, Pitch 0.3mm

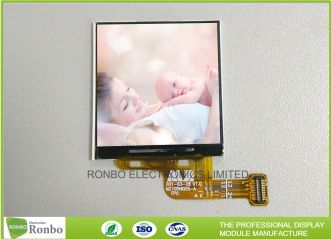

1.22" RB0122B2401A 240*240 25.76*28.16*1.9 21.96*21.96 ST7789V 250 cd/m² IPS SPI, FPC 24PIn, Pitch 0.4mm
1.22" RB0122B1002A 240*240 25.76*28.16*1.5 21.96*21.96 ST7789V 250 cd/m² IPS SPI, FPC 10PIn, Pitch 0.7mm
1.14” RB0114A1301A 135*240 17.56*31.07*1.6 14.86*24.91 ST7789V 200 cd/m² IPS SPI, FPC 13PIn, Pitch 0.7mm
0.96" RB0096A1301A 80*160 13.5*27.95*1.5 10.8*21.7 ST7735S 200 cd/m² IPS SPI, FPC 13PIn, Pitch 0.7mm
1.3" RB013D12N04A 240*240 26.2*29.22*1.92 23.4*23.4 ST7789V 250 cd/m² IPS SPI, FPC 12Pin,Pitch:0.8

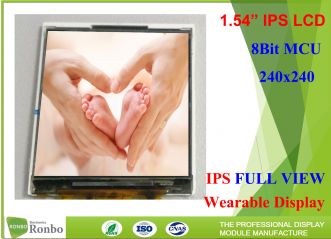

1.54“ RB015D25N01A 240*240 31.52*33.72*1.4 27.72*27.72 ST7789V 220cd/m² IPS MCU 8Bit, FPC 25PIn, Pitch:0.3
1.54“ RB015D30N02A 240*240 31.52*33.72*1.4 27.72*27.72 ST7789V 220cd/m² IPS MCU 8 Bit, FPC 30PIN Pitch:0.7
1.54“ RB015D24N03A 240*240 31.52*33.72*1.4 27.72*27.72 ST7789V 220cd/m² IPS SPI, FPC 24PIn, Pitch:0.4
3.0" RB030D37T03A 240*400 45.04*77.00*3.5 38.88*64.8 R61509V 300cd/m² IPS MCU 16Bit, FPC 37PIN Pitch:0.8mm

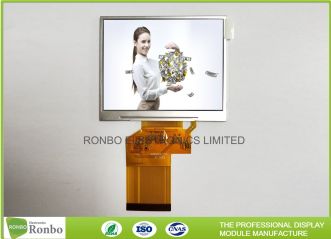

3.5" RB035D54N06IPS 320*240 76.9*63.9*3.2 70.08*52.56 HX8238D 300cd/m² IPS RGB 24Bit，FPC 54PIN, Pitch:0.5

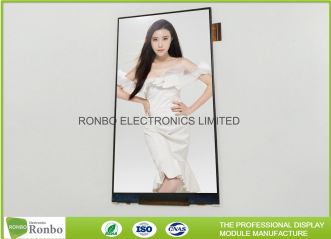

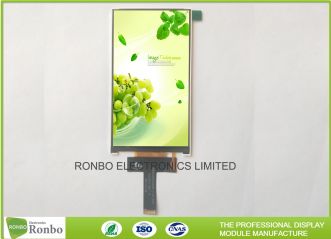

5.0" RB050M39N08A 720*1280 65.26*119.3*1.65 62.1*110.4 JD9365AA 400cd/m² IPS MIPI, FPC 39PIN, Pitch:0.3

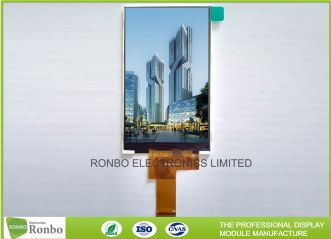

5.0" RB050D40N09A 480*854 65.26*119.3*1.65 62.1*110.4 ILI9806E 400cd/m² IPS MIPI, FPC 39PIN, Pitch:0.5
5.0" RB050D40N10A 480*854 66.2*120*2.0 62.1*110.4 ILI9806E 300cd/m² IPS 24Bit RGB, FPC 40PIN, Pitch:0.5

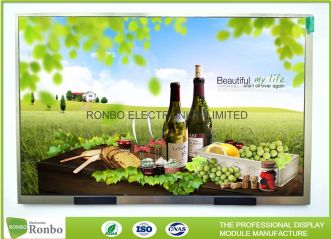

7.0" RB070D30N01A 1024*600 164*97*2.6 154.21*85.92 - 300 cd/m² IPS MIPI-DSI, FPC 30PIN Pitch:0.5mm

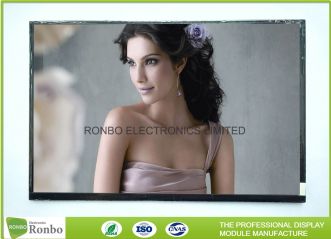

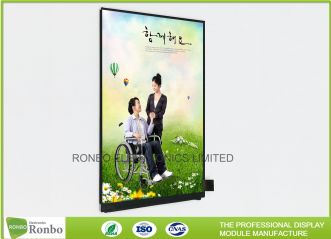

8.0" RB080D39N01A 800*1280 114.6*184.1*2.28 107.64*172.22 - 350cd/m² IPS MIPI, FPC 39Pin, Pitch:0.5

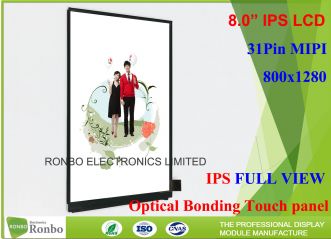

8.0" RB080D31N04A 800*1280 114.6*184.1*2.45 107.64*172.22 - 300cd/m² IPS MIPI, FPC 31Pin, Pitch:0.5

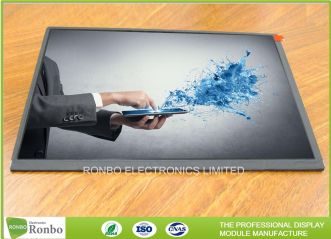

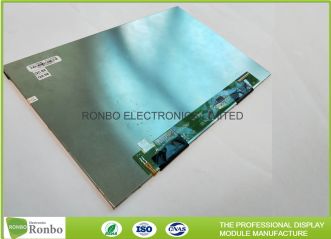

10.1" RB101L40N01A 1280*800 229.46*149.1*2.8 216.96*135.6 - 400cd/m² IPS LVDS 40PIN, Connector Pitch:0.5
10.1" RB101L40N07A 1280*800 229.46*149.1*2.5 216.96*135.6 - 350cd/m² IPS LVDS 40PIN, Connector Pitch:0.5
10.1" HSD101PUW1-C00 1920*1200 227.72*147.8*2.25 216.576*135.36 - 370cd/m² IPS MIPI 34PIN, Connector Pitch:0.5
10.1" EJ101IA-01G 1280*800 229.46*149.1*2.5 216.96*135.6 - 350cd/m² IPS LVDS 40PIN, Connector Pitch:0.5
