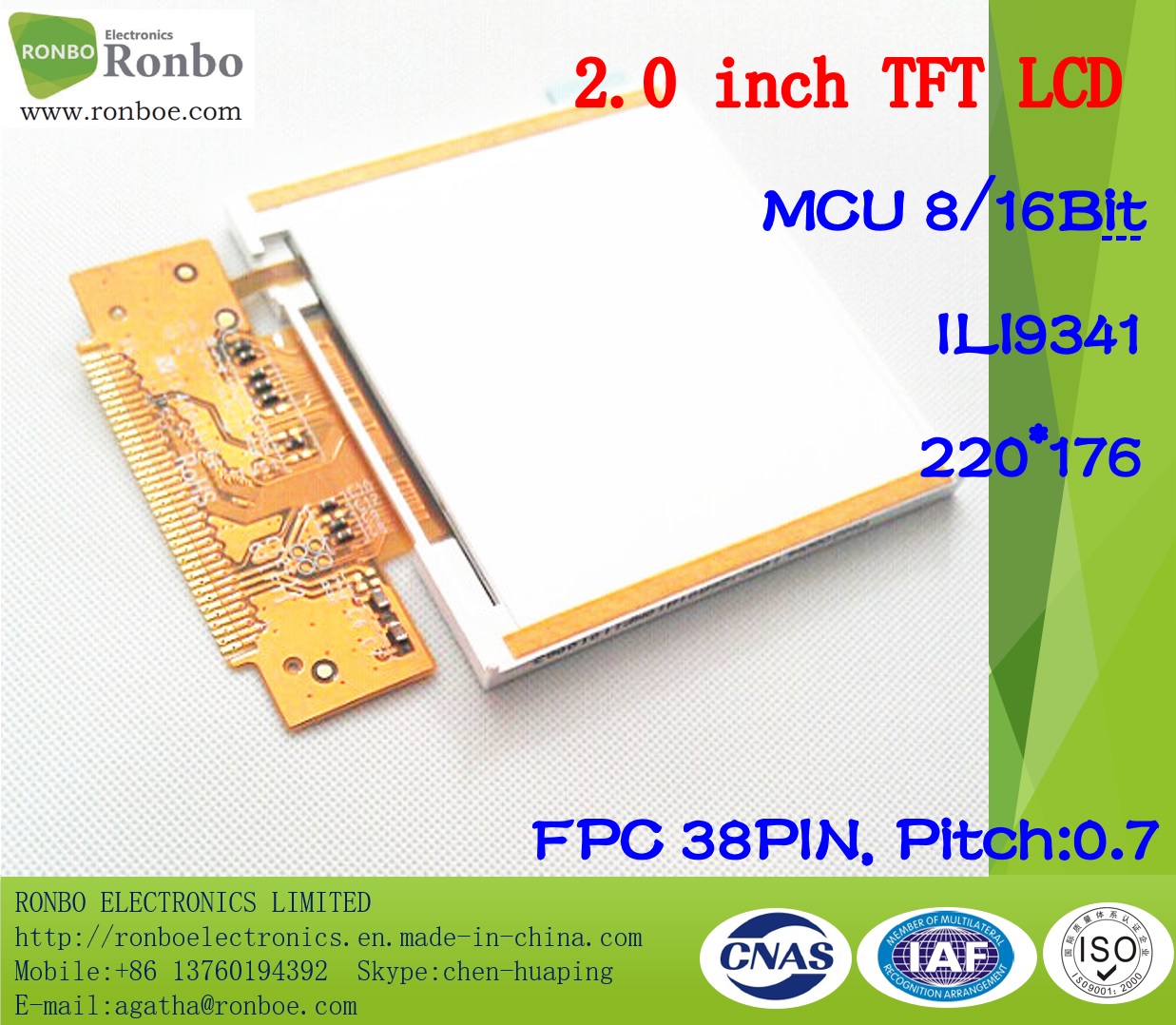

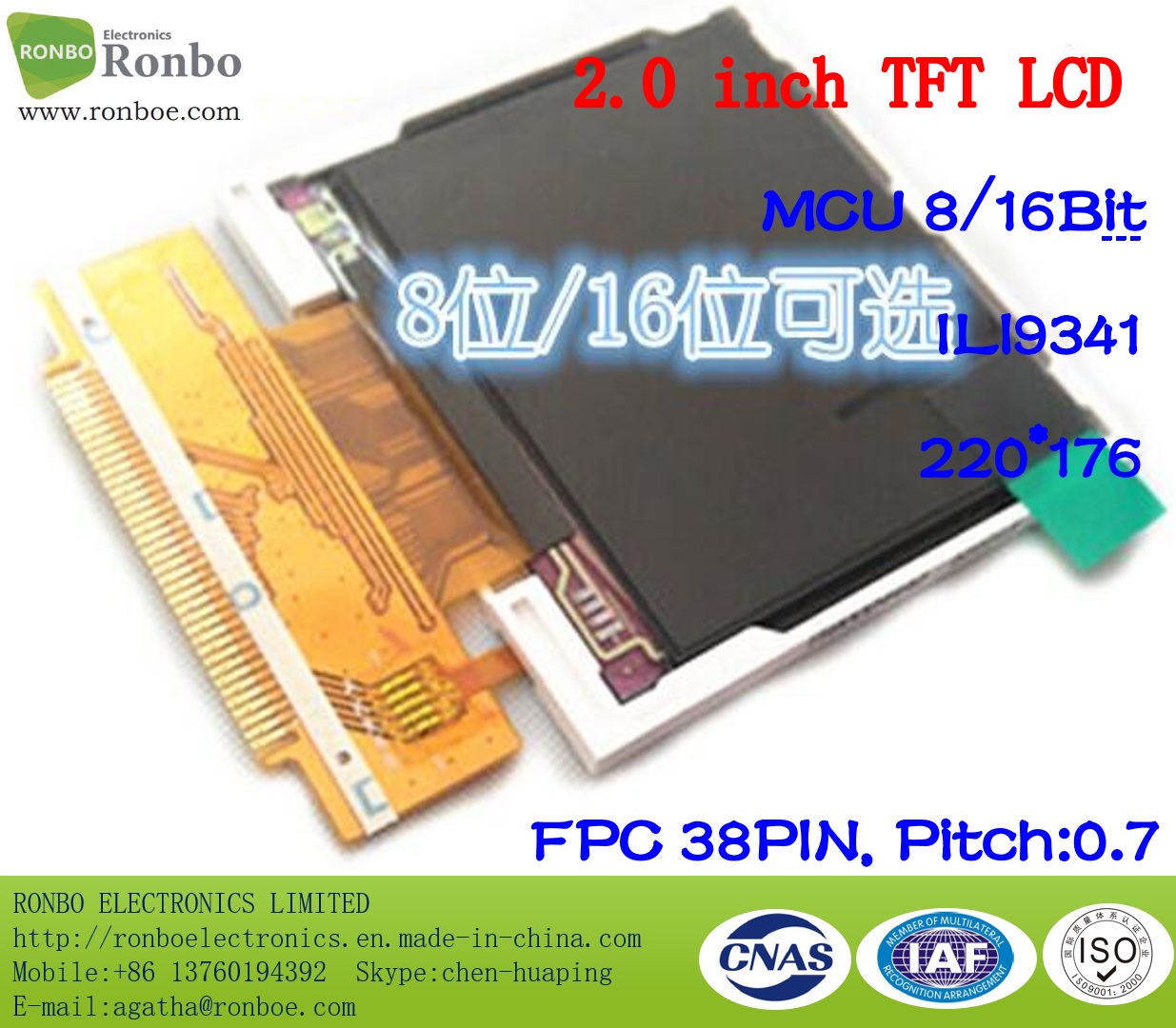

Model: 2.0" 220*176 MCU 8/16Bit 38Pin Wide Viewing Angle TFT LCD Display
Specification:
Model NO.: | RB020D38N04A |
Screen Size: | 2.0" |
Resolution: | 220*176 |

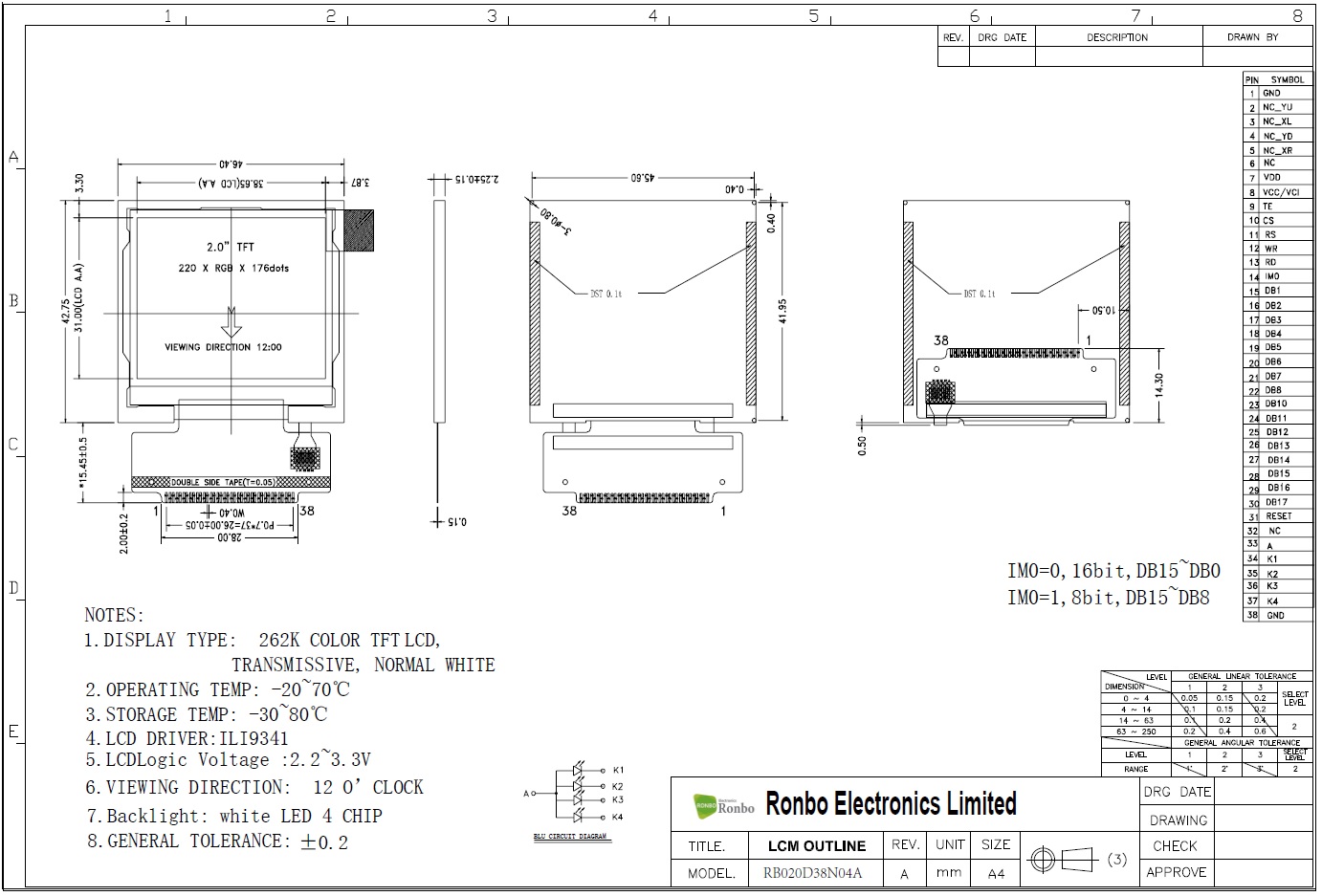

Module size(W*H*T): | 46.4*42.75*2.25 mm |
Active area (W*H): | 38.65*31.0 mm |
Controller: | ILI9341 |
Brightness: | 4 White LED |
Display Type: | 262K |
Operating Temperature: | -20 ~ 70ºC |

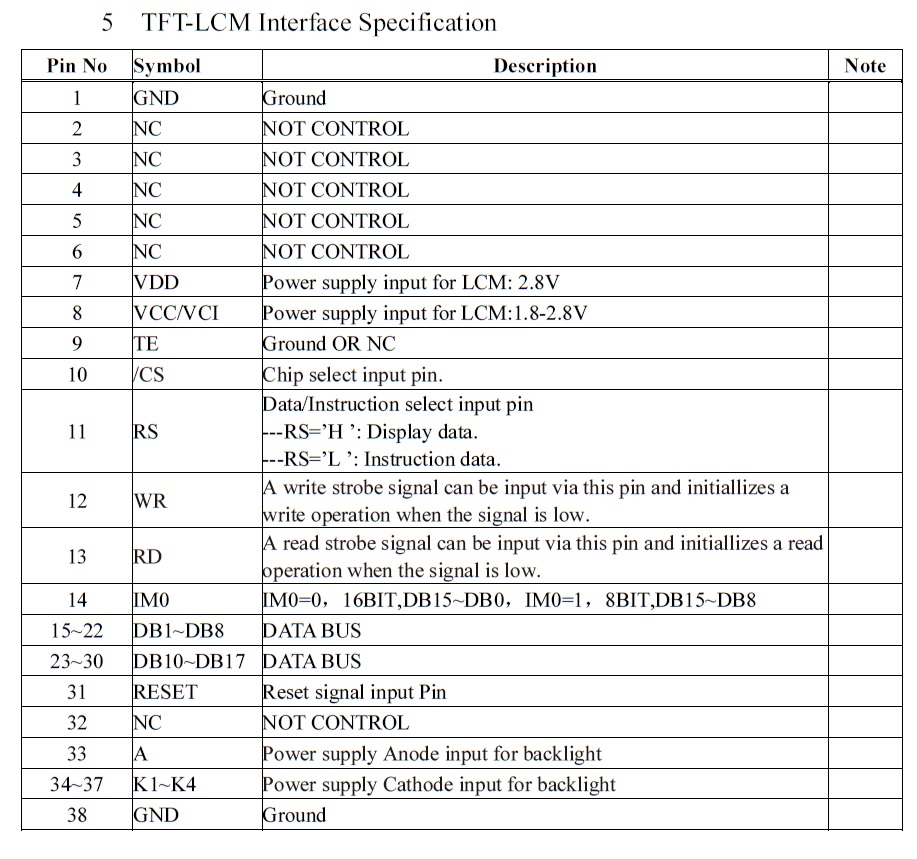

Interface: | MCU 8/16 Bit,FPC 38PIN,Pitch:0.7mm |
Ronbo Electronics Ltd., located at Dongguan, China, is one of the leading display suppliers. Its production line includes small to medium size LCD, TFT, and OLED modules for a variety of industrial and consumable application. We are one of the leading display providers of monochrome character LCD modules, graphic LCD modules, alphanumeric LCD panel & TFT modules. High-quality LCD modules are made based on our experienced engineering knowledge, well-managed supply chain.
Besides standard modules, our experience R&D staff can either support you value-added program or make customized product according to your specification
Moreover, our company has passed ISO 9001, ISO14001 certifications as well as RoHS.
Our website is http://www.ronboe.com
