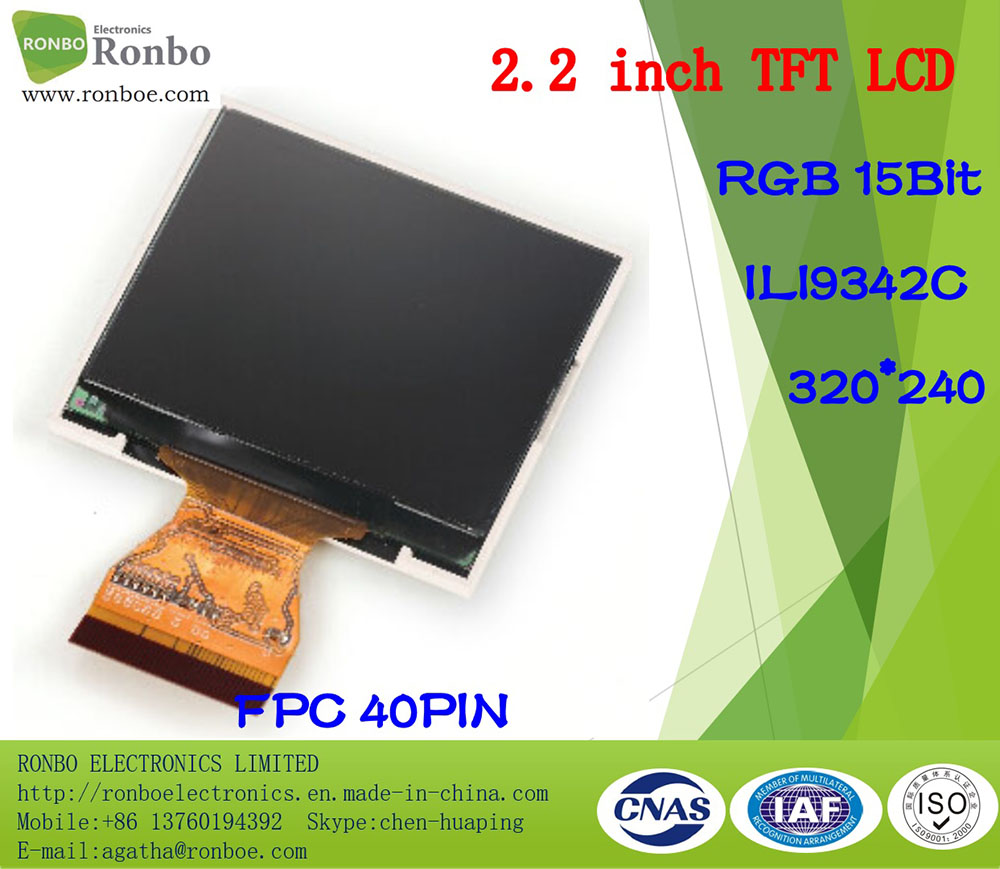

Model:2.2"320*250 RGB 15Bit TFT LCD Display,IC: ILI9342C,FPC 40PIN FOR POS, Doorbell, Medical, Cars

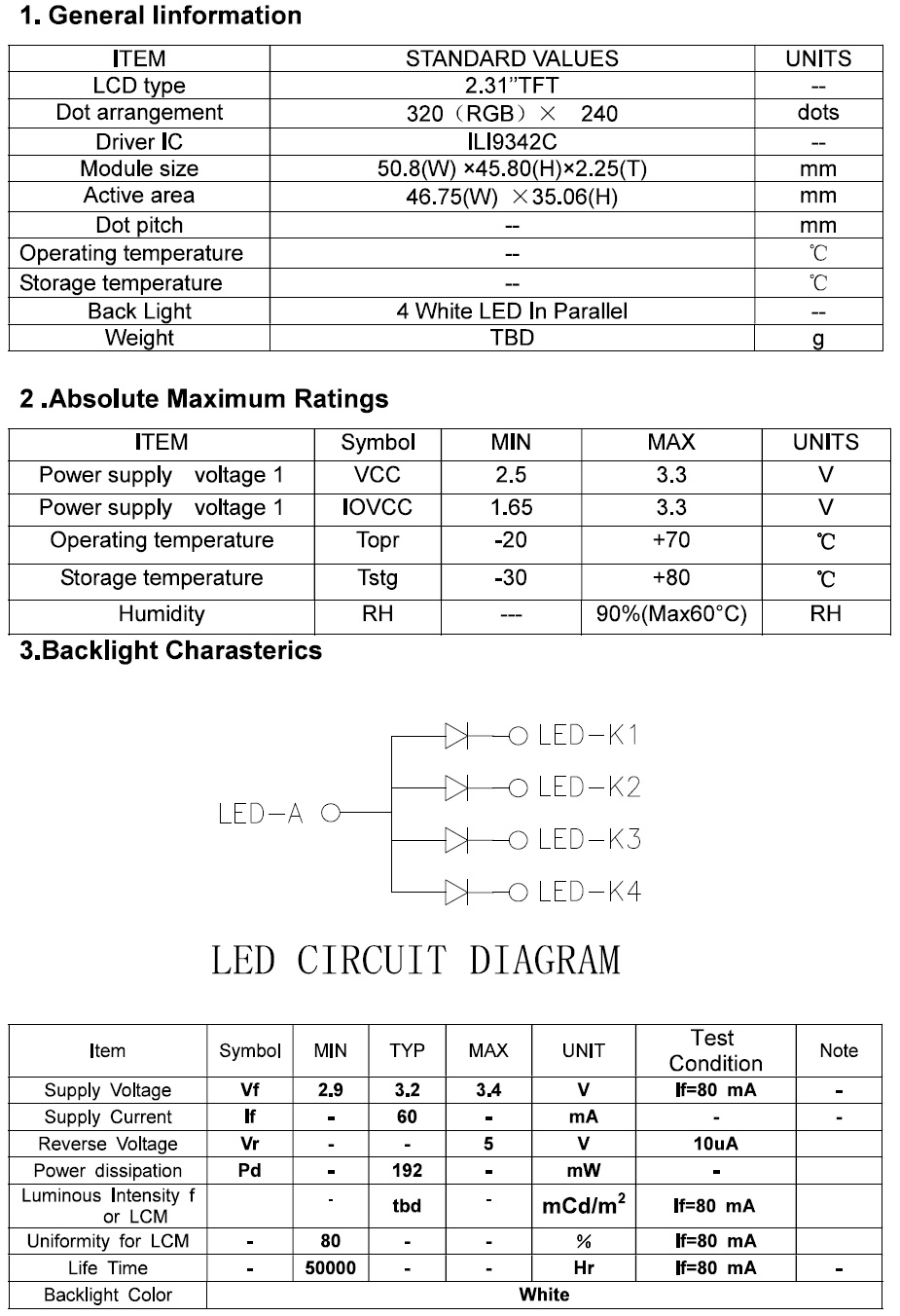

Specification:
Model NO.: | RB022D40N05A |
Screen Size: | 2.2" |
Resolution: | 320*240 |

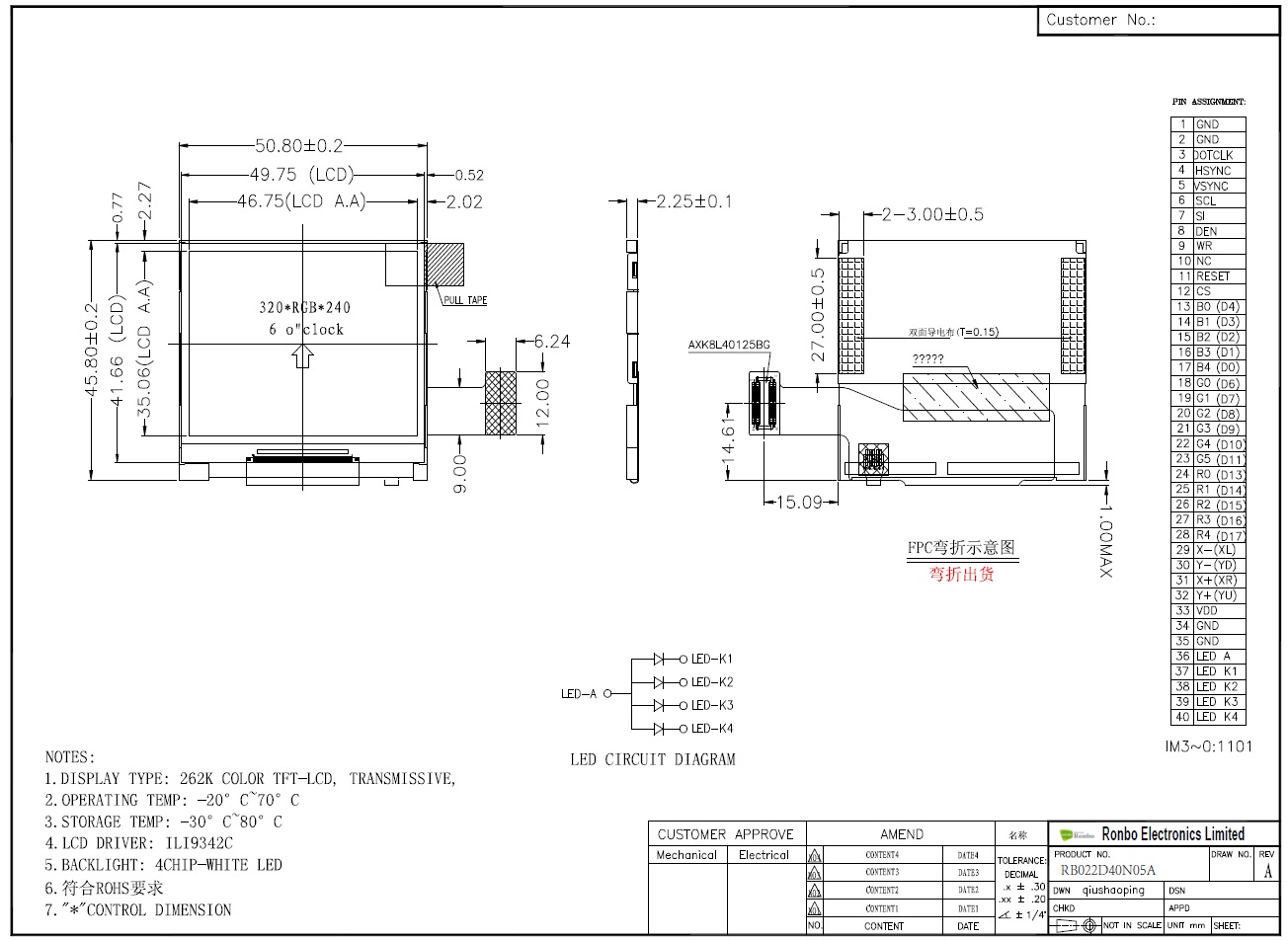

Module size(W*H*T): | 50.8*45.8*2.25mm |
Active area (W*H): | 33.85*43.56mm |
Controller: | ILI9342C |
Brightness: | 4 White LED |
Display Type: | 262K |
Operating Temperature:- | -20 ~ 70ºC |

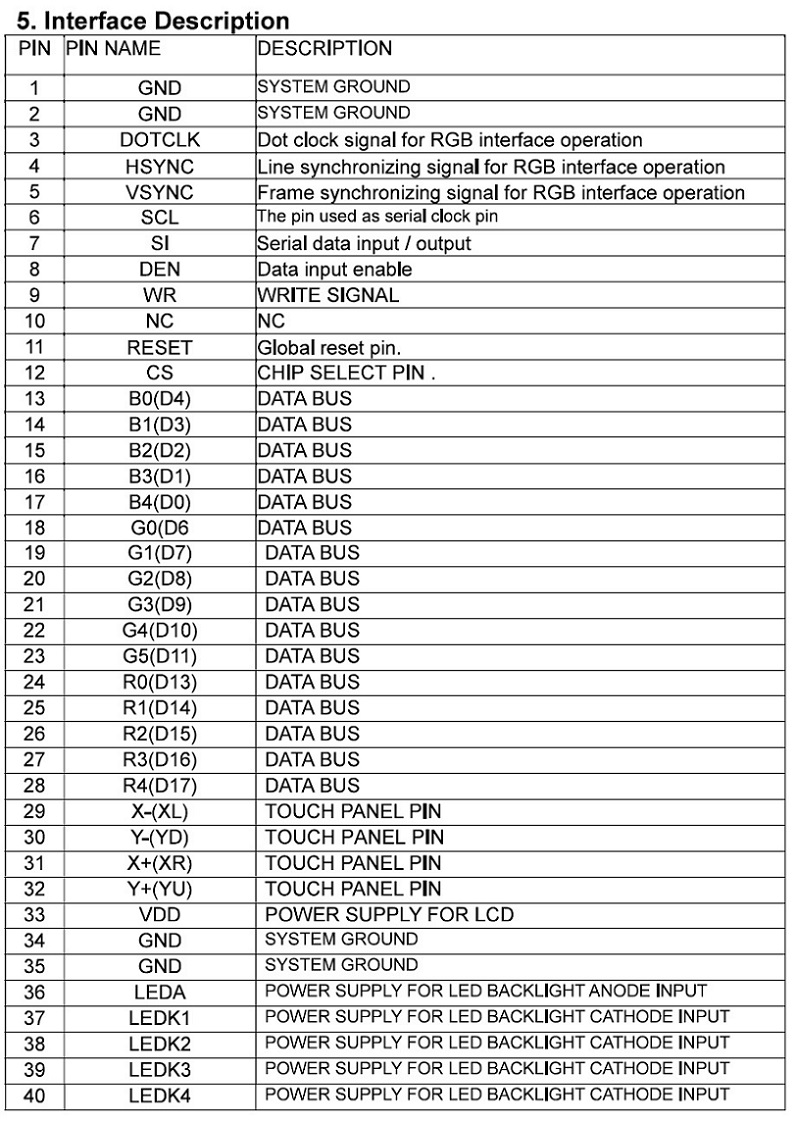

Interface: | RGB 18Bit,FPC 40PIN |
Ronbo Electronics Ltd., located at Dongguan, China, is one of the leading display suppliers. Its production line includes small to medium size LCD, TFT, and OLED modules for a variety of industrial and consumable application. We are one of the leading display providers of monochrome character LCD modules, graphic LCD modules, alphanumeric LCD panel & TFT modules. High-quality LCD modules are made based on our experienced engineering knowledge, well-managed supply chain.
Besides standard modules, our experience R&D staff can either support you value-added program or make customized product according to your specification
Moreover, our company has passed ISO 9001, ISO14001 certifications as well as RoHS.
Our website is http://www.ronboe.com
