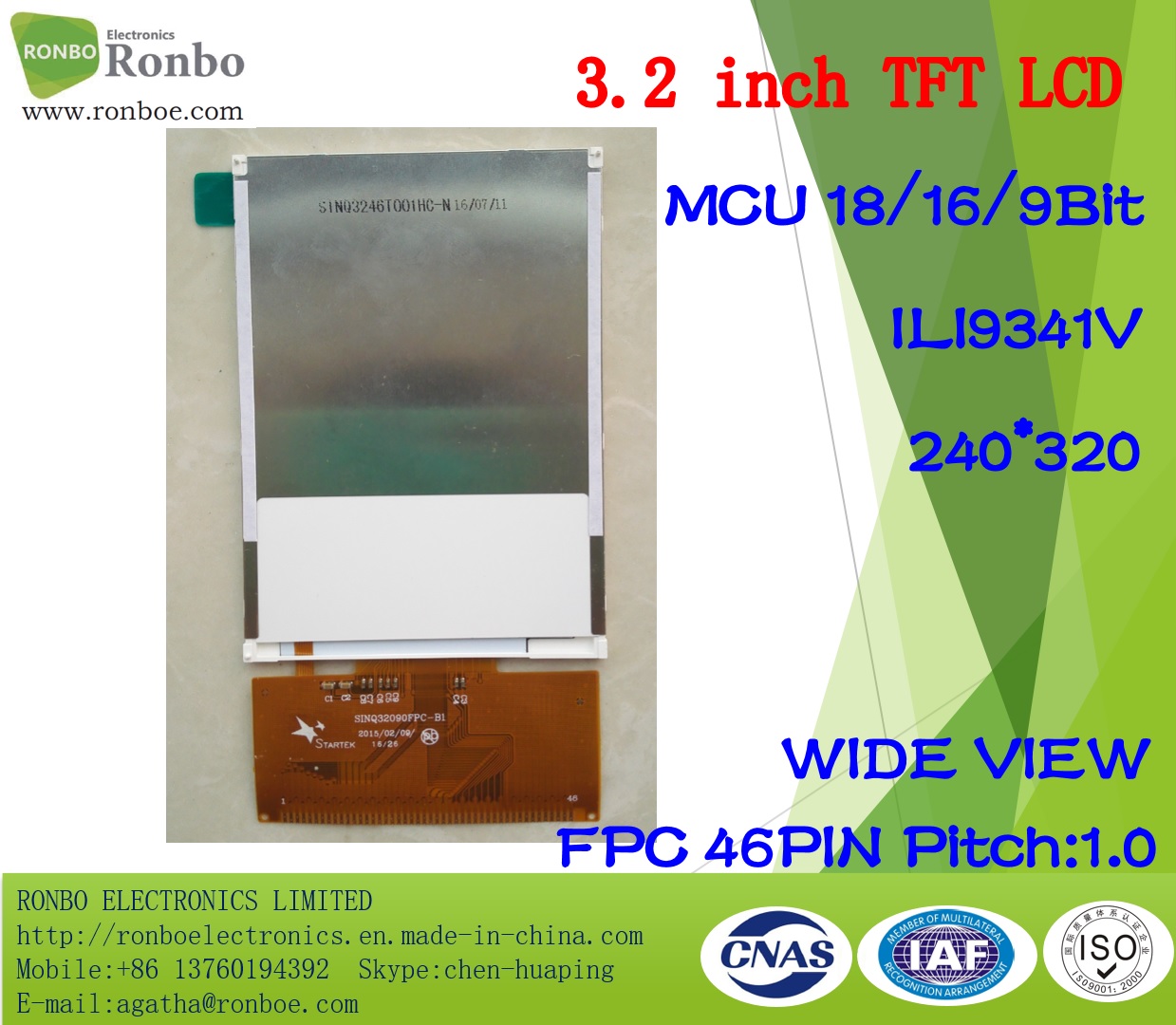

Model:3.2"240*320 RGB 18Bit TFT LCD Display,IC: ILI9341V,FPC 46PIN FOR POS, Doorbell, Medical, Cars

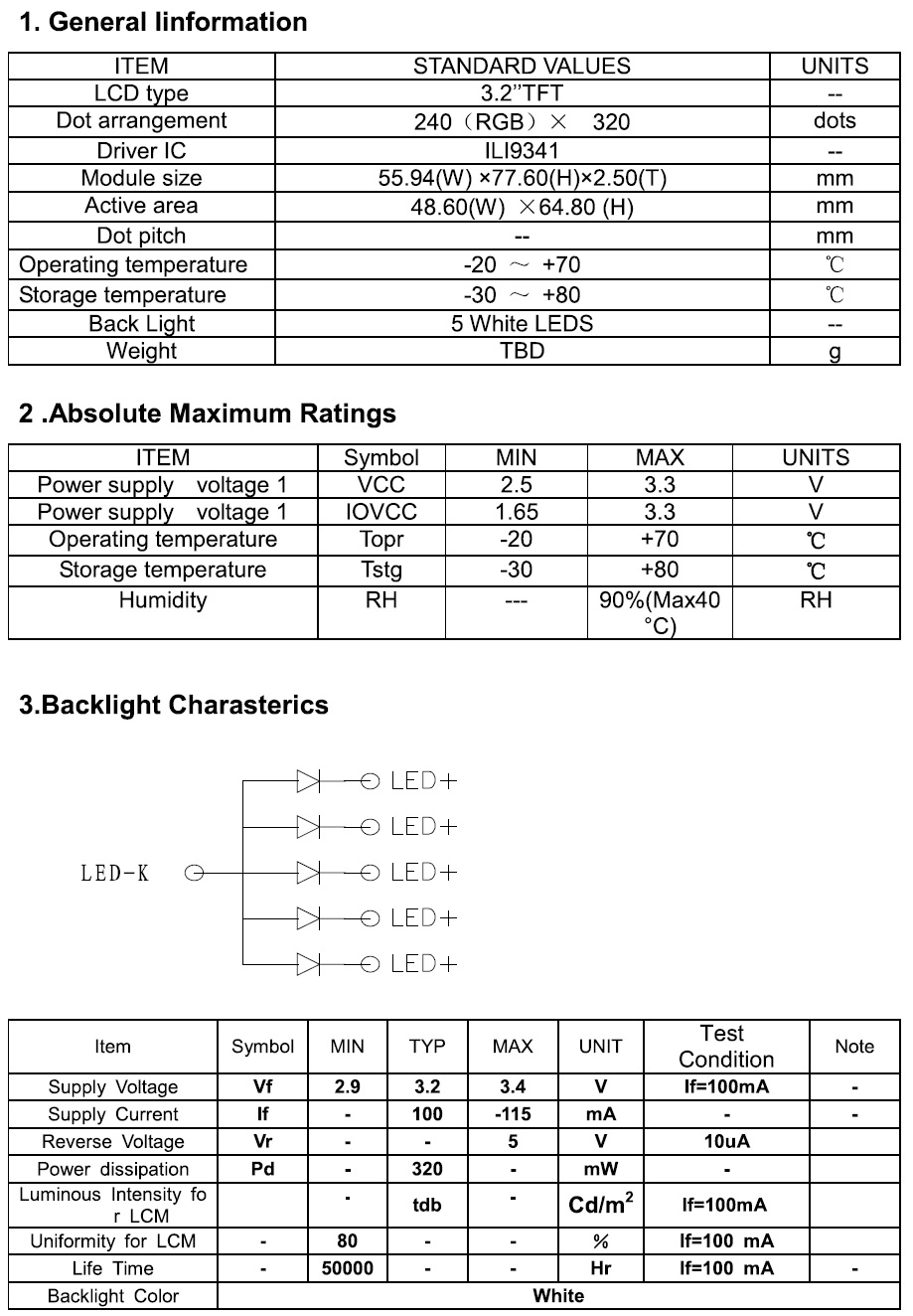

Specification:
Model NO.: | RB032D46N01A |
Screen Size: | 3.2" |
Resolution: | 240*320 |

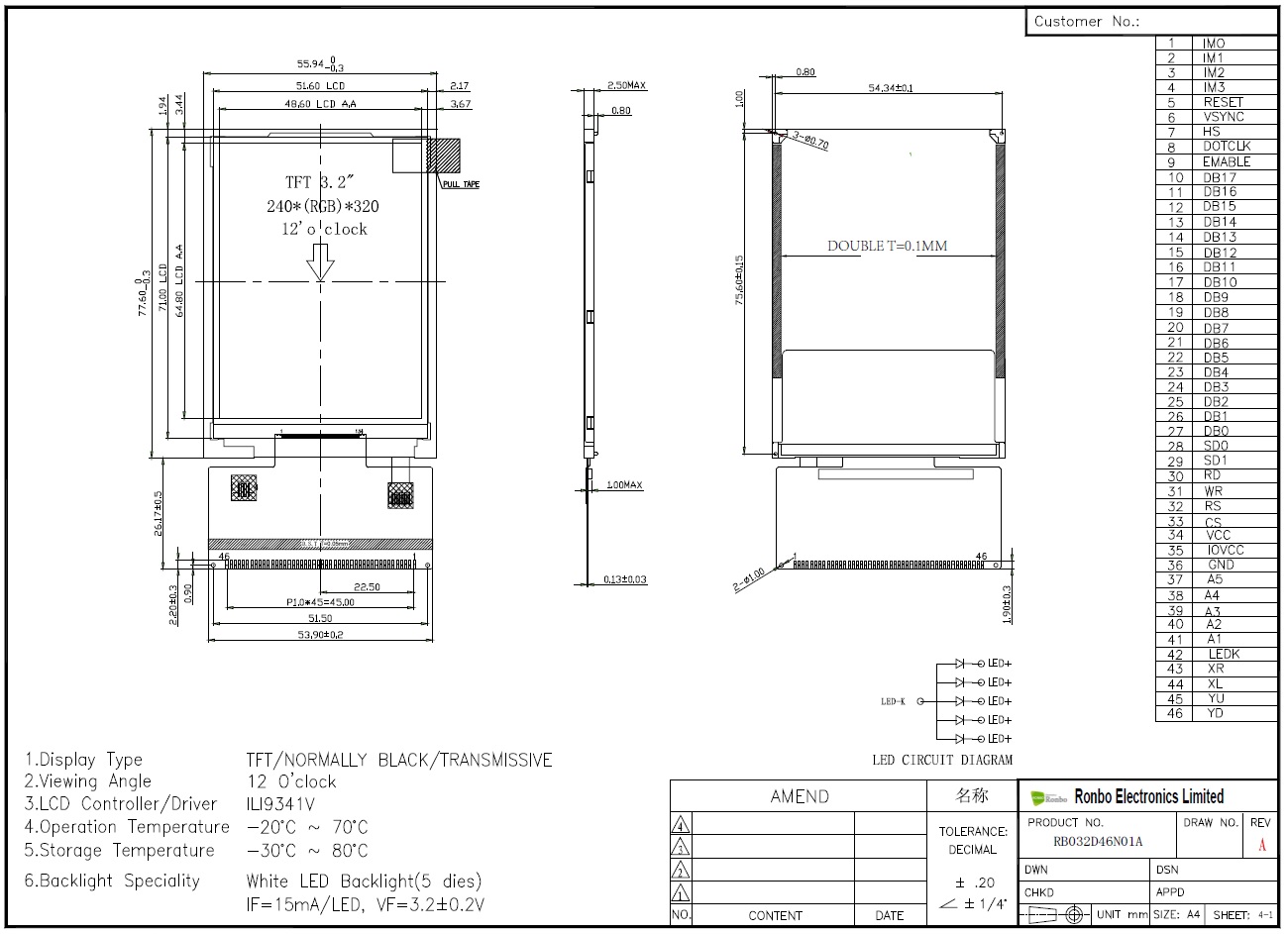

Module size(W*H*T): | 55.94*77.6*2.5mm |
Active area (W*H): | 48.6*64.8mm |
Controller: | ILI9341V |
Brightness: | 5 White LED |
Display Type: | 262K |
Operating Temperature: | -20 ~ 70ºC |

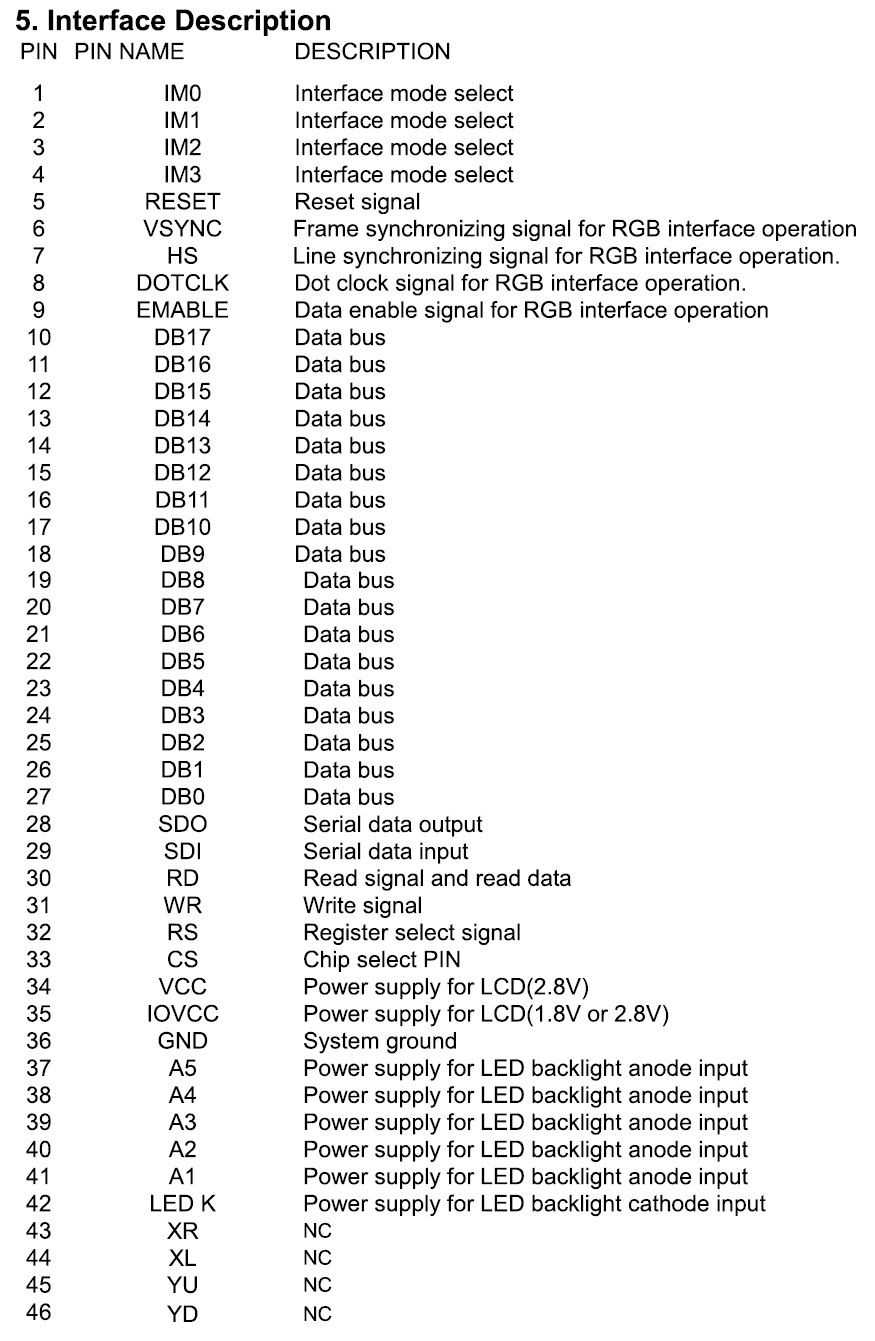

Interface: | MCU 18/16/9Bit,FPC 46PIN Pitch:1.0mm |
Ronbo Electronics Ltd.,located at DongGuang,China, is one of the leading display suppliers. Its production line includes small to medium size LCD, TFT, and OLED modules for a variety of industrial and consumable application. We are one of the leading display providers of monochrome character LCD modules, graphic LCD modules, alphanumeric LCD panel & TFT modules. High-quality LCD modules are made based on our experienced engineering knowledge, well-managed supply chain.
Besides standard modules, our experience R&D staff can either support you value-added program or make customized product according to your specification
Moreover, our company has passed ISO 9001, ISO14001 certifications as well as RoHS.
Our website is http://www.ronboe.com
