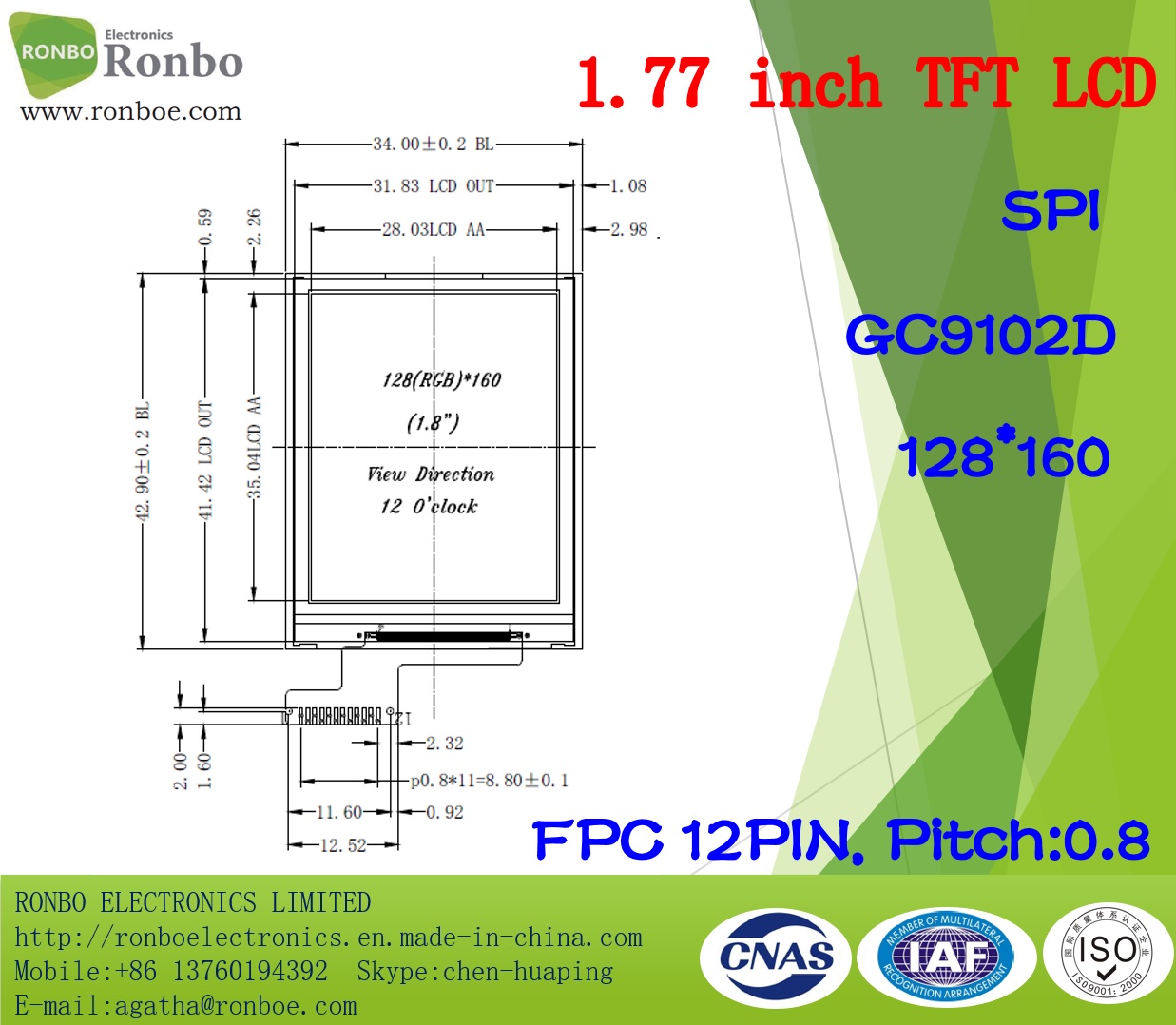

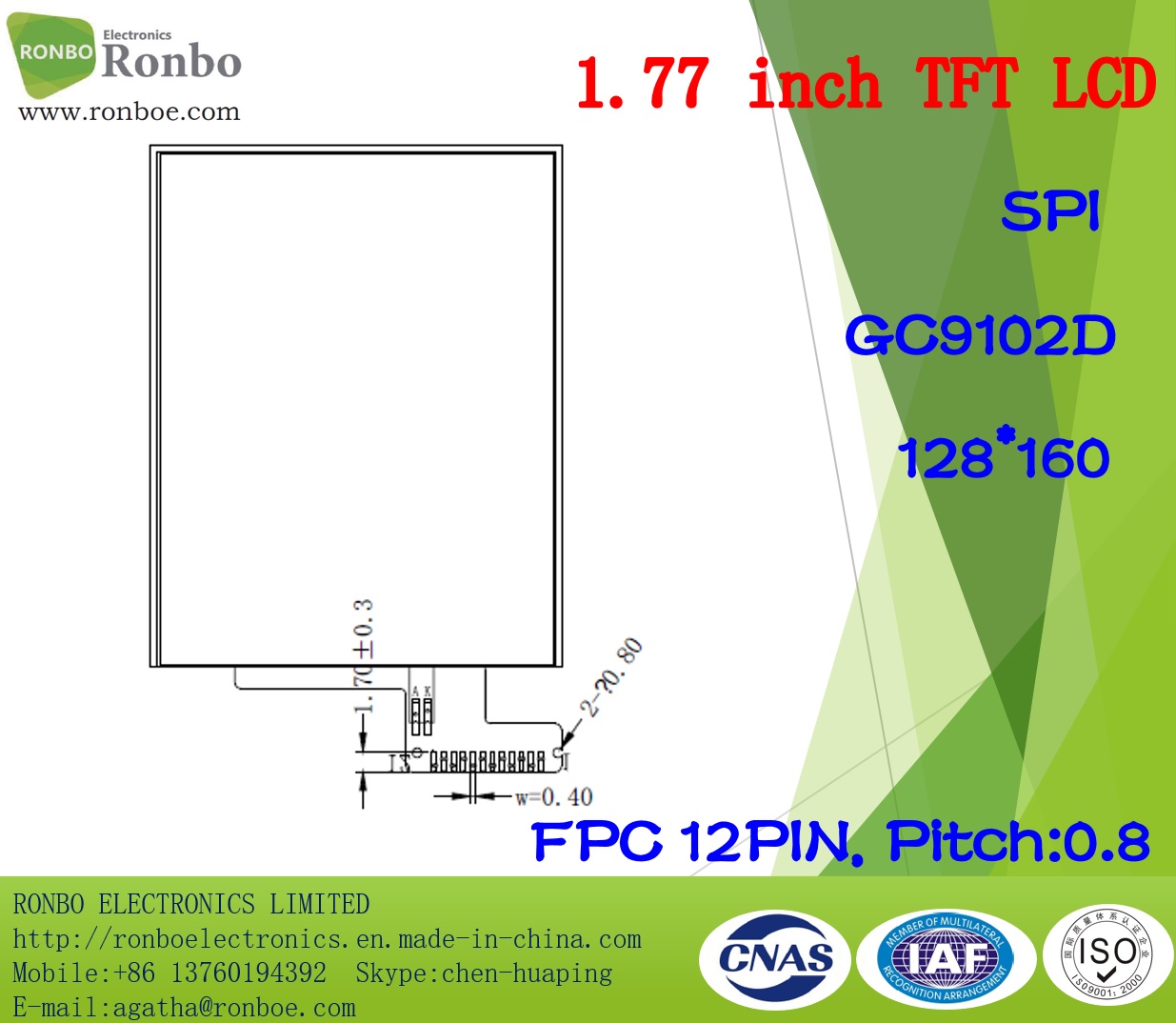

Model: 1.77 Inch 128*160 SPI 12Pin LCD Screen,GC9102D,Hign Brightness TFT LCD

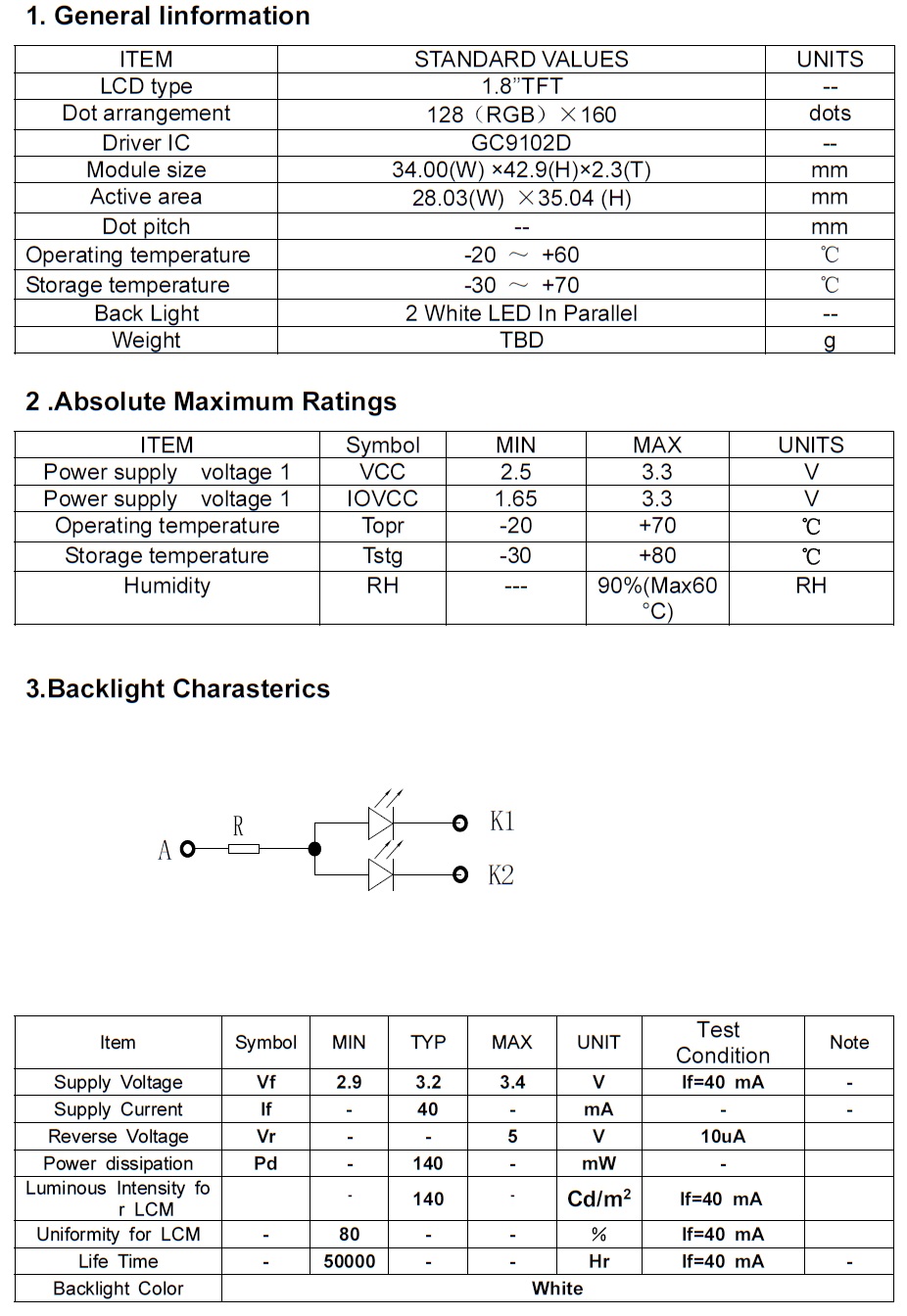

Specification:

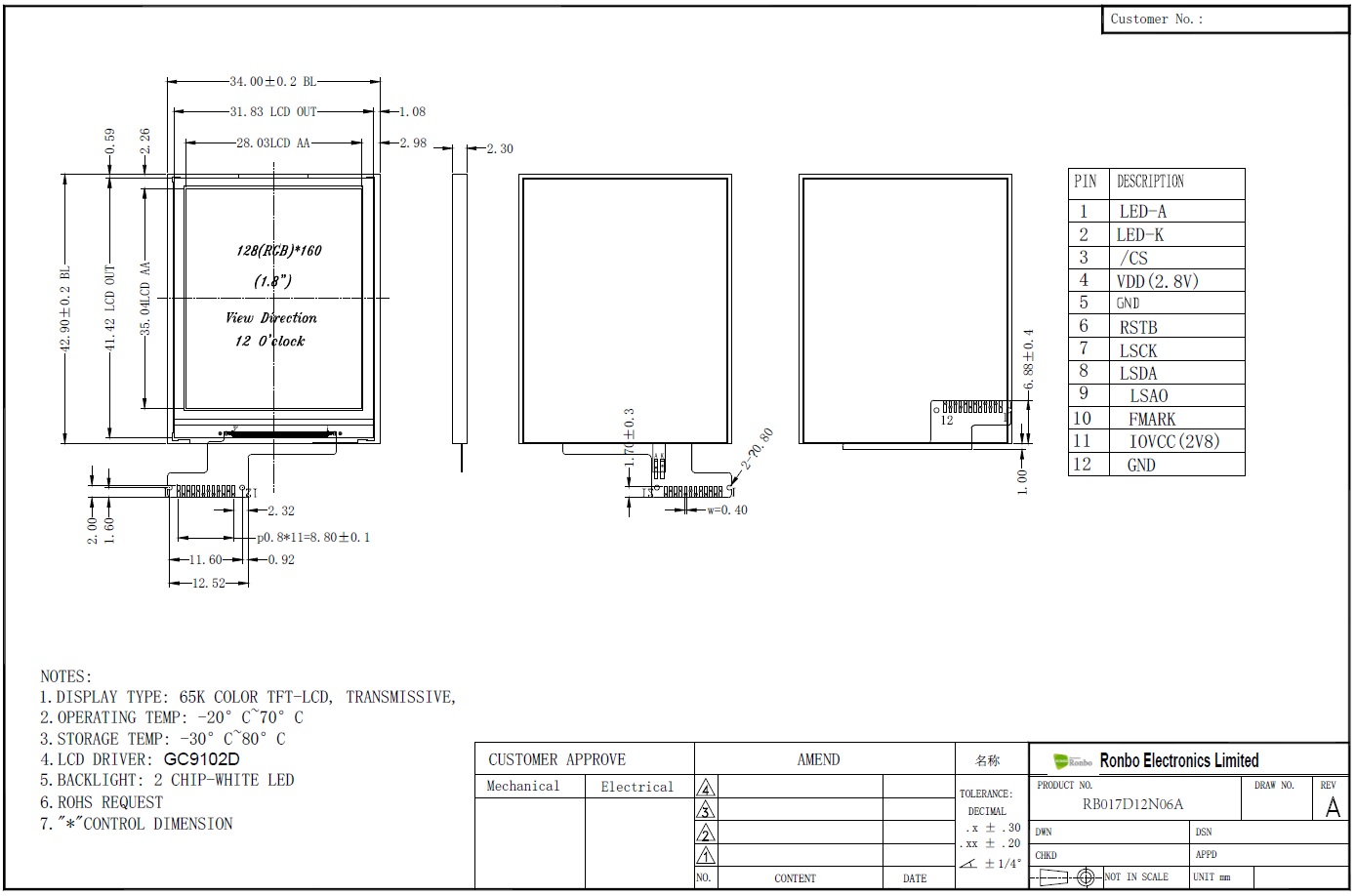

Model NO.: | RB017D12N06A |
Screen Size: | 1.77" |
Resolution: | 128*160 |
Module size(W*H*T): | 34.0*42.9*2.3mm |
Active area (W*H): | 28.03*35.04mm |
Controller: | GC9102D |
Brightness: | 2 White LED |
Display Type: | 65K |
Operating Temperature: | -20 ~ 70ºC |

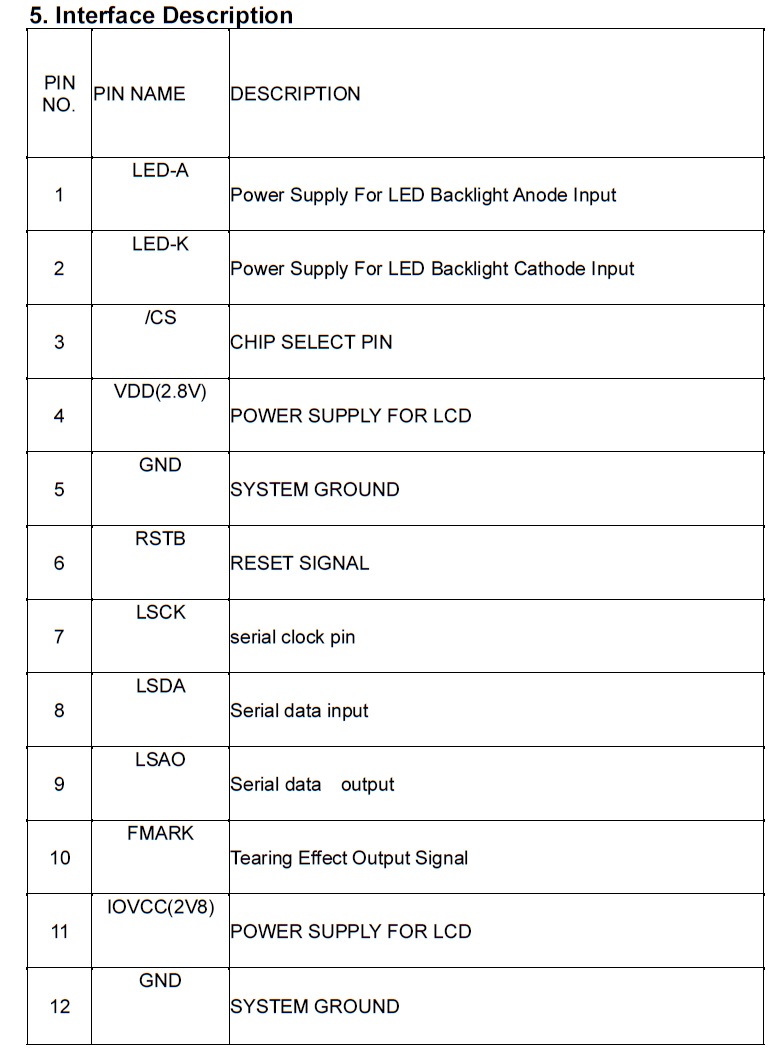

Interface: | SPI 4wire,FPC 12Pin,Pitch:0.8mm |
Ronbo Electronics Ltd., located at Dongguan, China, is one of the leading display suppliers. Its production line includes small to medium size LCD, TFT, and OLED modules for a variety of industrial and consumable application. We are one of the leading display providers of monochrome character LCD modules, graphic LCD modules, alphanumeric LCD panel & TFT modules. High-quality LCD modules are made based on our experienced engineering knowledge, well-managed supply chain.
Besides standard modules, our experience R&D staff can either support you value-added program or make customized product according to your specification
Moreover, our company has passed ISO 9001, ISO14001 certifications as well as RoHS.
