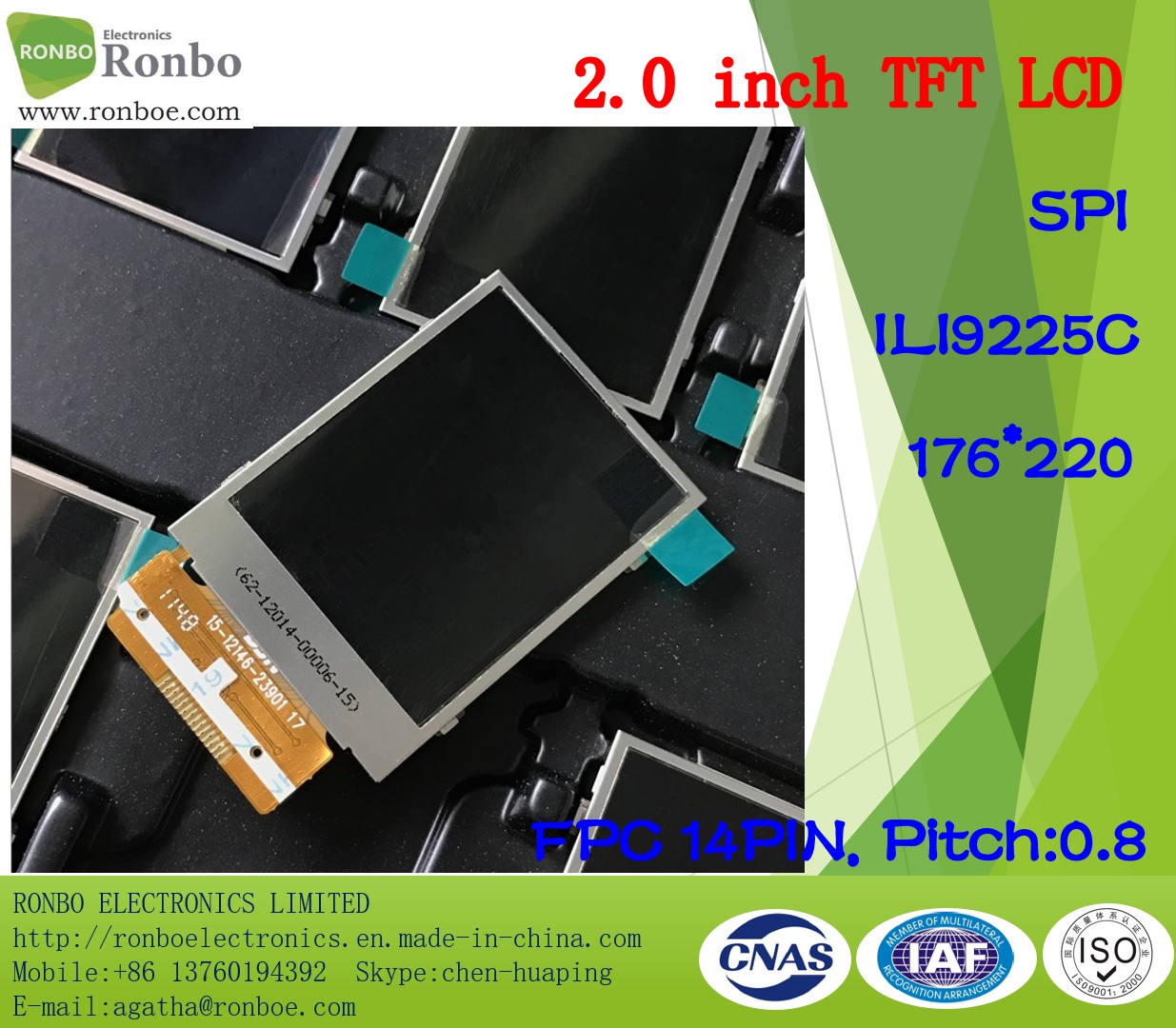

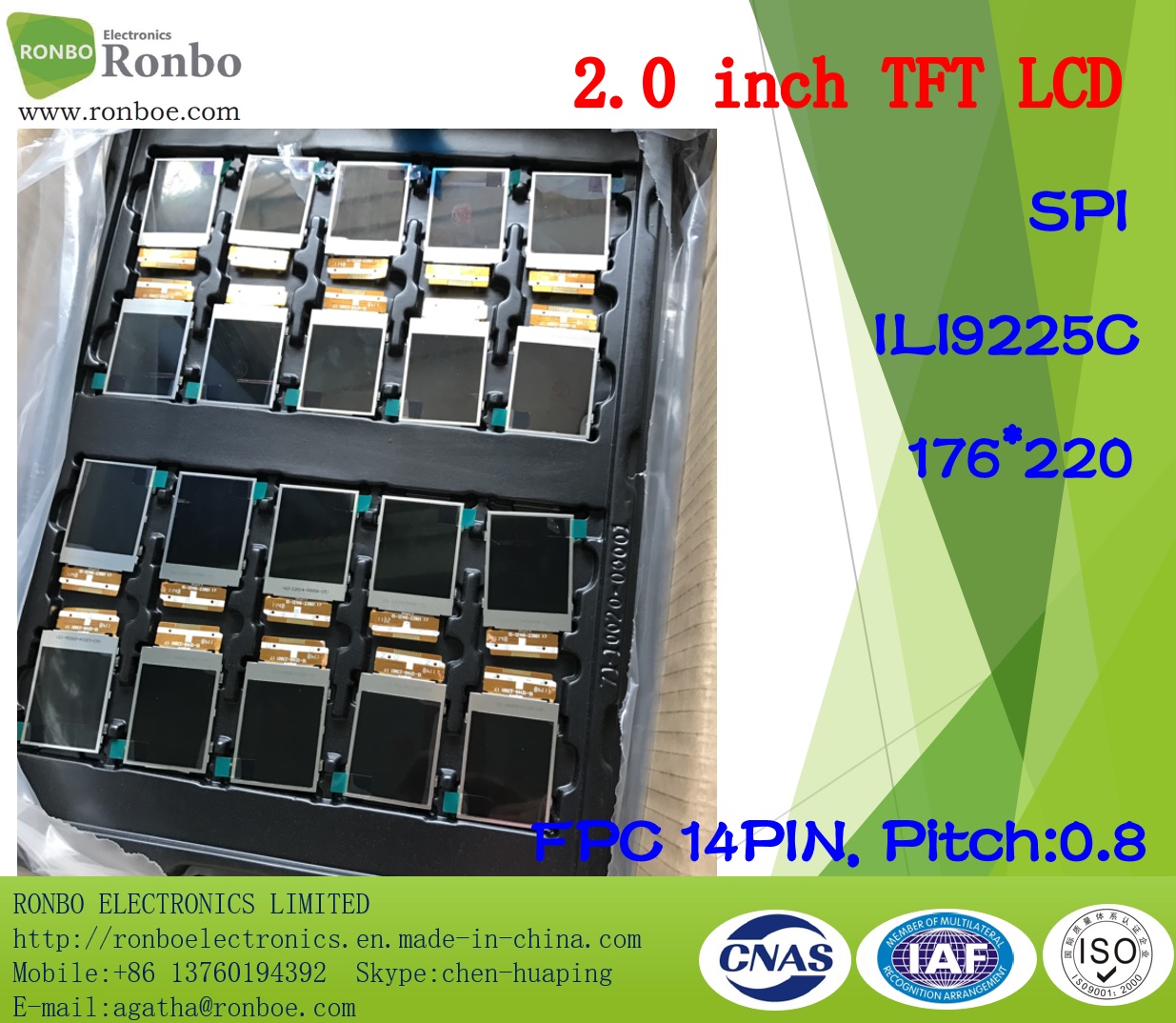

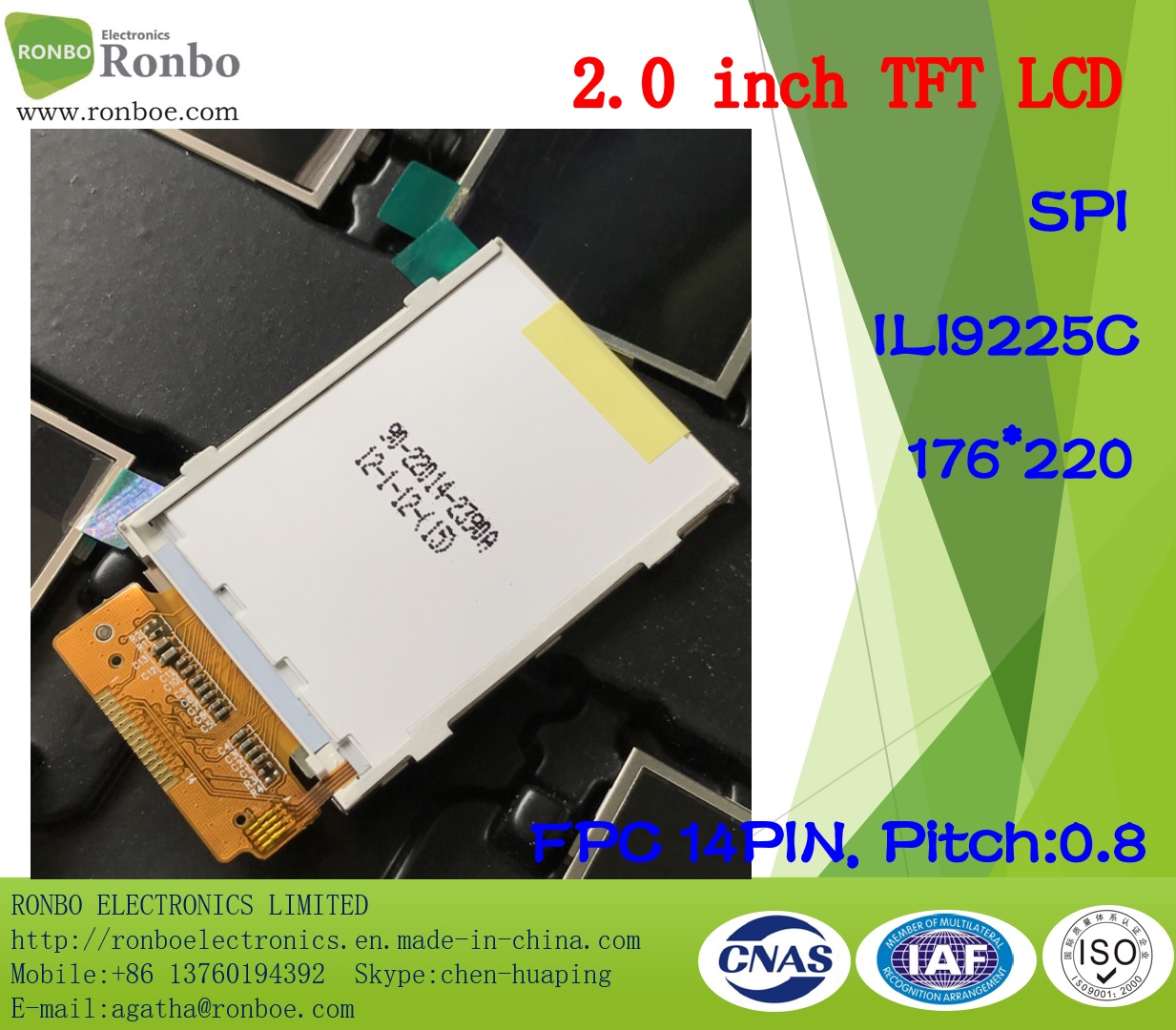

Model: 2.0 Inch 176*220 SPI 14Pin Wide Viewing Angle TFT LCD Screen

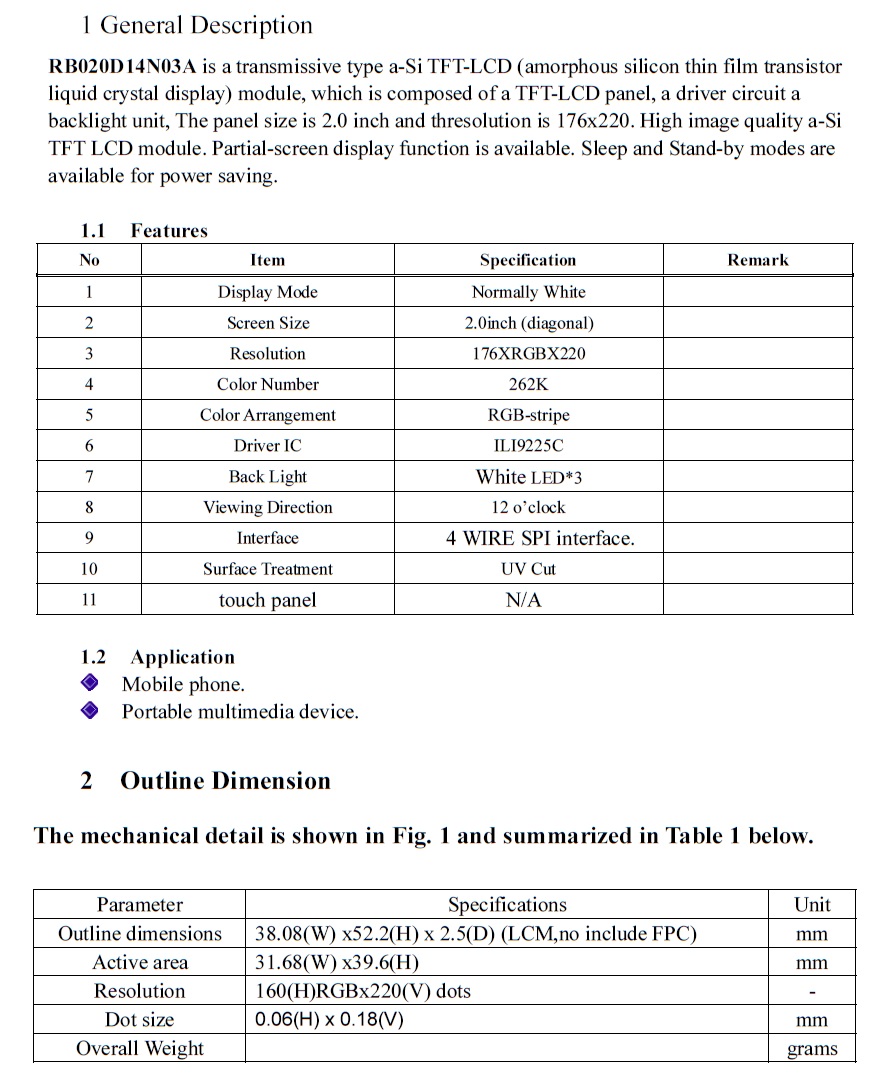

Specification:
Model NO.: | RB020D14N03A |
Screen Size: | 2.0" |
Resolution: | 176*220 |

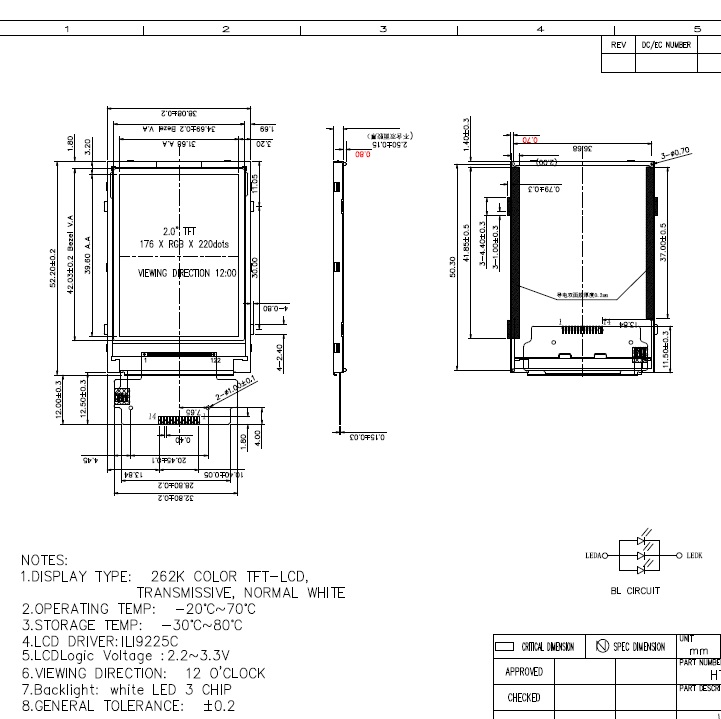

Module size(W*H*T): | 38.08(W) x52.2(H) x 2.5(D) mm |
Active area (W*H): | 31.68*39.6 mm |
Controller: | ILI9225C |
Brightness: | 3 White LED |
Display Type: | 262K |
Operating Temperature: | -20 ~ 70ºC |

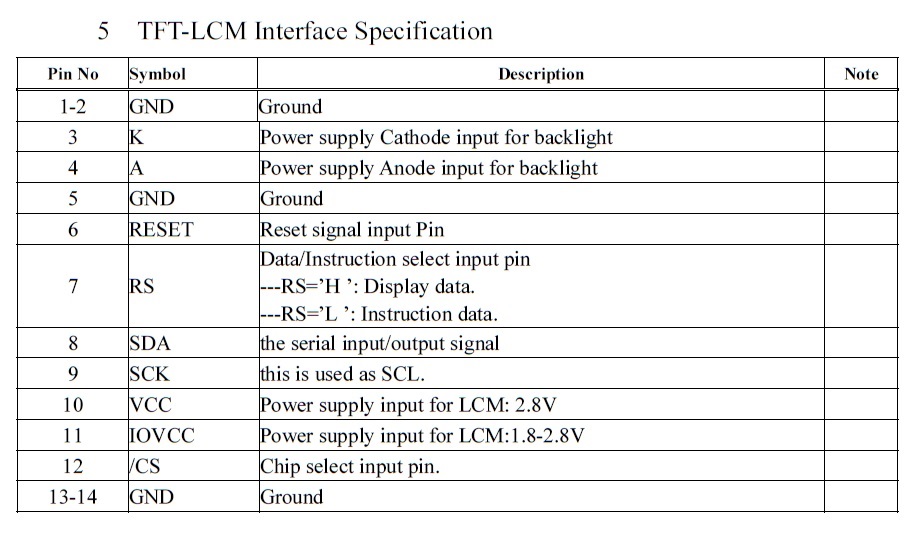

Interface: | SPI 4wire,FPC 14PIN,Pitch:0.8mm |
Ronbo Electronics Ltd., located at Dongguan, China, is one of the leading display suppliers. Its production line includes small to medium size LCD, TFT, and OLED modules for a variety of industrial and consumable application. We are one of the leading display providers of monochrome character LCD modules, graphic LCD modules, alphanumeric LCD panel & TFT modules. High-quality LCD modules are made based on our experienced engineering knowledge, well-managed supply chain.
Besides standard modules, our experience R&D staff can either support you value-added program or make customized product according to your specification
Moreover, our company has passed ISO 9001, ISO14001 certifications as well as RoHS.
Our website is http://www.ronboe.com
RB101L40N09A
RB101D50N05A
RB101D50N04A
RB101D50N06A
RB090D50N02A
ZJ080NA-08A
RB080D50N03A
RB080D50N02A
Its production line includes small to medium size LCD, TFTand OLED modules for a variety of industrial and consumable application.
