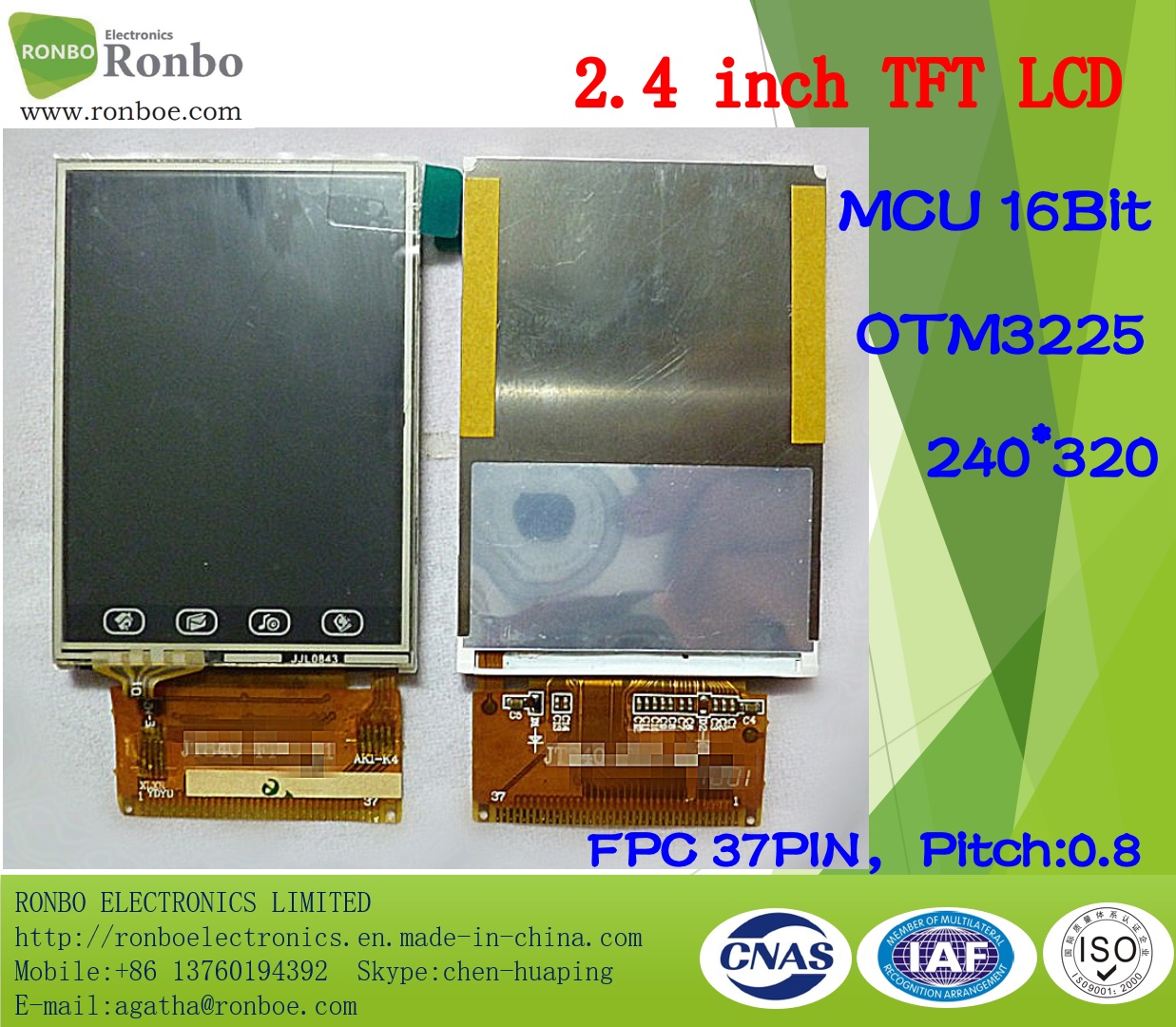

Model: 2.4" 240*320 MCU 37Pin TFT LCD Display With TOUCH SCREEN

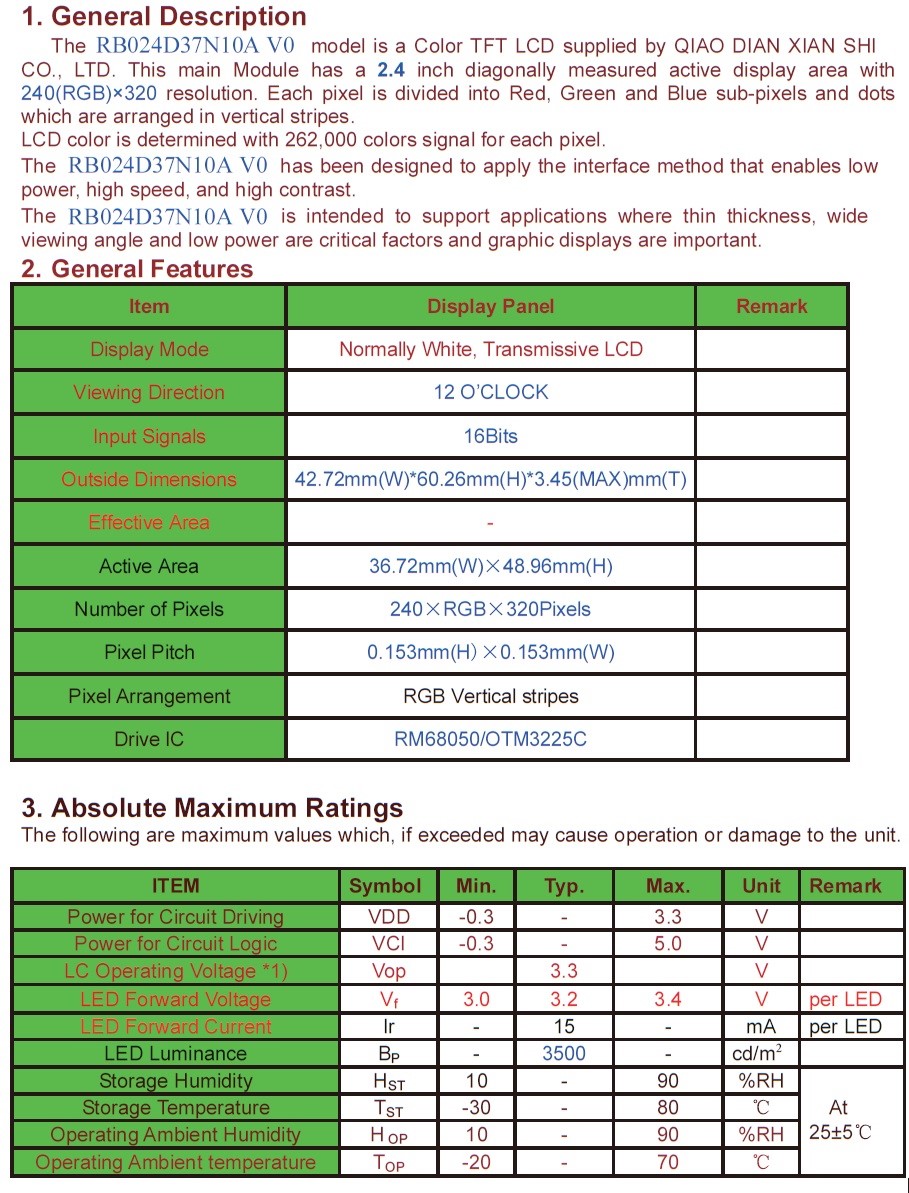

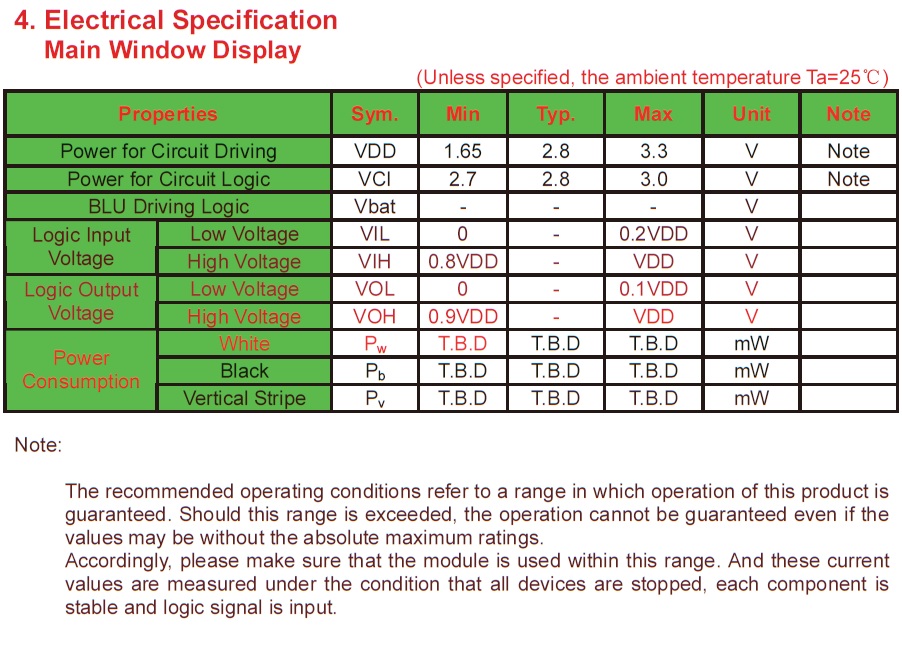

Specification:
Model NO.: | RB024D37N10A |
Screen Size: | 2.4" |
Resolution: | 240*320 |

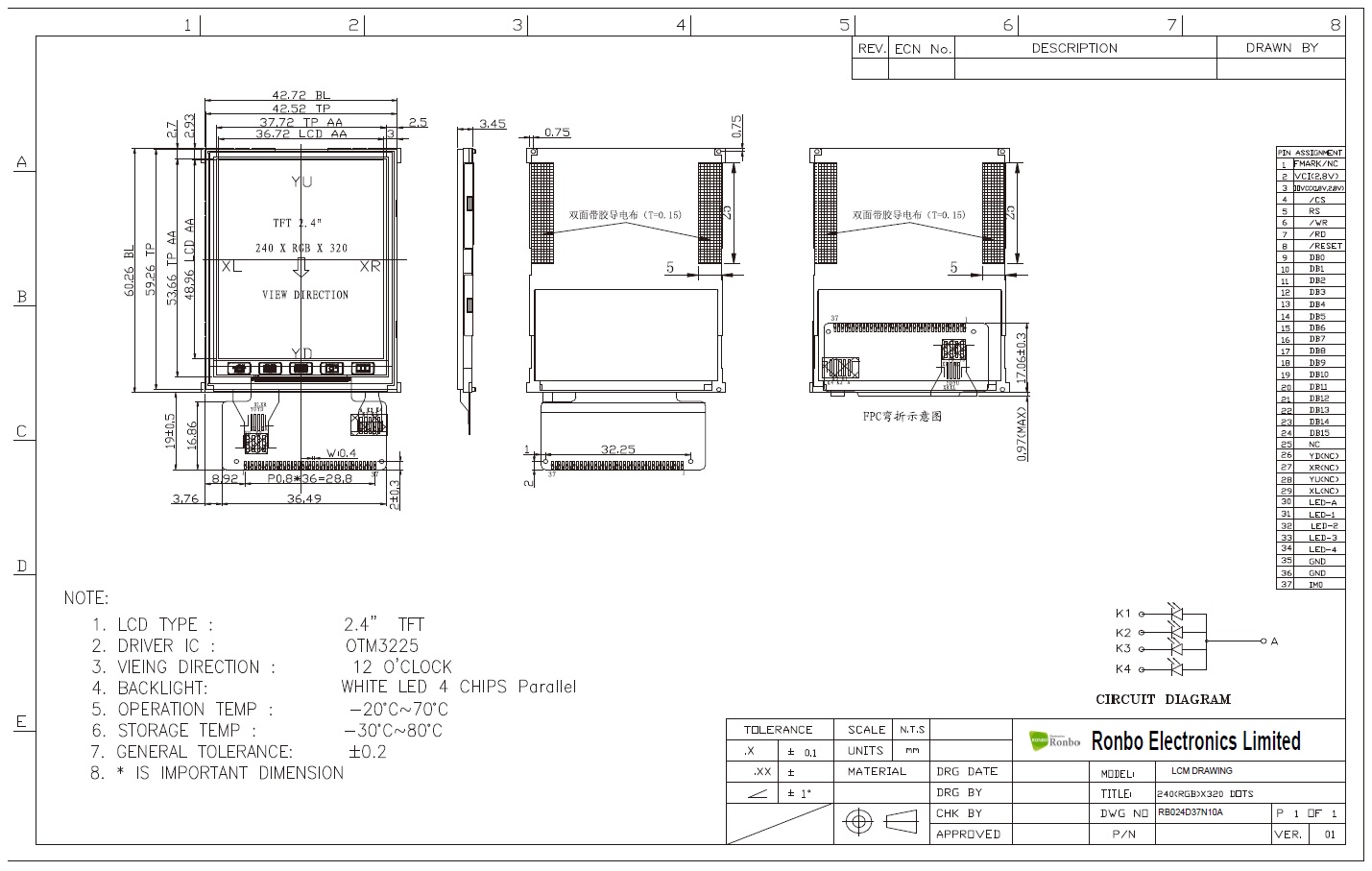

Module size(W*H*T): | 42.72*60.26*3.45mm |
Active area (W*H): | 36.72*48.96mm |
Controller: | RB024D37N10A |
Brightness: | 4 White LED |
Display Type: | 262K |
Operating Temperature:- | -20 ~ 70ºC |

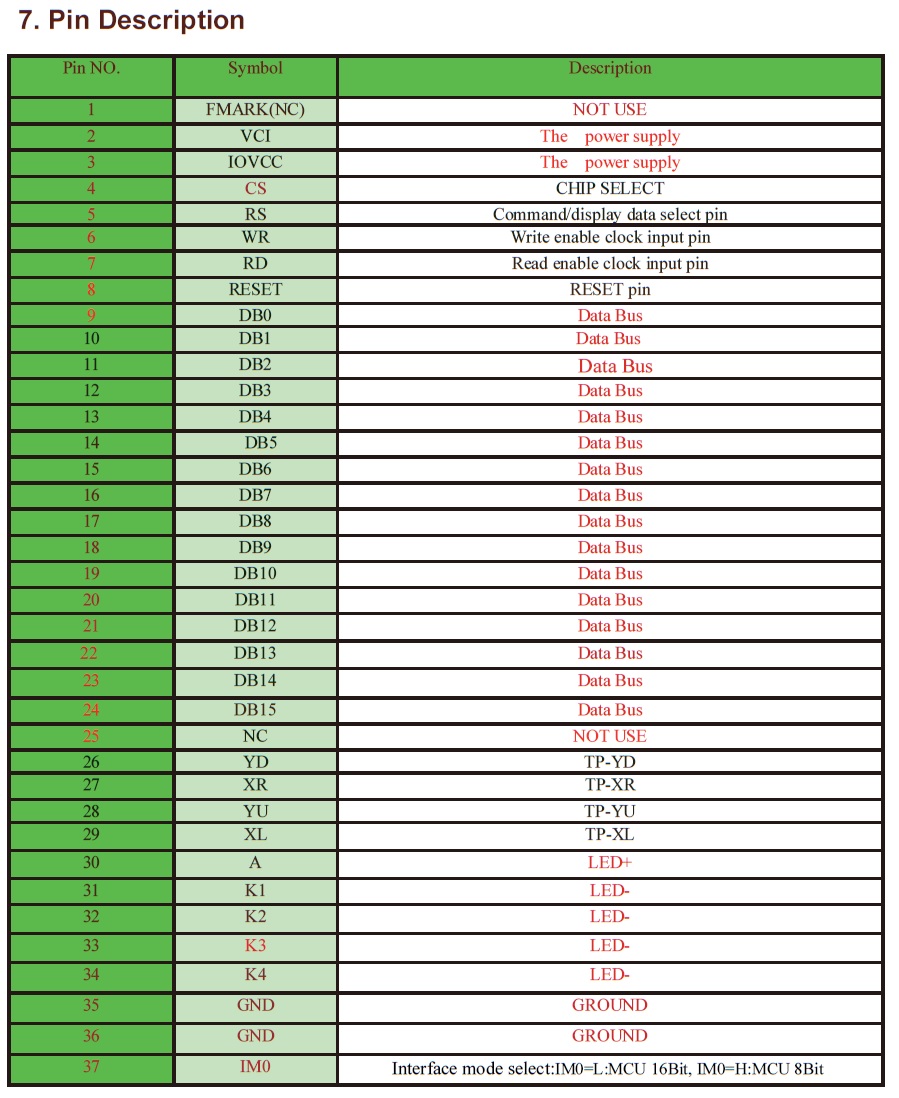

Interface: | MCU 16Bit,FPC 37PIN,Pitch:0.8mm |
Ronbo Electronics Ltd., located at Dongguan, China, is one of the leading display suppliers. Its production line includes small to medium size LCD, TFT, and OLED modules for a variety of industrial and consumable application. We are one of the leading display providers of monochrome character LCD modules, graphic LCD modules, alphanumeric LCD panel & TFT modules. High-quality LCD modules are made based on our experienced engineering knowledge, well-managed supply chain.
Besides standard modules, our experience R&D staff can either support you value-added program or make customized product according to your specification
Moreover, our company has passed ISO 9001, ISO14001 certifications as well as RoHS.
Our website is http://www.ronboe.com
