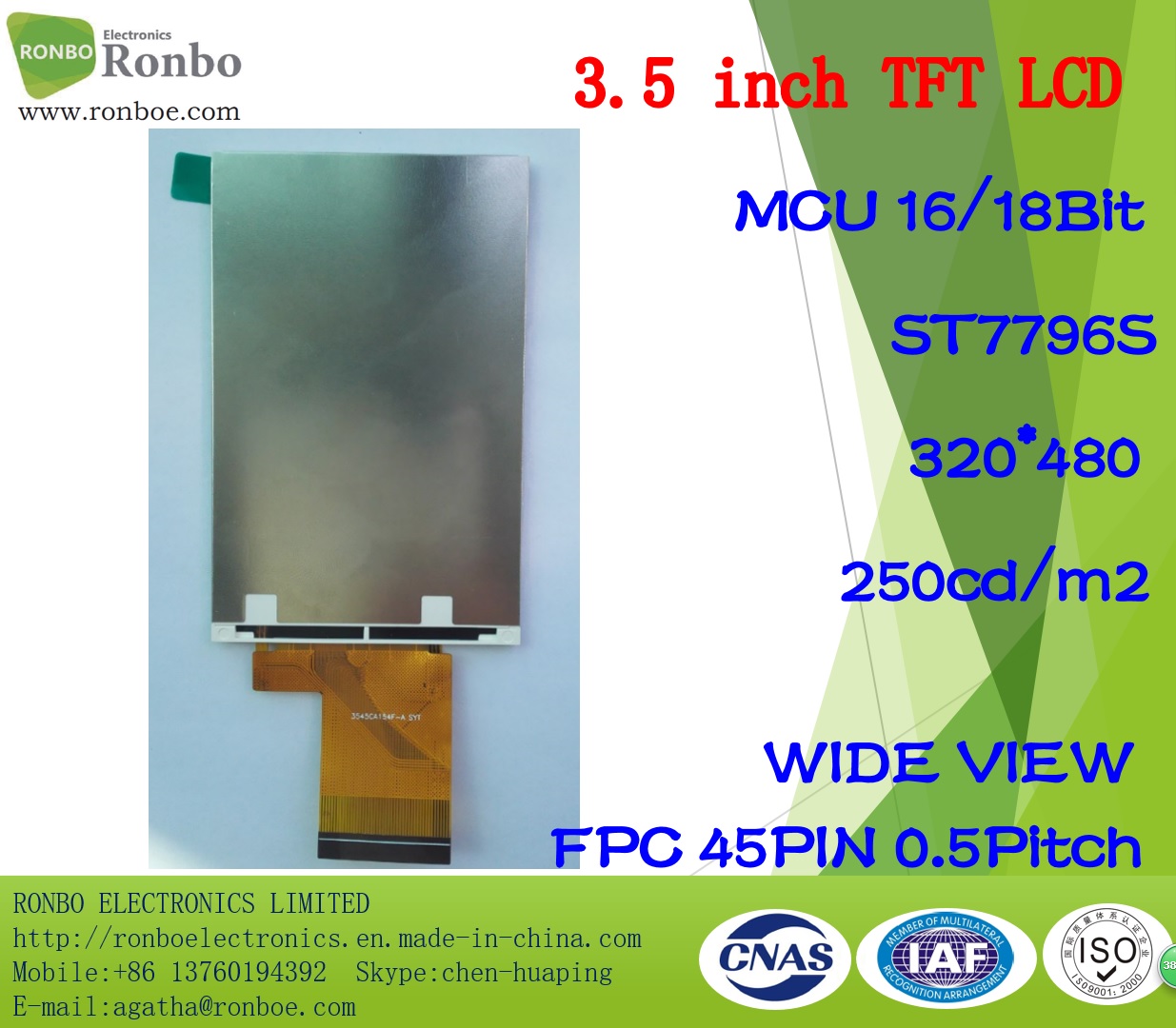

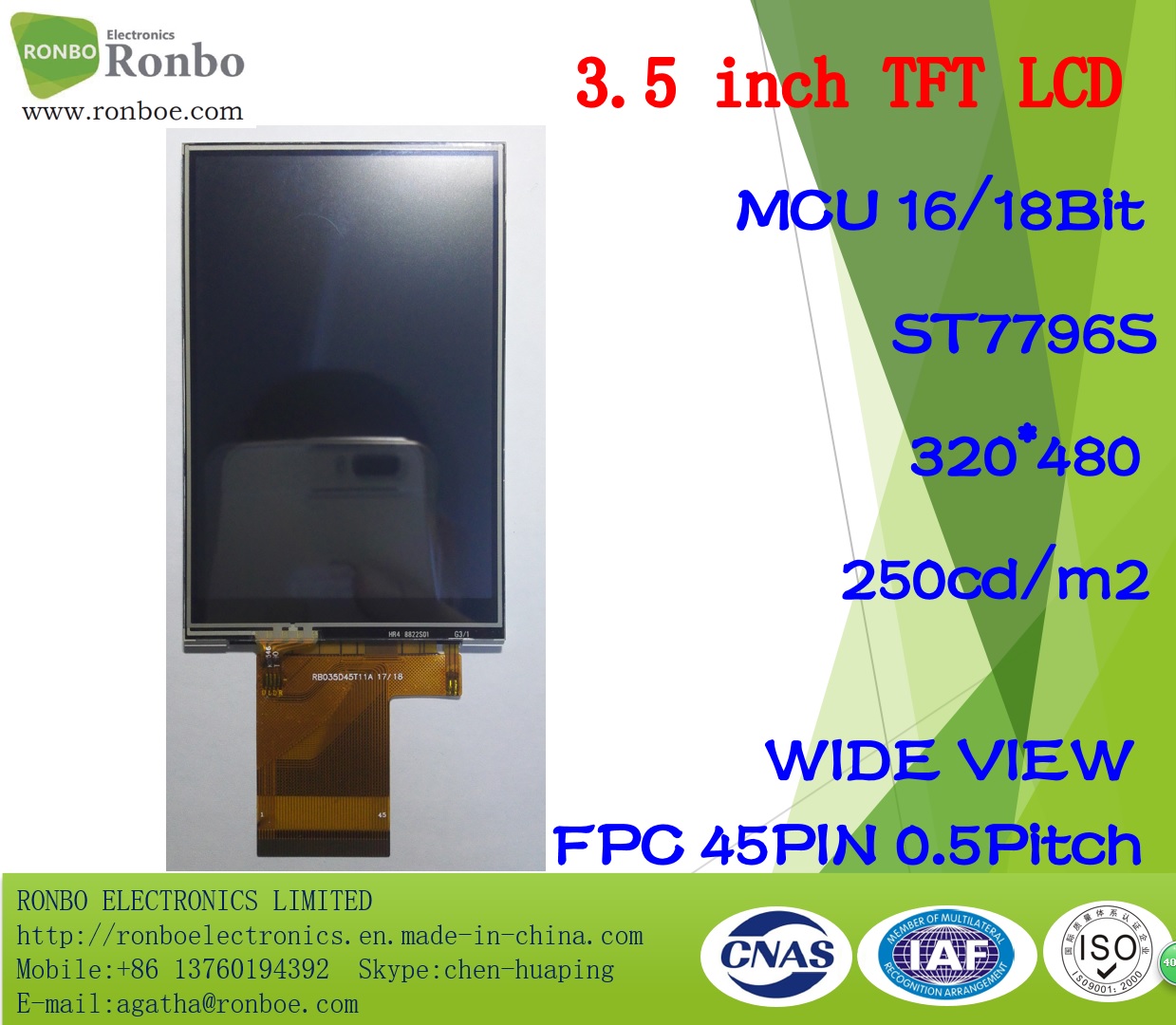

Model: 3.5" 320X480 MCU 16/18Bit 45pin ODM LCD Display With Touch Screen
Specification:
Model NO.: | RB035D45T11A |
Screen Size: | 3.5" |
Resolution: | 320*480 |

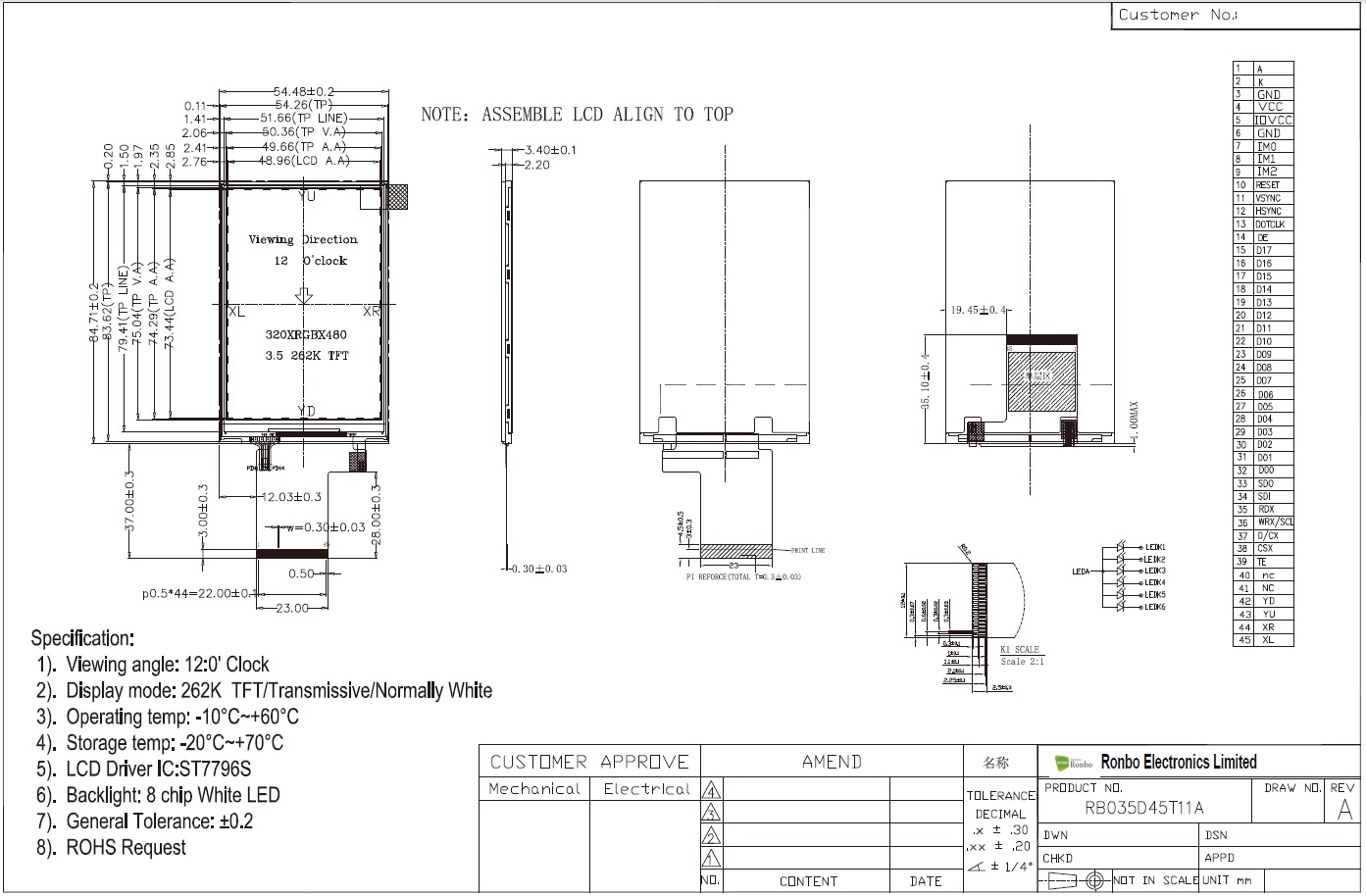

Module size(W*H*T): | 54.48*84.71*3.4mm |
Active area (W*H): | 48.96*73.44mm |
Controller: | ST7796S |
Brightness: | 6 White LED |
Display Type: | 262K |
Operating Temperature: | -20 ~ 70ºC |

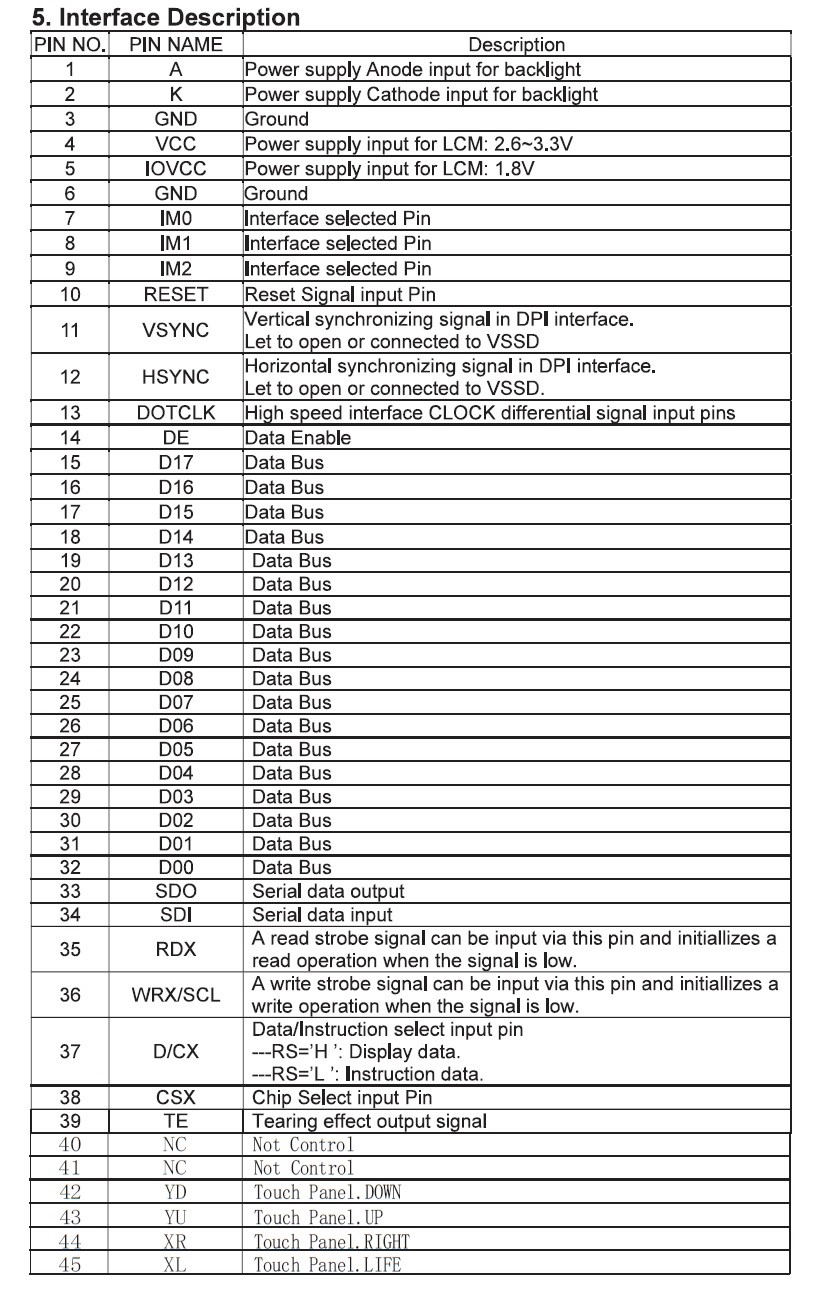

Interface: | SPI&MCU 16/18Bit,FPC 45PIN 0.5Pitch |
Ronbo Electronics Ltd., located at Dongguan, China, is one of the leading display suppliers. Its production line includes small to medium size LCD, TFT, and OLED modules for a variety of industrial and consumable application. We are one of the leading display providers of monochrome character LCD modules, graphic LCD modules, alphanumeric LCD panel & TFT modules. High-quality LCD modules are made based on our experienced engineering knowledge, well-managed supply chain.
Besides standard modules, our experience R&D staff can either support you value-added program or make customized product according to your specification
Moreover, our company has passed ISO 9001, ISO14001 certifications as well as RoHS.
Our website is http://www.ronboe.com
