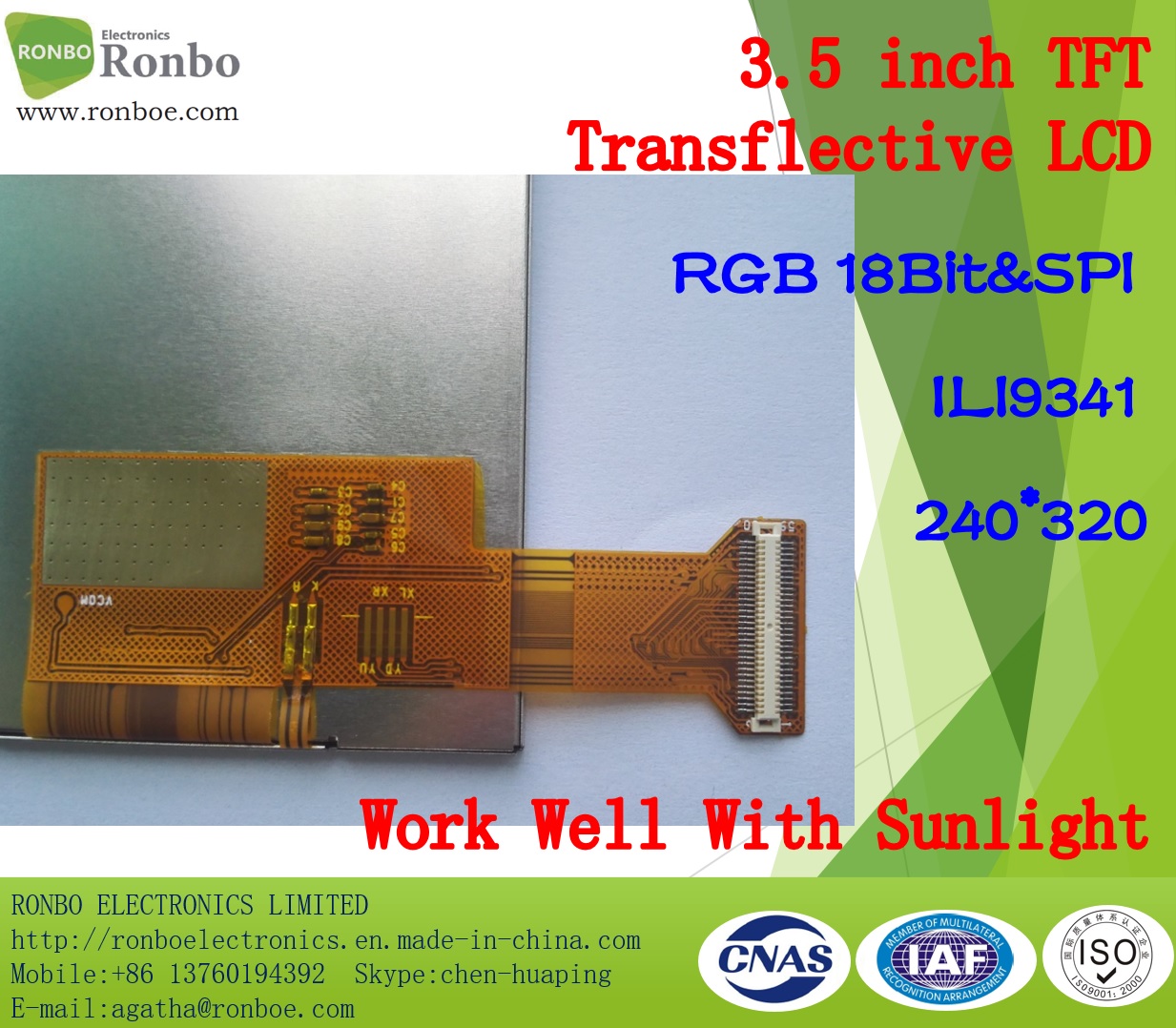

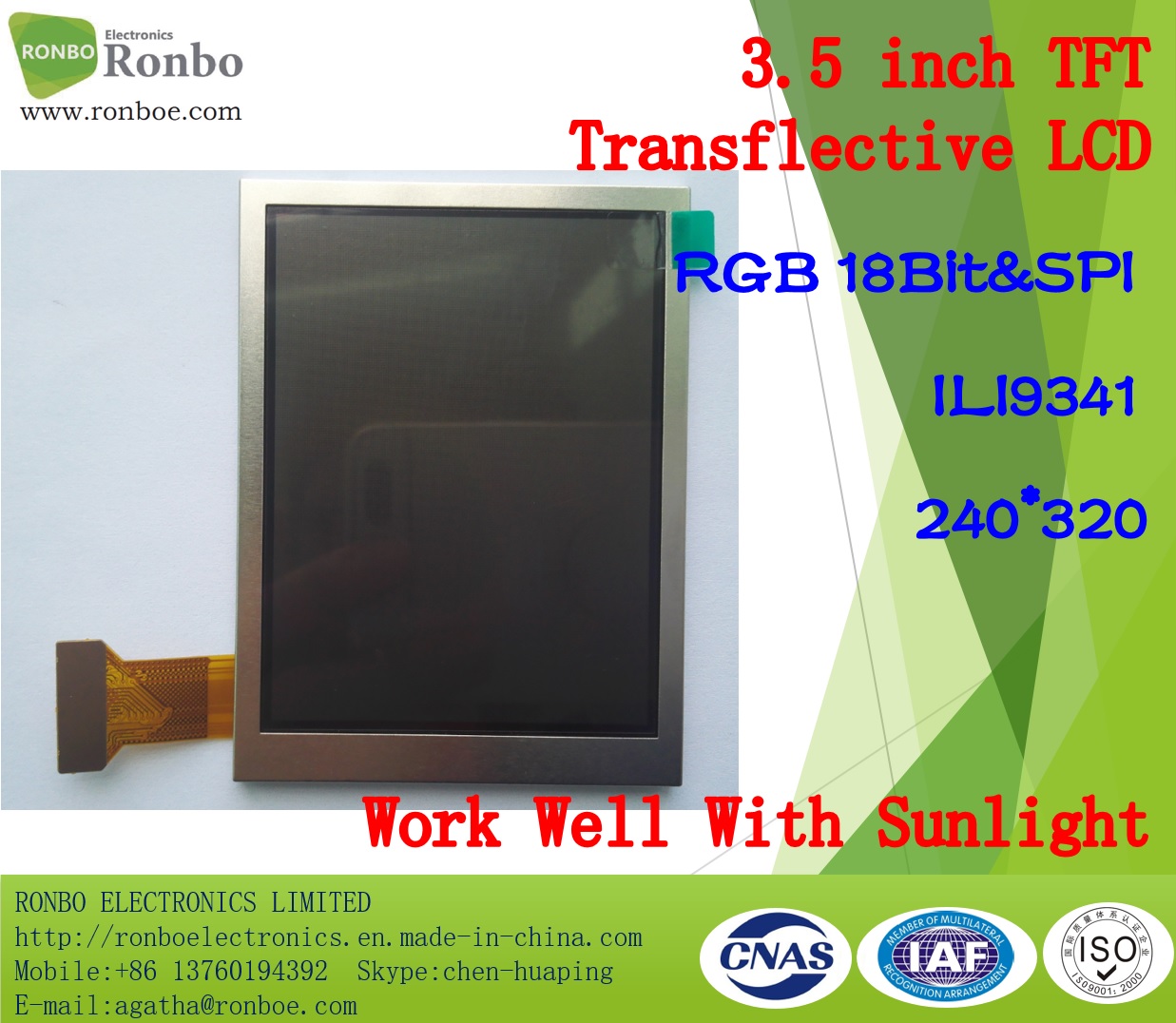

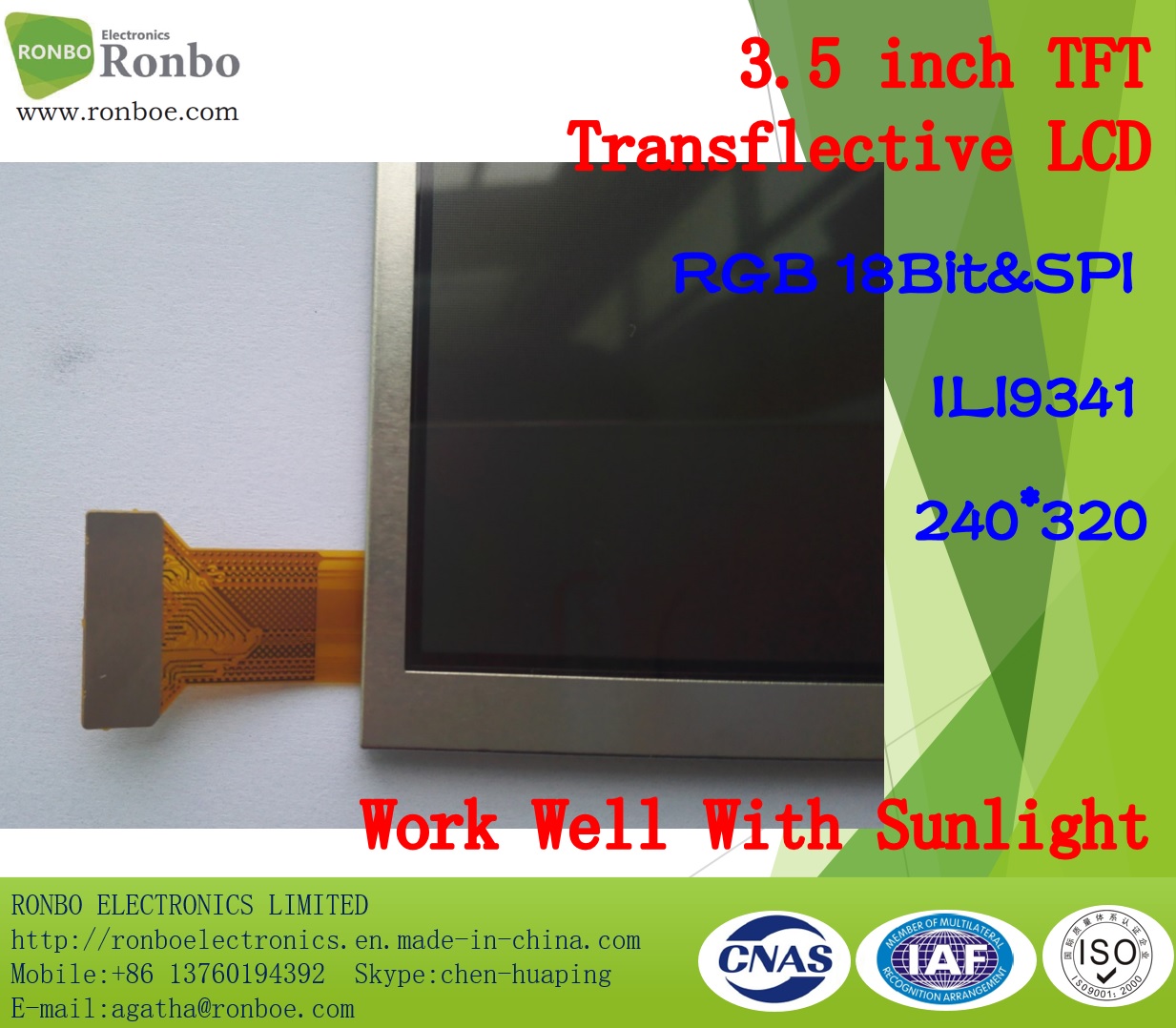

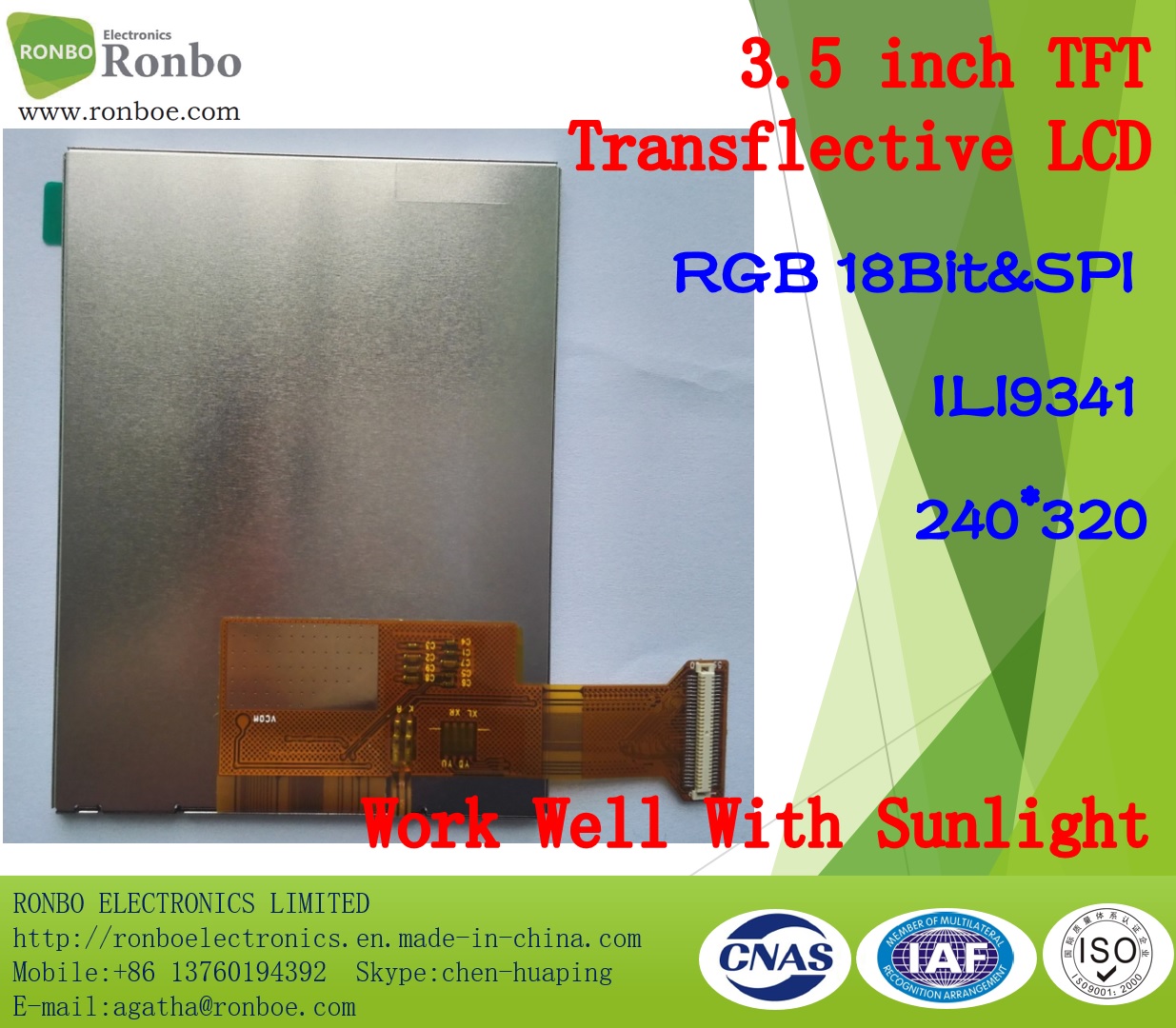

Model: 3.5 Inch 240*320 Outdoor Work Well With Sunlight TFT Transflective LCD Display

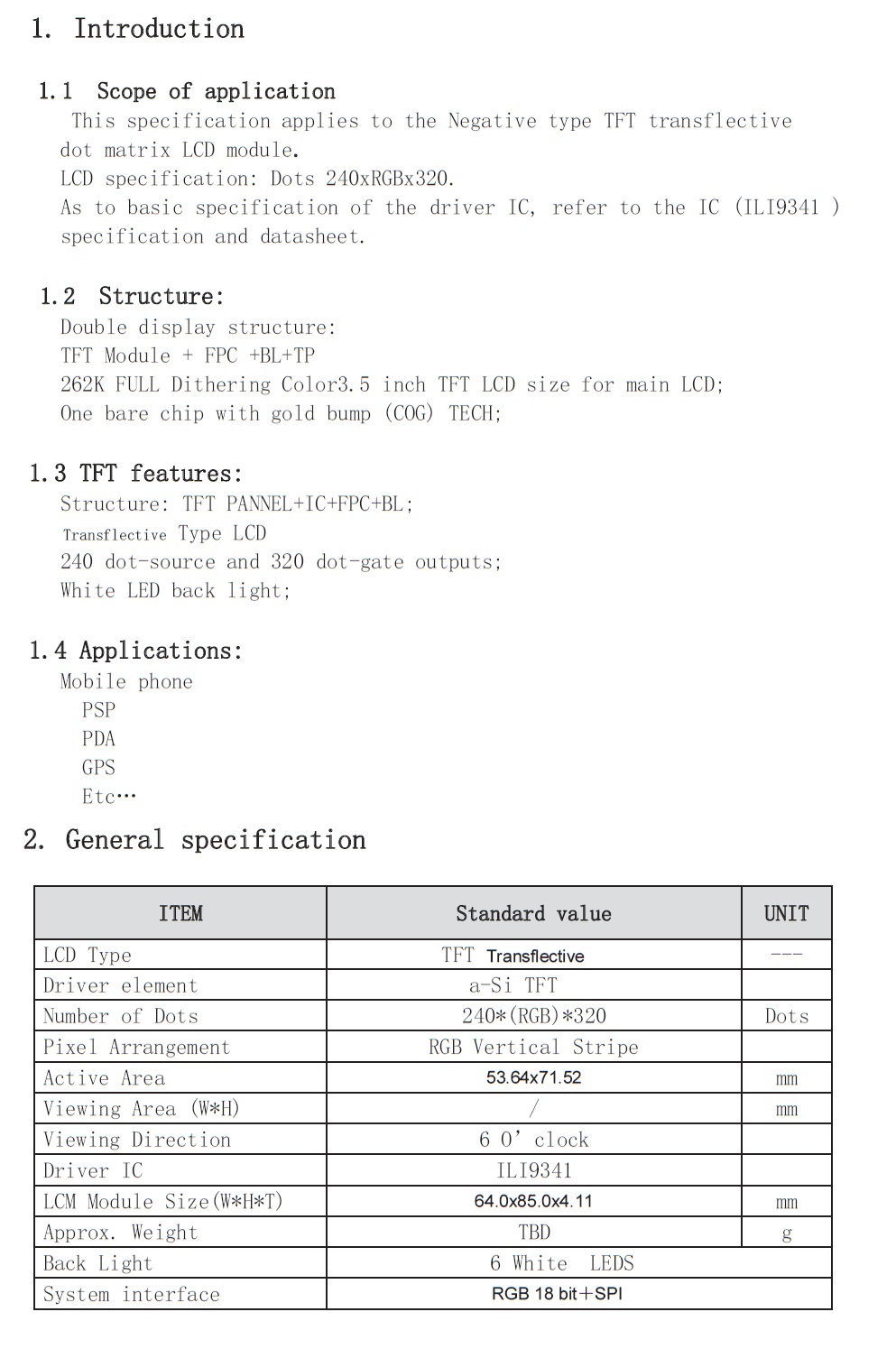

Specification:
Model NO.: | RB035D60N12A |
Screen Size: | 3.5" |
Resolution: | 240*320 |

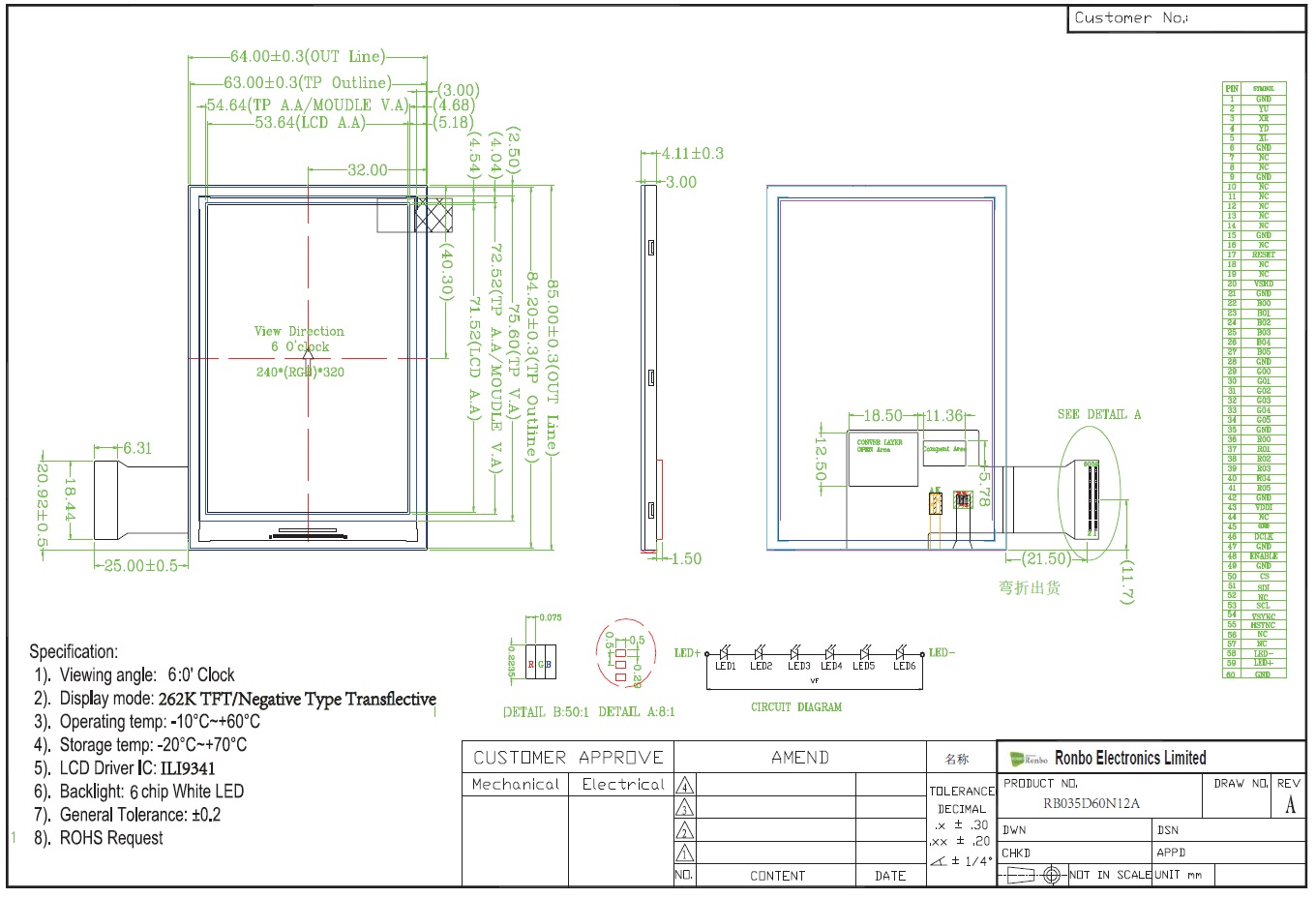

Module size(W*H*T): | 64.0*85.0*4.1mm |
Active area (W*H): | 53.64*71.52mm |
Controller: | ILI9341 |
Brightness: | 6 White LED |
Display Type: | 16.7M COLORS |
Operating Temperature: | -20 ~ 70ºC |

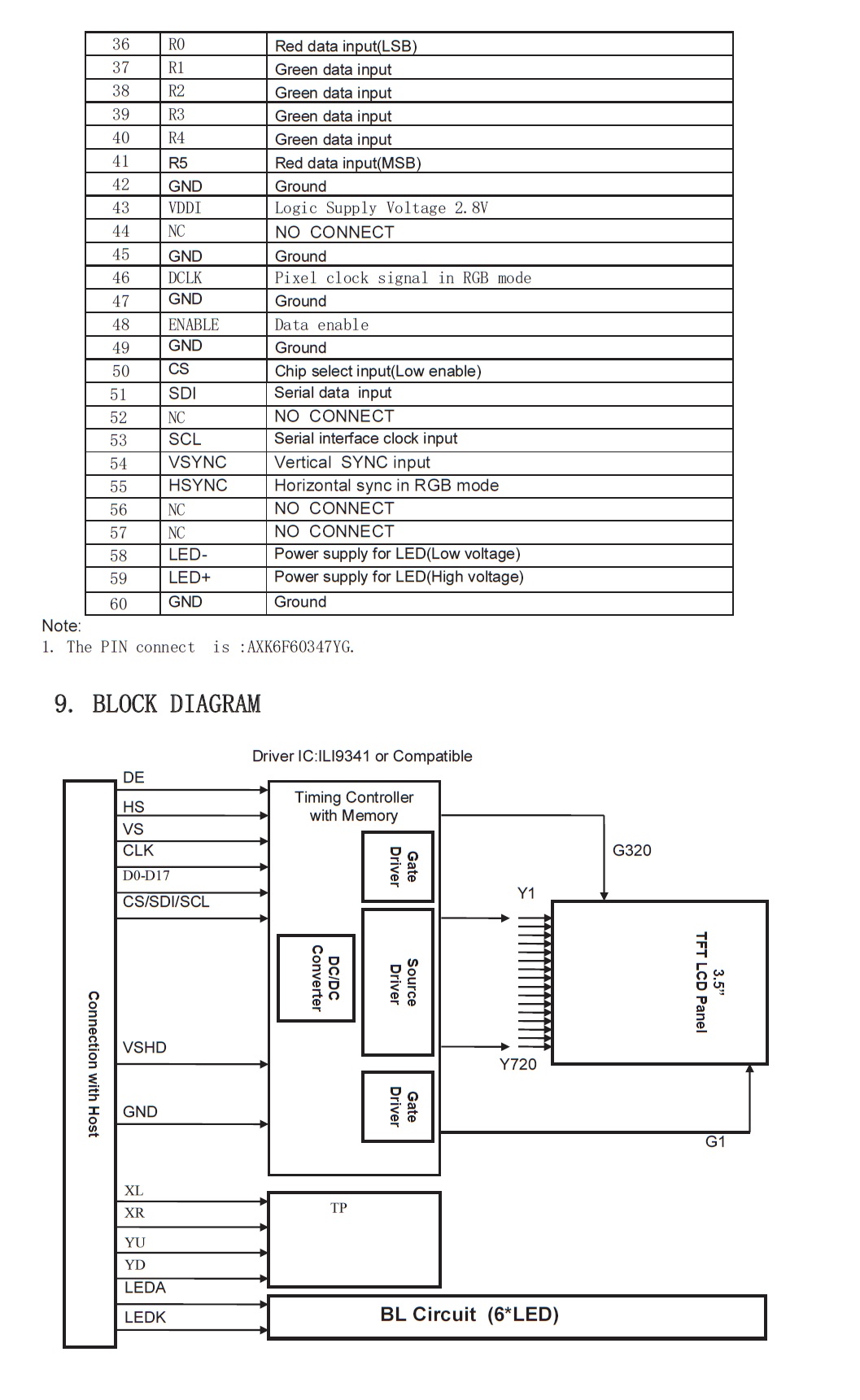

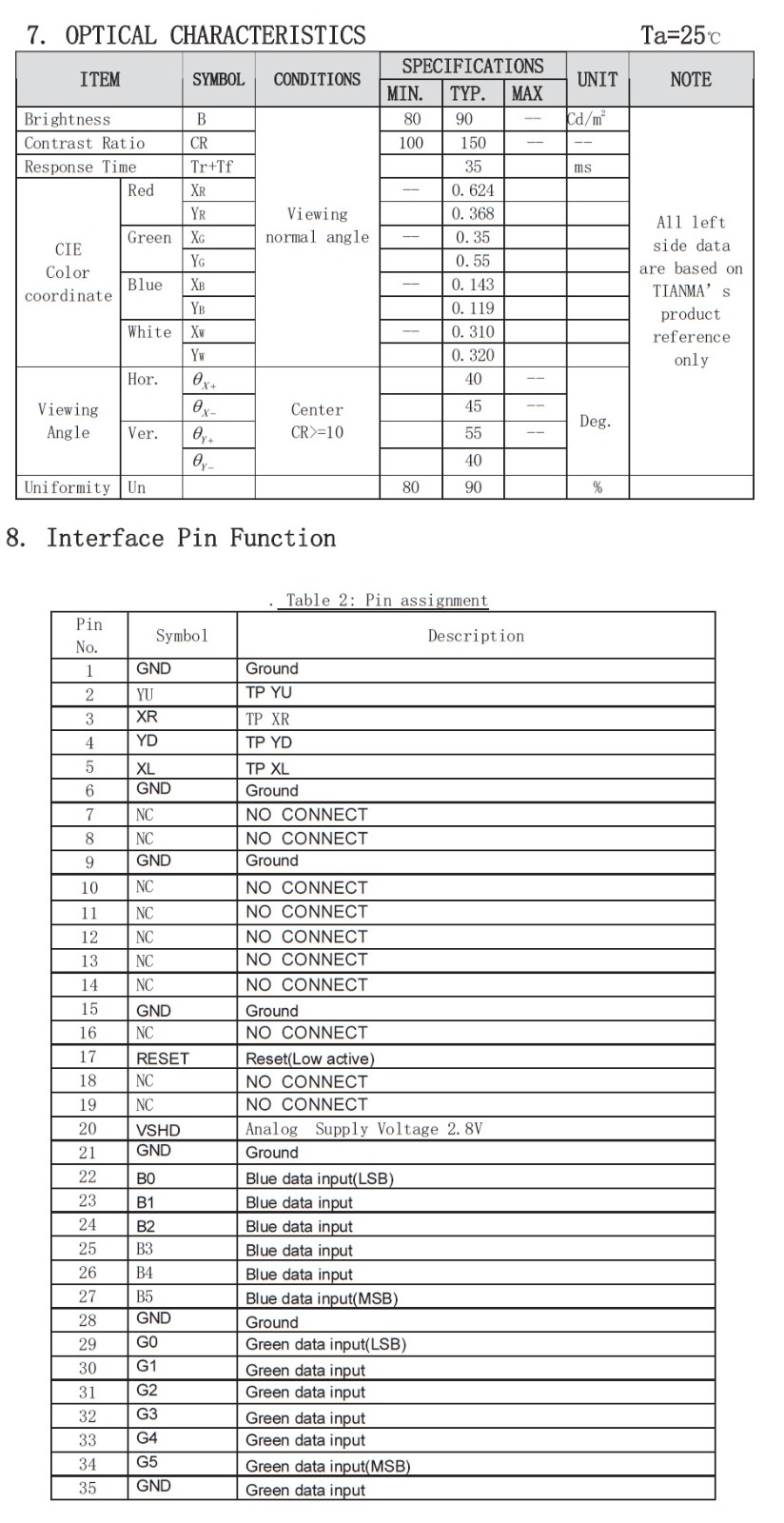

Interface: | RGB18Bit SPI,FPC 60PIN Pitch：0.5mm |
Ronbo Electronics Ltd., located at Dongguan, China, is one of the leading display suppliers. Its production line includes small to medium size LCD, TFT, and OLED modules for a variety of industrial and consumable application. We are one of the leading display providers of monochrome character LCD modules, graphic LCD modules, alphanumeric LCD panel & TFT modules. High-quality LCD modules are made based on our experienced engineering knowledge, well-managed supply chain.
Besides standard modules, our experience R&D staff can either support you value-added program or make customized product according to your specification
Moreover, our company has passed ISO 9001, ISO14001 certifications as well as RoHS.
Our website is http://www.ronboe.com
