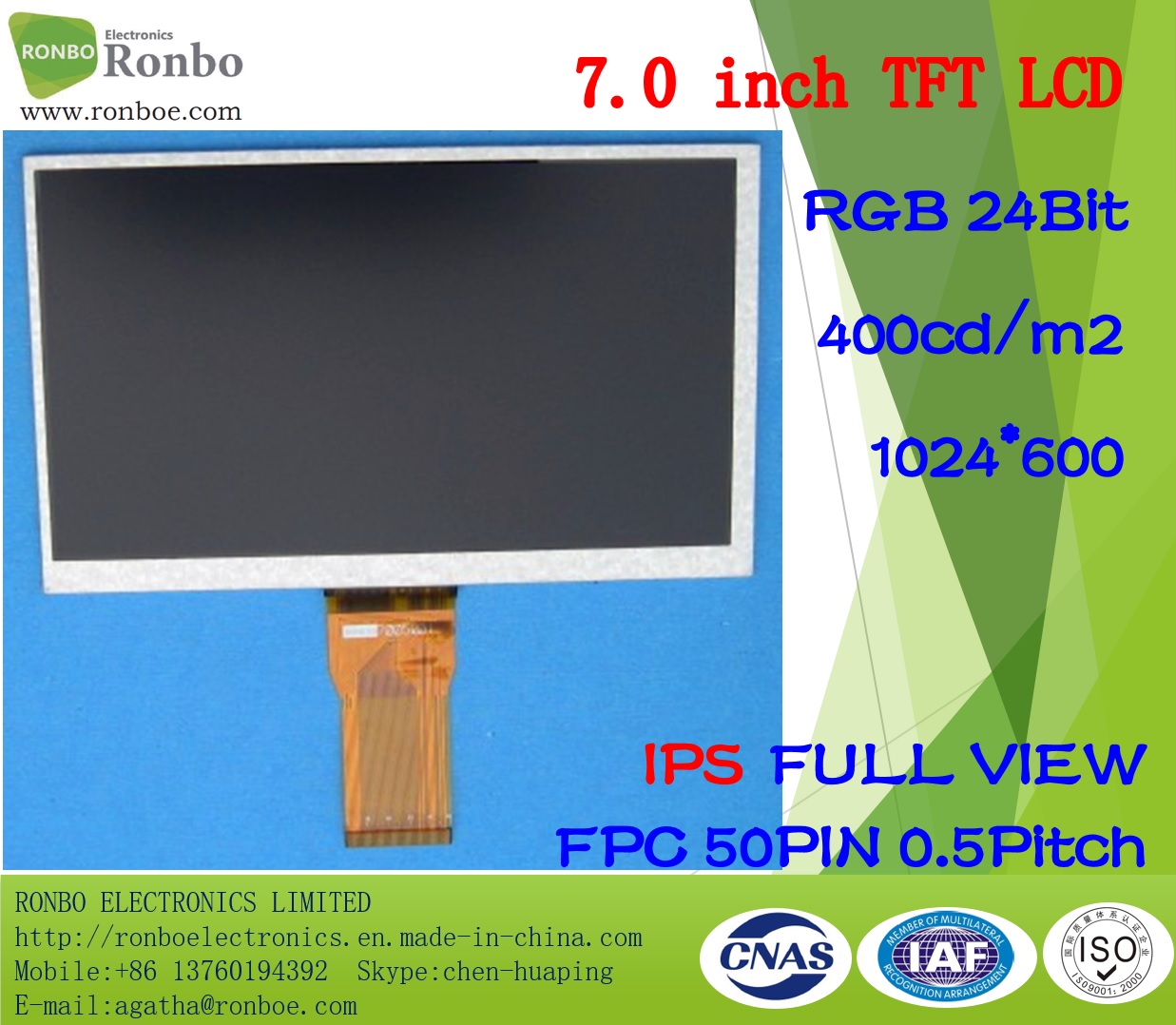

Model: 7.0" IPS 1024X600 RGB 50pin 400CD/M2 FULL VIEW Thin TFT LCD
Specification:
Model NO.: | RB070D50N12A |
Screen Size: | 7.0" |
Resolution: | 1024*600 |

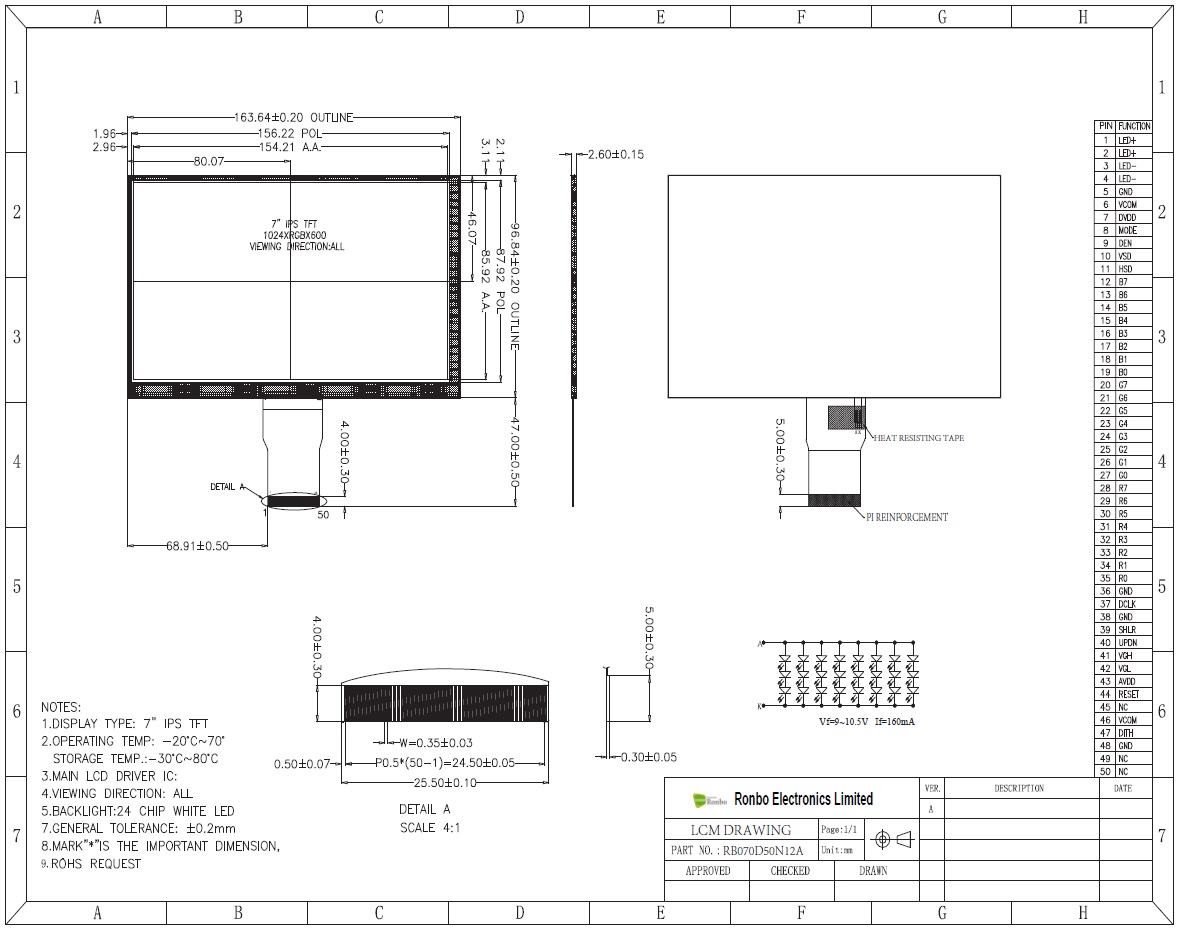

Module size(W*H*T): | 163.6*96.8*2.6mm |
Active area (W*H): | 154.08*85.92mm |
Controller: | TBD |
Brightness: | 24 White LED 400cd/m² |
Display Type: | 16.7M COLORS |
Operating Temperature: | -20 ~ 70ºC |

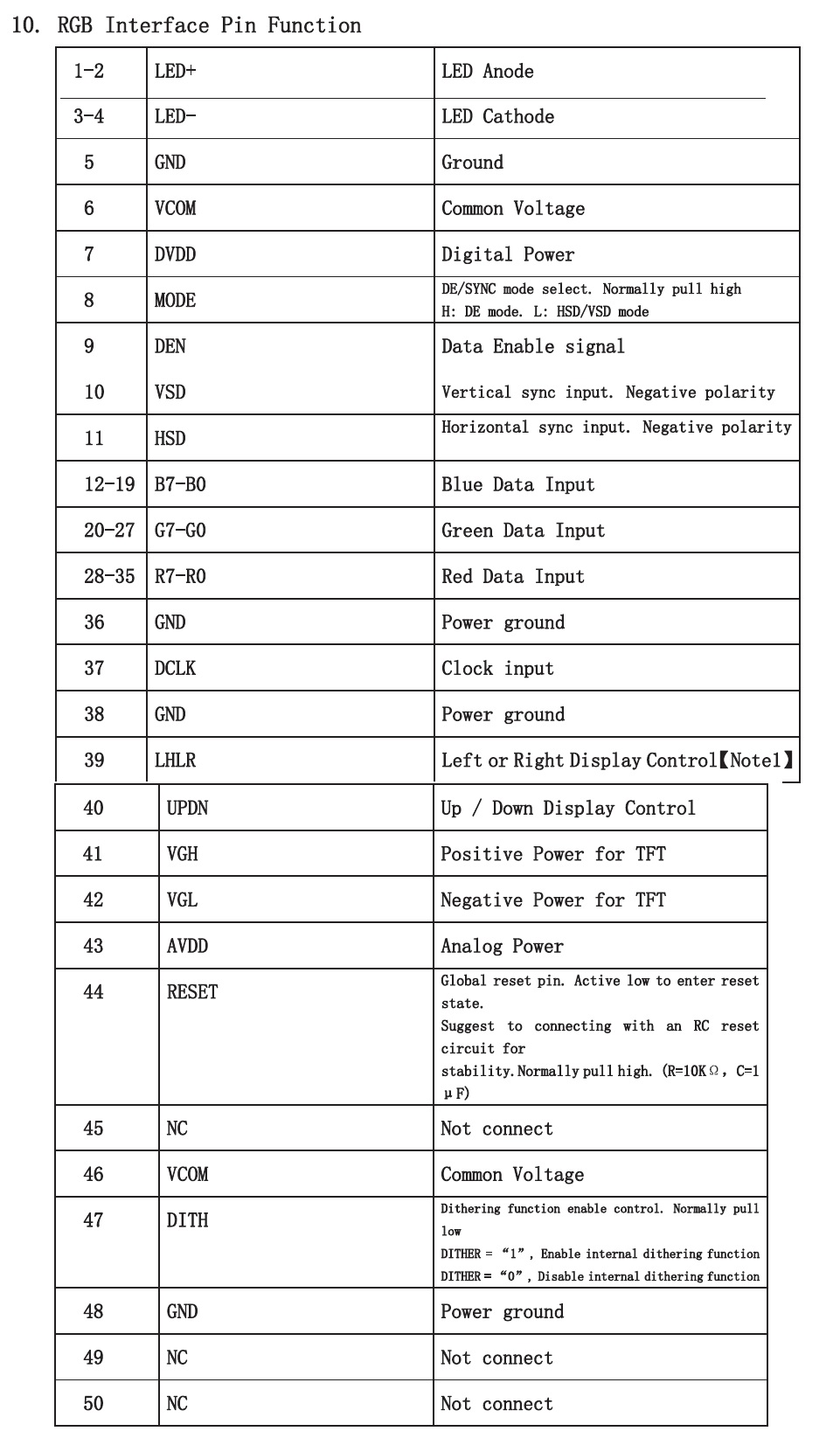

Interface: | RGB 24Bit, FPC 50PIN 0.5Pitch |
RB101L40N09A
RB101D50N05A
RB101D50N04A
RB101D50N06A
RB090D50N02A
ZJ080NA-08A
RB080D50N03A
RB080D50N02A
Its production line includes small to medium size LCD, TFTand OLED modules for a variety of industrial and consumable application.
