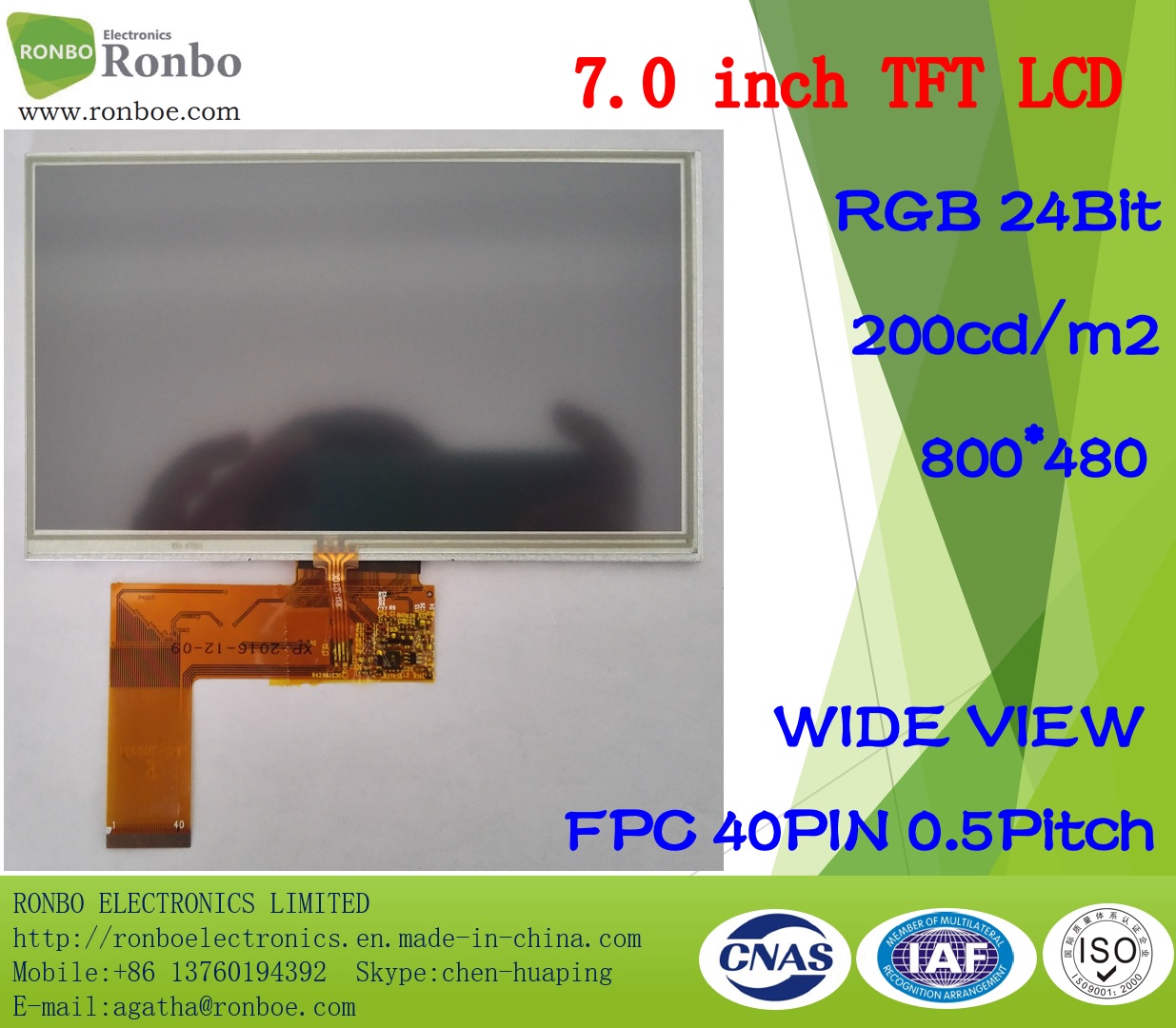

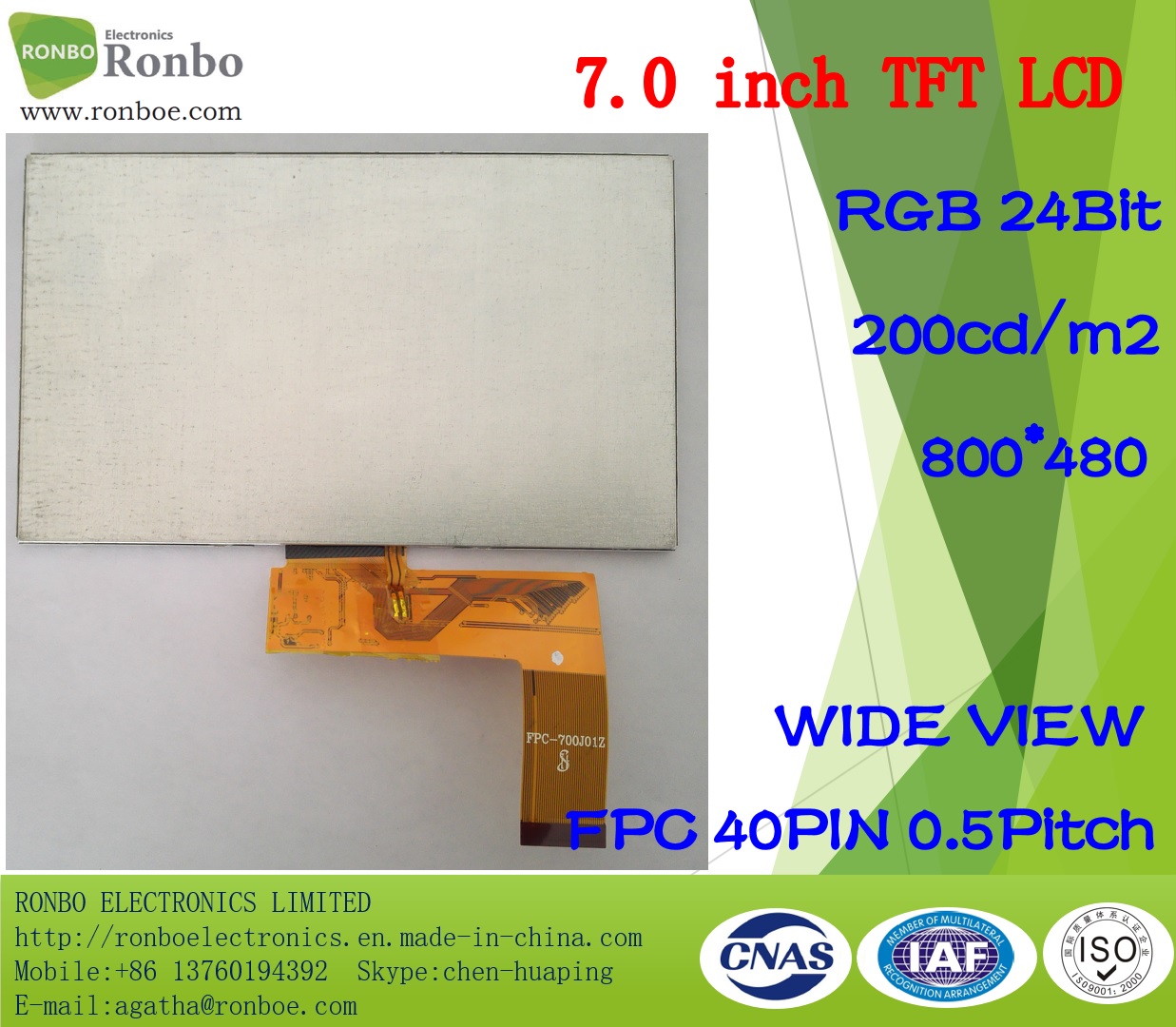

Model: 7.0" 800X480 RGB 40pin 200cd/m2 TFT LCD Panel Option Touch Screen

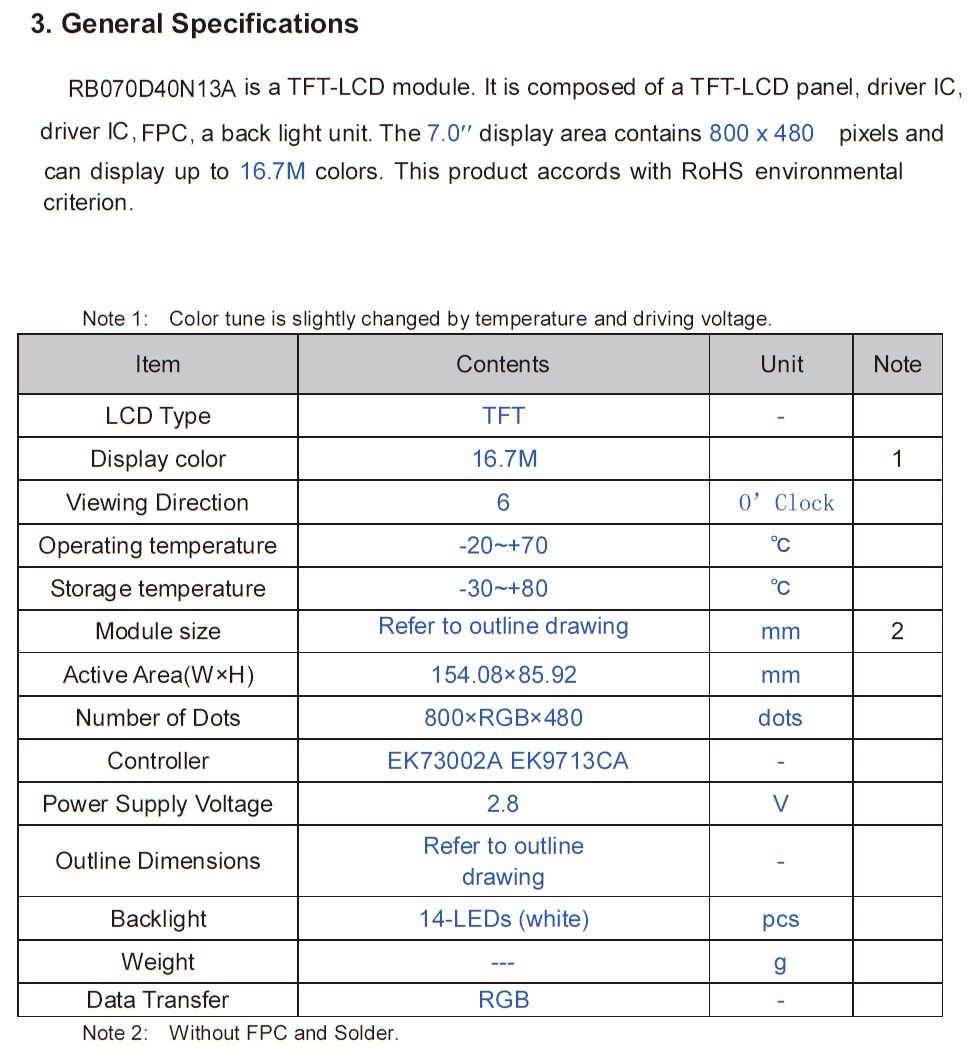

Specification:
Model NO.: | RB070D40N13A |
Screen Size: | 7.0" |
Resolution: | 800*480 |
Module size(W*H*T): | 164.9*100*3.3mm |
Active area (W*H): | 154.21*85.92mm |
Controller: | EK73002A/EK9713CA |
Brightness: | 14 White LED /200 cd/m² |
Display Type: | 16.7M COLORS |
Operating Temperature: | -20 ~ 70ºC |
Interface: | RGB 24Bit,FPC 40PIN Pitch:0.5mm |
Ronbo Electronics Ltd., located at Dongguan, China, is one of the leading display suppliers. Its production line includes small to medium size LCD, TFT, and OLED modules for a variety of industrial and consumable application. We are one of the leading display providers of monochrome character LCD modules, graphic LCD modules, alphanumeric LCD panel & TFT modules. High-quality LCD modules are made based on our experienced engineering knowledge, well-managed supply chain.
Besides standard modules, our experience R&D staff can either support you value-added program or make customized product according to your specification
Moreover, our company has passed ISO 9001, ISO14001 certifications as well as RoHS.
Our website is http://www.ronboe.com
