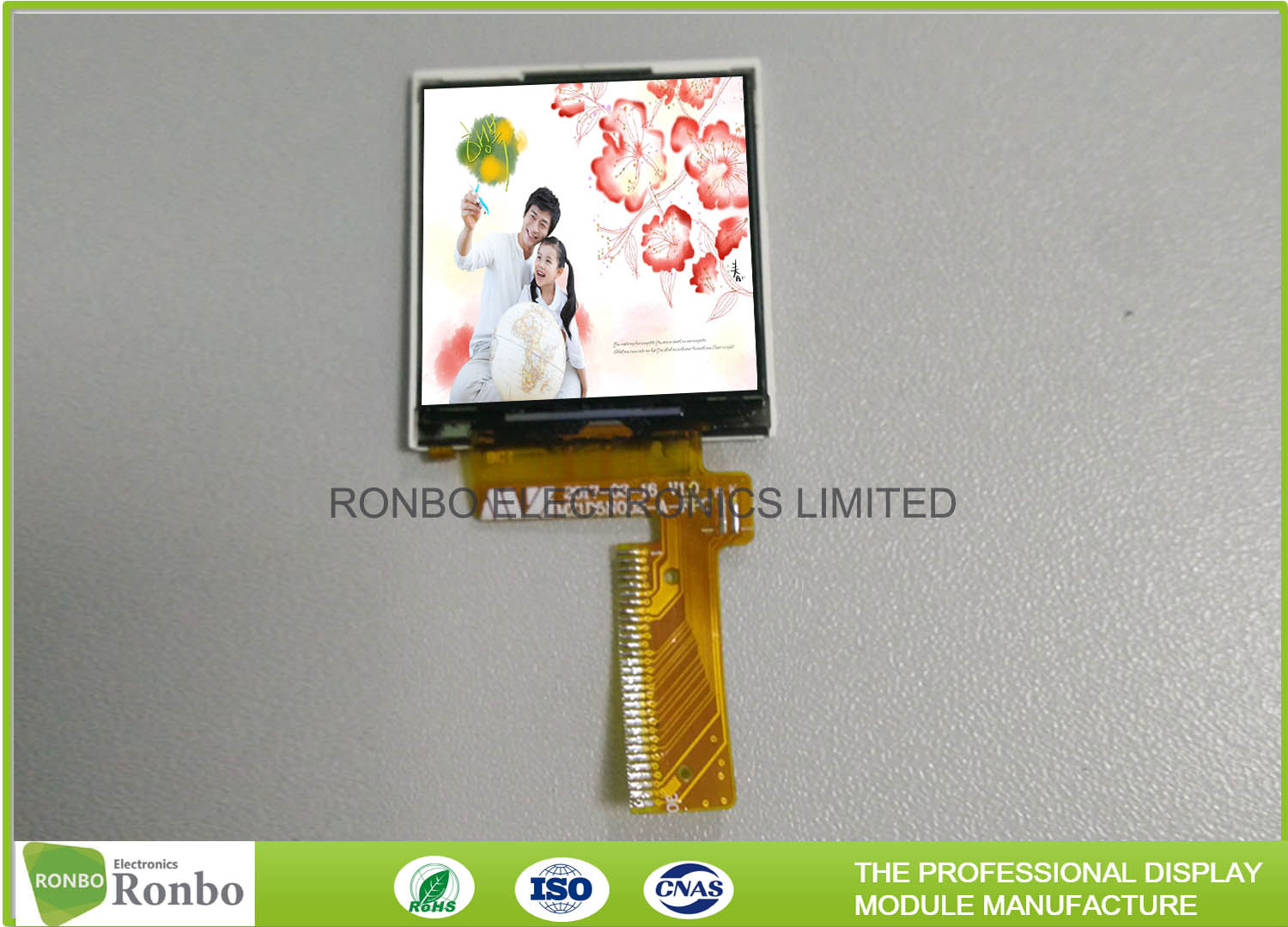

Thin Smart Watch IPS Panel 1.54 Inch 240 * 240 MCU 8Bit Small LCD Display


Model NO.:
RB015D30N02A
Screen Size:1.54"
Display type:IPS
Resolution:240*240
Viewing direction:ALL

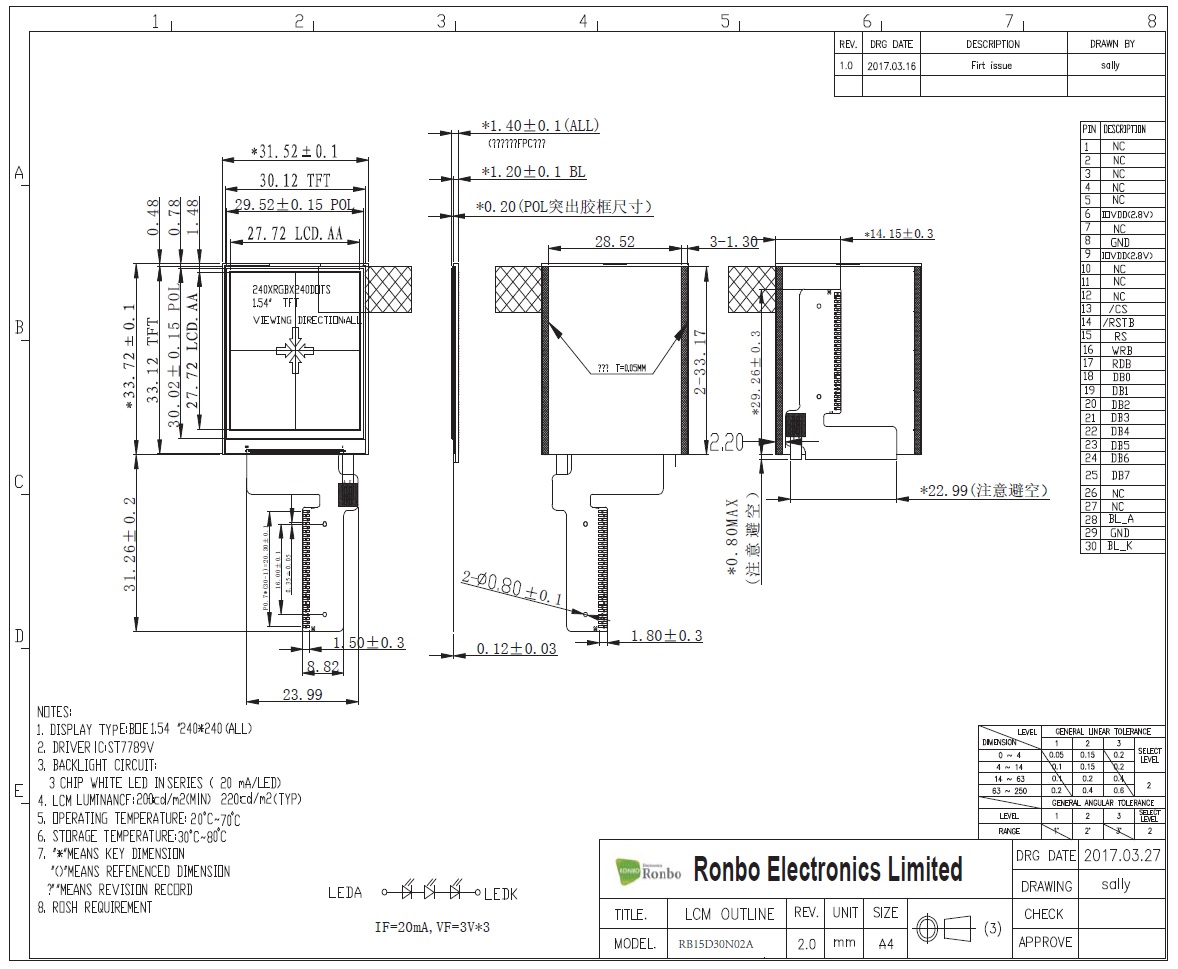

Module size(W*H*T):31.52*33.72*1.4mm
Active area (W*H):27.72*27.72mm
Brightness:220cd/m²
Backlight:

1S3P=3 WLED If=60mA, Vf =3.2V

Contrast:350

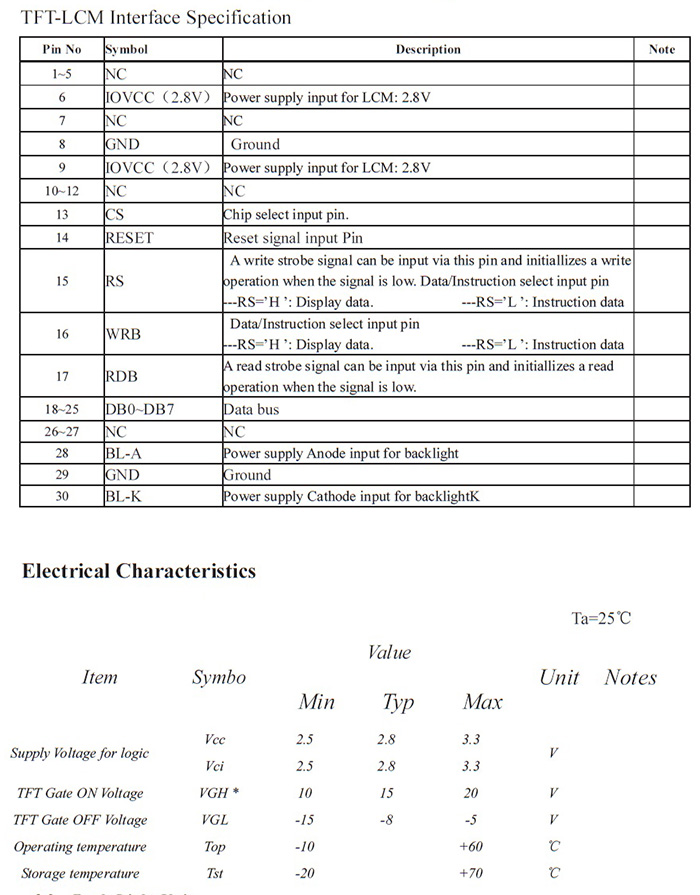

Interface:MCU 8BIT
Pin NO:30Pin
Pin pitch:0.7mm
Connecting type:FPC Soldering Connector
Operating Temperature:-20 ~  70ºC
Storage Temperature:-30 ~  80ºC


Product Specification:

* It is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a IPS LCD panel, driver IC, FPC and backlight unit.

* Backlight with different brightness is customized according to your request.

* Capacitive & Resistive touch panel/ Demo board is available for your option.

* It’s Standard and Ready-made IPS LCD Module.

* Experienced Team for Your Custom Solution.

* RoHS compliant.




Packaging & Shipping & Delivery
  Packaging Details:

All the products are packed in right way to keep it safe.

For small sizes of products we use tray   carton,

For bigger sizes we use foam slot   carton.

we also design packages according to customers' requirements



Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.

  For large quantity orders: we ship by buyer's cargo agent in China,

  we can also ship by air or sea transportation by our cargo agent.



  Delivery Details:

  Ready-made Sample: within 1 week

  Custom Sample: 1~2 weeks

  Mass production: 3-4 weeks





Product Application:

Telecommunication DevicesTelephone, interphone, watch, tablet PC, radio, etc
Consumer ProductsCamera, DVD player, toy, Cell Phone, game player, etc
Technical EquipmentElevator controller, Industrial machine, etc
Office AutomationPrinter, scanner, attendance machine, fax machine, etc
Home AppliancesAir-condition display, refrigerator, electric cooker, video doorbell, etc
AutomobileGPS, video player, speedometer, audio broadcast, etc
IT ProductsCamera, handheld digital video, projector, media play, tablet PC, etc
Medical EquipmentUltrasound machine, therapeutic equipment Blood pressure meter, etc



Our Advantage:

Rich experienceGood knowledge of the displays market to put together solutions that add value and provide a unique proposition for the client
Advanced EquipmentFull automatic FPC&IC bonding machine, film attaching machine, CNC machine, polish machine etc advance production equipment ensure product quality
Quality AssuranceAdvance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment
Fast responseQuickly realize your customized ideas, and have a sample ready in short time
Low MOQDepends on product
Stable supply1~10 years supply period
Extensive rangeProviding complete solution from Mono to Color LCD module, Optical bonding between display to cover glass as well as cover glass to touch screen
Large production capacityOperation capacity 2KK monthly
Quality guaranteeRoHS compliant
ManagementISO 9001:2008, ISO 14001:2004
