TFT LCD Display

1_TFT LCD Display_横幅.jpg

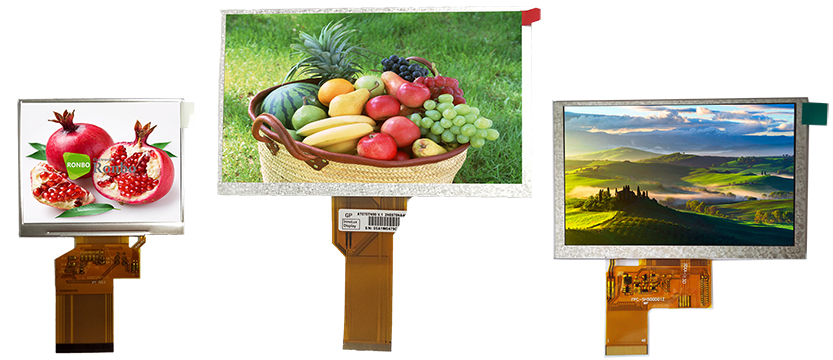

     TFT LCD Displays are available in various sizes from 1.22"  to 15.0" TFT LCD.  they are including options of TFT panel, TFT LCM with controller board, color LCD module, and wide operating temperatures of -20°C to  70°C or -30°C to  80°C.
     They are available in various graphic display resolutions including QVGA (240 x 320), WQVGA (480x272),WVGA (800x480), 1024x600, XGA (1024x768), WXGA(1280x800) and son on.  and there are various interface available including MCU, RGB, TTL, LVDS, MIPI and so on.

     These LCD Displays are options of bonding with Resistive or Capacitive touch Screen using OCA or Double Tape, and are options of Driver Board and assistant funtion samples.

     The list below is our standard offering, please click into detail informaiton. However, We have many more customized solution and special sizes available as options. Please contact us for more information.

Image Size Model No Resolution Module size
(W*H*Tmm)
Active Area
(W*Hmm)
Controller IC Brightness Display Type Interface
1.77" RB017D09N01A 128*160 34.0*47.0*2.35 28.03*35.04 ST7735S 2 White LED 262K SPI 4wire, SPI 9PIN Pitch:0.8mm

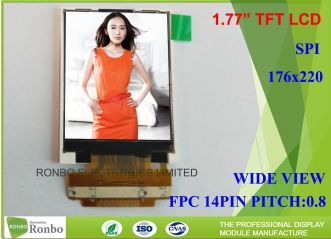

1.77" RB017D14N02A 128*160 34.0*42.9*2.2 28.03*35.04 ST7735S 200cd/m² TN,12H SPI, FPC 14PIn, Pitch:0.8
1.77" RB017D20N03A 128*160 34.4*46.7*2.4 28.03*35.04 ST7735S 1 White LED 262K MCU 8 Bit, FPC 20PIN Pitch:1.0mm
1.77" RB017D20N04A 128*160 34.0*45.83*2.15 28.03*35.04 ILI9163C 2 White LED 65K/262K MCU 8 Bit, FPC 20PIN Pitch:1.0mm
1.77" RB017D14N05A 128*160 34.0*46.0*2.6 28.03*35.04 ST7735S 200cd/m² TN,12H SPI, FPC 14PIn, Pitch:0.8
1.77" RB017D12N06A 128*160 34.0*42.9*2.3 28.03*35.04 GC9102D 2 White LED 65K/262K SPI 4wire, FPC 12Pin,Pitch:0.8mm
1.77" RB017D20N07A 128*160 34.0*45.83*2.75 28.03*35.04 ST7735S 2 White LED 65K/262K MCU 8 Bit, FPC 20Pin,Pitch:1.0mm
2.0" RB020D20N01A 176*220 37.68*51.3*2.25 31.68*39.6 ILI9225G 3 White LED 262K MCU 8 Bit, FPC 20PIN Pitch:1.0mm
2.0" RB020D36N02A 176*220 37.68*51.3*2.25 31.68*39.6 GC9201 3 White LED 262K MCU 16 Bit, FPC 36PIN Pitch:0.7mm
2.0" RB020D14N03A 176*220 38.08x52.2x 2.5 31.68*39.6 ILI9225C 3 White LED 262K SPI 4wire, FPC 14PIN,Pitch:0.8mm
2.0" RB020D38N04A 220*176 46.4*42.75*2.25 38.65*31.0 ILI9341 4 White LED 262K MCU 8/16 Bit, FPC 38PIN,Pitch:0.7mm
2.2" RB022D14N01A 240*320 38.68*55.14*2.14 33.84*45.12 ST7789V 2 White LED 262K SPI 4wire, FPC 14PIN Pitch:0.8mm
2.2" RB022D22N02A 176*220 41.5*51.26*2.3 33.85*43.36 ILI9225G 3 White LED 262K MCU 8 Bit, FPC 22PIN Pitch:0.7mm
2.2" RB022D40N03A 240*320 38.68*55.14*2.34 33.84*45.12 ILI9341V 2 White LED 262K RGB 16 Bit, FPC 40PIN
2.2" RB022D40N05A 320*240 50.8*45.8*2.25 33.85*43.56 ILI9342C 4 White LED 262K RGB 18 Bit, FPC 40PIN
2.2" RB022D33N06A 176*220 40.3*55.26*2.4 33.85*43.56 ILI9225C 3 White LED 262K MCU 16 Bit FPC 33PIN, Pitch:0.8mm
2.3" RB023D36N01A 320*240 50.9*45.8*2.25 46.75*35..06 ILI9342C 4 White LED 262K MCU 16Bit, FPC 36PIN,Pitch:0.8mm
2.3" RB023D40N02A 320*240 50.8*45.8*2.36 46.75*35.06 ILI9342C 4 White LED 262K RGB 18Bit, FPC 40PIN,Pitch:0.5mm
2.4" RB024D24N02A 240*320 42.72*60.26*2.2 36.72*48.96 ST7789S 4 White LED 262K MCU 8Bit, FPC 24PIN Pitch:1.0mm
2.4" RB024D28N03A 240*320 42.72*60.26*2.8 36.72*48.96 ILI9341V 4 White LED 262K COLORS MCU 8Bit, FPC 28PIN Pitch:0.8mm
2.4" RB024D37N04A 240*320 42.72*60.26*2.2 36.72*48.96 ST7789S 4 White LED 262K MCU 16Bit, FPC 37PIN Pitch:0.7mm
2.4" RB024D38T05A 240*320 42.72*60.26*3.3 36.72*48.96 ILI9341V 4 White LED 262K COLORS MCU 16Bit, FPC 38PIN Pitch:0.8mm
2.4" RB024D16N07A 240*320 42.72*60.26*2.27 36.72*48.96 ILI9341V 4 White LED 262K SPI 4wire, FPC 16PIN Pitch:0.8mm
2.4" RB024D14N08A 240*320 42.72*60.26*2.3 36.72*48.96 ILI9341V 4 White LED 262K SPI 4wire, FPC 14PIN Pitch:0.8mm
2.4" RB024D37N09A 240*320 42.72*60.26*2.35 36.72*48.96 ILI9341V 4 White LED 262K MCU 16Bit, FPC 37PIN Pitch:0.7mm
2.4" RB024D37N10A 240*320 42.72*60.26*3.45 36.72*48.96 OTM3225 4 White LED 262K MCU 16Bit, FPC 37PIN,Pitch:0.8mm
2.4" RB024D37N12A 240*320 42.72*60.26*2.2 36.72*48.96 ILI9341V 4 White LED 262K MCU 16Bit FPC 37PIN,Pitch:0.8mm
2.4" RB024D36N13A 240*320 42.72*60.26*2.2 36.72*48.96 ILI9341V 4 White LED 262K MCU 18Bit, FPC 38PIN,Pitch:0.8mm
2.7" RB027D40N01A 960*240 67.5*39.1*2.4 58.8*33.06 ILI8961 3 White LED 16.7M SPI&RGB 8Bit, FPC 40PIN Pitch:0.5mm
2.8" RB028D24N01A 240*320 50.0*69.2*2.4 43.2*57.6 ST7789V 4 White LED 262K MCU 8Bit, FPC 24PIN Pitch:1.0mm
