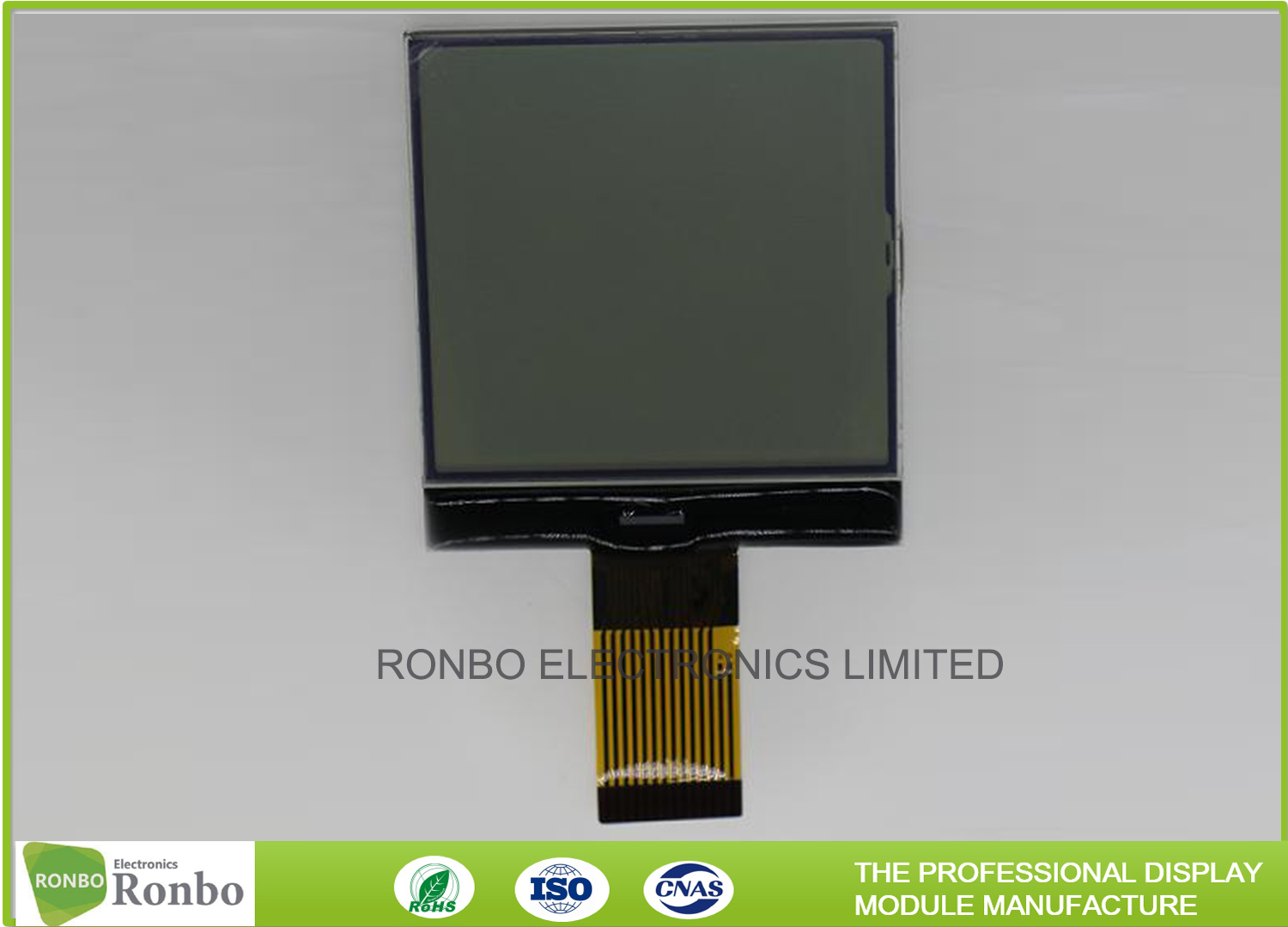

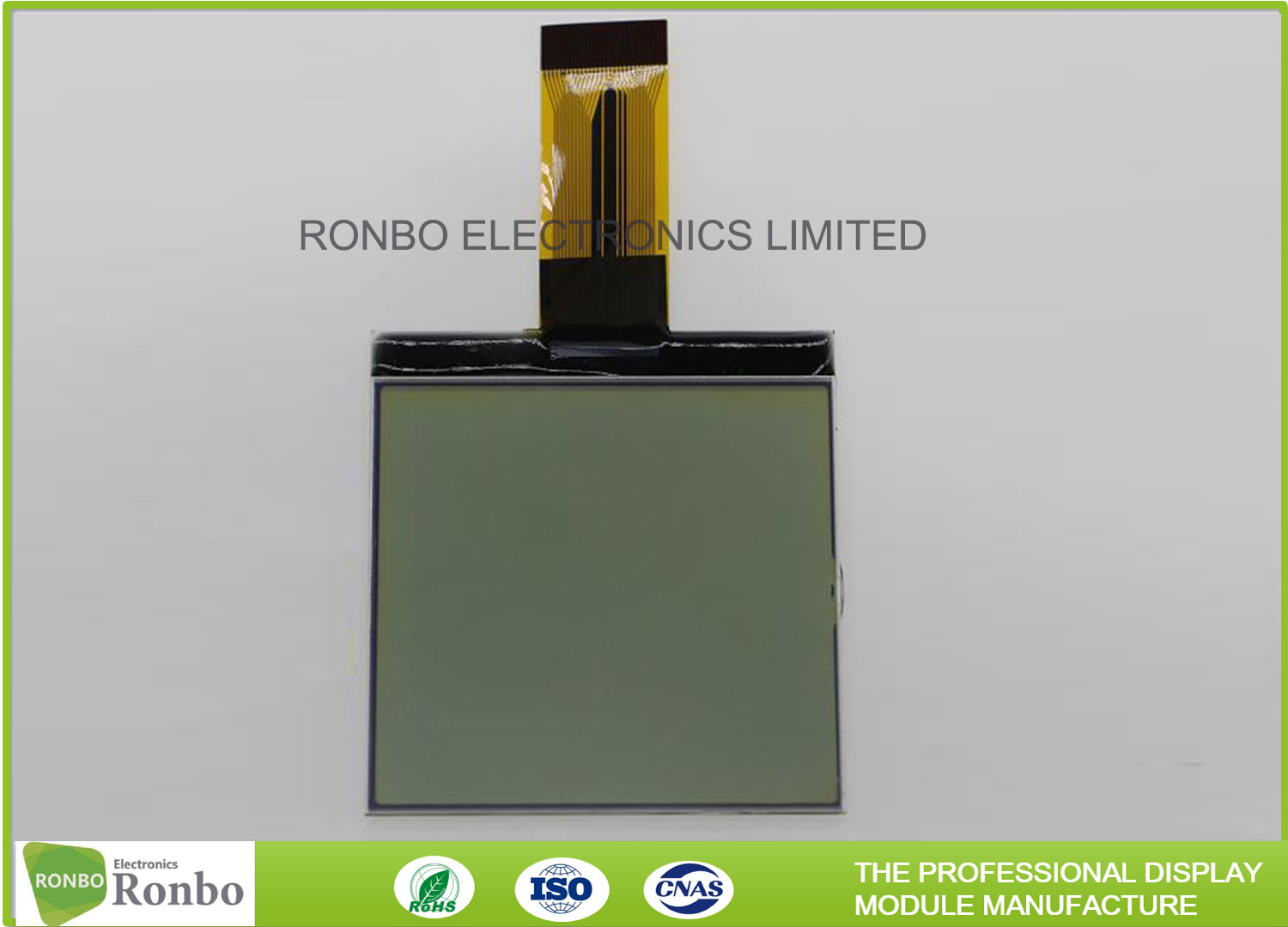

COG Type FSTN Display Module 128x128 Glaphic LCD Panel With 8Bit MCU Interface

Model NO.:RBO128128E
Dots:128*128
LCM Type:COG

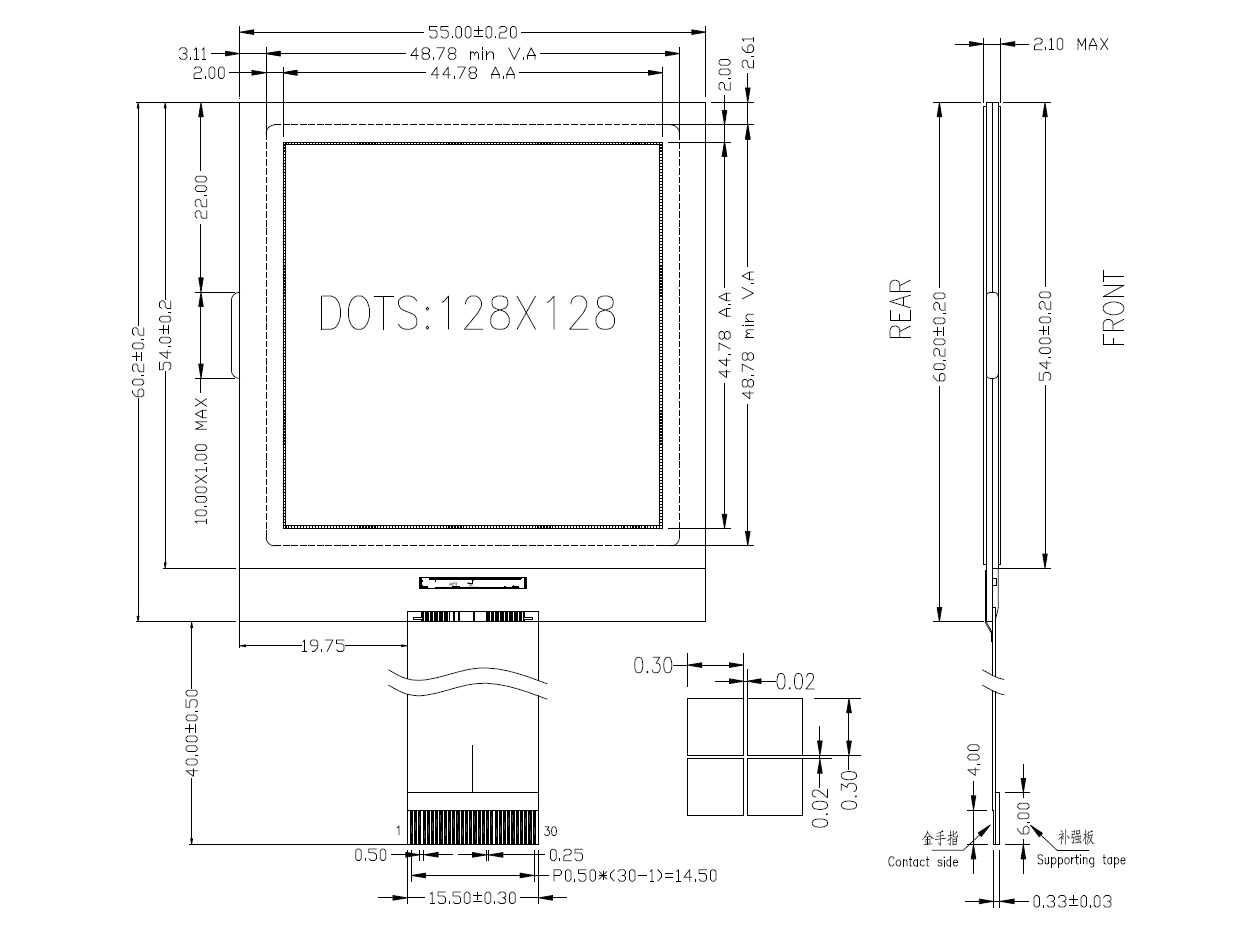

Module size(W*H*T):55.0x60.2x2.1
Viewing Area(W*Hmm):48.78x48.78
Dot size(W*Hmm)0.3x0.3
Dot Pitch(W*Hmm)0.32x0.32
Controller:ST7541 or equivalent
Backlight:White LED
LCD Type:FSTN Positive, Transflective
Operating Temperature:-20 ~ 70ºC
Interface:8Bit MCU, FPC 30PIN, Pitch:0.5mm

Product Specification:

☆ The COG LCD Module offers high quality with the benefits of light weight and low power consumption.

☆ It is available to add a connection board for each item to change the interface from FPC to pins or cables. We can offer a variety of pin out connections to suit your requirements.

☆ The COG LCM technology is very suitable for the applications that demand more compact package displays.

☆ It is easy to make a customized COG LCD Module according to your request, we have a experienced Team for Your Custom Solution


Customized graphic LCD:

* It can be customized for monochrome LCD, backlight, FPC and PCB Board with a little tooling charge, and customized shape is suitable for customer's mechanical design.


* LED backlights are available in various colors including yellow/green, white, blue, and Backlight with different brightness is customized according to your request.


* Including different options of polarizer in reflective, transmissive or transflective types, and also with polarizer positive mode and negative mode options.


* It is available to add a connection board for each item to change the interface from FPC to pins or cables, We can offer a variety of pin out connections to suit your requirements.


* The LCD panel technologies include TN, STN, FSTN, FFSTN types, and are available with viewing angles of 6:00, 12:00, 3:00, and 9:00 o’clock.


* Extensive range of LCD graphic displays with various backlight and LCD type combinations.


Product Application:

Telecommunication DevicesTelephone, Interphone, Smart Watch, Tablet PC, PDA
Consumer ProductsCamera, DVD Player, Cell Phone, Game Player, Digital Photo Frame, E-Book Reader, Mp3 Player, MP4 PMP, Netbook PC
Technical EquipmentElevator Controller, Industrial Machine, Security Monitor, POS
Office AutomationPrinter, Scanner, Fax Machine, Desktop Monitor, Desktop Monitor
Home AppliancesAir-condition Display, Refrigerator, Video Doorbell, Smart Machine
Automobile DisplayGPS, Protable Navigation, Video Player, Speedometer, Recorder
IT ProductsDigital Video, Media Player, Advertising Machine
Medical EquipmentUltrasound Machine, Medial Monitor, Medical Imaging, Healthcare


Packaging & Shipping & Delivery
Packaging Details:

All the products are packed in right way to keep it safe.

For small sizes of products we use tray   carton,

For bigger sizes we use foam slot   carton.

we also design packages according to customers' requirements


Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.

  For large quantity orders: we ship by buyer's cargo agent in China,

  we can also ship by air or sea transportation by our cargo agent.


Delivery Details:

Ready-made Sample: within 1 week

Custom Sample: 1~2 weeks

Mass production: 3-4 weeks


Our Advantage:

Rich experienceGood knowledge of the displays market to put together solutions that add value and provide a unique proposition for the client
Advanced EquipmentFull automatic FPC&IC bonding machine, film attaching machine, CNC machine, polish machine advance production equipment ensure product quality
Quality AssuranceAdvance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment
Fast responseQuickly realize your customized ideas, and have a sample ready in short time
Low MOQDepends on product
Stable supply1~10 years supply period
Extensive rangeProviding complete solution from Mono to Color LCD module, Optical bonding between display to cover glass as well as cover glass to touch screen
Large production capacityOperation capacity 2KK monthly
Quality guaranteeRoHS compliant
ManagementISO 9001:2008, ISO 14001:2004

FAQ:

 Q: How can I get some samples?

A: We don't provide free one, but we can have a discount when you reorder according to different quantity, and you will win at least 3% discount.


Q: What is the MOQ?

A: It depends on different products. Please keep in touch with sales to confirm the MOQ.


Q: How do you control quality?

A: All materials we purchase for making any orders are high quality and RoHS compliant, and Control quality with ISO 9001:2008, ISO 14001:2004 management system.

Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment

h 800*480 Capacitive Touch Screen LCD Display

Q: Does your product have any warranty?

A: Yes, we offer 12 months warranty for our products.


Q: What's your payment method?

A: Payment: T/T, Paypal, Western Union, etc.

For samples: payment in advance.

For mass production: 30% deposit and 70% balance before shipment.


Q: Do you offer custom solution?

A: Yes, we can offer custom solution if standard products couldn't meet buyer' requirements.
