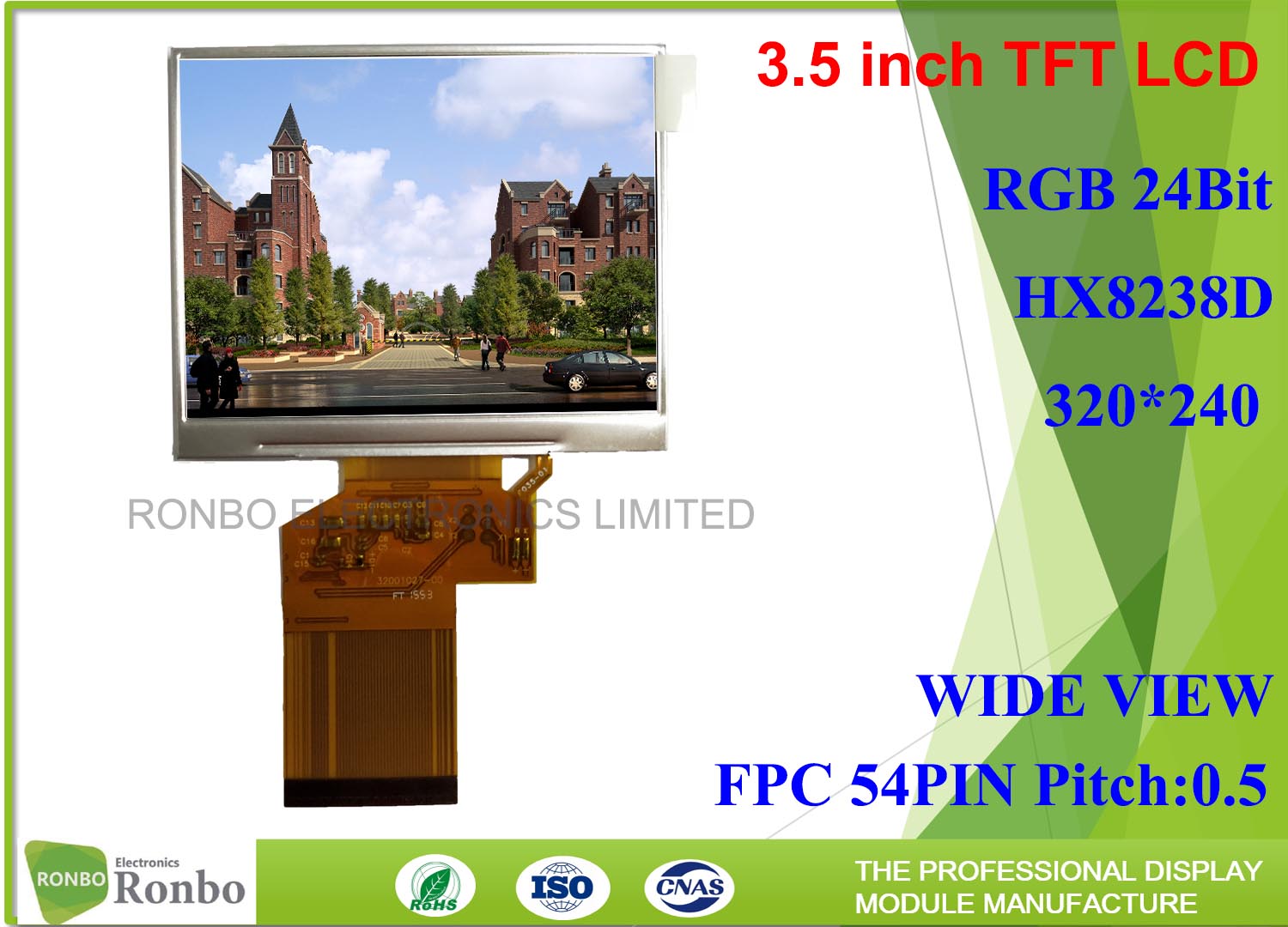

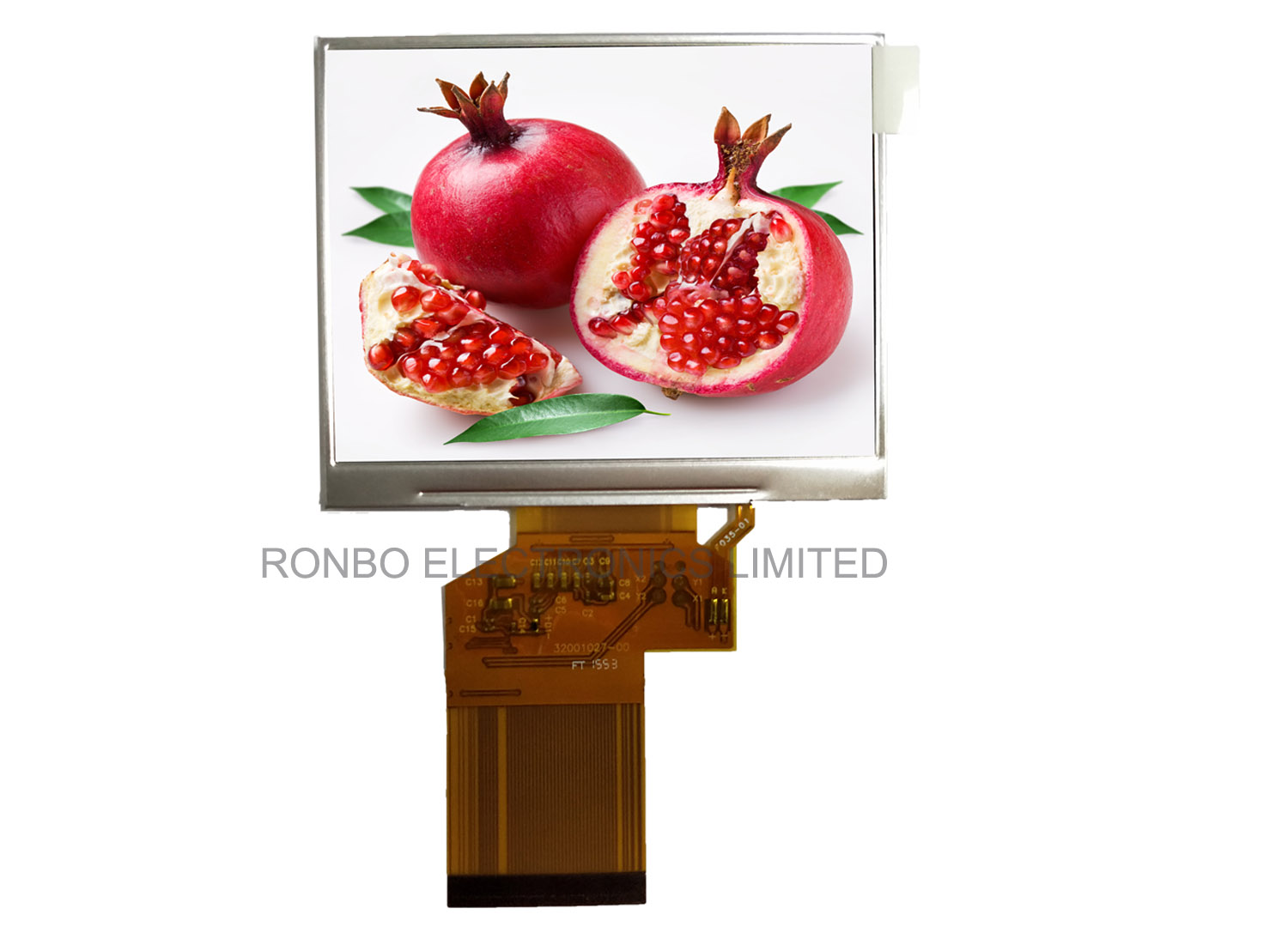

3.5 Inch 320*240 Industrial LCD Panel Replace CHIMEI LQ035NC111,Navigation and Digital Display


Model NO.:
RB035D54N06A
Screen Size:3.5"
Display typeTN
Resolution:320*240
Viewing direction:6 o’clock
Module size(W*H*T):76.9*63.9*3.2mm
Active area (W*H):70.08*52.56mm
Controller:HX8238D or equivalent
Brightness:300cd/m²
Backlight:

6 LED in Series

If=20mA, Vf =19.2V

Contrast350
Interface:RGB 24Bit
Pin NO:54Pins
Pin pitch0.5mm
Connecting typeFPC Connector
Operating Temperature:-20 ~  70ºC
Storage Temperature-30 ~  80ºC


Product Specification:

* It is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC and backlight unit.

* Backlight with different brightness is customized according to your request.

* Capacitive & Resistive touch panel/ Demo board is available for your option.

* It's Standard and Ready-made TFT LCD Module.

* Experienced Team for Your Custom Solution.

* RoHS compliant.




Packaging & Shipping & Delivery
  Packaging Details:

All the products are packed in right way to keep it safe.

For small sizes of products we use tray   carton,

For bigger sizes we use foam slot   carton.

we also design packages according to customers' requirements



Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.

  For large quantity orders: we ship by buyer's cargo agent in China,

  we can also ship by air or sea transportation by our cargo agent.



  Delivery Details:

  Ready-made Sample: within 1 week

  Custom Sample: 1~2 weeks

  Mass production: 3-4 weeks





Product Application:

Telecommunication DevicesTelephone, interphone, watch, tablet PC, radio, etc
Consumer ProductsCamera, DVD player, toy, Cell Phone, game player, etc
Technical EquipmentElevator controller, Industrial machine, etc
Office AutomationPrinter, scanner, attendance machine, fax machine, etc
Home AppliancesAir-condition display, refrigerator, electric cooker, video doorbell, etc
AutomobileGPS, video player, speedometer, audio broadcast, etc
IT ProductsCamera, handheld digital video, projector, media play, tablet PC, etc
Medical EquipmentUltrasound machine, therapeutic equipment Blood pressure meter, etc

FAQ:

Q: What is the MOQ?

A: It depends on different products. Please keep in touch with sales to confirm the MOQ.



Q: What about the delivery time?

A: Ready-made Sample: within 1 week

    Custom Sample: 1~2 weeks

    Mass production: 4-6 weeks



Q: Does your product have any warranty?

A: Yes, we offer 12 months warranty for our products.



Q: What's your payment method?

A: For samples: payment in advance.

    For mass production: 30% deposit and 70% balance before shipment.



Q: What's your shipping method?

A: We provide comprehensive shipping methods.

For small quantity orders we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.

    For large quantity orders we ship by buyer's cargo agent in China,

    we can also ship by Air transportation or sea transportation.



Q: Do you offer custom solution?

A: Yes, we can offer custom solution if standard products couldn't meet buyer' requirements.
