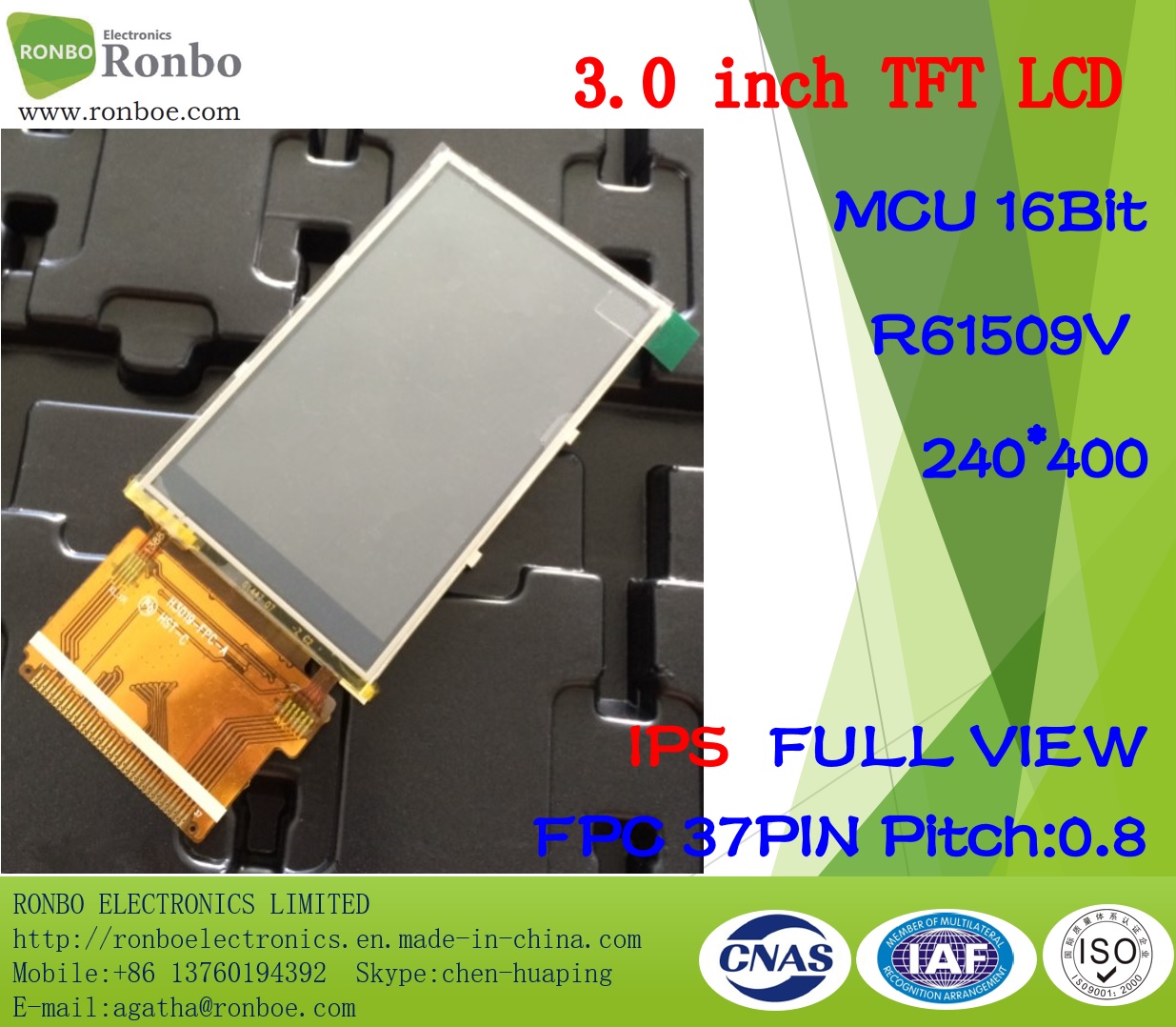

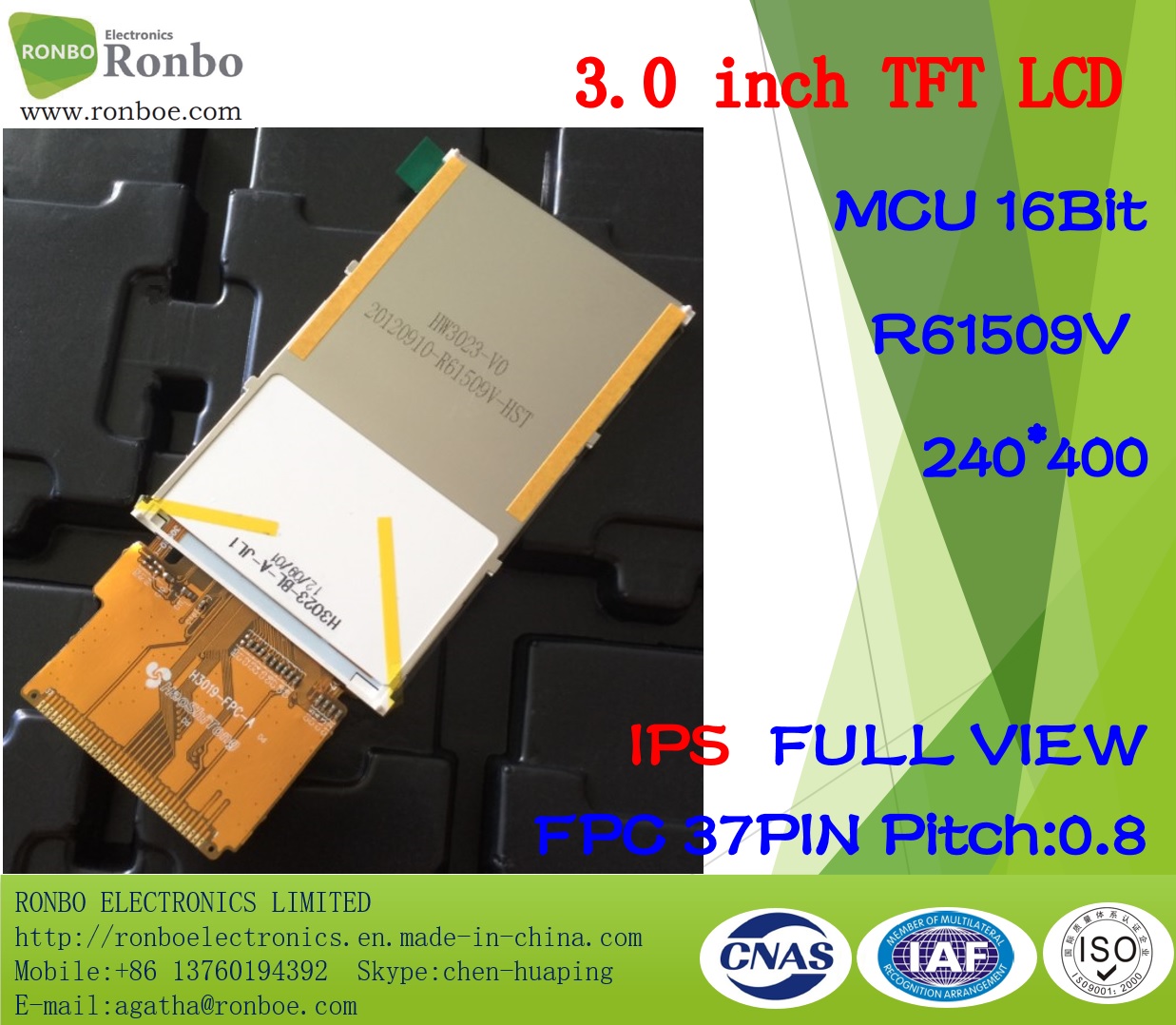

Model: 3.0 Inch IPS 240X400 MCU 16Bit 37pin,IC:R61509V, FULL VIEW TFT LCD Display
Specification:
Model NO.: | RB030D37T03A |
Screen Size: | 3.0" |
Resolution: | 240*400 |

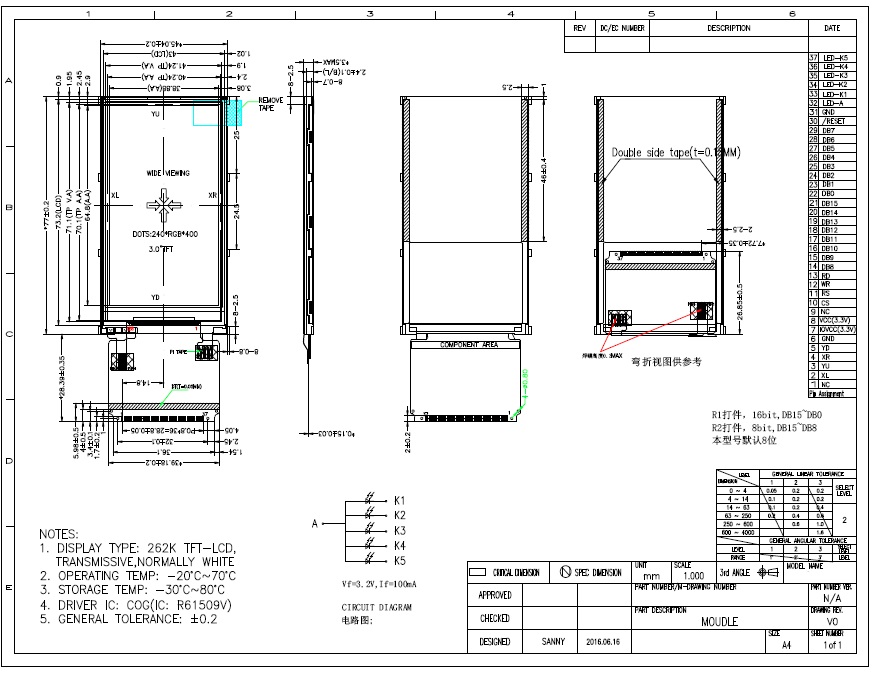

Module size(W*H*T): | 45.04*77.00*3.5mm |
Active area (W*H): | 38.88*64.8mm |
Controller: | R61509V or ILI9326 |
Brightness: | 4 White LED |
Display Type: | IPS |
Operating Temperature: | -20 ~ 70ºC |
Interface: | MCU 16Bit,FPC 37PIN Pitch:0.8mm |
Ronbo Electronics Ltd., located at DongGuang, China, is one of the leading display suppliers. Its production line includes small to medium size LCD, TFT, and OLED modules for a variety of industrial and consumable application. We are one of the leading display providers of monochrome character LCD modules, graphic LCD modules, alphanumeric LCD panel & TFT modules. High-quality LCD modules are made based on our experienced engineering knowledge, well-managed supply chain.
Besides standard modules, our experience R&D staff can either support you value-added program or make customized product according to your specification
Moreover, our company has passed ISO 9001, ISO14001 certifications as well as RoHS.
Our website is http://www.ronboe.com
