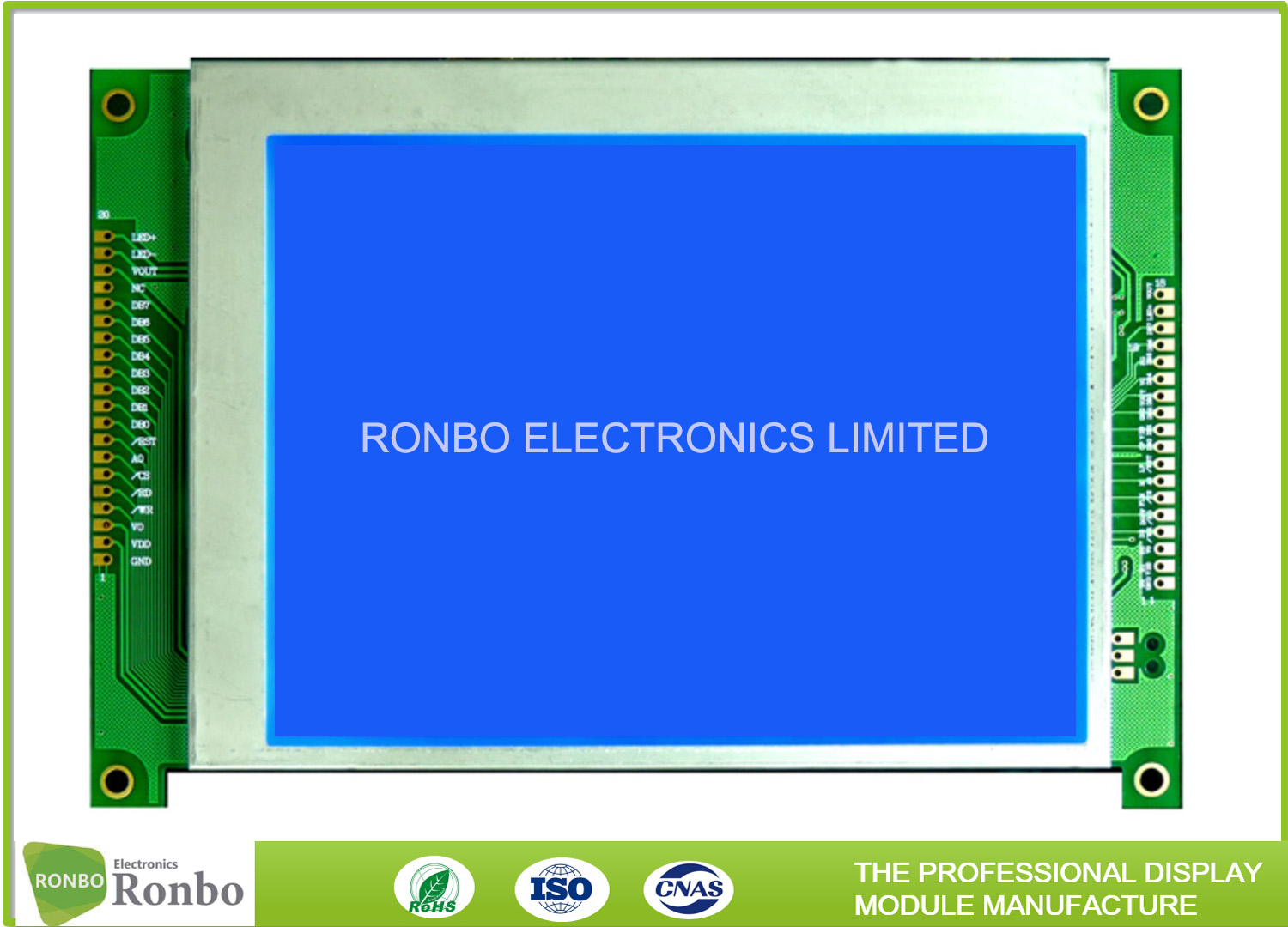

320x240 Dots STN / FSTN COB LCD Display, 5.7 Inch Graphic LCD Screen With FPC 24Pin 8080 Interface
| Model NO.: | RB320240G |
| Dots: | 320*240 |
| LCM Type: | COB |

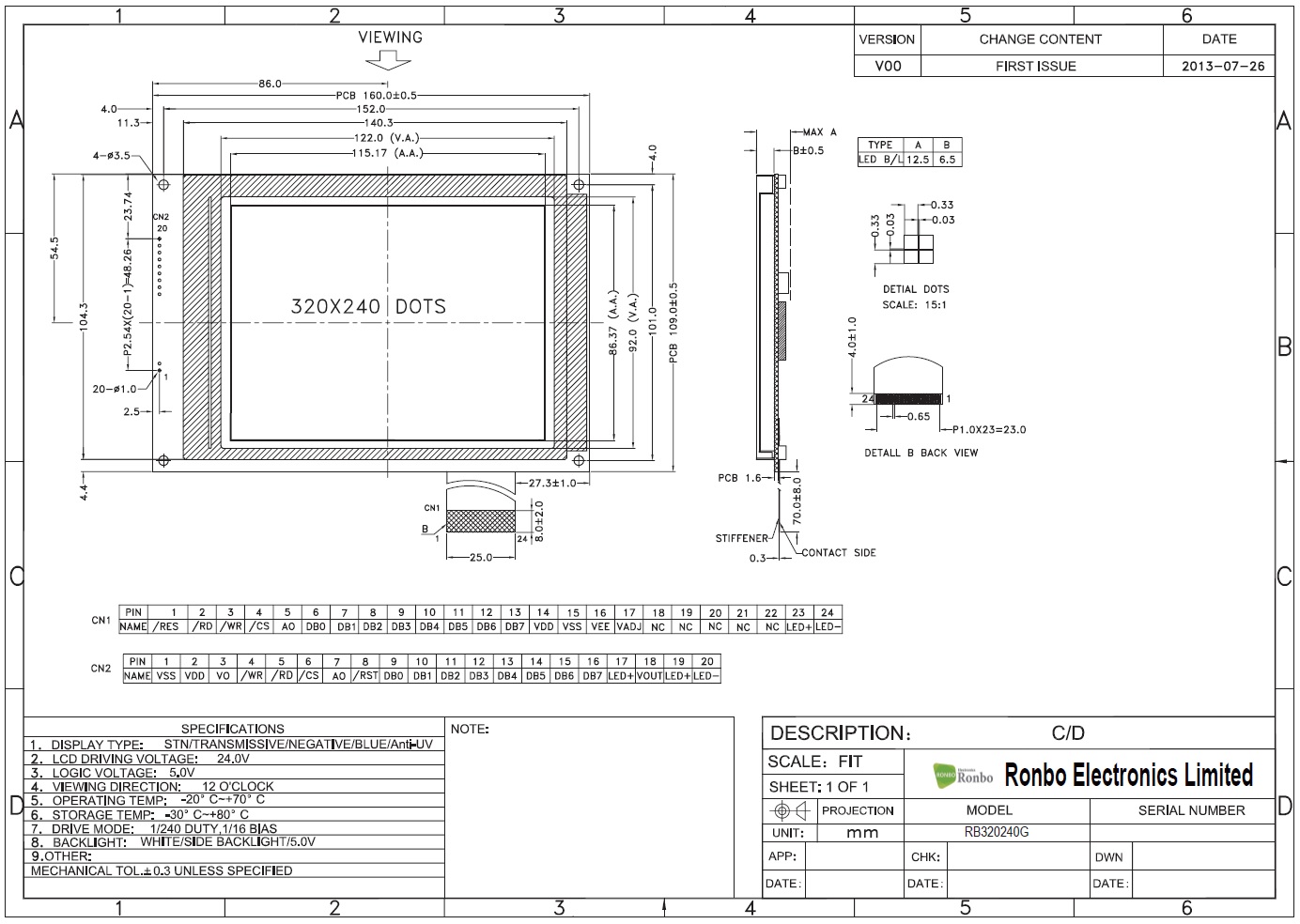

| Module size(W*H*T): | 160.0x109.0x12.5Max |
| Viewing Area(W*Hmm): | 122.0x92.0 |
| Dot size(W*Hmm) | 0.33x0.33 |
| Dot Pitch(W*Hmm) | 0.36x0.36 |
| Controller: | RA8835 or equivalent |
| Backlight: | White LED |
| LCD Type: | STN Yellow / Green, Positive |
| Operating Temperature: | -20 ~ 70ºC |
| Interface: | 8Bit MCU, FPC 24Pin / 20Pin Header |
Product Specification:
* It is a monochrome COB LCD Module and Chip on PCB Board.
* It is composed of a monochrome LCD, driver IC, backlight unit and PCB Board.
* It is available in various LCD panel colors including gray, yellow/green and blue LCD options.
* It is Standard and Ready-made graphic LCD.
* Experienced Team for Your Custom Solution.
* RoHS compliant.
Customized graphic LCD:
* It can be customized for monochrome LCD, backlight, FPC and PCB Board with a little tooling charge, and customized shape is suitable for customer's mechanical design.
* LED backlights are available in various colors including yellow/green, white, blue, and Backlight with different brightness is customized according to your request.
* Including different options of polarizer in reflective, transmissive or transflective types, and also with polarizer positive mode and negative mode options.
* It is available to add a connection board for each item to change the interface from FPC to pins or cables, We can offer a variety of pin out connections to suit your requirements.
* The LCD panel technologies include TN, STN, FSTN, FFSTN types, and are available with viewing angles of 6:00, 12:00, 3:00, and 9:00 o’clock.
* Extensive range of LCD graphic displays with various backlight and LCD type combinations.
Product Application:
| Telecommunication Devices | Telephone, Interphone, Smart Watch, Tablet PC, PDA |
| Consumer Products | Camera, DVD Player, Cell Phone, Game Player, Digital Photo Frame, Ｅ-Book Reader, Mp3 Player, MP4 PMP, Netbook PC |
| Technical Equipment | Elevator Controller, Industrial Machine, Security Ｍonitor, POS |
| Office Automation | Printer, Scanner, Fax Machine, Desktop Monitor, Desktop Monitor |
| Home Appliances | Air-condition Display, Refrigerator, Video Doorbell, Smart Machine |
| Automobile Display | GPS, Protable Navigation, Video Player, Speedometer, Recorder |
| IT Products | Digital Video, Media Player, Advertising Machine |
| Medical Equipment | Ultrasound Machine, Medial Monitor, Medical Imaging, Healthcare |
Packaging & Shipping & Delivery
Packaging Details:
All the products are packed in right way to keep it safe.
For small sizes of products we use tray carton,
For bigger sizes we use foam slot carton.
we also design packages according to customers' requirements
Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.
For large quantity orders: we ship by buyer's cargo agent in China,
we can also ship by air or sea transportation by our cargo agent.
Delivery Details:
Ready-made Sample: within 1 week
Custom Sample: 1~2 weeks
Mass production: 3-4 weeks
Our Advantage:
| Rich experience | Good knowledge of the displays market to put together solutions that add value and provide a unique proposition for the client |
| Advanced Equipment | Full automatic FPC&IC bonding machine, film attaching machine, CNC machine, polish machine advance production equipment ensure product quality |
| Quality Assurance | Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment |
| Fast response | Quickly realize your customized ideas, and have a sample ready in short time |
| Low MOQ | Depends on product |
| Stable supply | 1~10 years supply period |
| Extensive range | Providing complete solution from Mono to Color LCD module, Optical bonding between display to cover glass as well as cover glass to touch screen |
| Large production capacity | Operation capacity 2KK monthly |
| Quality guarantee | RoHS compliant |
| Management | ISO 9001:2008, ISO 14001:2004 |
FAQ:
Q: How can I get some samples?
A: We don't provide free one, but we can have a discount when you reorder according to different quantity, and you will win at least 3% discount.
Q: What is the MOQ?
A: It depends on different products. Please keep in touch with sales to confirm the MOQ.
Q: How do you control quality?
A: All materials we purchase for making any orders are high quality and RoHS compliant, and Control quality with ISO 9001:2008, ISO 14001:2004 management system.
Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment
h 800*480 Capacitive Touch Screen LCD Display
Q: Does your product have any warranty?
A: Yes, we offer 12 months warranty for our products.
Q: What's your payment method?
A: Payment: T/T, Paypal, Western Union, etc.
For samples: payment in advance.
For mass production: 30% deposit and 70% balance before shipment.
Q: Do you offer custom solution?
A: Yes, we can offer custom solution if standard products couldn't meet buyer' requirements.
