Product Specification:

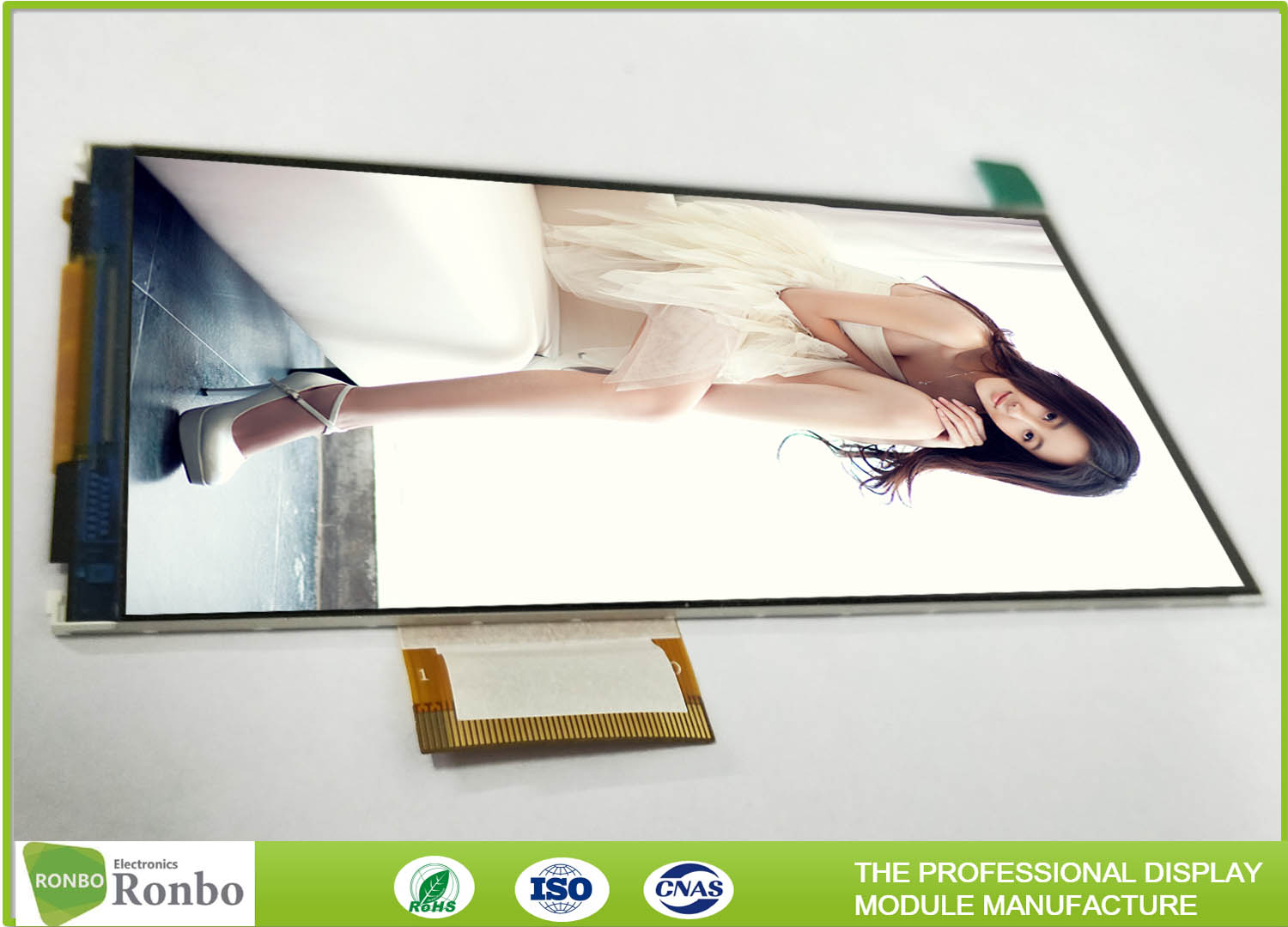

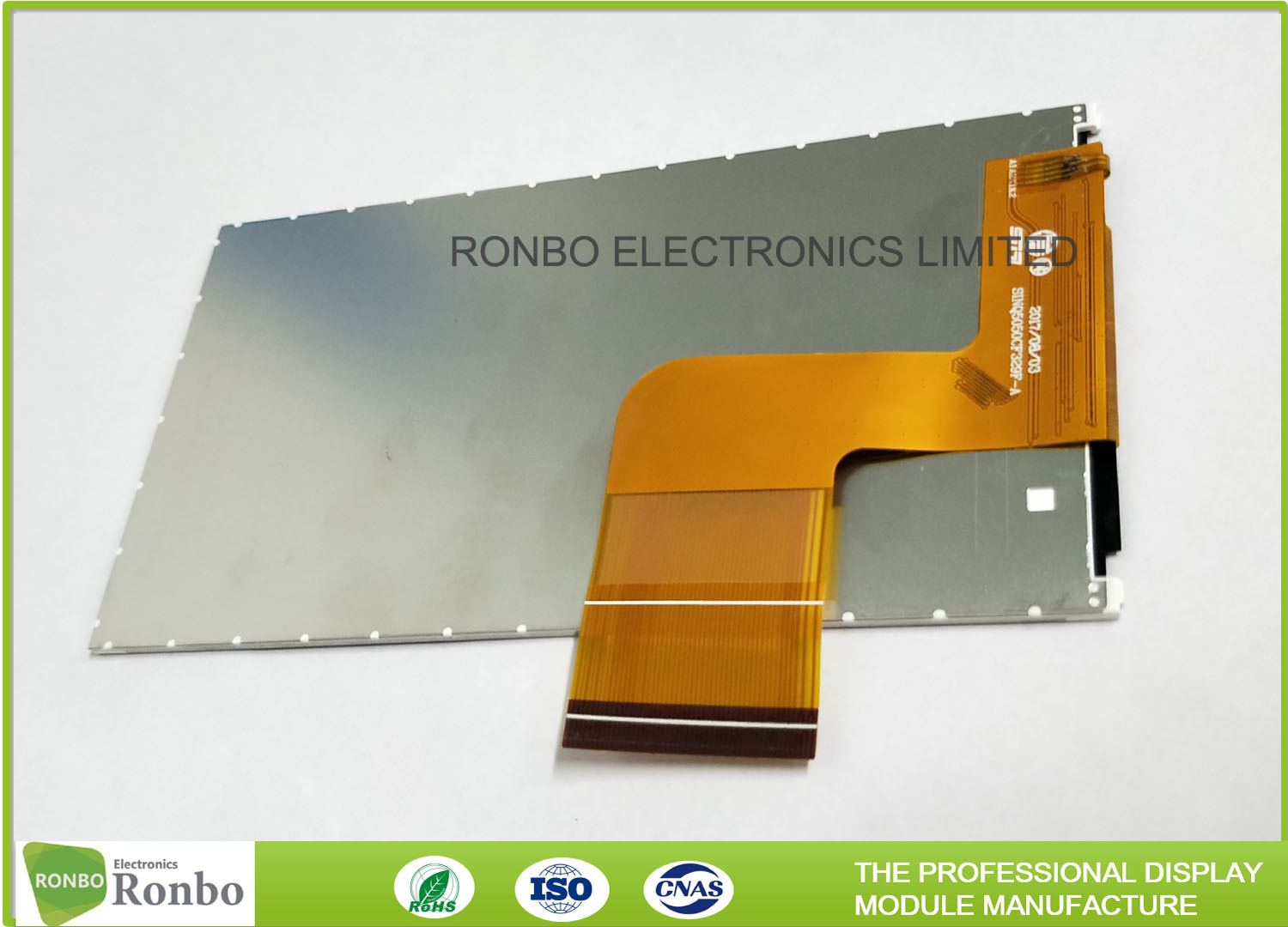

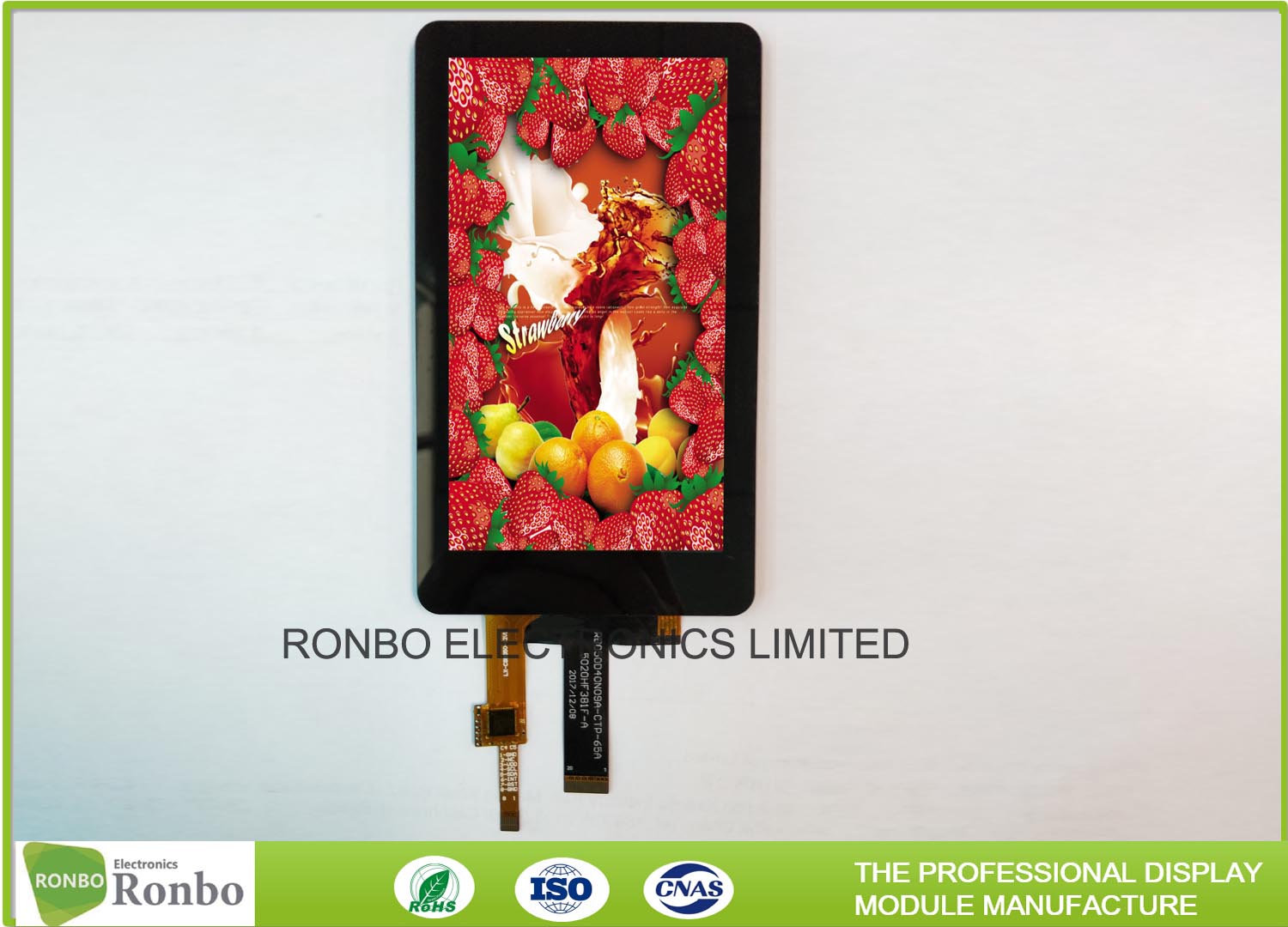

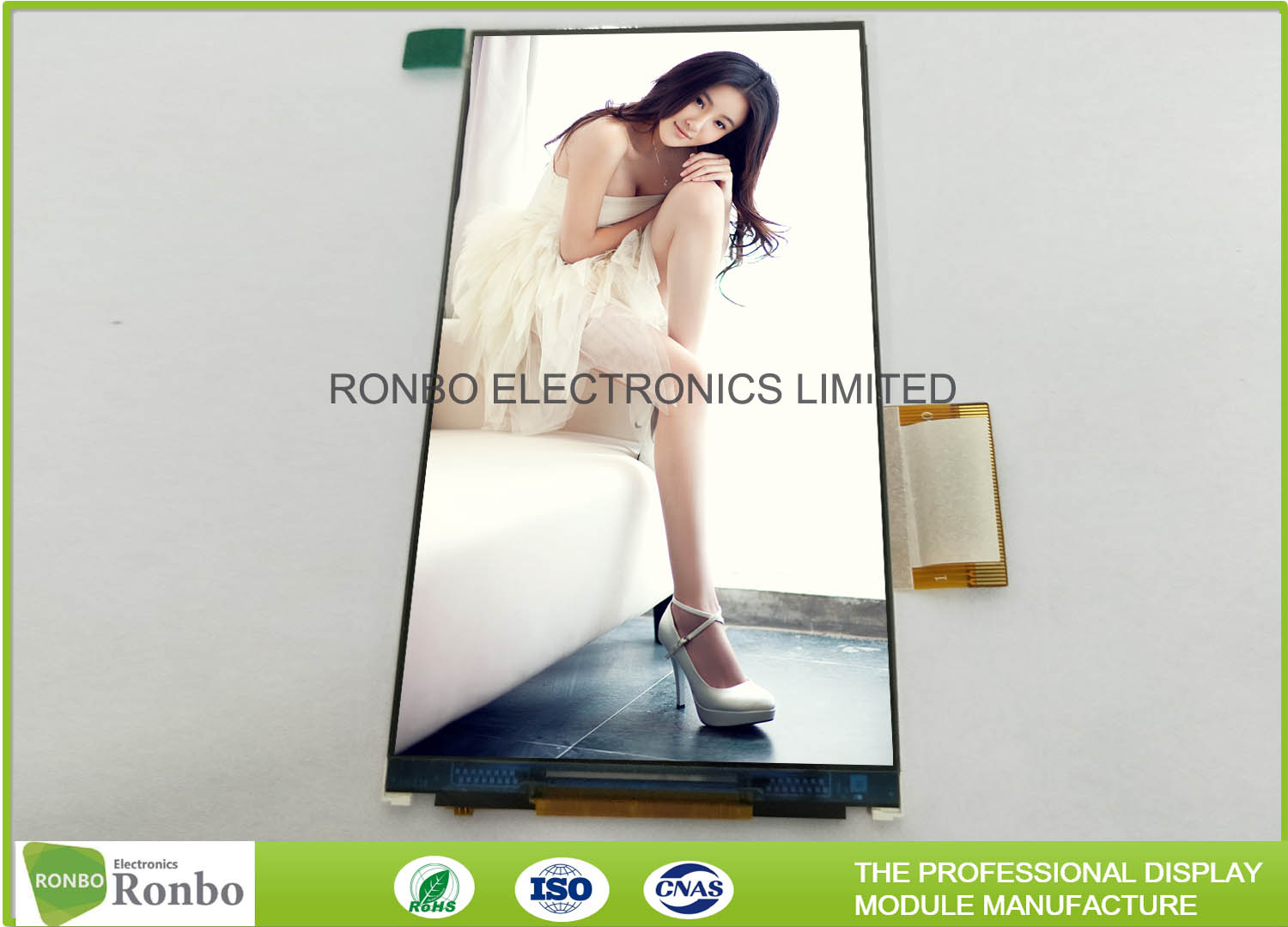

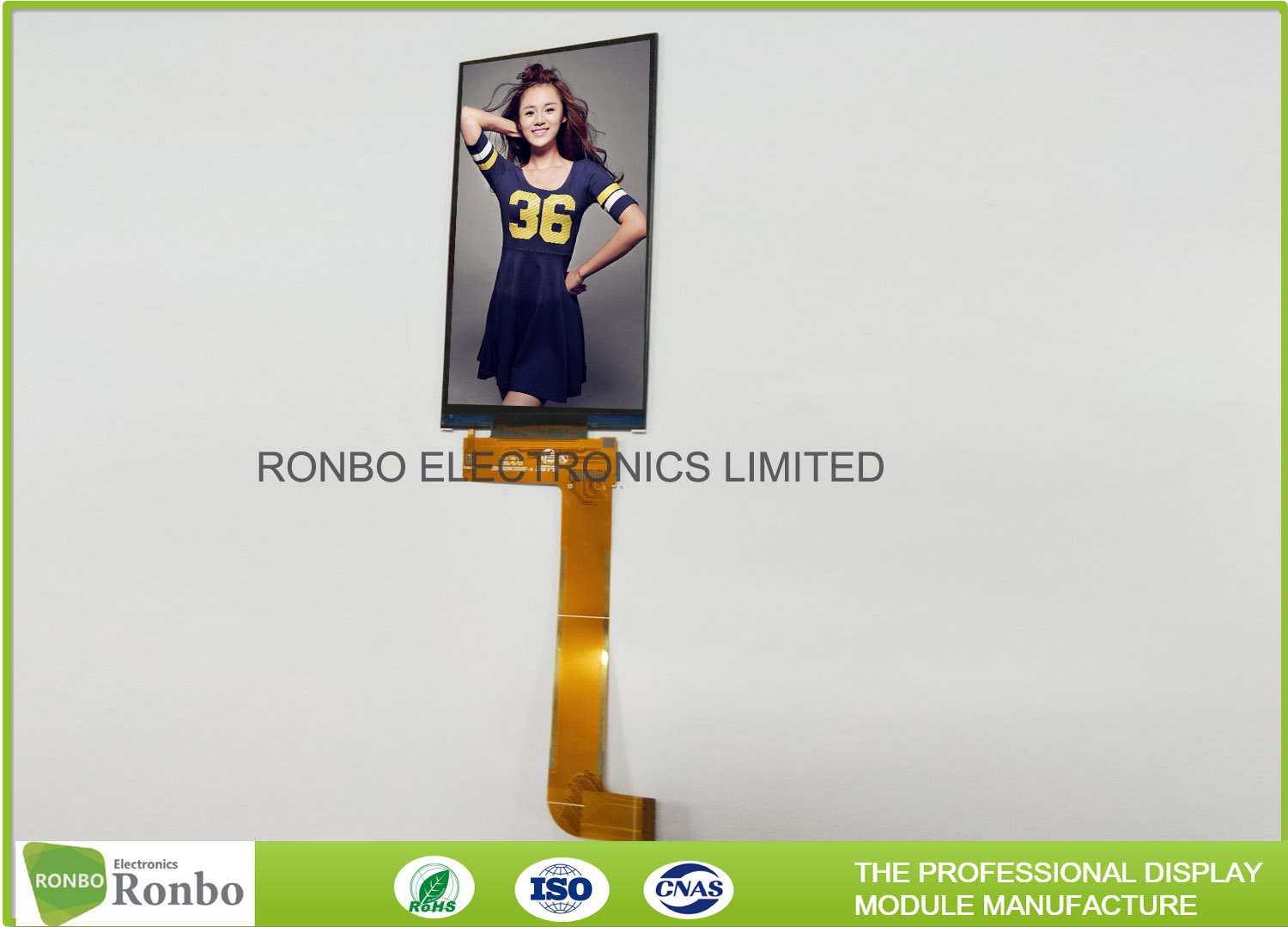

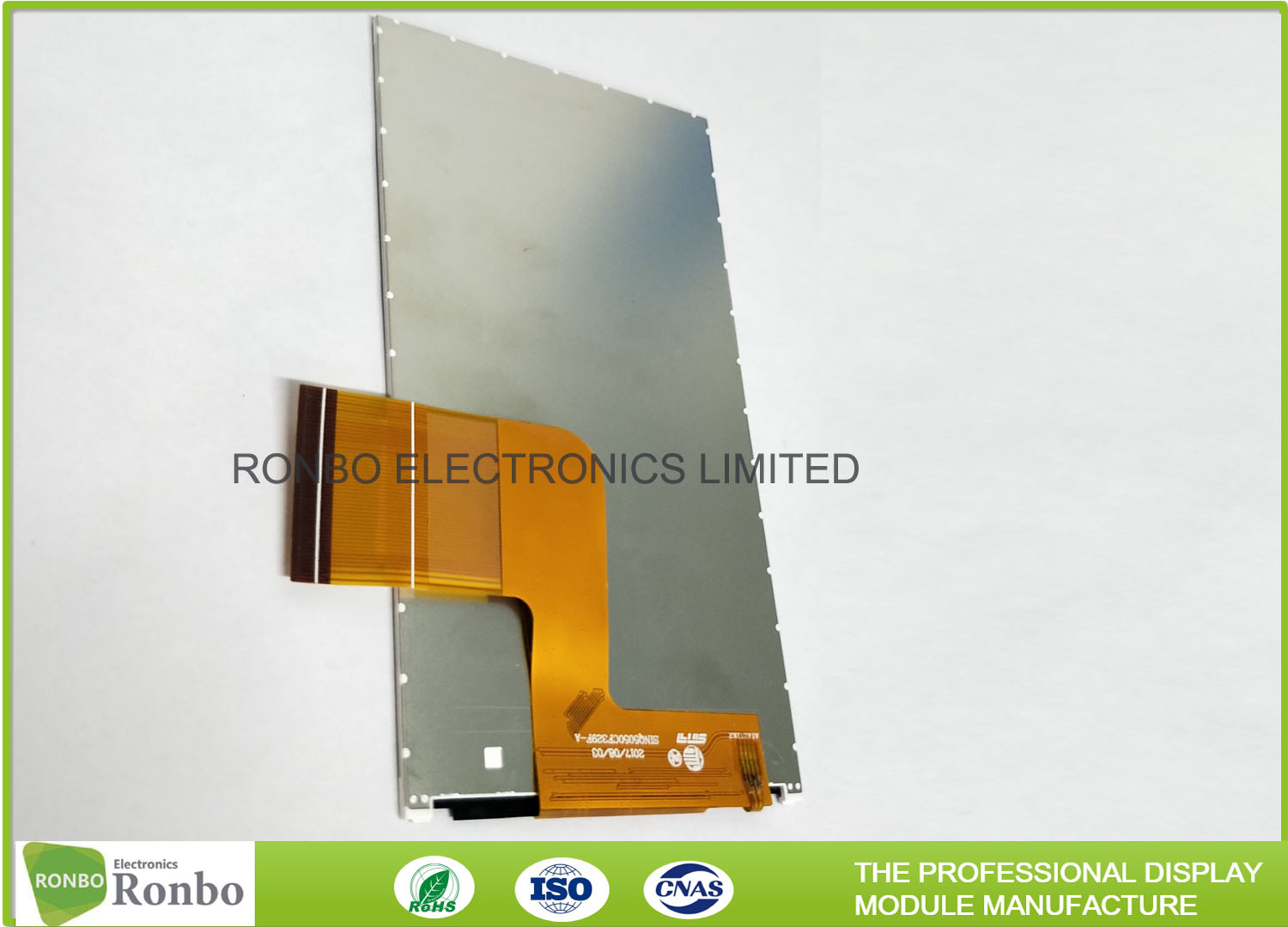

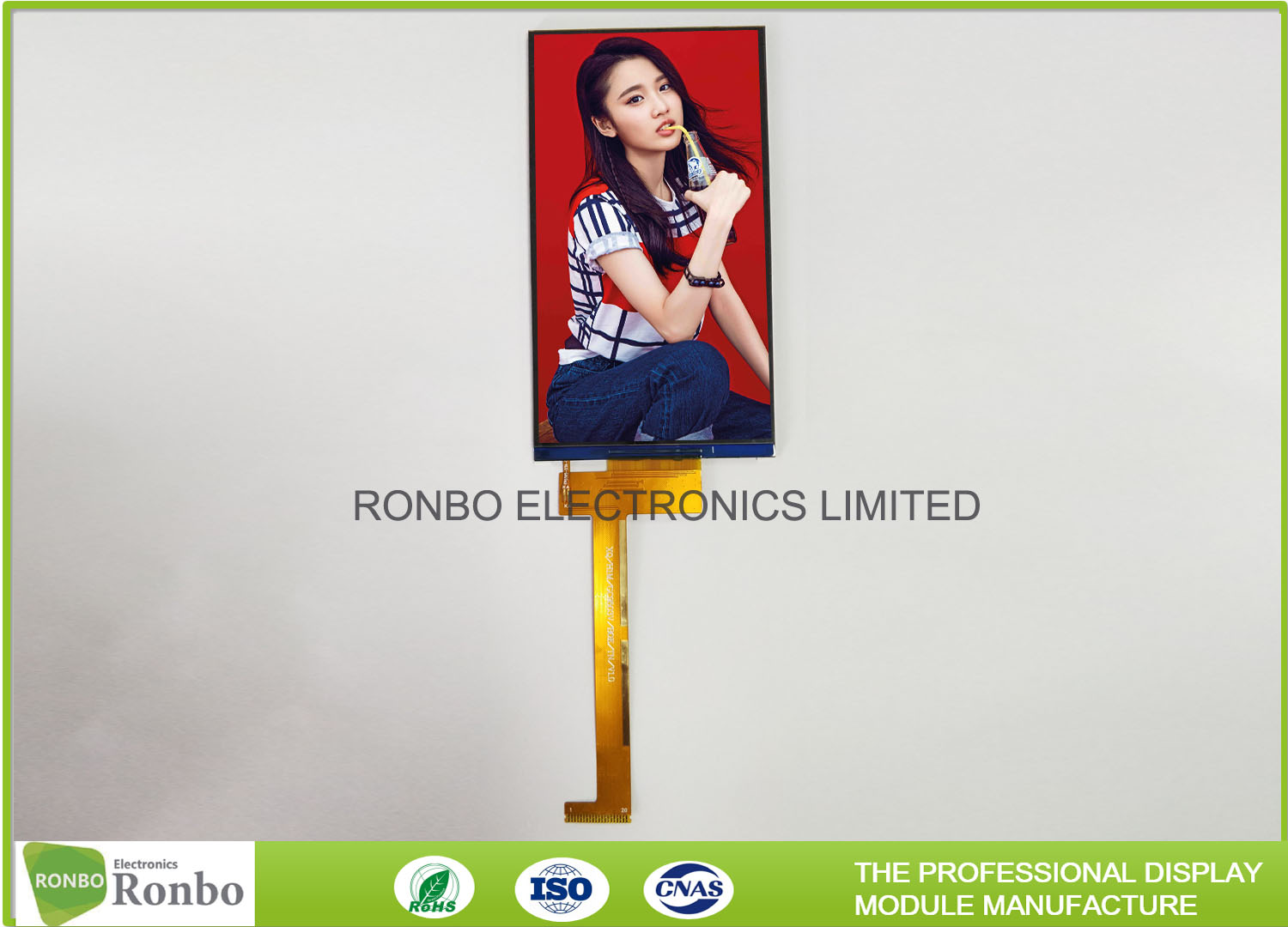

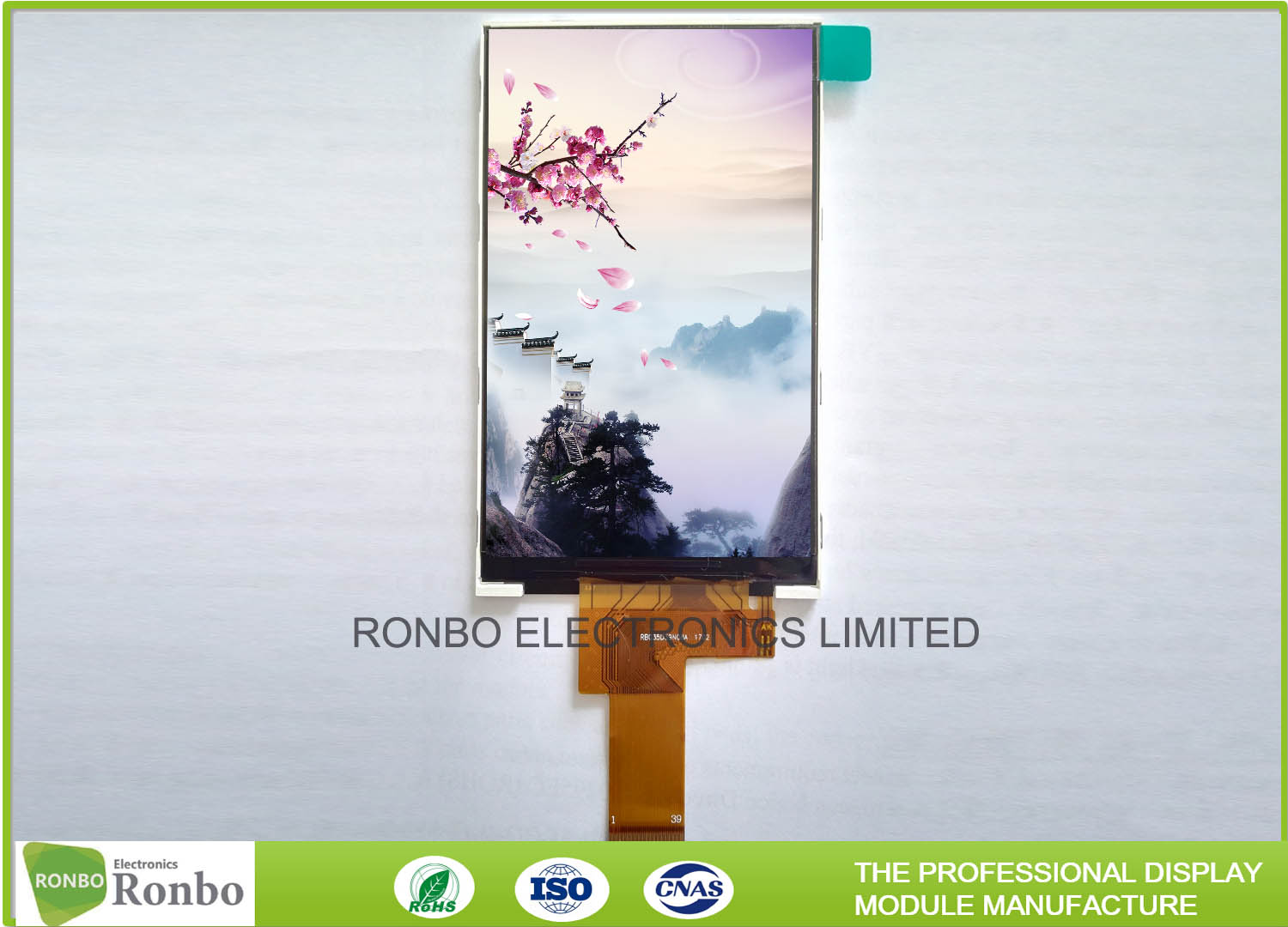

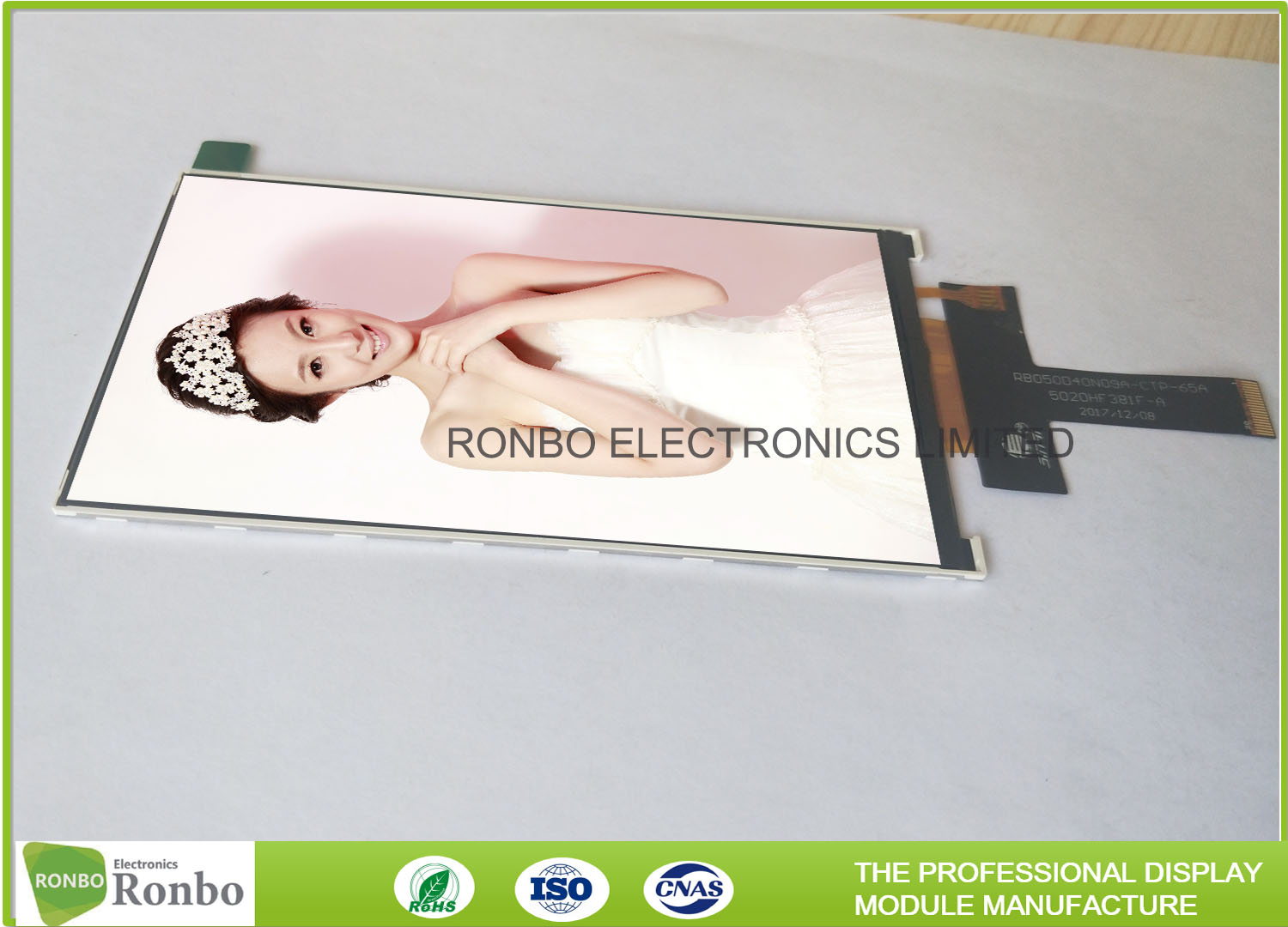

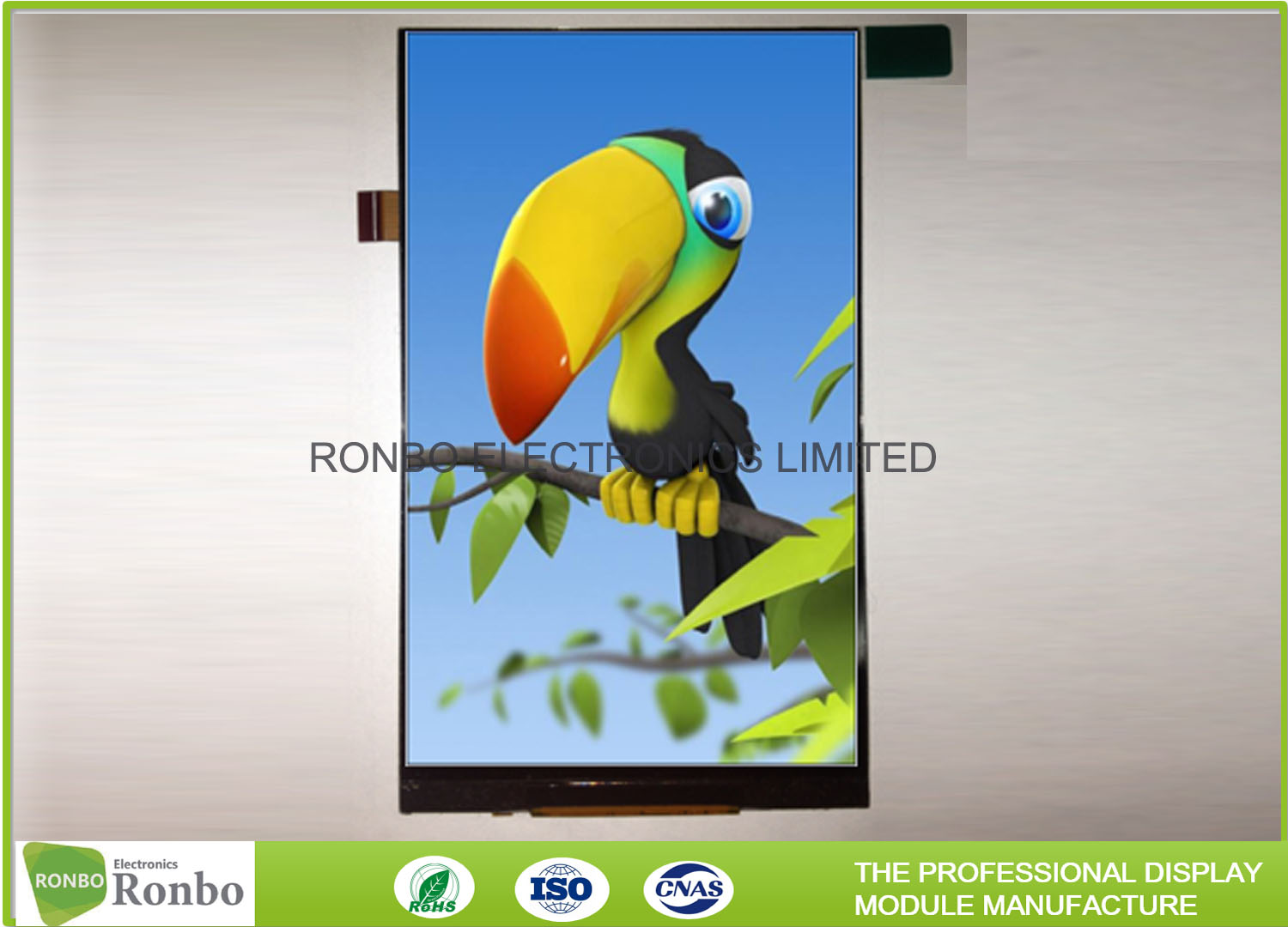

It is a thin thickness and narrow width 5 inch Cell Phone LCD Display with 480*854 pixels.
It supports MIPI interface including typical brightness 400 cd/m2.
This Cell Phone LCD Display can be operating at temperatures from –20℃ to 70℃.
It's storage temperatures range from -30℃ to 80℃.
Absolute Maximum Ratings
| ITEM | Symbol | MIN | MAX | UNITS |
| Power supply voltage 1 | VCC | 2.5 | 3.3 | V |
| Power supply voltage 1 | IOVCC | 1.65 | 3.3 | V |
| Operating temperature | Topr | -20 | 70 | ℃ |
| Storage temperature | Tstg | -30 | 80 | ℃ |
| Humidity | RH | --- | 90%(Max40°C) | RH |
Interface Description
| PIN NO. | PIN NAME | DESCRIPTION |
| 1 | LED_A | Power Supply For LED Backlight Anode Input |
| 2 | LED_A | Power Supply For LED Backlight Anode Input |
| 3 | LED_K | Power Supply For LED Backlight Cathode Input |
| 4 | LED_K | Power Supply For LED Backlight Cathode Input |
| 5 | GND | System Ground |
| 6 | NC | Not Control |
| 7 | DVDD | POWER SUPPLY FOR LCD 1.8V |
| 8 | MODE | Not Control |
| 9 | DE | Data input enable |
| 10 | VSYNC | Frame synchronizing signal for RGB interface operation |
| 11 | HSYNC | Line synchronizing signal for RGB interface operation |
| 12~19 | B7~B0 | Blue Data |
| 20~27 | G7~G0 | Green Data |
| 28~35 | R7~R0 | Green Data |
| 36 | GND | System Ground |
| 37 | DCLK | Dot clock signal for RGB interface operation |
| 38 | GND | System Ground |
| 39 | NC | Not Control |
| 40 | NC | Not Control |
| 41 | NC | Not Control |
| 42 | NC | Not Control |
| 43 | AVDD | POWER SUPPLY FOR LCD 2.8V |
| 44 | RESET | Reset Signal |
| 45 | SPI_CS | CHIP SELECT PIN |
| 46 | NC | Not Control |
| 47 | SCL | The pin used as serial clock pin |
| 48 | GND | System Ground |
| 49 | SPI_IN | Serial data input |
| 50 | SPI_output | Serial data output |
