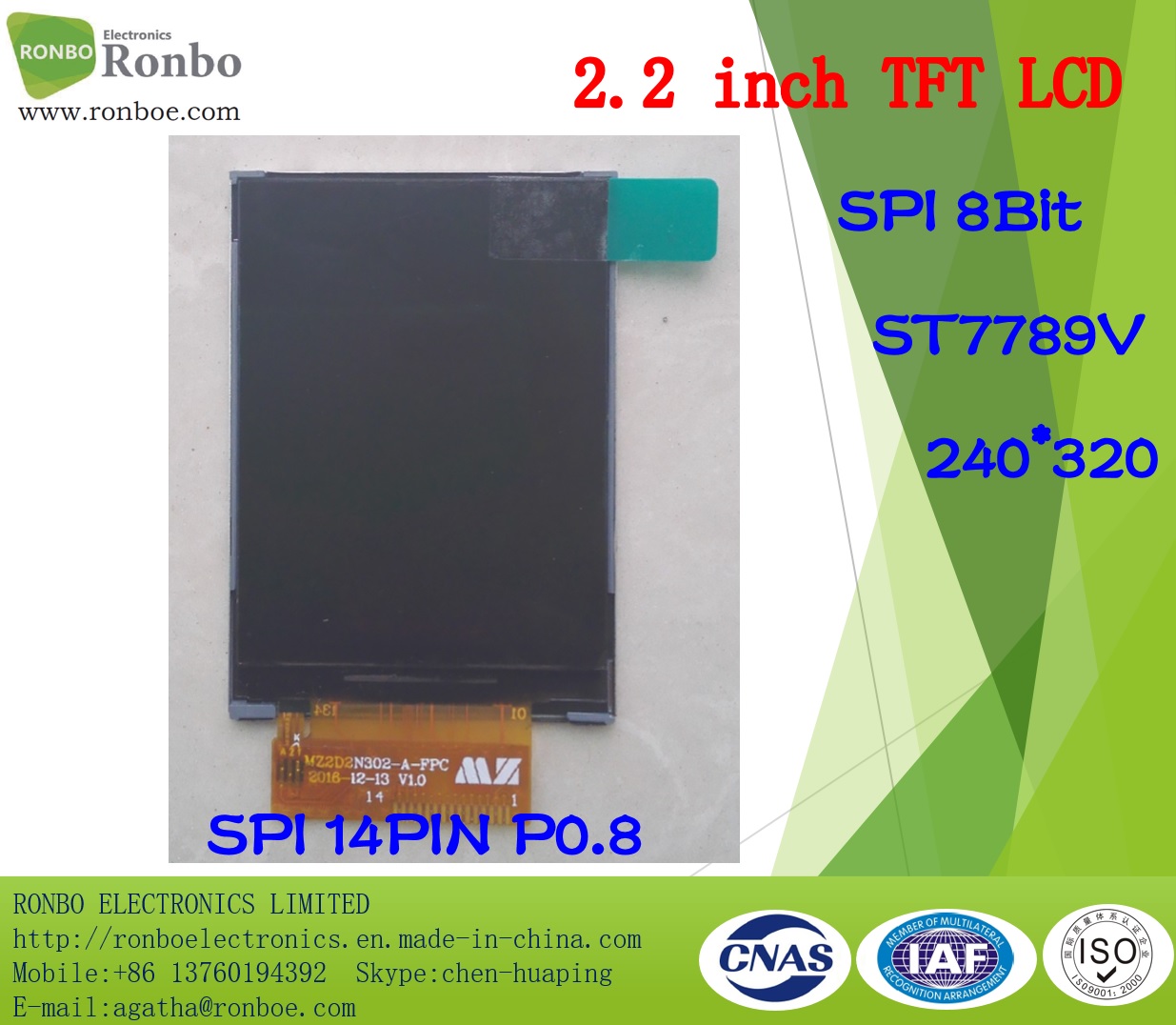

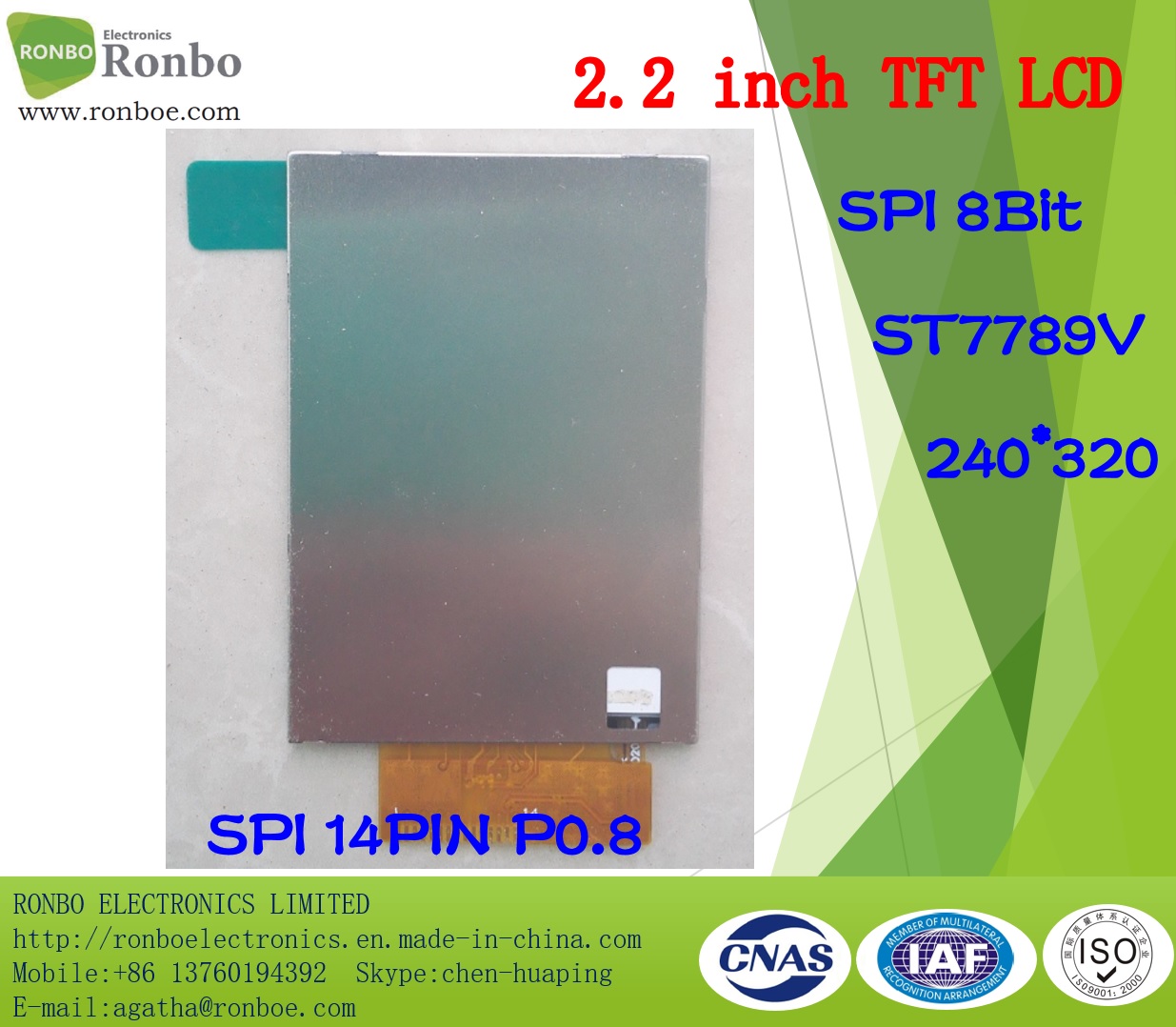

Model: 2.2" 240*320 Serial SPI TFT LCD Display, IC: ILI9341V, SPI 14PIN

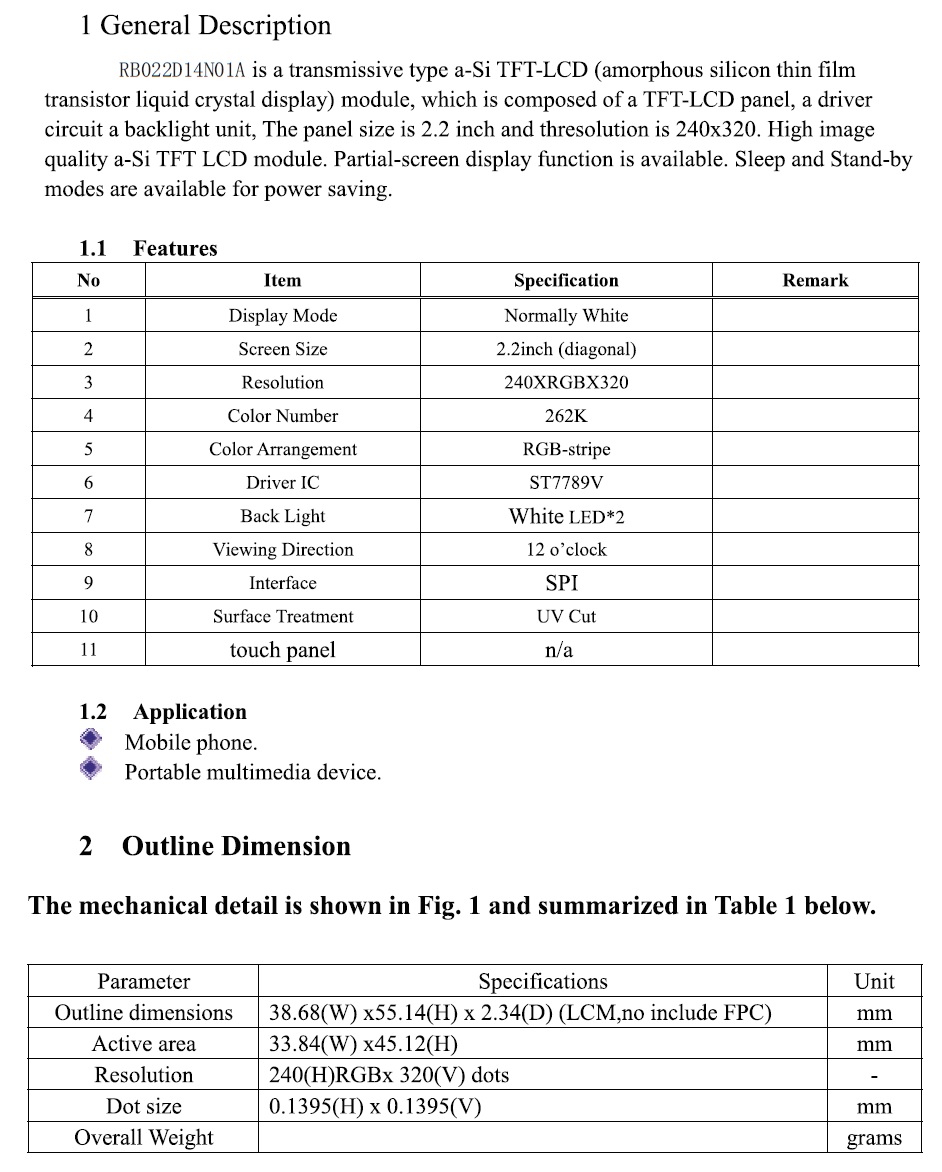

Specification:
Model NO.: | RB022D14N01A |
Screen Size: | 2.2" |
Resolution: | 240*320 |

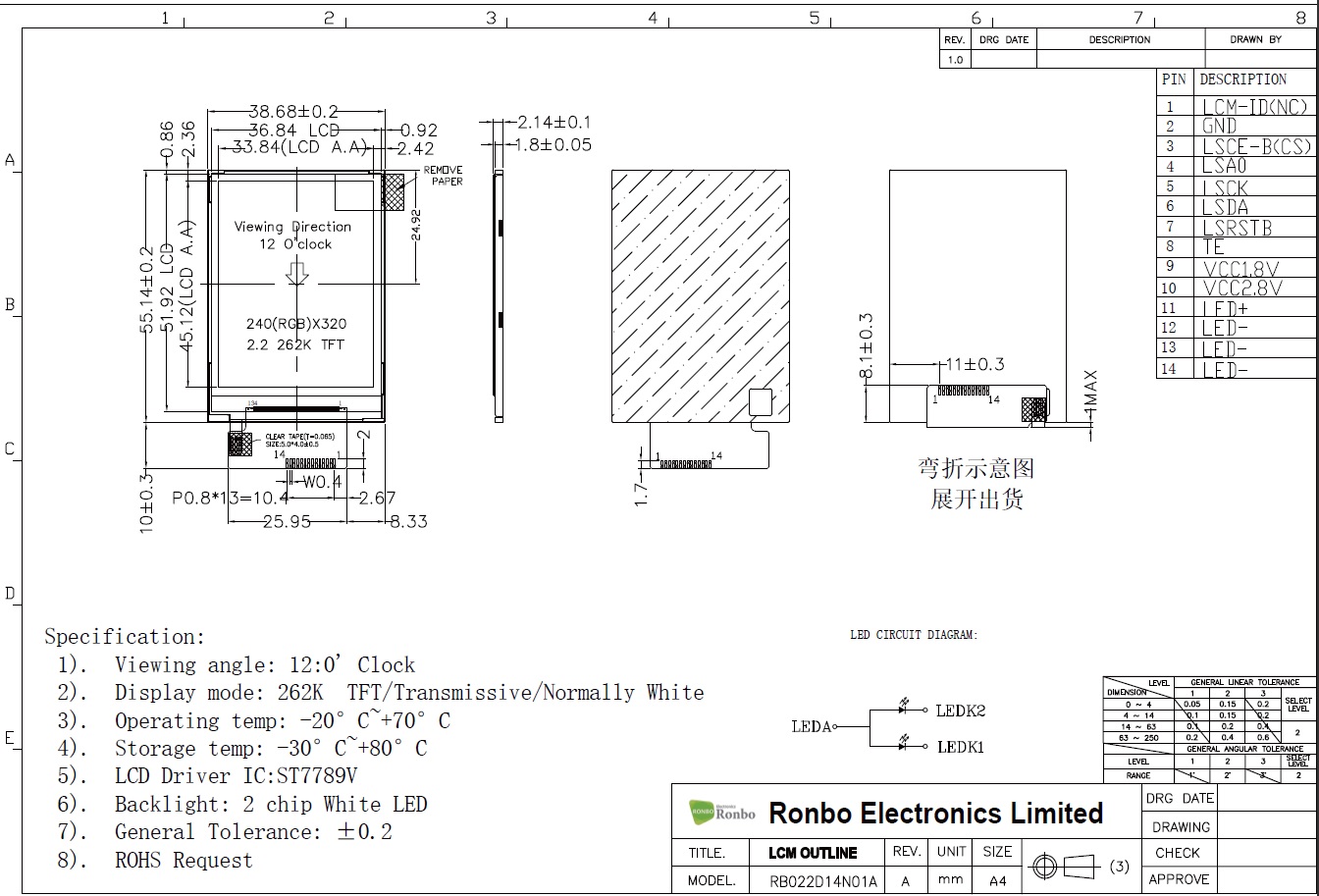

Module size(W*H*T): | 38.68*55.14*2.14mm |
Active area (W*H): | 33.84*45.12mm |
Controller: | ST7789V |
Brightness: | 2 White LED |
Display Type: | 262K |
Operating Temperature:- | -20 ~ 70ºC |

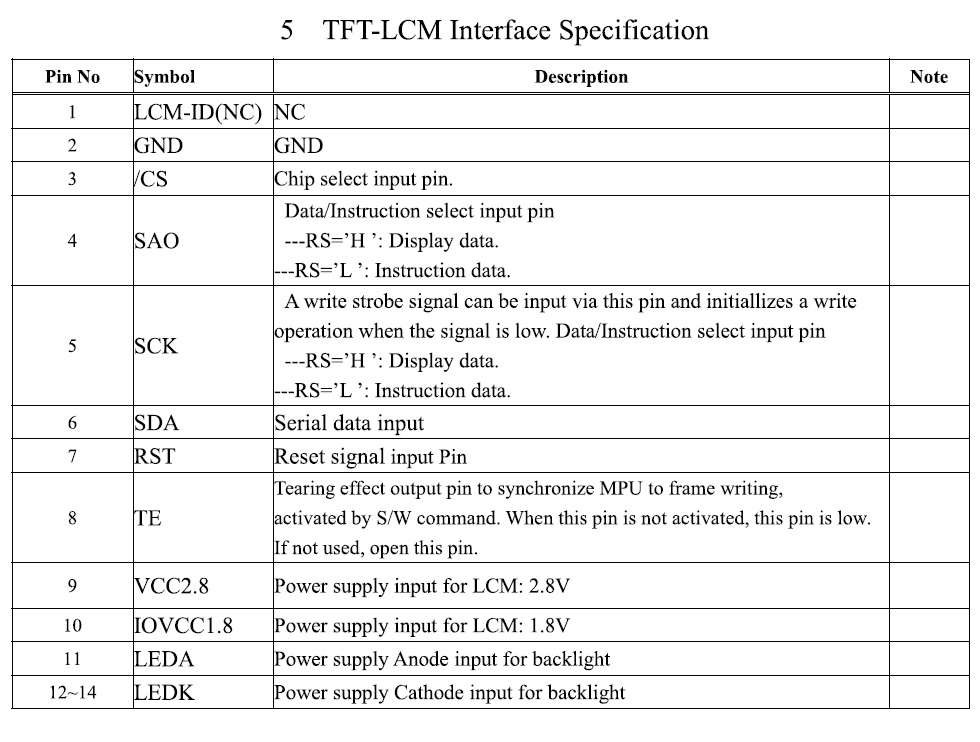

Interface: | SPI 4wire，FPC 14PIN, Pitch:0.8mm |
Ronbo Electronics Ltd., located at Dongguan, China, is one of the leading display suppliers. Its production line includes small to medium size LCD, TFT, and OLED modules for a variety of industrial and consumable application. We are one of the leading display providers of monochrome character LCD modules, graphic LCD modules, alphanumeric LCD panel & TFT modules. High-quality LCD modules are made based on our experienced engineering knowledge, well-managed supply chain.
Besides standard modules, our experience R&D staff can either support you value-added program or make customized product according to your specification
Moreover, our company has passed ISO 9001, ISO14001 certifications as well as RoHS.
