RB101D50N05A

RB101D50N05A
RB101D50N05A

Model:10.1"1024*600 LVDS interface TFT LCD Display,FPC

 50PIN, 380cd/m², FOR POS, Doorbell, Medical, Cars

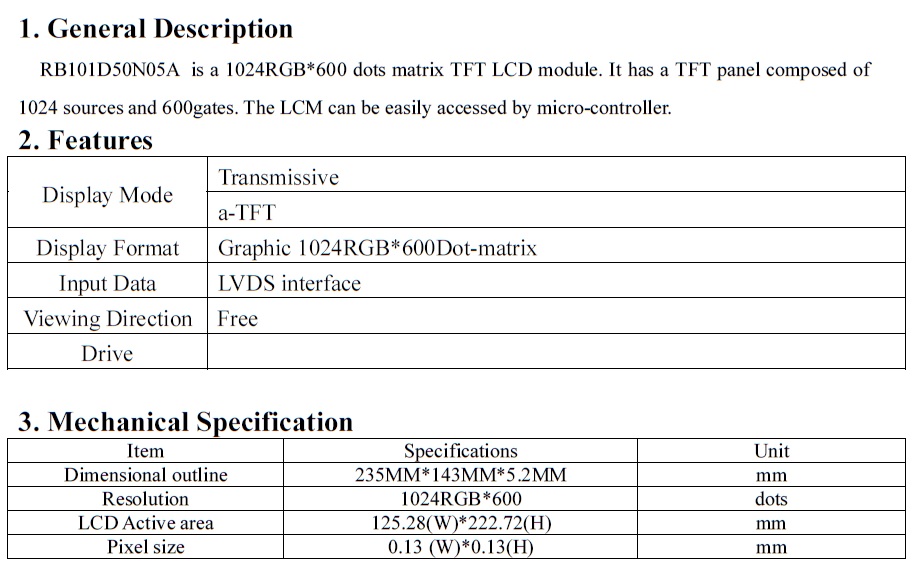

Specification:

Model   NO.:

RB101D50N05A

Screen   Size:

10.1"

Resolution:

1024*600

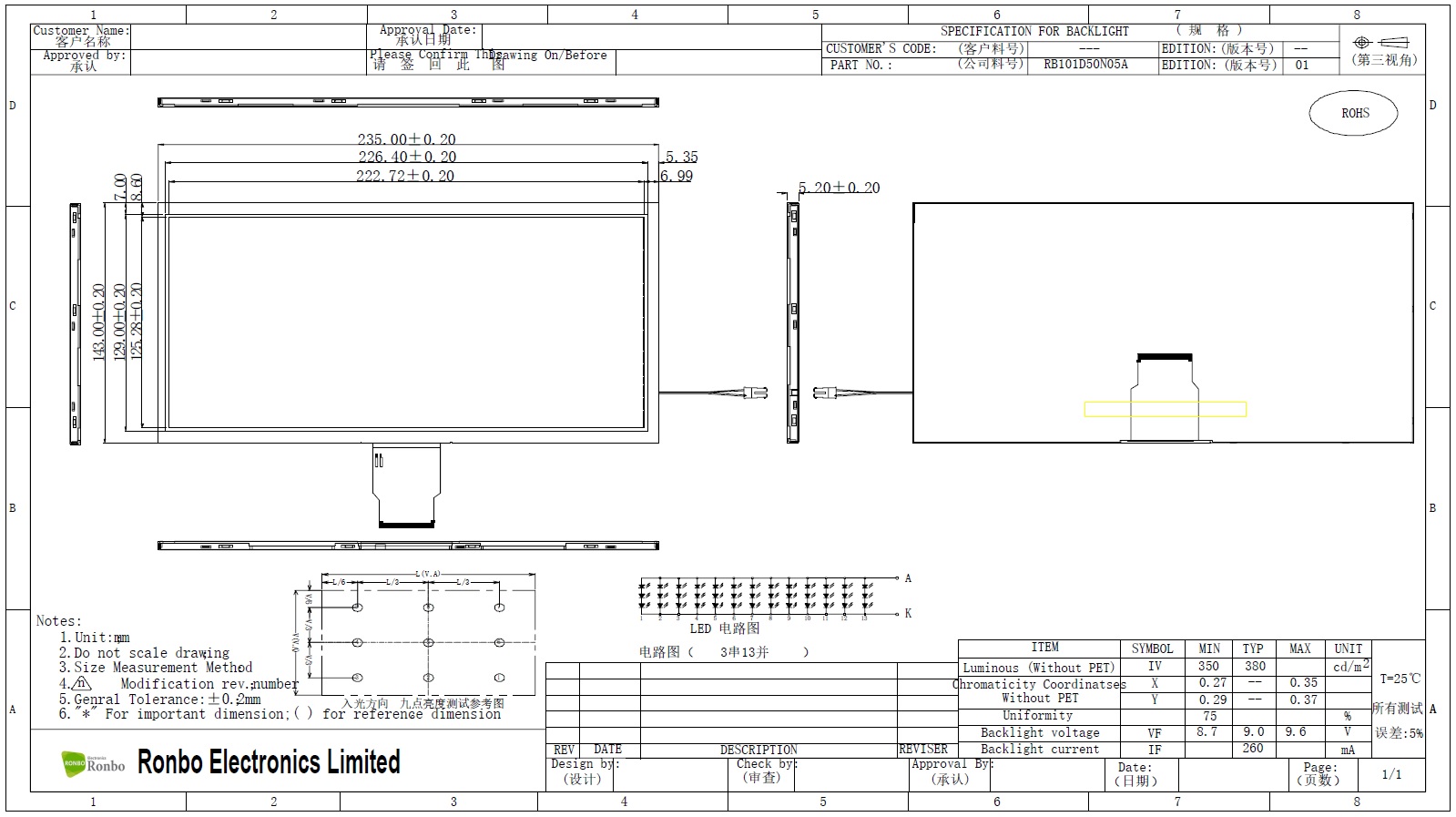

Module   size(W*H*T):

235.0*143.0*5.2mm

Active   area (W*H):

222.72*125.28mm

Controller:


Brightness:

39   White LED /380cd/m²

Display   Type:

16.7M   COLORS

Operating   Temperature:

-20   ~ 70ºC

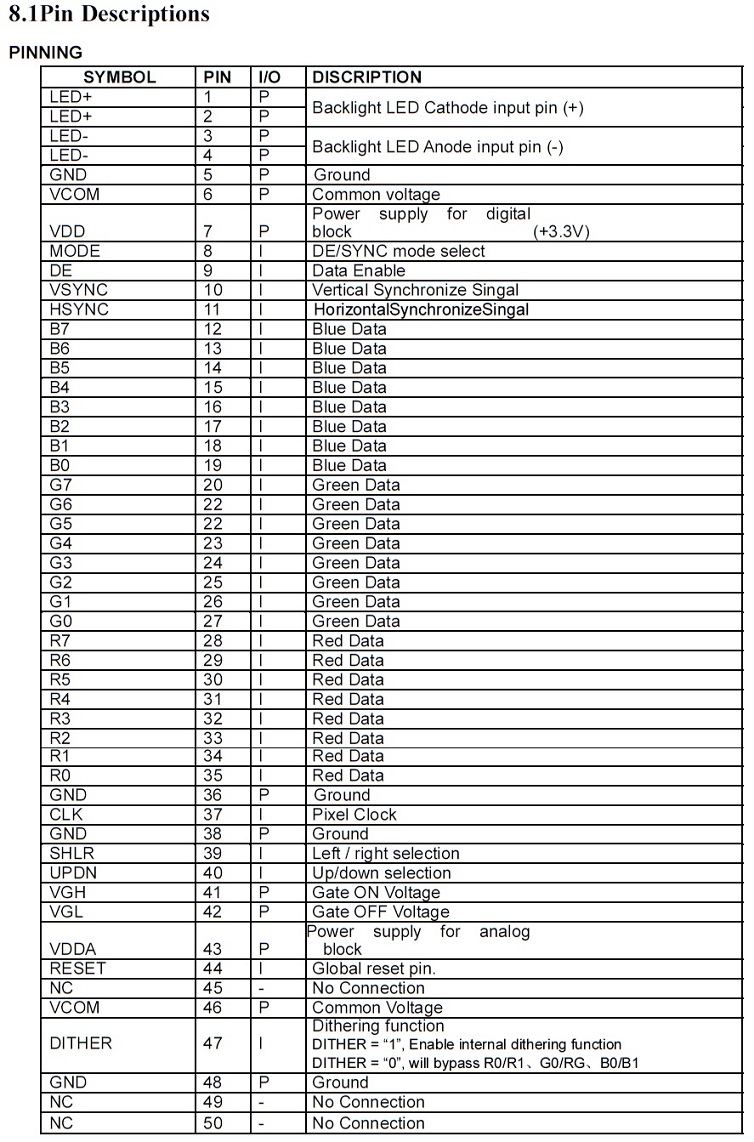

Interface:

LVDS   interface, FPC 50PIN
