RB022D22N02A

RB022D22N02A
RB022D22N02A

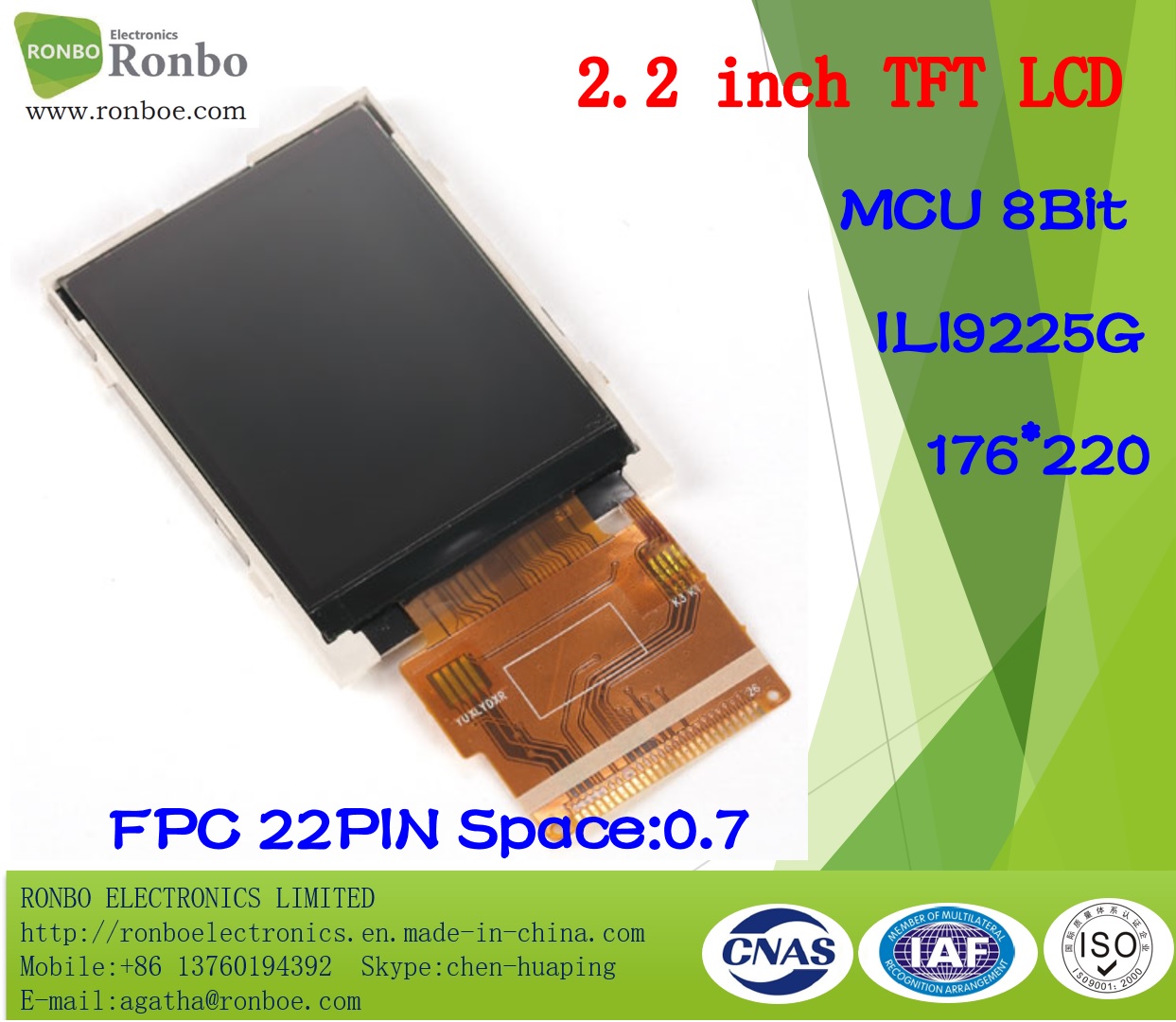

Model:2.2"176*220 MCU 8Bit TFT LCD Display,IC: ILI9225G,FPC 22PIN

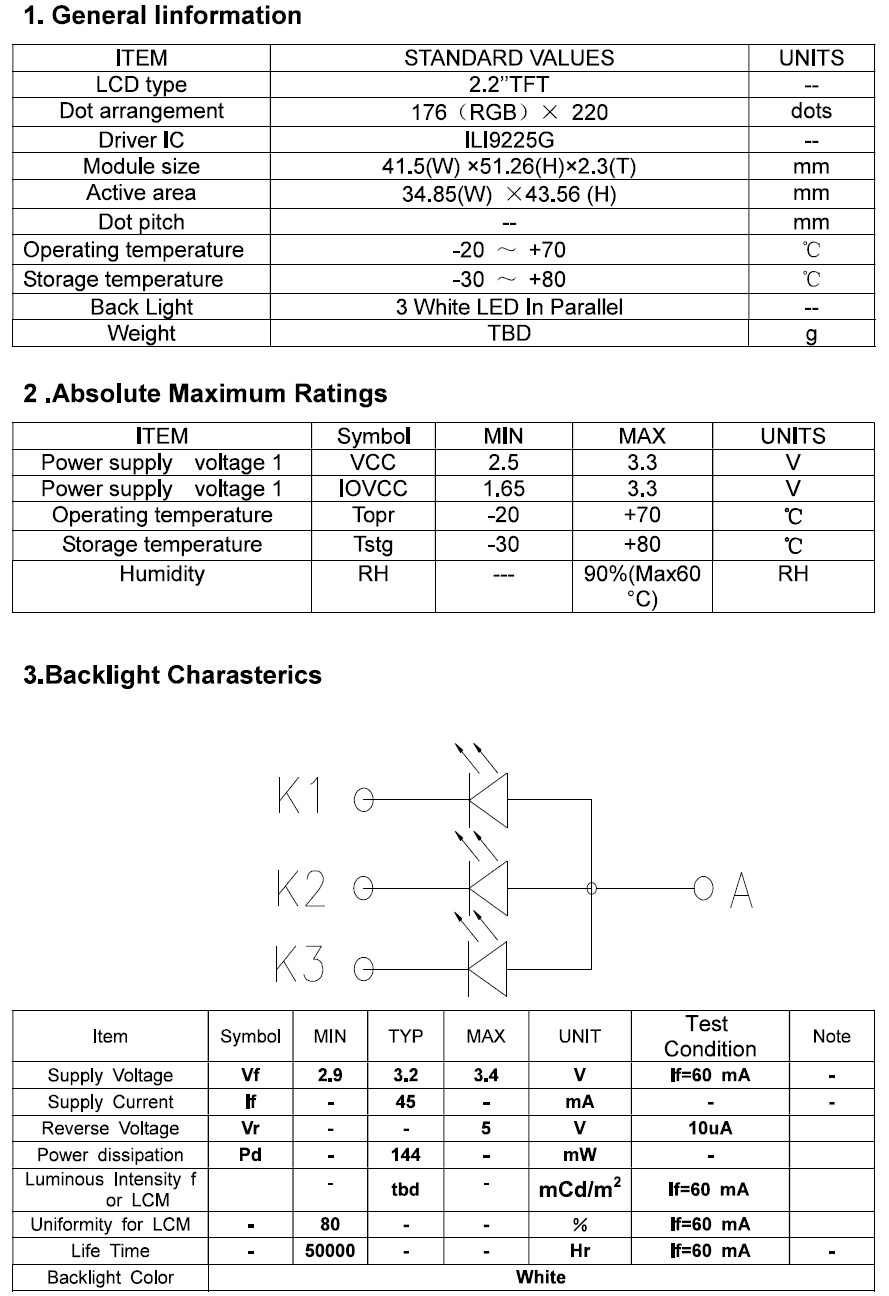

Specification:

Model NO.:

RB022D22N02A

Screen Size:

2.2"

Resolution:

176*220

Module size(W*H*T):

41.5*51.26*2.3mm

Active area (W*H):

33.85*43.36mm

Controller:

ILI9225G

Brightness:

3 White LED

Display Type:

262K

Operating Temperature:-

-20 ~  70ºC

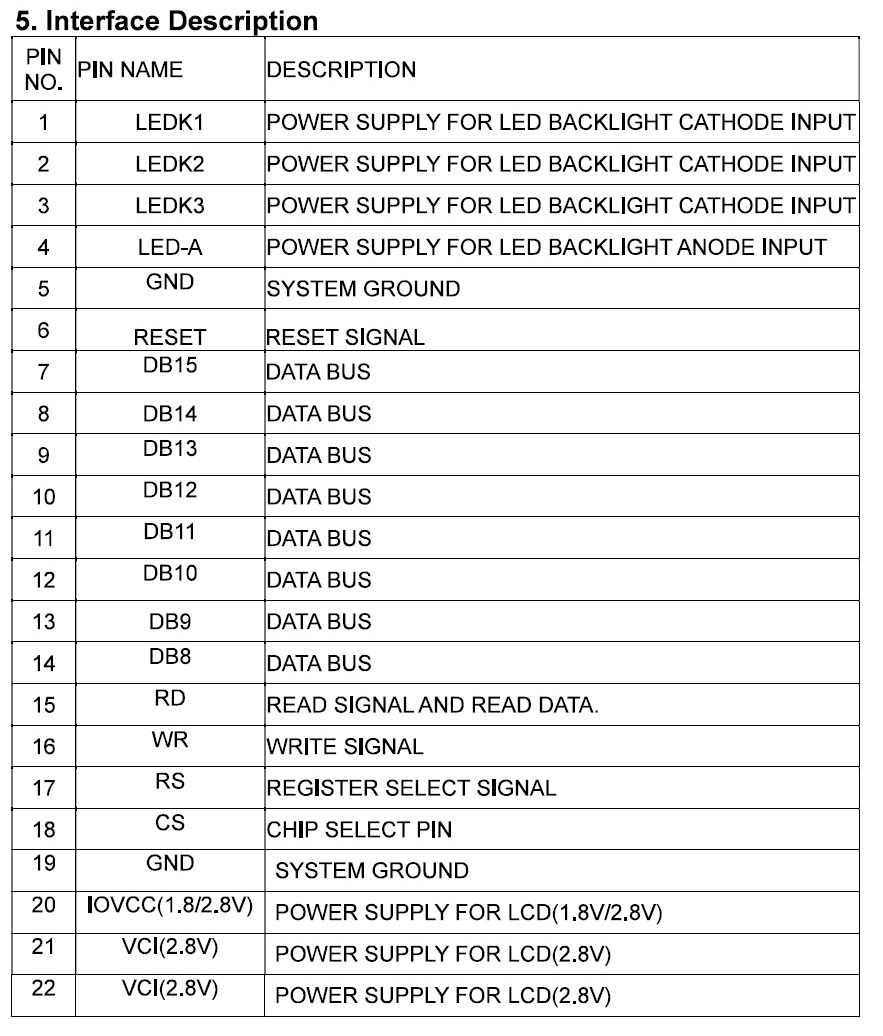

Interface:

MCU 8Bit,FPC 22PIN,Pitch:0.7mm





Ronbo Electronics Ltd., located at Dongguan, China, is one of the leading display suppliers. Its production line includes small to medium size LCD, TFT, and OLED modules for a variety of industrial and consumable application. We are one of the leading display providers of monochrome character LCD modules, graphic LCD modules, alphanumeric LCD panel & TFT modules. High-quality LCD modules are made based on our experienced engineering knowledge, well-managed supply chain.


Besides standard modules, our experience R&D staff can either support you value-added program or make customized product according to your specification


Moreover, our company has passed ISO 9001, ISO14001 certifications as well as RoHS.
