RB035D39N08A

RB035D39N08A
RB035D39N08A

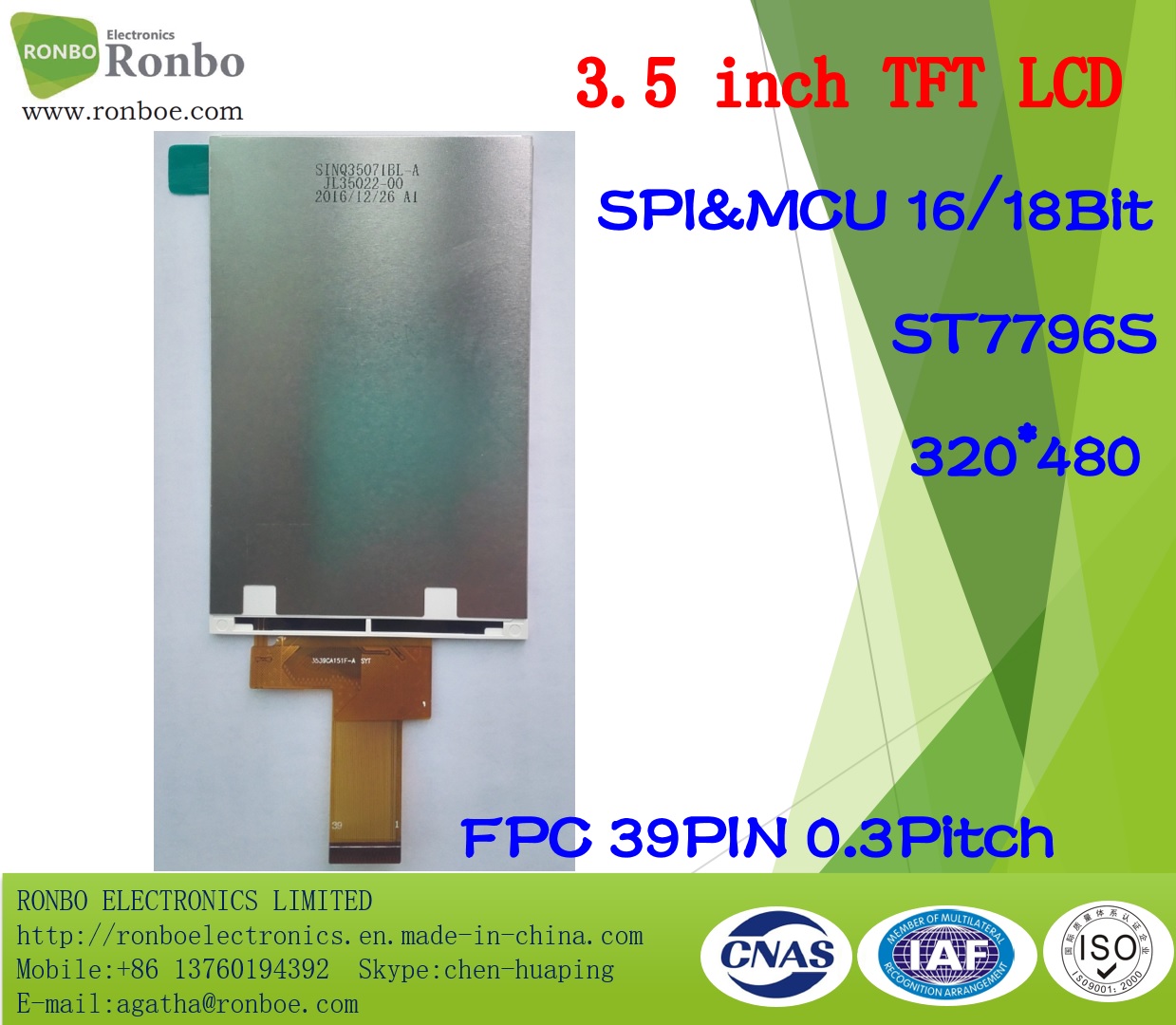

Model: 3.5" 320x480 TFT LCD Display, SPI&MCU LCD Panel, ST7796S, 39pin with Option Touch Screen
Specification:

Model   NO.:

RB035D40N03A

Screen   Size:

3.5"

Resolution:

320*480

Module   size(W*H*T):

54.48*84.71*2.2mm

Active   area (W*H):

49.0*73.4mm

Controller:

ST7796S

Brightness:

6   White LED

Display   Type:

262K

Operating   Temperature:

-20   ~ 70ºC

Interface:

SPI&MCU   16/18Bit,FPC 39PIN 0.3Pitch




Ronbo Electronics Ltd., located at Dongguan, China, is one of the leading display suppliers. Its production line includes small to medium size LCD, TFT, and OLED modules for a variety of industrial and consumable application. We are one of the leading display providers of monochrome character LCD modules, graphic LCD modules, alphanumeric LCD panel & TFT modules. High-quality LCD modules are made based on our experienced engineering knowledge, well-managed supply chain.


Besides standard modules, our experience R&D staff can either support you value-added program or make customized product according to your specification


Moreover, our company has passed ISO 9001, ISO14001 certifications as well as RoHS.

Our website is
http://www.ronboe.com
