RB035D45T04A

RB035D45T04A
RB035D45T04A

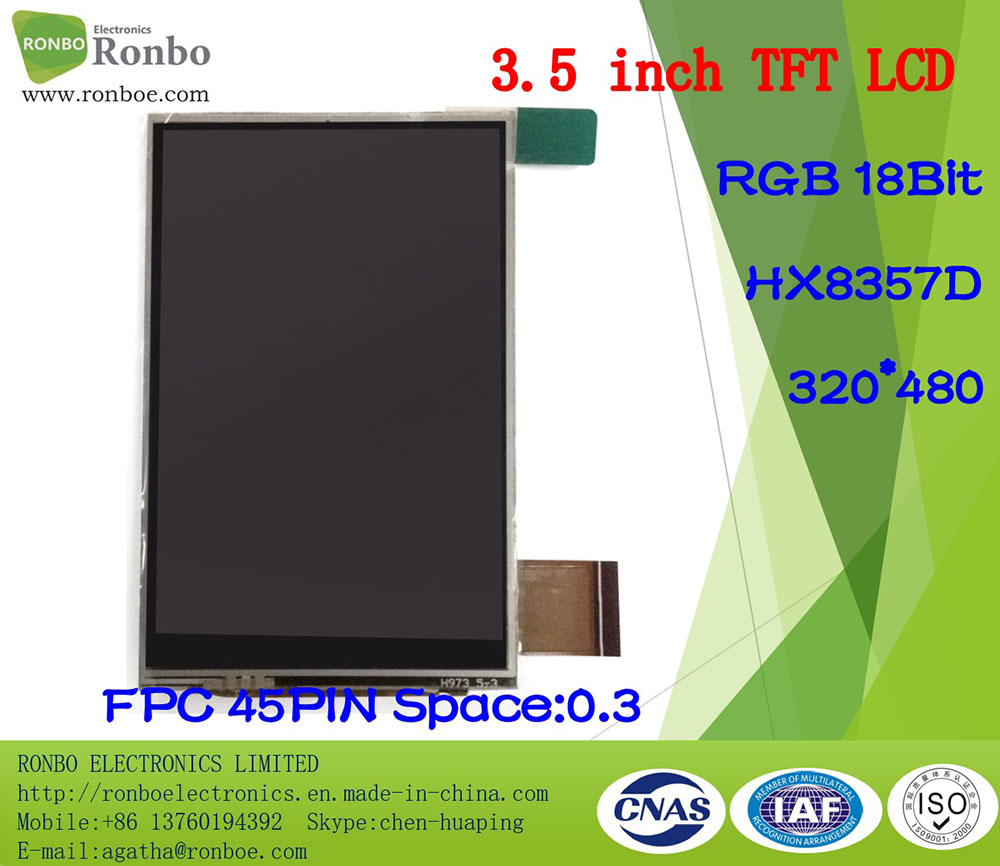

Model:3.5"320*480 RGB 18Bit TFT LCD Display,IC: HX8357D,FPC 45PIN FOR POS, Doorbell, Medical, Cars

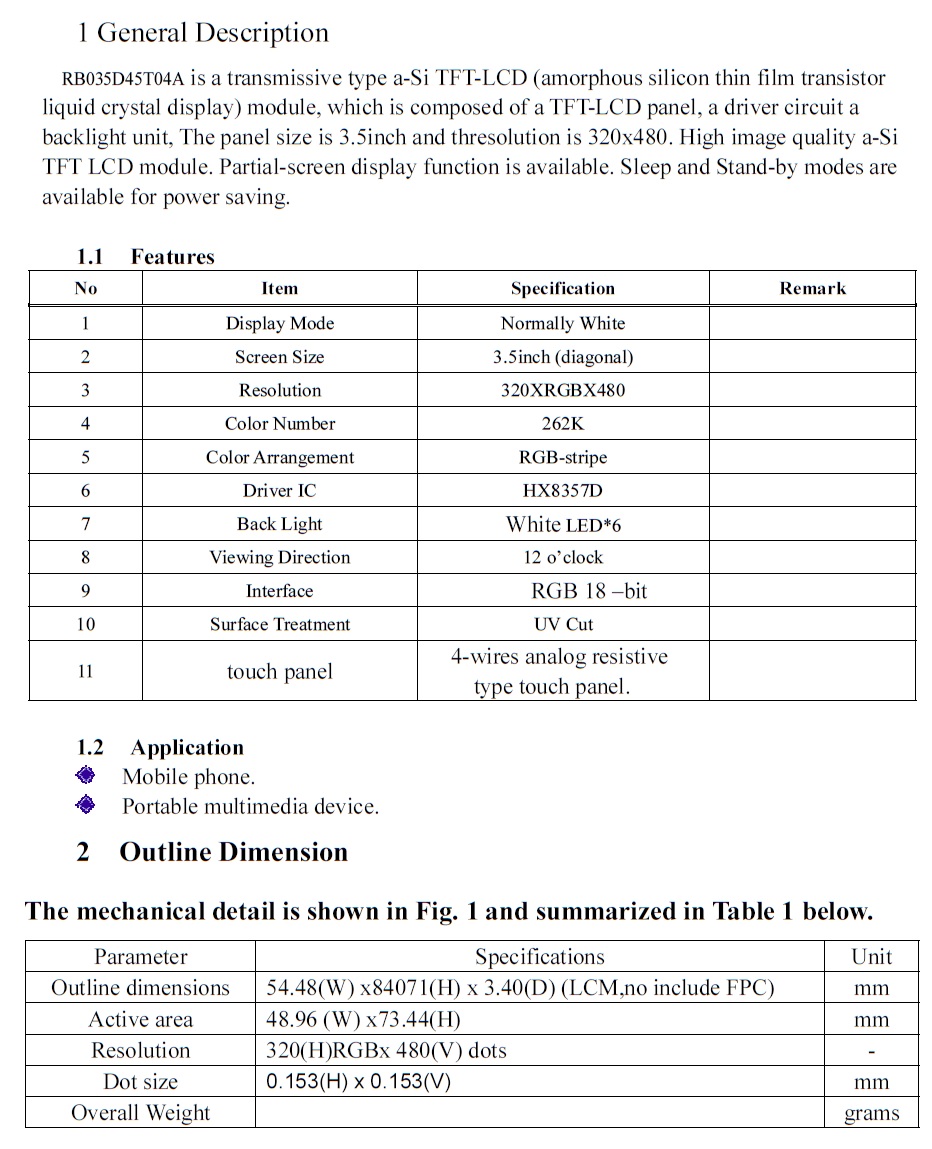

Specification:

Model NO.:

RB035D45T04A

Screen Size:

3.5"

Resolution:

320*480

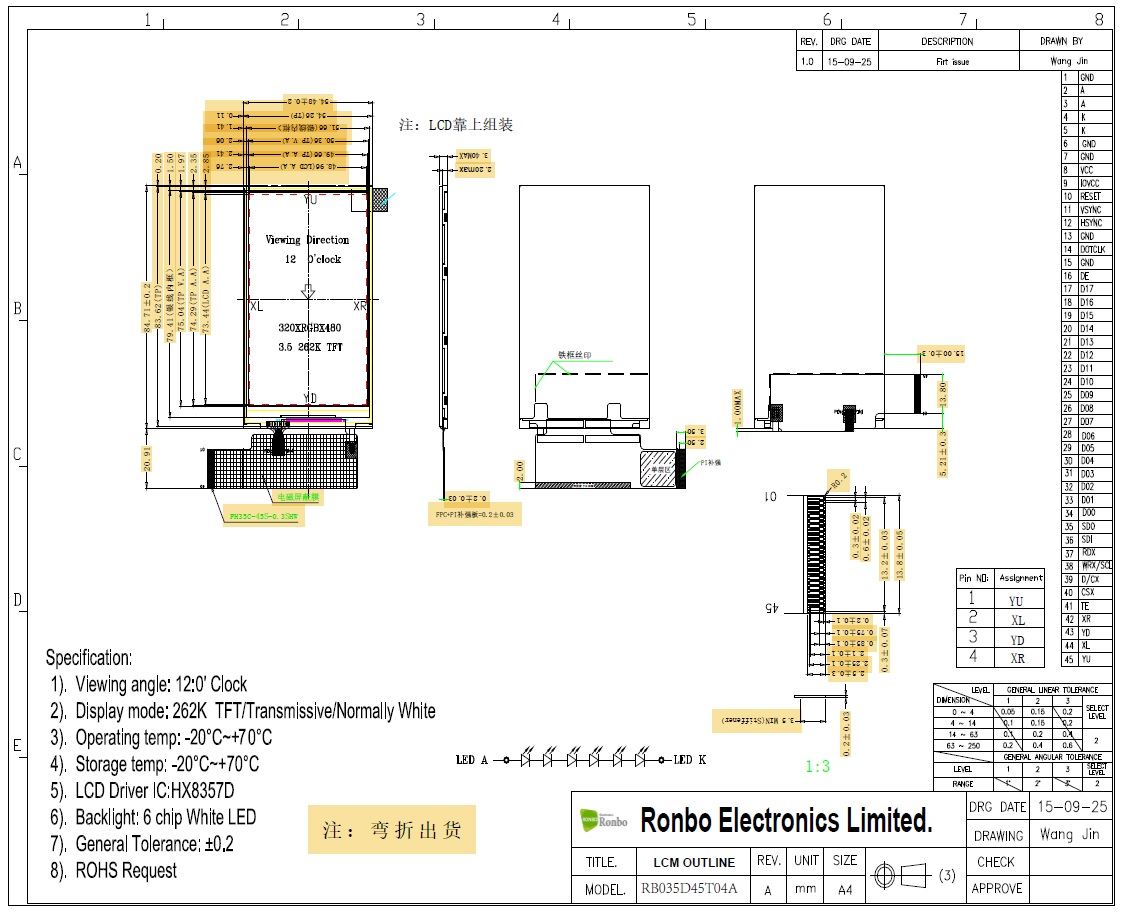

Module size(W*H*T):

54.48*84.71*3.4mm

Active area (W*H):

49.0*73.4mm

Controller:

HX8357D

Brightness:

6 White LED

Display Type:

262K

Operating Temperature:

-20 ~  70ºC

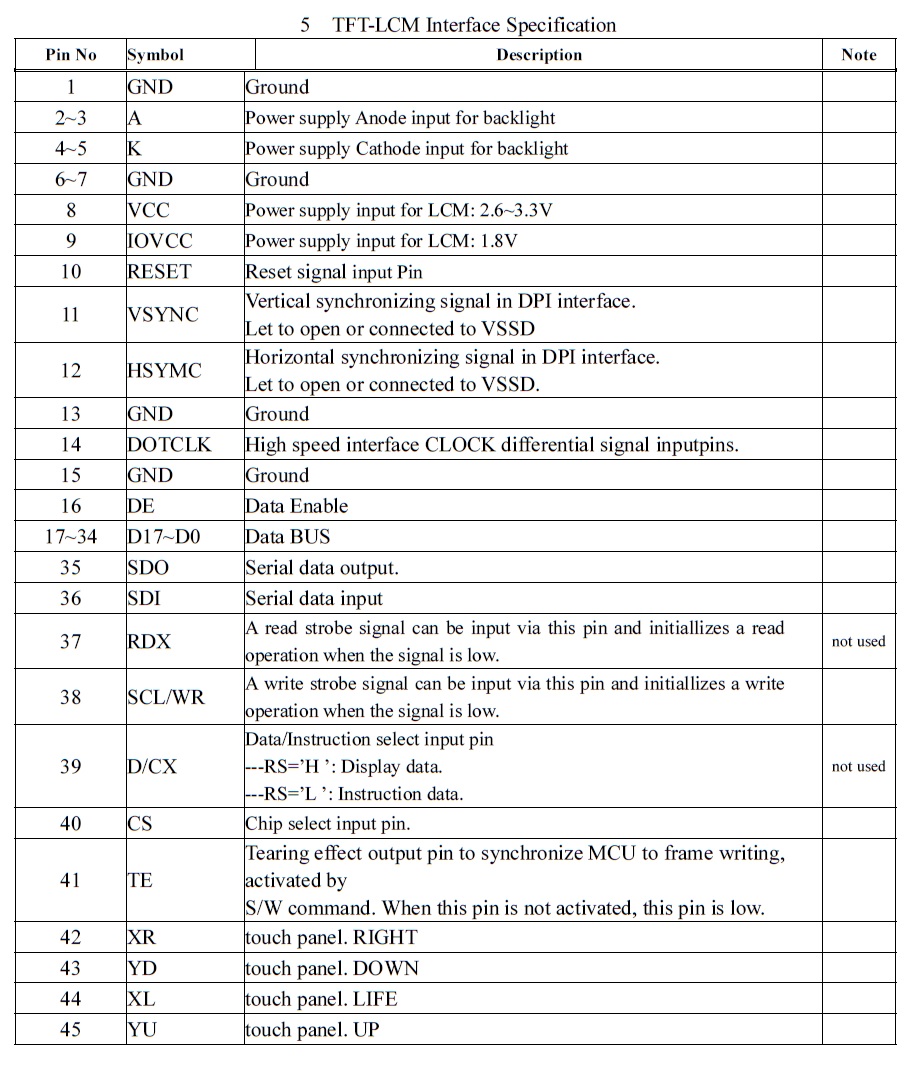

Interface:

RGB 18Bit,FPC 45PIN,Pitch:0.3mm



Ronbo Electronics Ltd., located at Dongguan, China, is one of the leading display suppliers. Its production line includes small to medium size LCD, TFT, and OLED modules for a variety of industrial and consumable application. We are one of the leading display providers of monochrome character LCD modules, graphic LCD modules, alphanumeric LCD panel & TFT modules. High-quality LCD modules are made based on our experienced engineering knowledge, well-managed supply chain.


Besides standard modules, our experience R&D staff can either support you value-added program or make customized product according to your specification


Moreover, our company has passed ISO 9001, ISO14001 certifications as well as RoHS.

Our website is
http://www.ronboe.com
