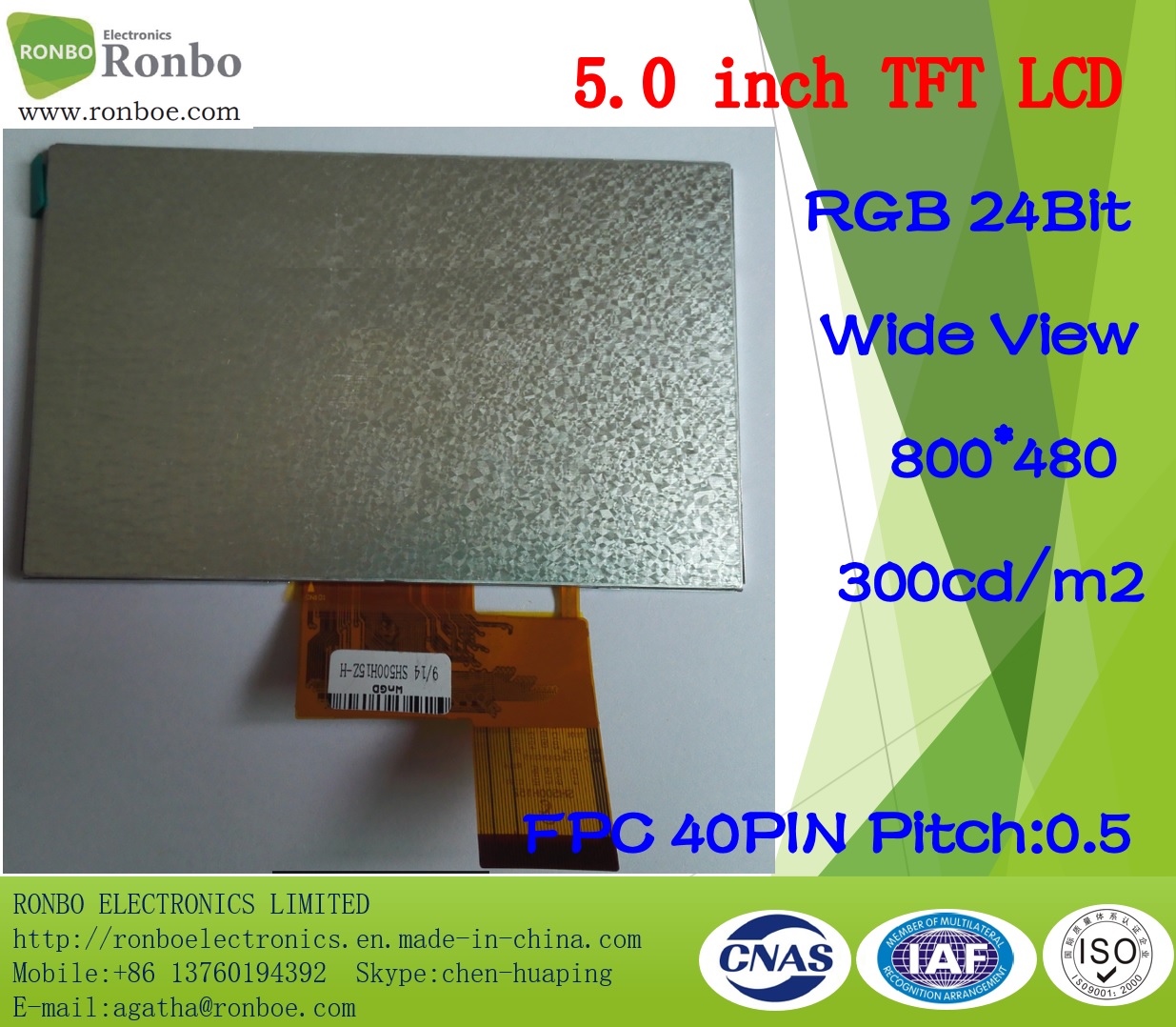

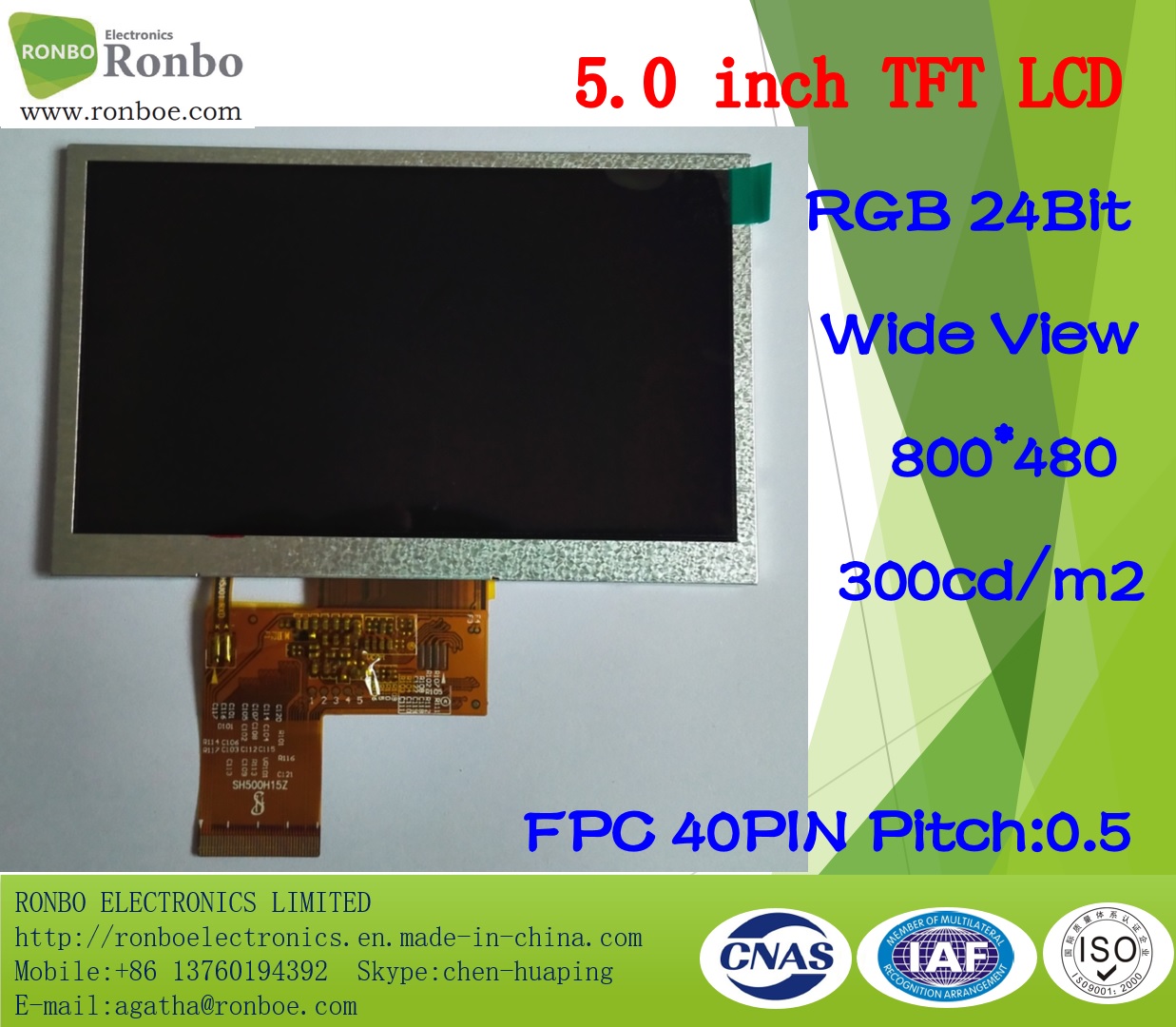

Model:5.0"800*480 RGB 24Bit TFT LCD Display,IC: HX8264D&HX8664B,FPC 40PIN FOR POS, Doorbell, Medical, Cars

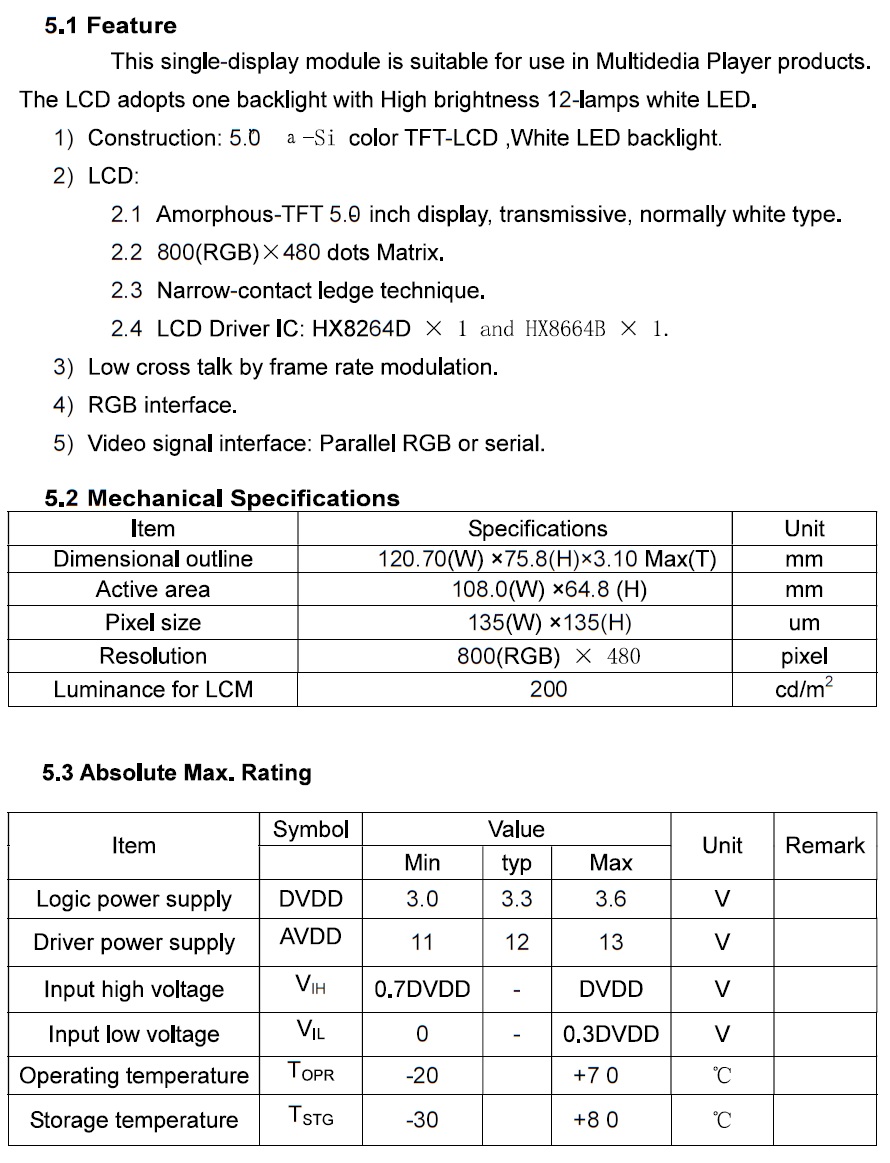

Specification:

Model   NO.:

RB050D40N03A

Screen   Size:

5.0"

Resolution:

800*480

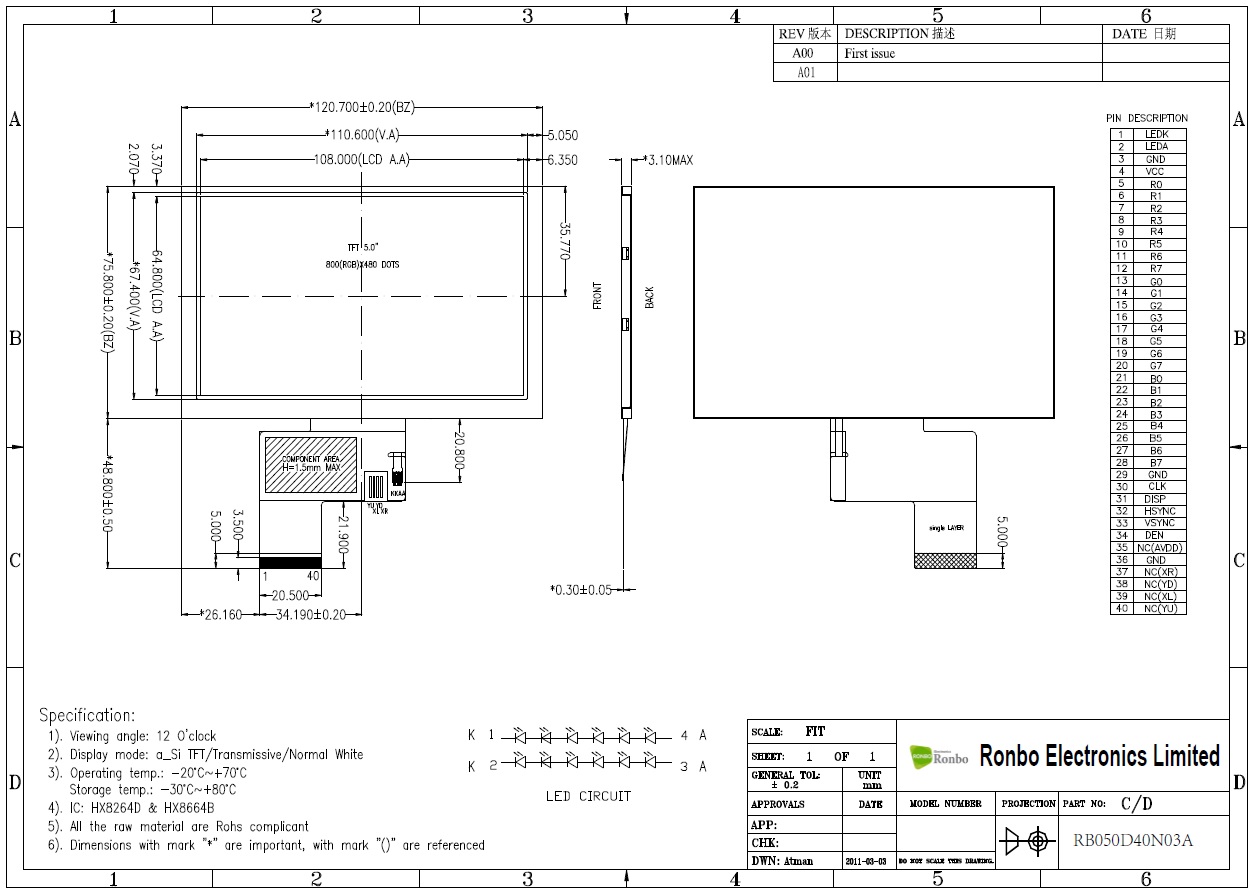

Module   size(W*H*T):

120.7*75.8*3.1mm

Active   area (W*H):

108.0*64.8mm

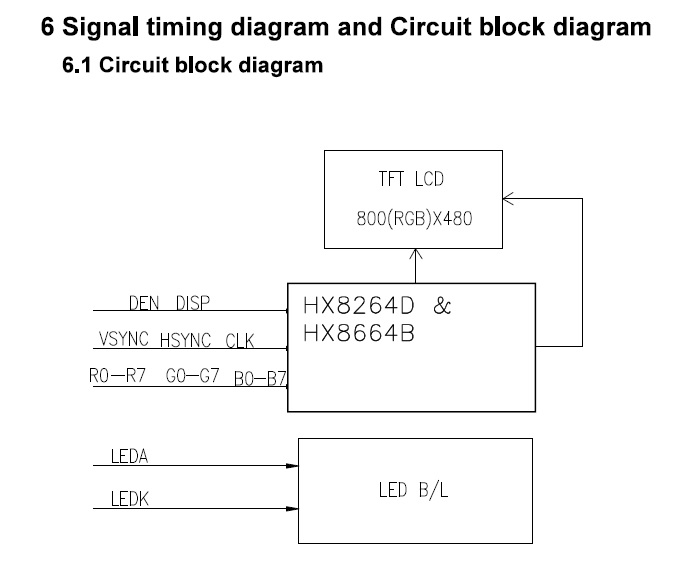

Controller:

HX8264D&HX8664B

Brightness:

12   White LED/300 cd/m²

Display   Type:

16.7M   COLORS

Operating   Temperature:

-20   ~  70ºC

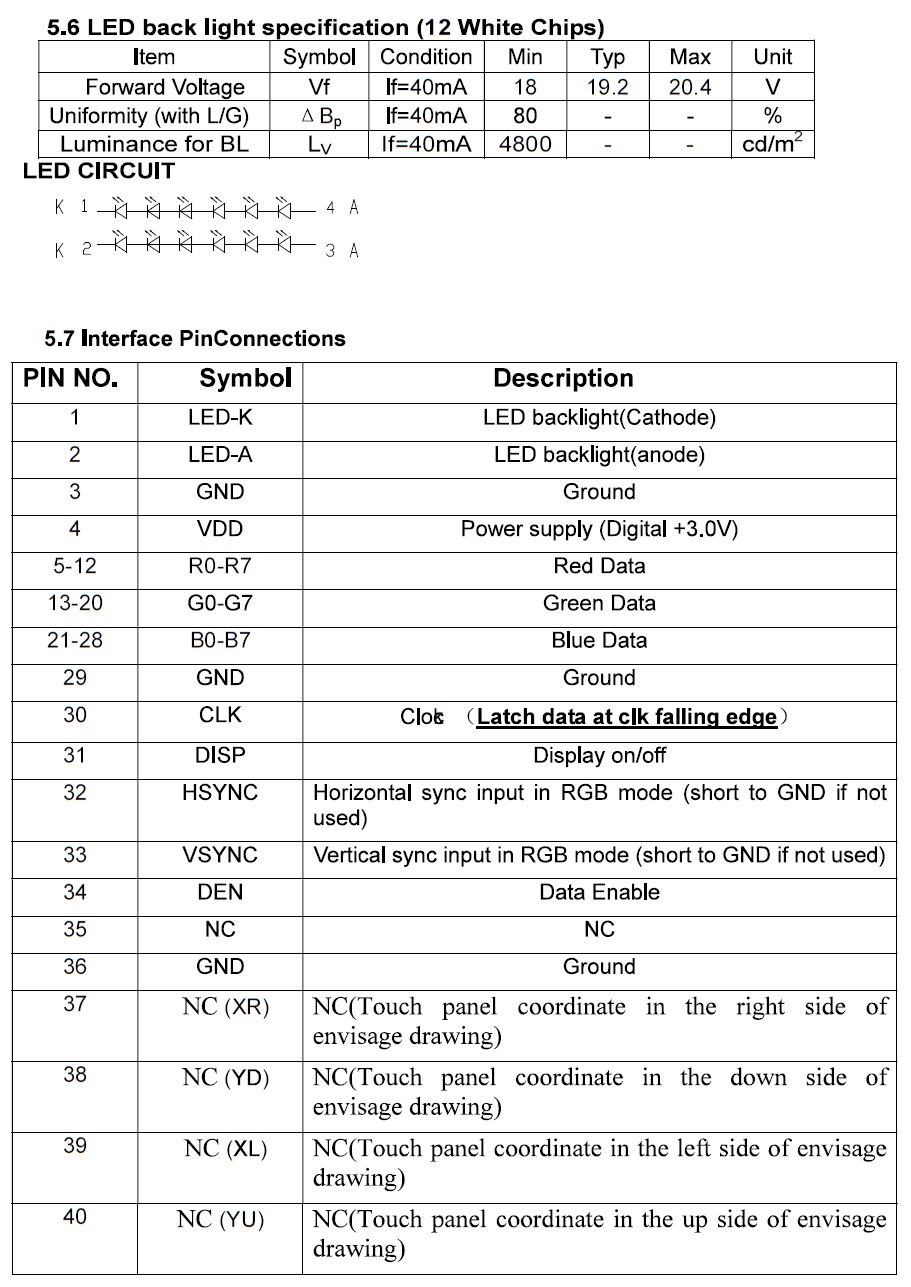

Interface:

RGB   24Bit,FPC 40PIN,Pitch:0.5mm





Ronbo Electronics Ltd., located at Dongguan, China, is one of the leading display suppliers. Its production line includes small to medium size LCD, TFT, and OLED modules for a variety of industrial and consumable application. We are one of the leading display providers of monochrome character LCD modules, graphic LCD modules, alphanumeric LCD panel & TFT modules. High-quality LCD modules are made based on our experienced engineering knowledge, well-managed supply chain.


Besides standard modules, our experience R&D staff can either support you value-added program or make customized product according to your specification


Moreover, our company has passed ISO 9001, ISO14001 certifications as well as RoHS.

Our website is
http://www.ronboe.com
