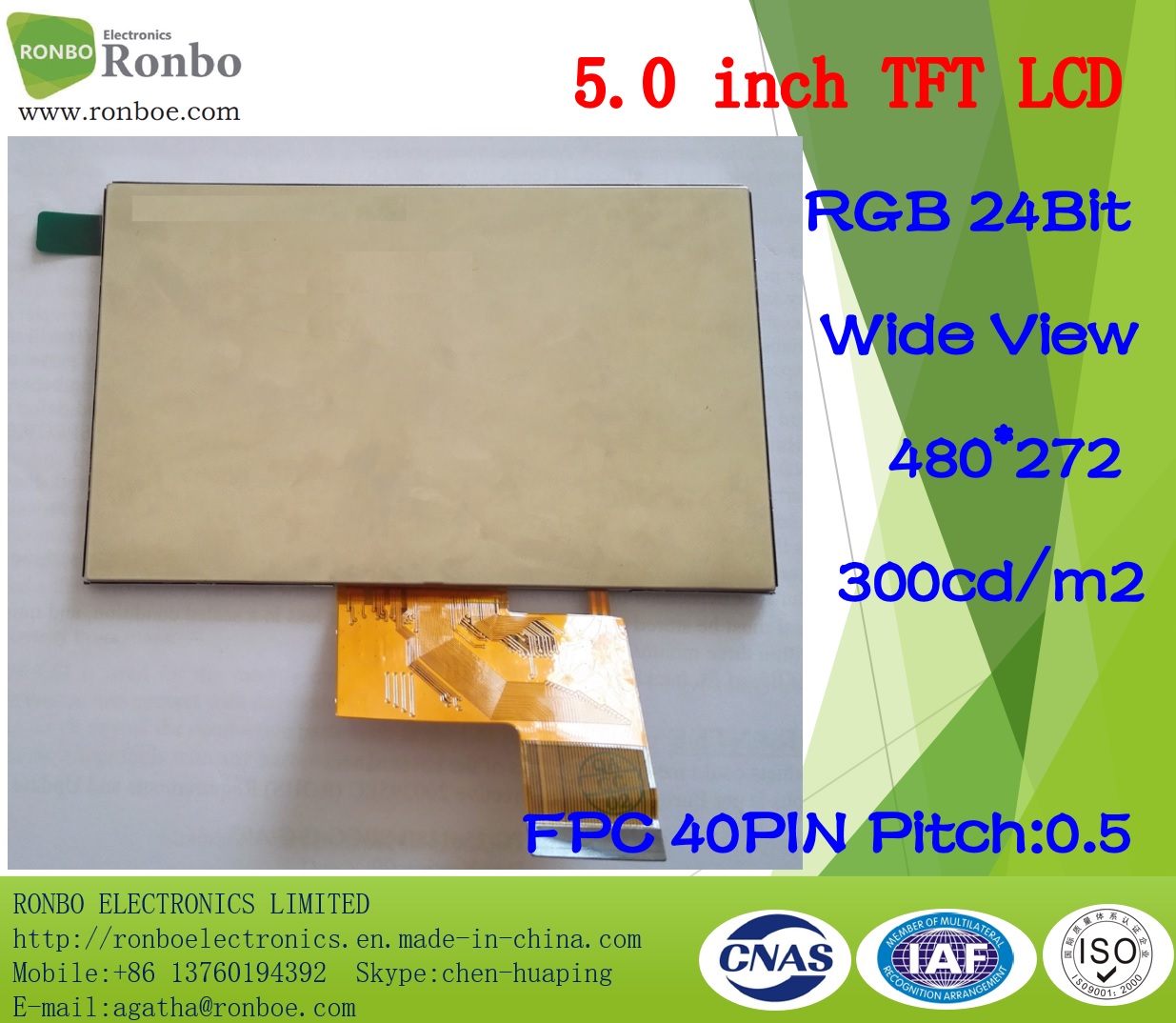

Model: 5.0" 480*272 RGB 40pin 300cd/m2 TFT LCD Display, Option Touch Panel

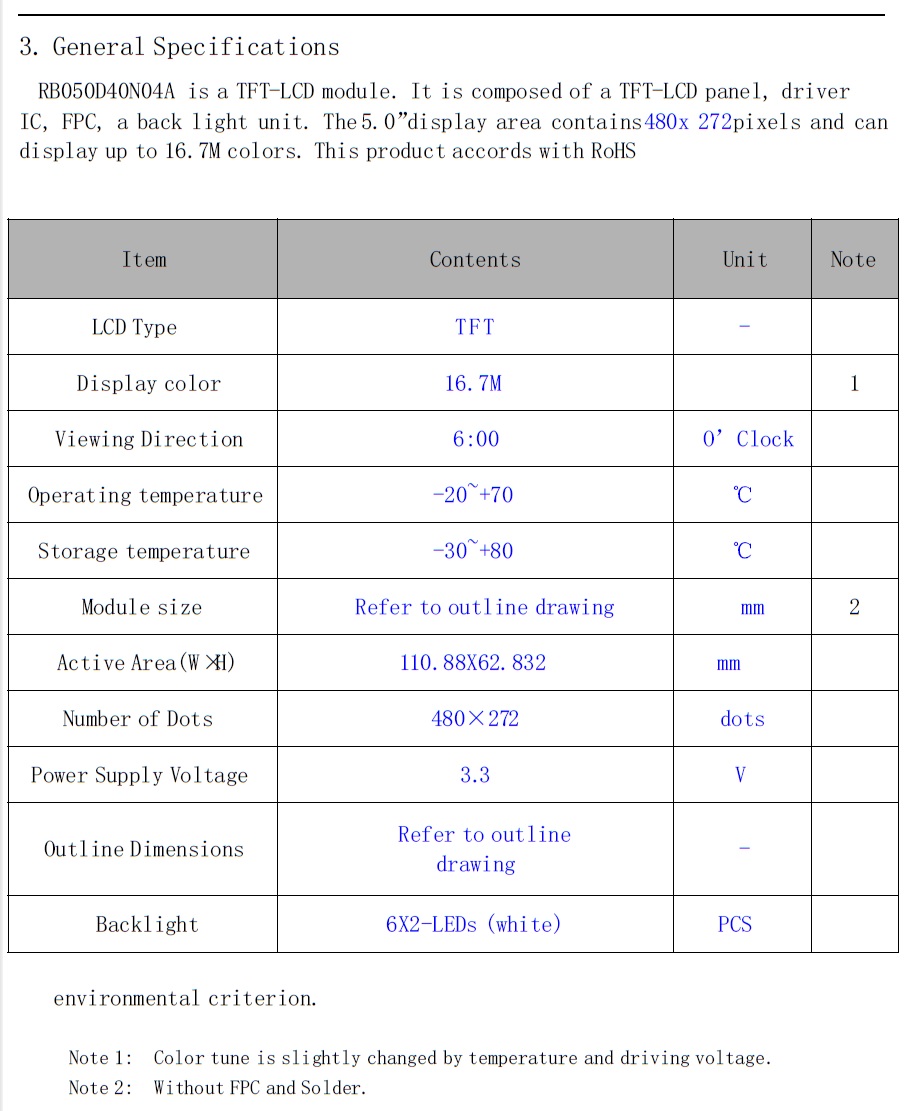

Specification:

Model   NO.:

RB050D40N04A

Screen   Size:

5.0"

Resolution:

480*272

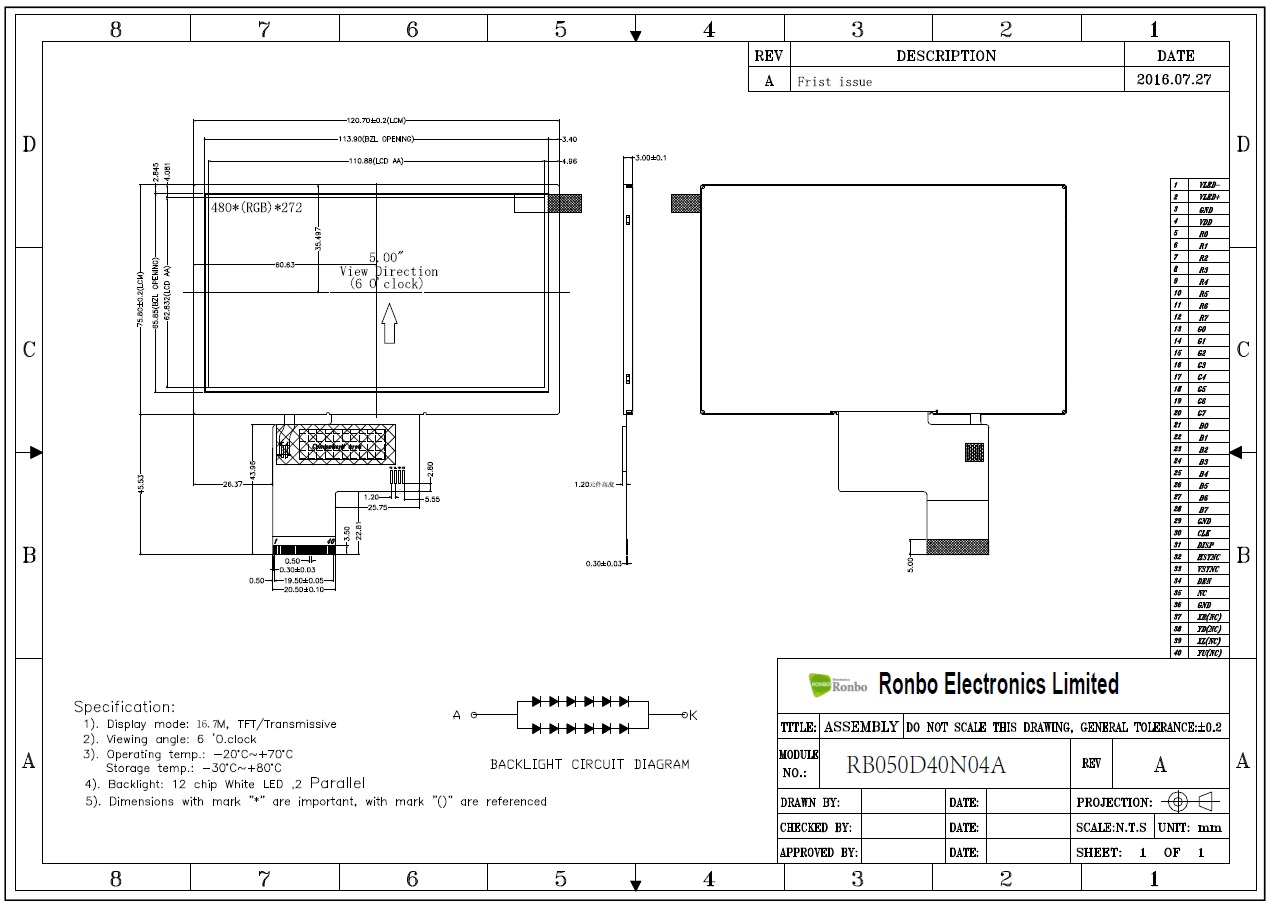

Module   size(W*H*T):

120.7*75.8*3.0mm

Active   area (W*H):

110.88*62.83mm

Controller:

ILI6480

Brightness:

12   White LED/300 cd/m²

Display   Type:

262K

Operating   Temperature:

-20   ~ 70ºC

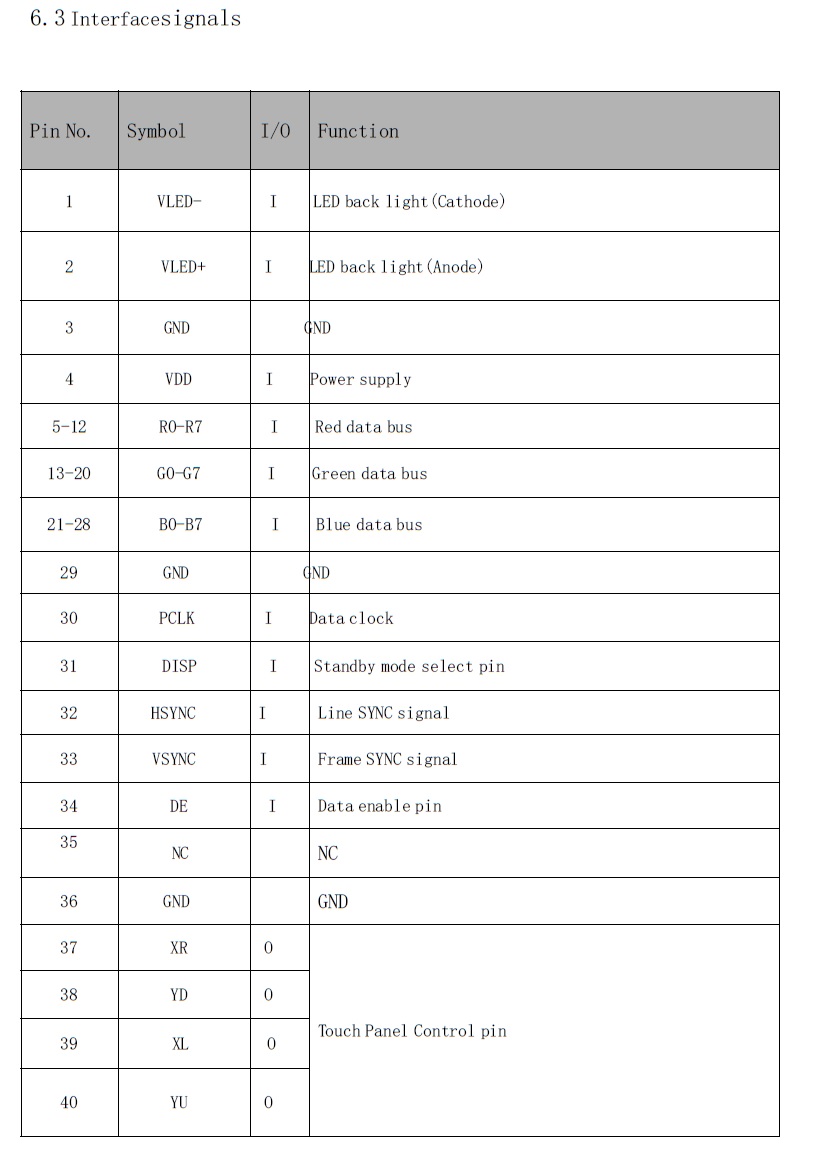

Interface:

RGB   24Bit,FPC 40PIN,Pitch:0.5mm




Ronbo Electronics Ltd., located at Dongguan, China, is one of the leading display suppliers. Its production line includes small to medium size LCD, TFT, and OLED modules for a variety of industrial and consumable application. We are one of the leading display providers of monochrome character LCD modules, graphic LCD modules, alphanumeric LCD panel & TFT modules. High-quality LCD modules are made based on our experienced engineering knowledge, well-managed supply chain.


Besides standard modules, our experience R&D staff can either support you value-added program or make customized product according to your specification


Moreover, our company has passed ISO 9001, ISO14001 certifications as well as RoHS.
