RB070D40N04A

RB070D40N04A
RB070D40N04A

Model: 7.0" 1024X600 Mipi 40pin 250cd/m2 Portable Device TFT LCD Screen
Specification:

Model   NO.:

RB070D40N04A

Screen   Size:

7.0"

Resolution:

1024*600

Module   size(W*H*T):

164.9*100*2.5mm

Active   area (W*H):

153.6*90.0mm

Controller:

NT51018

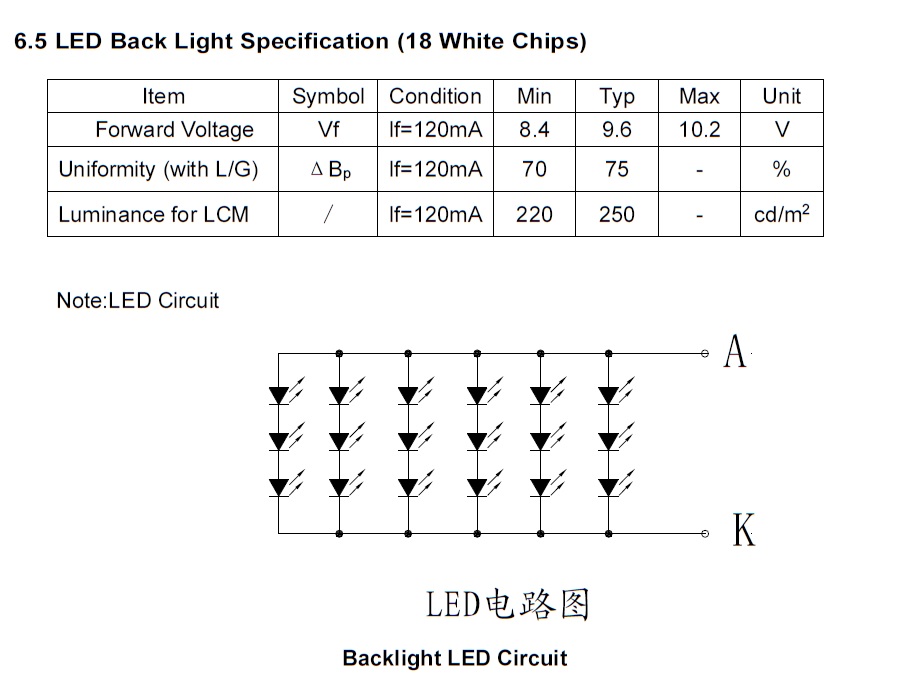

Brightness:

18   White LED /250 cd/m²

Display   Type:

16.7M   COLORS

Operating   Temperature:

-20   ~ 70ºC

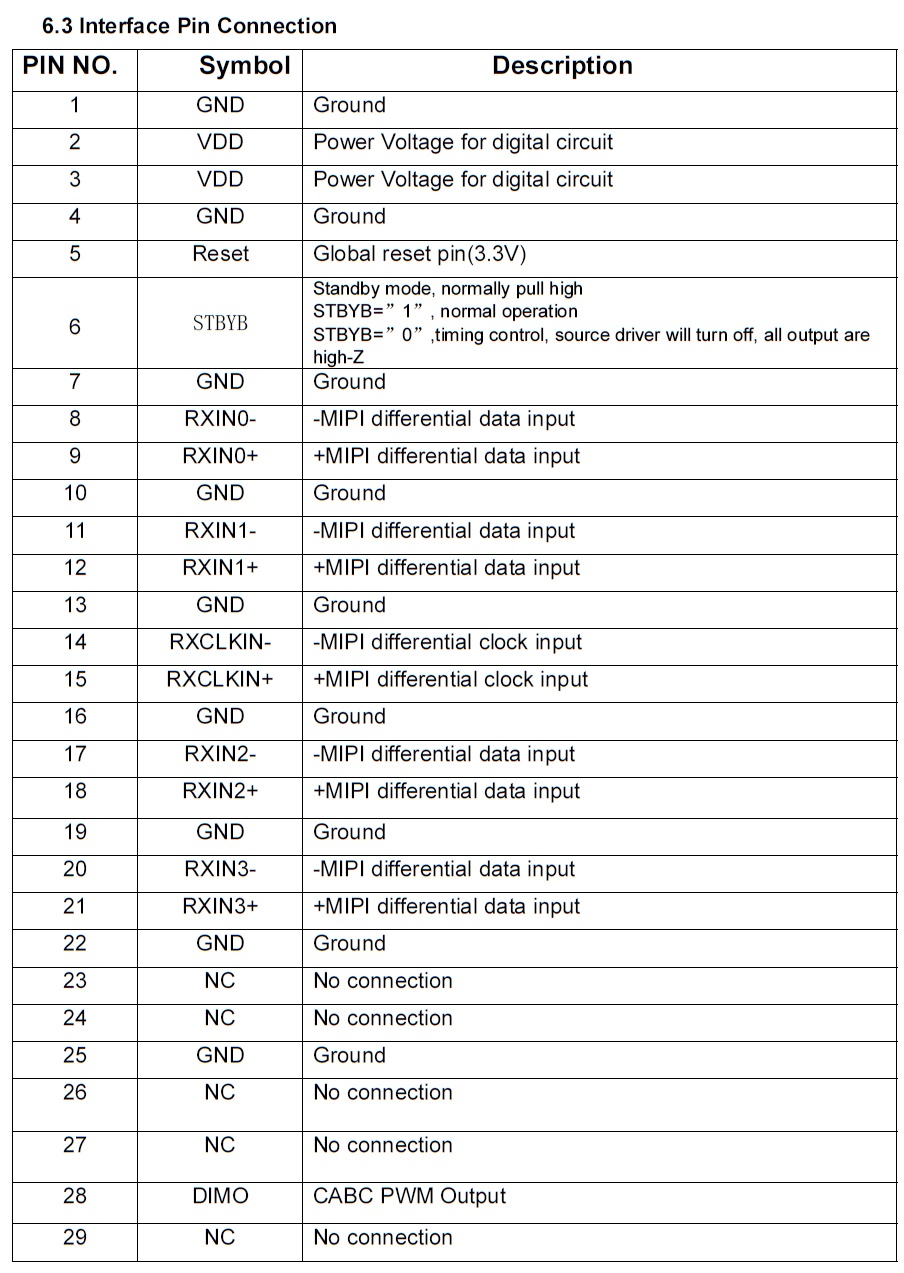

Interface:

MIPI-DSI,FPC   40PIN,Pitch:0.5mm




Ronbo Electronics Ltd., located at Dongguan, China, is one of the leading display suppliers. Its production line includes small to medium size LCD, TFT, and OLED modules for a variety of industrial and consumable application. We are one of the leading display providers of monochrome character LCD modules, graphic LCD modules, alphanumeric LCD panel & TFT modules. High-quality LCD modules are made based on our experienced engineering knowledge, well-managed supply chain.


Besides standard modules, our experience R&D staff can either support you value-added program or make customized product according to your specification


Moreover, our company has passed ISO 9001, ISO14001 certifications as well as RoHS.
