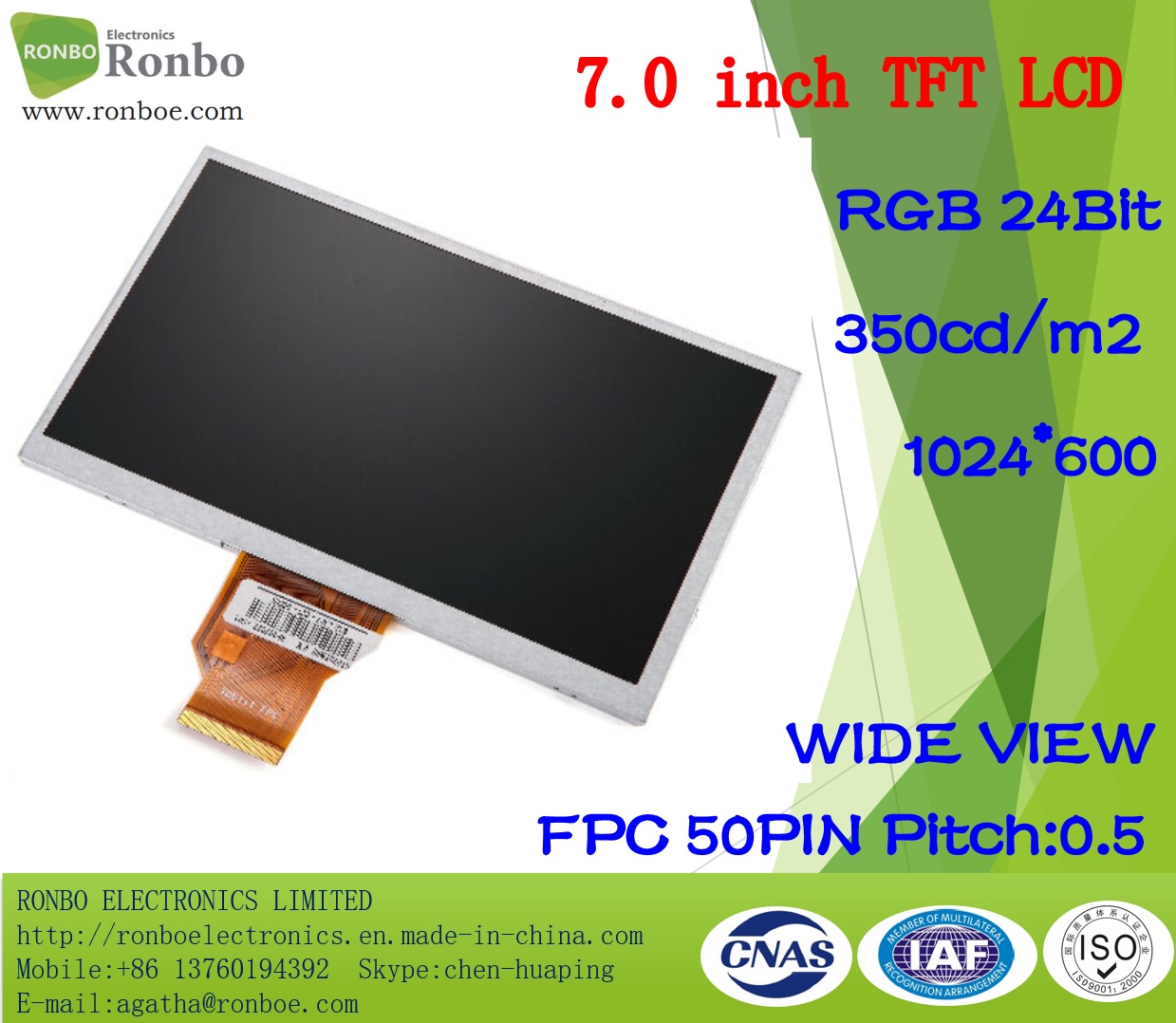

Model: 7.0" 1024*600 RGB 50pin 350cd/m2 Industrial TFT LCD Display
Specification:

Model   NO.:

RB070D50N06A

Screen   Size:

7.0"

Resolution:

1024*600

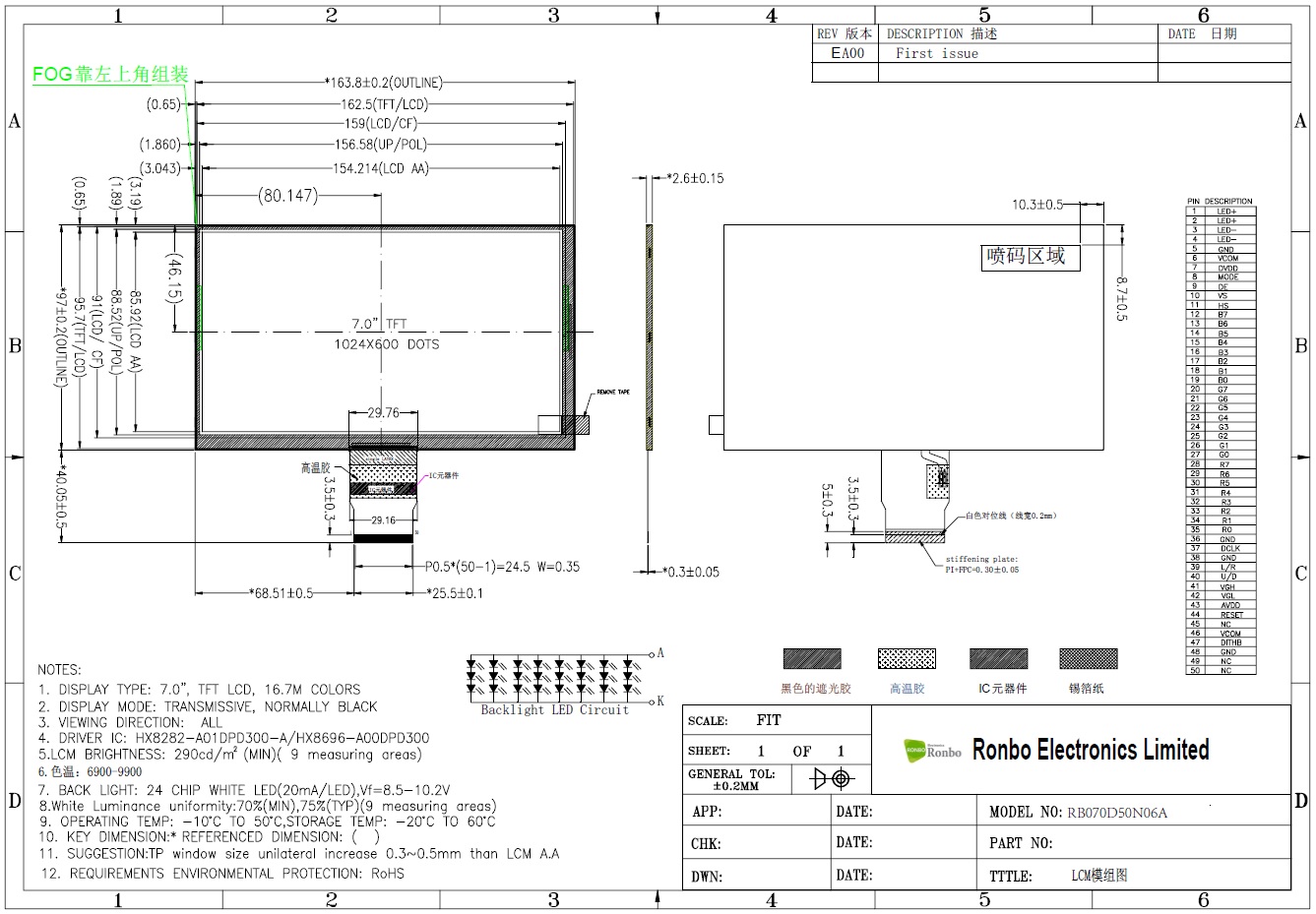

Module   size(W*H*T):

163.8*97.0*2.6mm

Active   area (W*H):

154.21*85.92mm

Controller:

HX8282-A&HX8696-A

Brightness:

24   White LED /350 cd/m²

Display   Type:

16.7M   COLORS

Operating   Temperature:

-20   ~ 70ºC

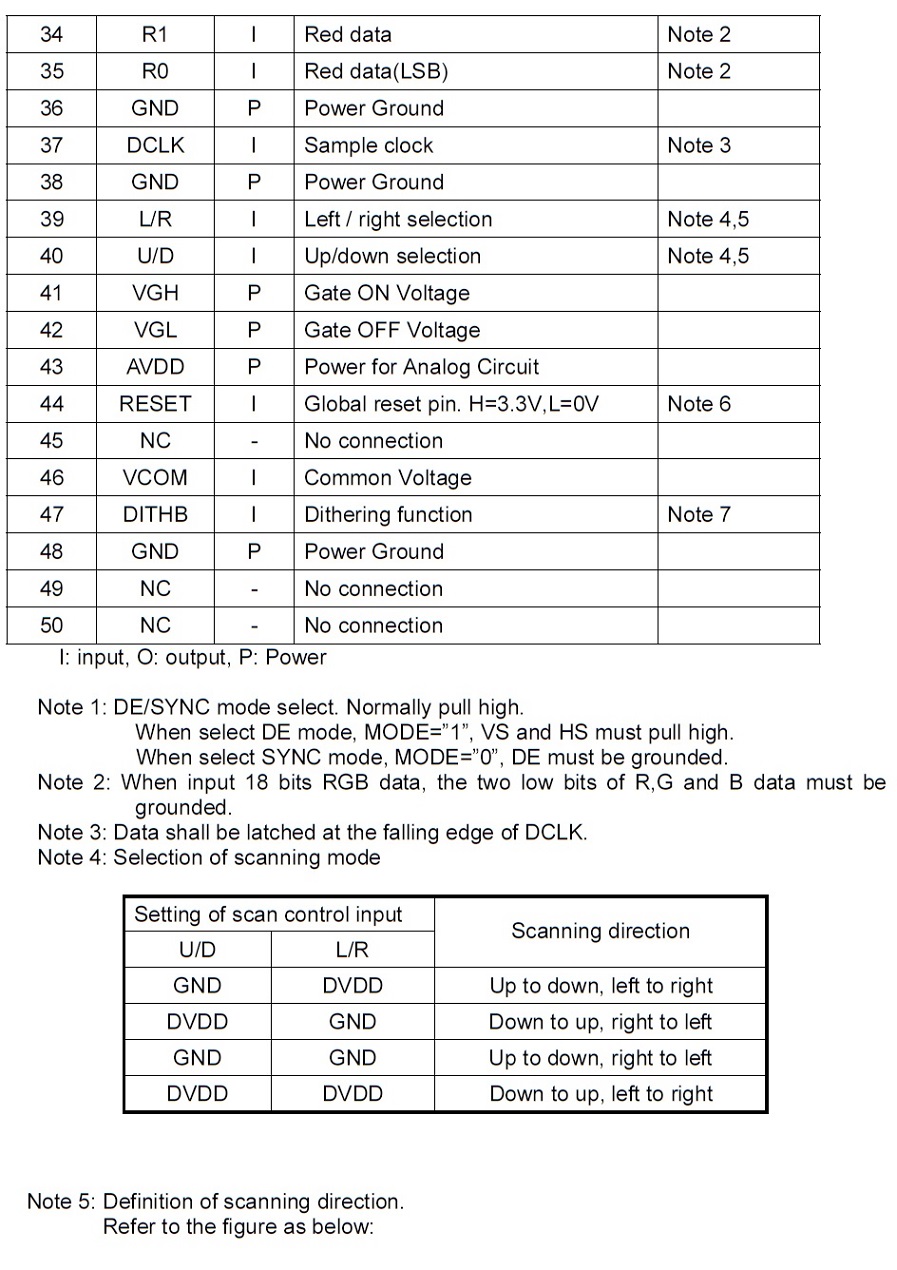

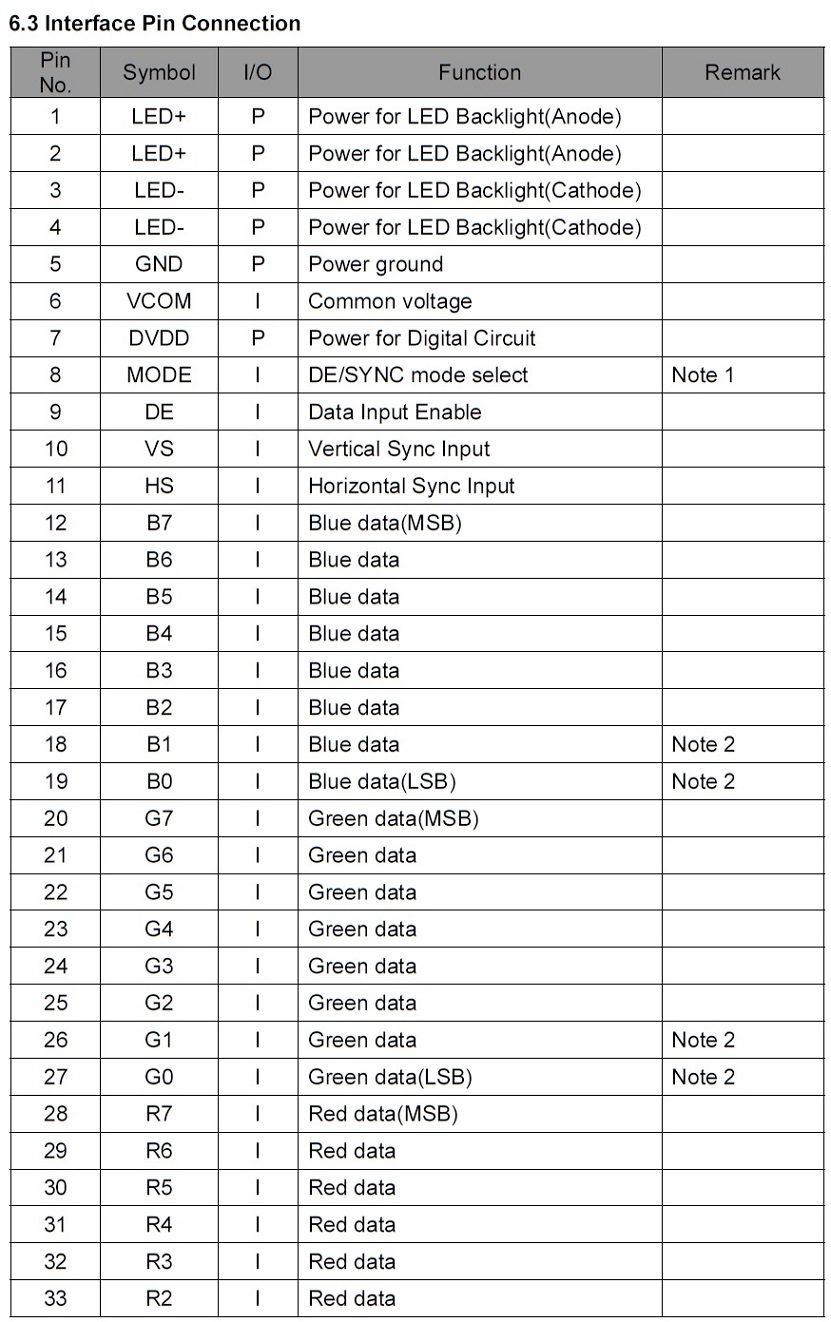

Interface:

RGB   24Bit,FPC 50PIN,Pitch:0.5mm




Ronbo Electronics Ltd., located at Dongguan, China, is one of the leading display suppliers. Its production line includes small to medium size LCD, TFT, and OLED modules for a variety of industrial and consumable application. We are one of the leading display providers of monochrome character LCD modules, graphic LCD modules, alphanumeric LCD panel & TFT modules. High-quality LCD modules are made based on our experienced engineering knowledge, well-managed supply chain.


Besides standard modules, our experience R&D staff can either support you value-added program or make customized product according to your specification


Moreover, our company has passed ISO 9001, ISO14001 certifications as well as RoHS.
