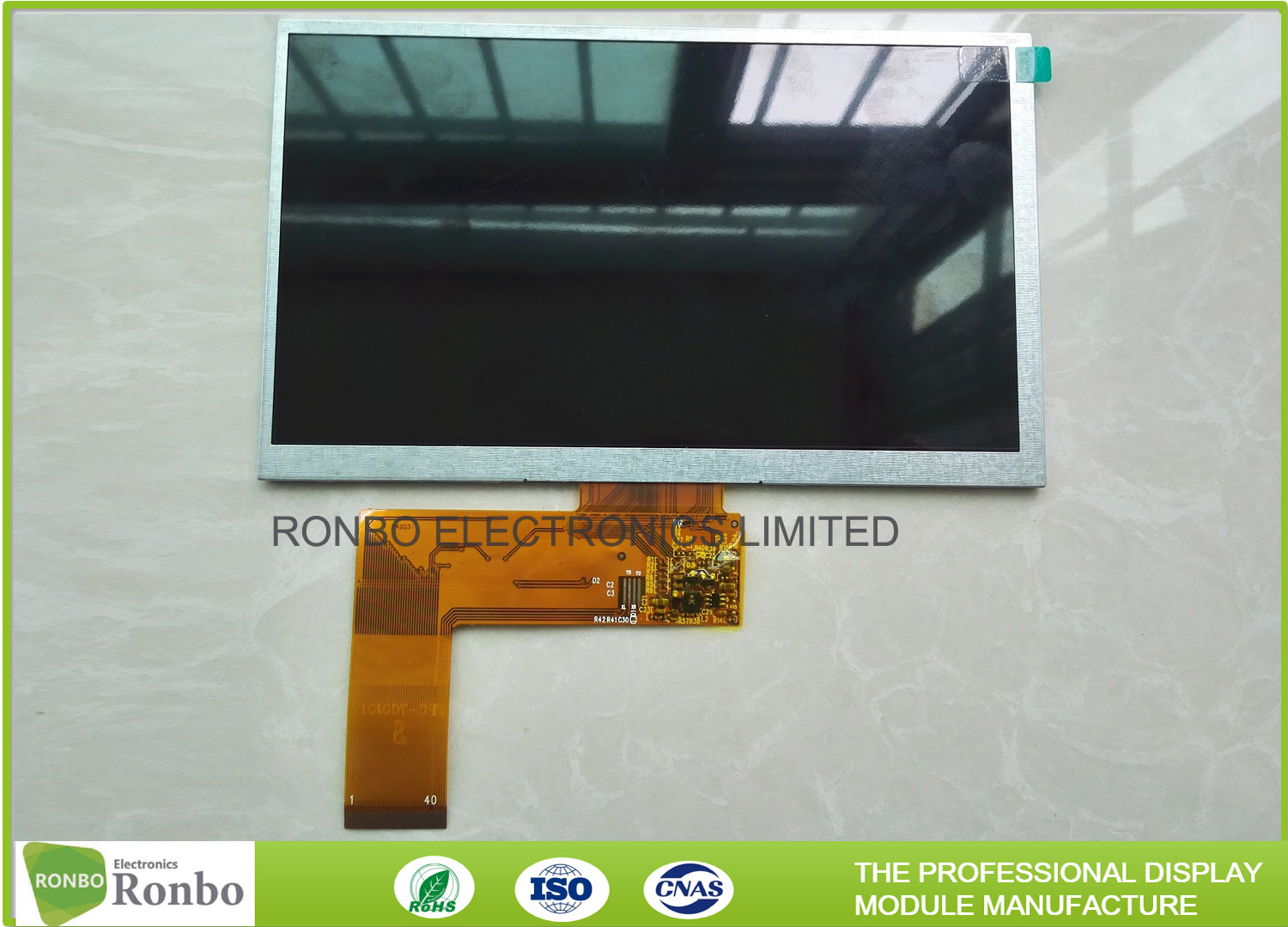

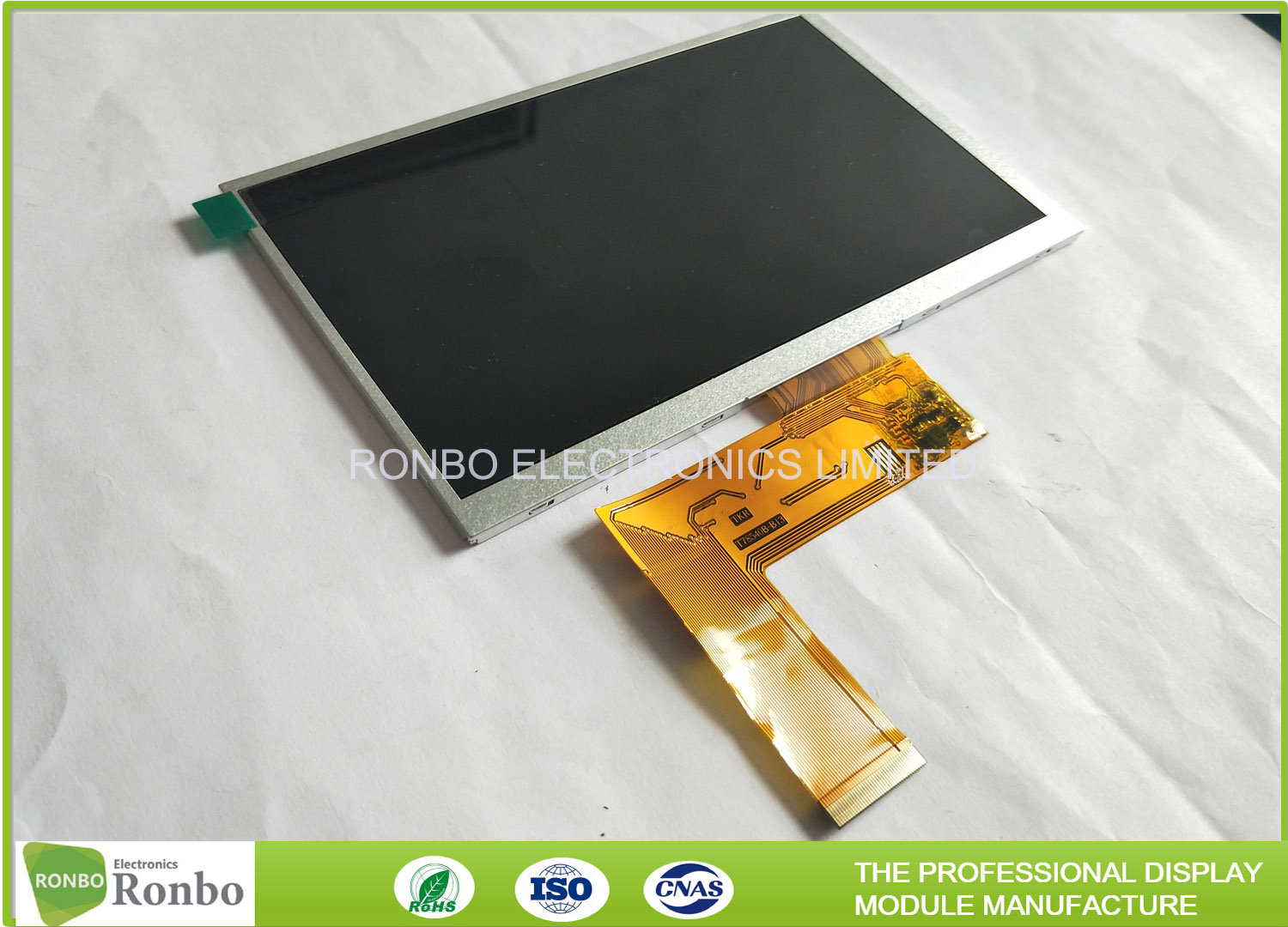

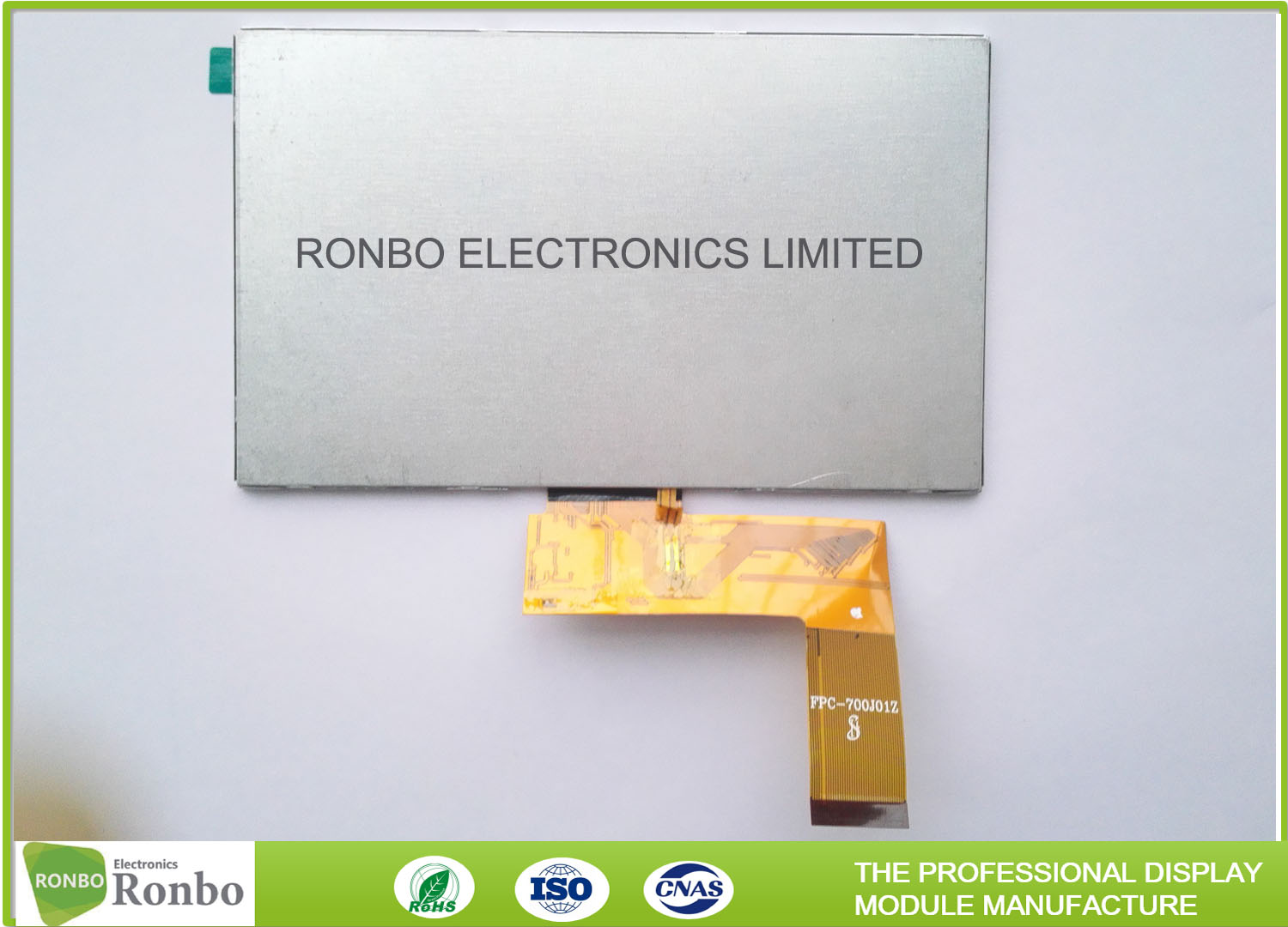

7.0" 800x480 RGB TFT LCD Module, LCD Monitor, EK9716, 50pin with Option Touch Screen

Model NO.:RB070D40N08A
Screen Size:7.0"
Display typeTN
Viewing direction:12 o’clock

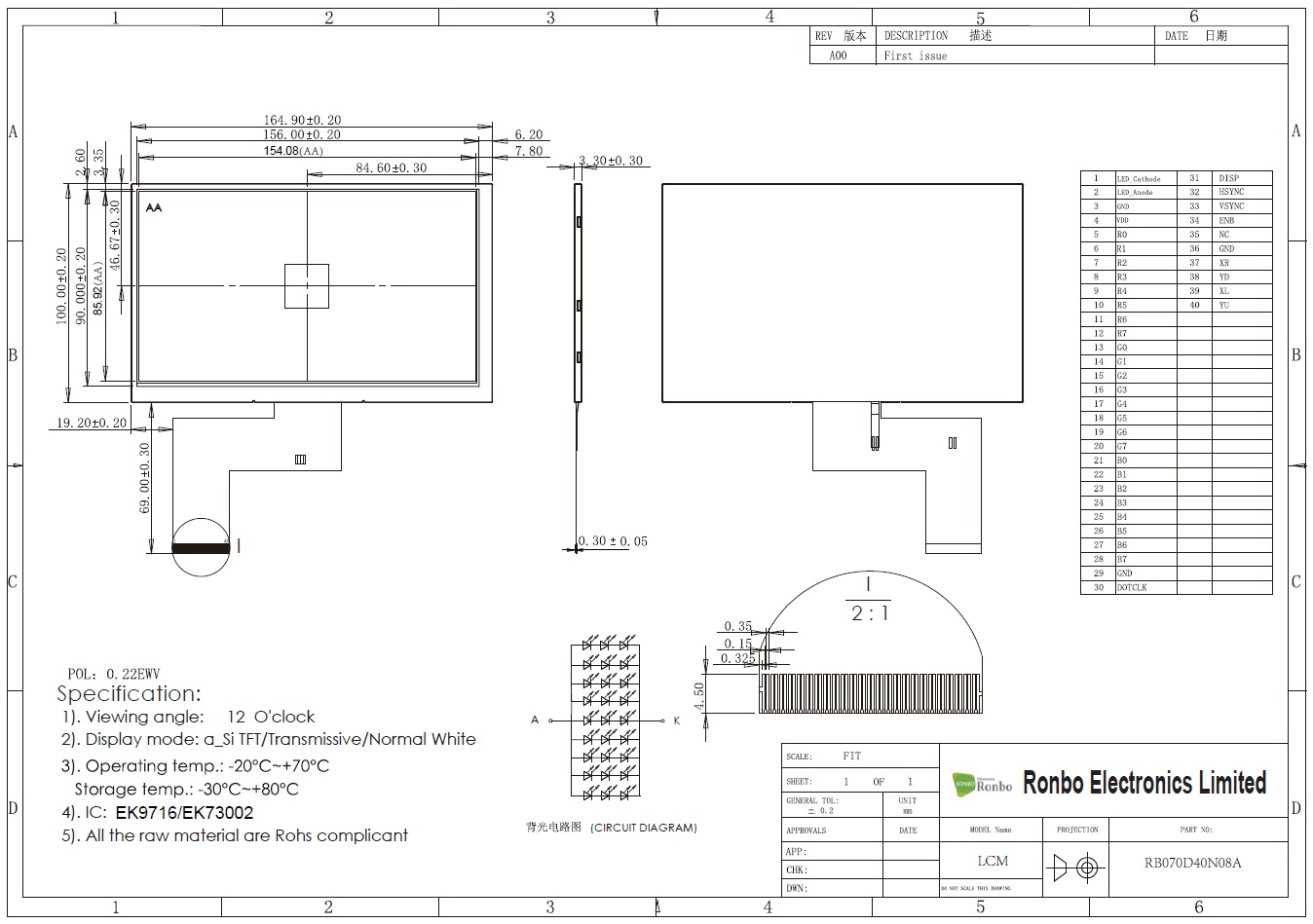

Module size(W*H*T):164.9*100*3.3mm
Active area (W*H):154.08*85.92mm

3S9P=27 WLED

If=180mA, Vf=9.6V

Pin NO:40Pins
Pin pitch0.5mm
Connecting typeFPC Connector
Operating Temperature:-20 ~  70ºC
Storage Temperature-30 ~  80ºC

Standard or Customized 7.0" 800x480 TFT LCD Panel RGB Interface FPC 40Pin Option Touch Screen

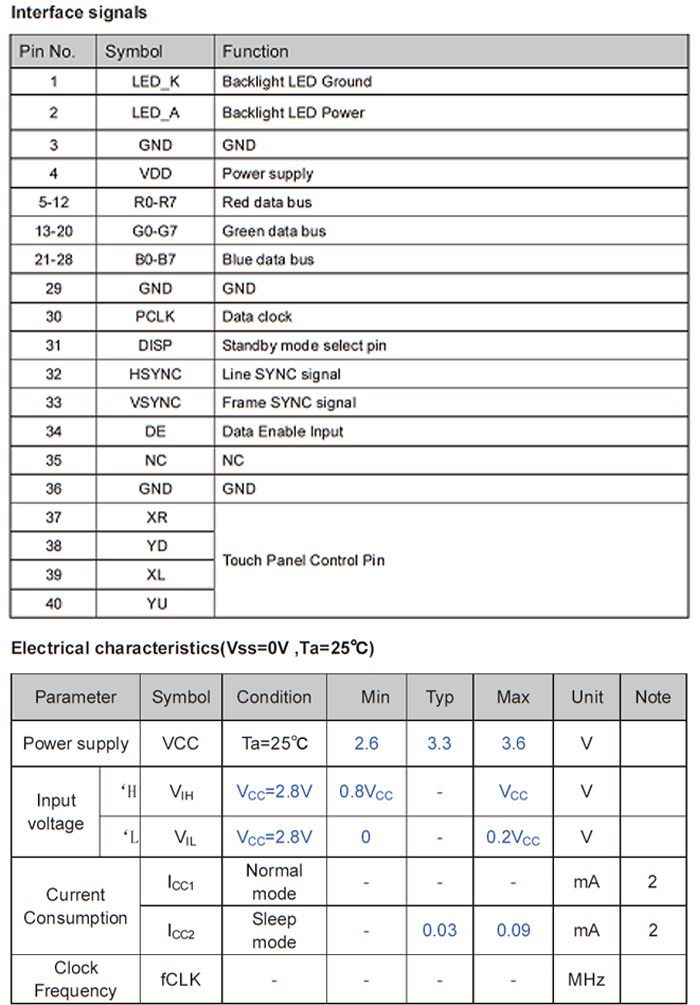

Product Specification:



Product Application:

Small-size TFT LCD displaymobile device, watch, toy, medical equipment, Office electronic equipment, camera, air-condition display, etc.
Mid-size TFT LCD displaymobile device, medical equipment, car, automotive product, industrial control equipment, POS,PDA, Household Video doorbell, air-condition display, etc.
Big-size TFT LCD displayeducational product, automotive product, video door phone, Audiovisual equipment, DVD player, media play, tablet PC, Security Products, etc.
TN/STN//FSTNelevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc.

Packaging & Shipping & Delivery
Packaging Details:

All the products are packed in right way to keep it safe.

For small sizes of products we use tray   carton,

For bigger sizes we use foam slot   carton.

we also design packages according to customers' requirements

Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.

  For large quantity orders: we ship by buyer's cargo agent in China,

  we can also ship by air or sea transportation by our cargo agent.

Delivery Details:

Ready-made Sample: within 1 week

Custom Sample: 1~2 weeks

Mass production: 3-4 weeks

Our Advantage:

Rich experienceGood knowledge of the displays market to put together solutions that add value and provide a unique proposition for the client
Advanced EquipmentFull automatic FPC&IC bonding machine, film attaching machine, CNC machine, polish machine advance production equipment ensure product quality
Quality AssuranceAdvance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment
Fast responseQuickly realize your customized ideas, and have a sample ready in short time
Low MOQDepends on product
Stable supply1~10 years supply period
Extensive rangeProviding complete solution from Mono to Color LCD module, Optical bonding between display to cover glass as well as cover glass to touch screen
Large production capacityOperation capacity 2KK monthly
Quality guaranteeRoHS compliant
ManagementISO 9001:2008, ISO 14001:2004


 Q: How can I get some samples?

A: We don't provide free one, but we can have a discount when you reorder according to different quantity, and you will win at least 3% discount.

Q: What is the MOQ?

A: It depends on different products. Please keep in touch with sales to confirm the MOQ.

Q: How do you control quality?

A: All materials we purchase for making any orders are high quality and RoHS compliant, and Control quality with ISO 9001:2008, ISO 14001:2004 management system.

Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment

Q: Does your product have any warranty?

A: Yes, we offer 12 months warranty for our products.

Q: What's your payment method?

A: Payment: T/T, Paypal, Western Union, etc.

For samples: payment in advance.

For mass production: 30% deposit and 70% balance before shipment.

Q: Do you offer custom solution?

A: Yes, we can offer custom solution if standard products couldn't meet buyer' requirements.
