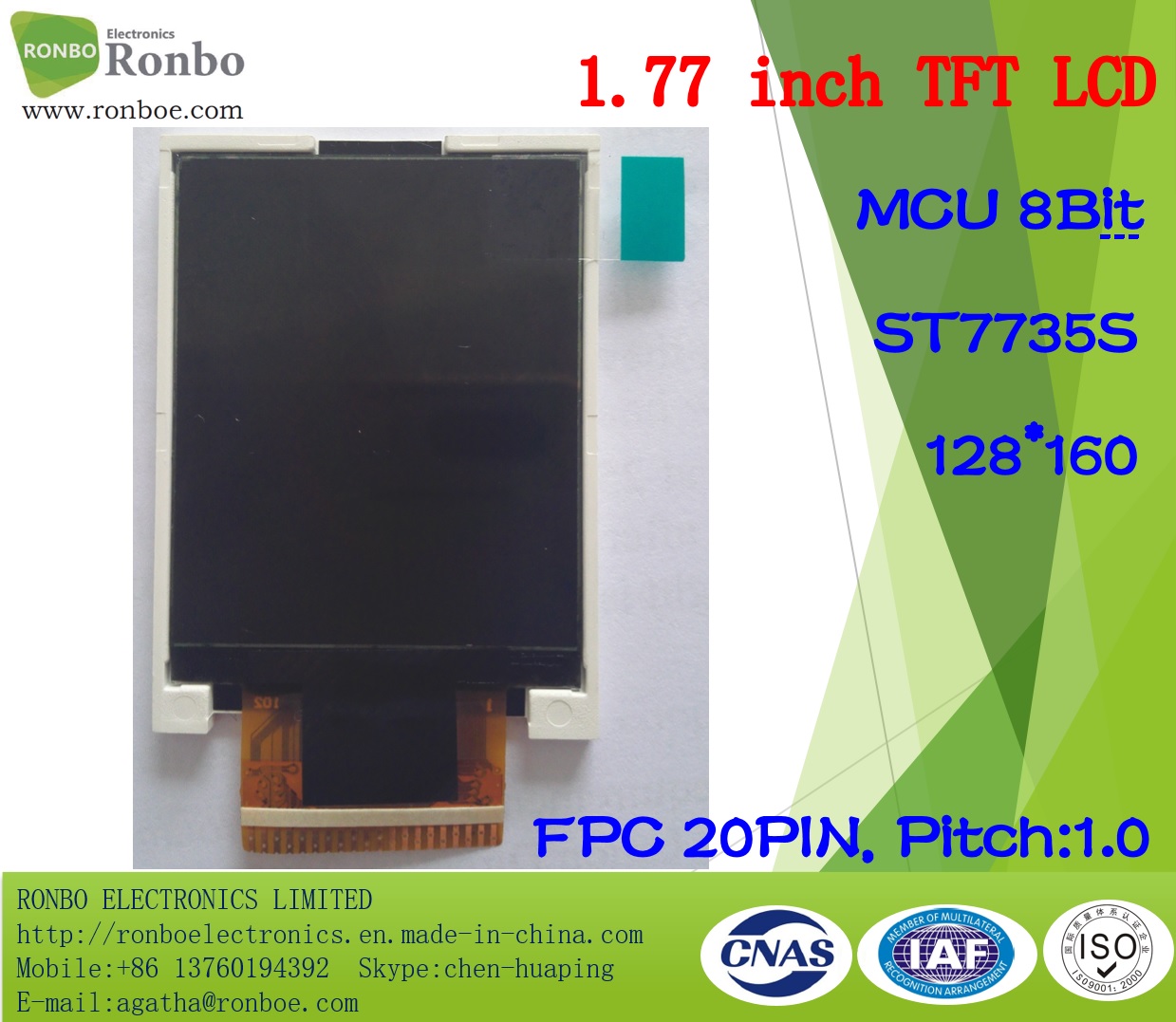

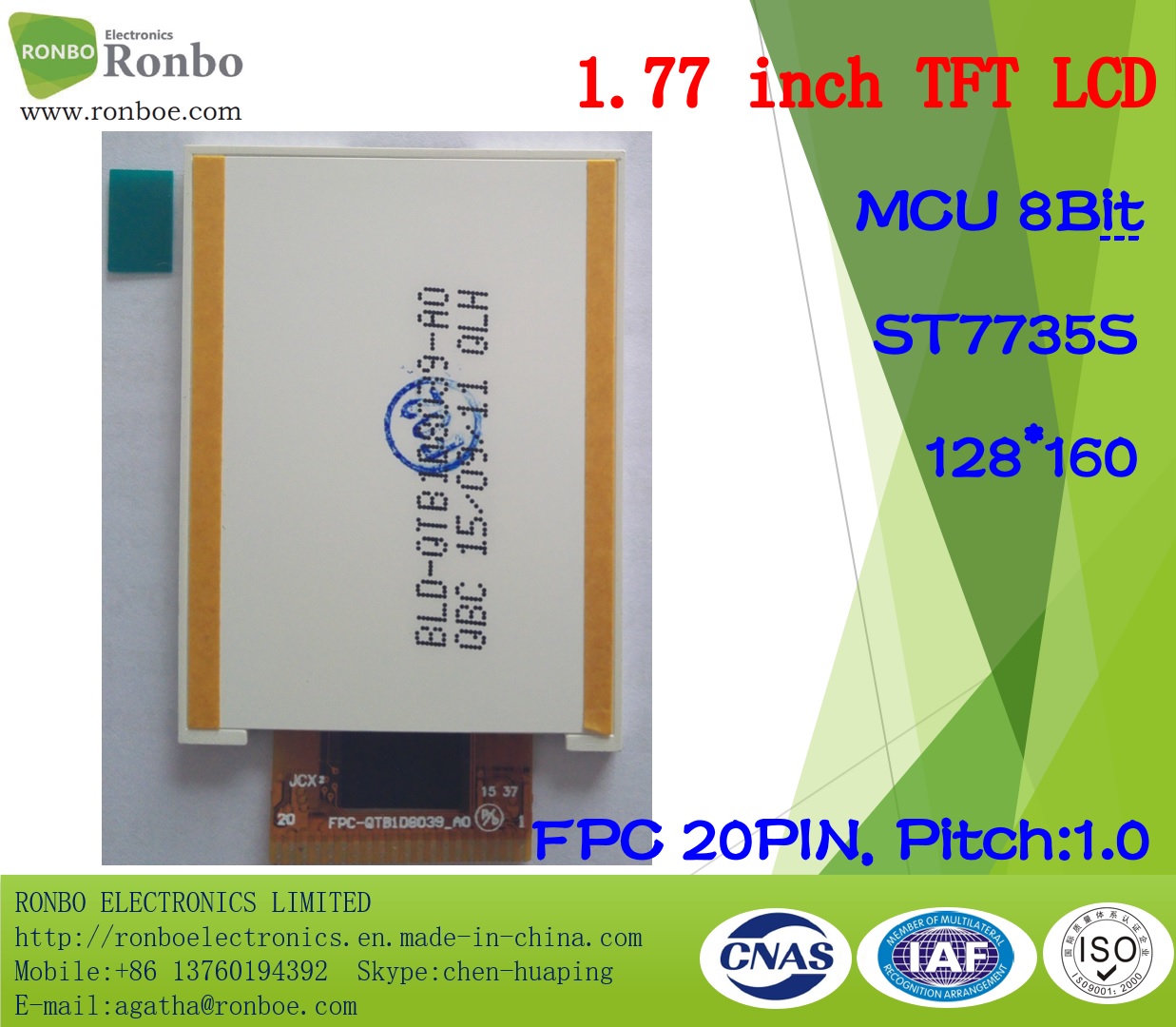

Model: 1.77 Inch 128*160 MCU 8bit, ST7735S, 20pin TFT LCD Panel
Specification:
Model NO.: | RB017D20N03A |
Screen Size: | 1.77" |
Resolution: | 128*160 |
Module size(W*H*T): | 34.4*46.7*2.4mm |
Active area (W*H): | 28.03*35.04mm |
Controller: | ST7735S |
Brightness: | 1 White LED |
Display Type: | 262K |
Operating Temperature: | -20 ~ 70ºC |
Interface: | MCU 8 Bit FPC 20PIN, Pitch:1.0mm |
Ronbo Electronics Ltd., located at Dongguan, China, is one of the leading display suppliers. Its production line includes small to medium size LCD, TFT, and OLED modules for a variety of industrial and consumable application. We are one of the leading display providers of monochrome character LCD modules, graphic LCD modules, alphanumeric LCD panel & TFT modules. High-quality LCD modules are made based on our experienced engineering knowledge, well-managed supply chain.
Besides standard modules, our experience R&D staff can either support you value-added program or make customized product according to your specification
Moreover, our company has passed ISO 9001, ISO14001 certifications as well as RoHS.
Our website is http://www.ronboe.com
