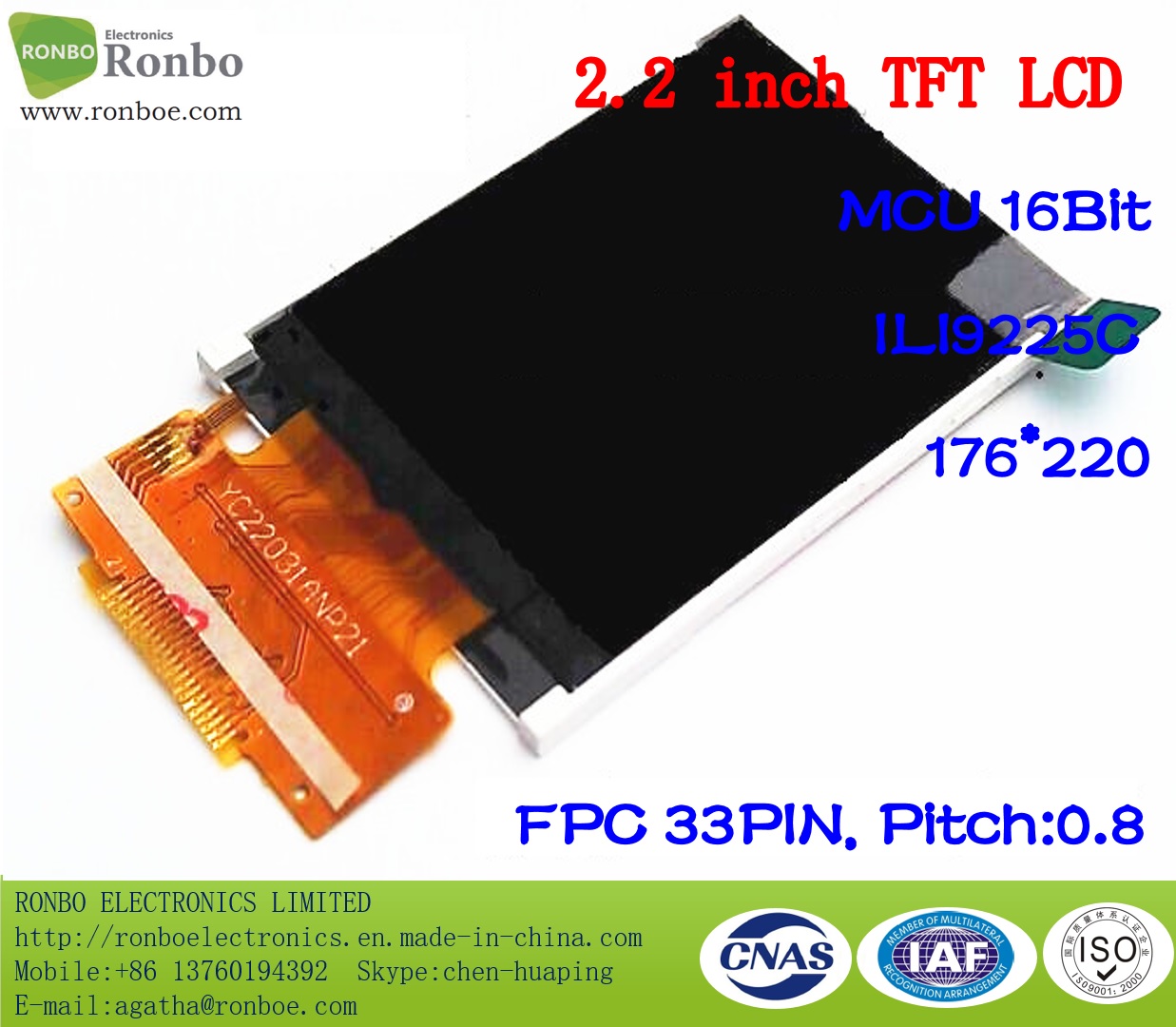

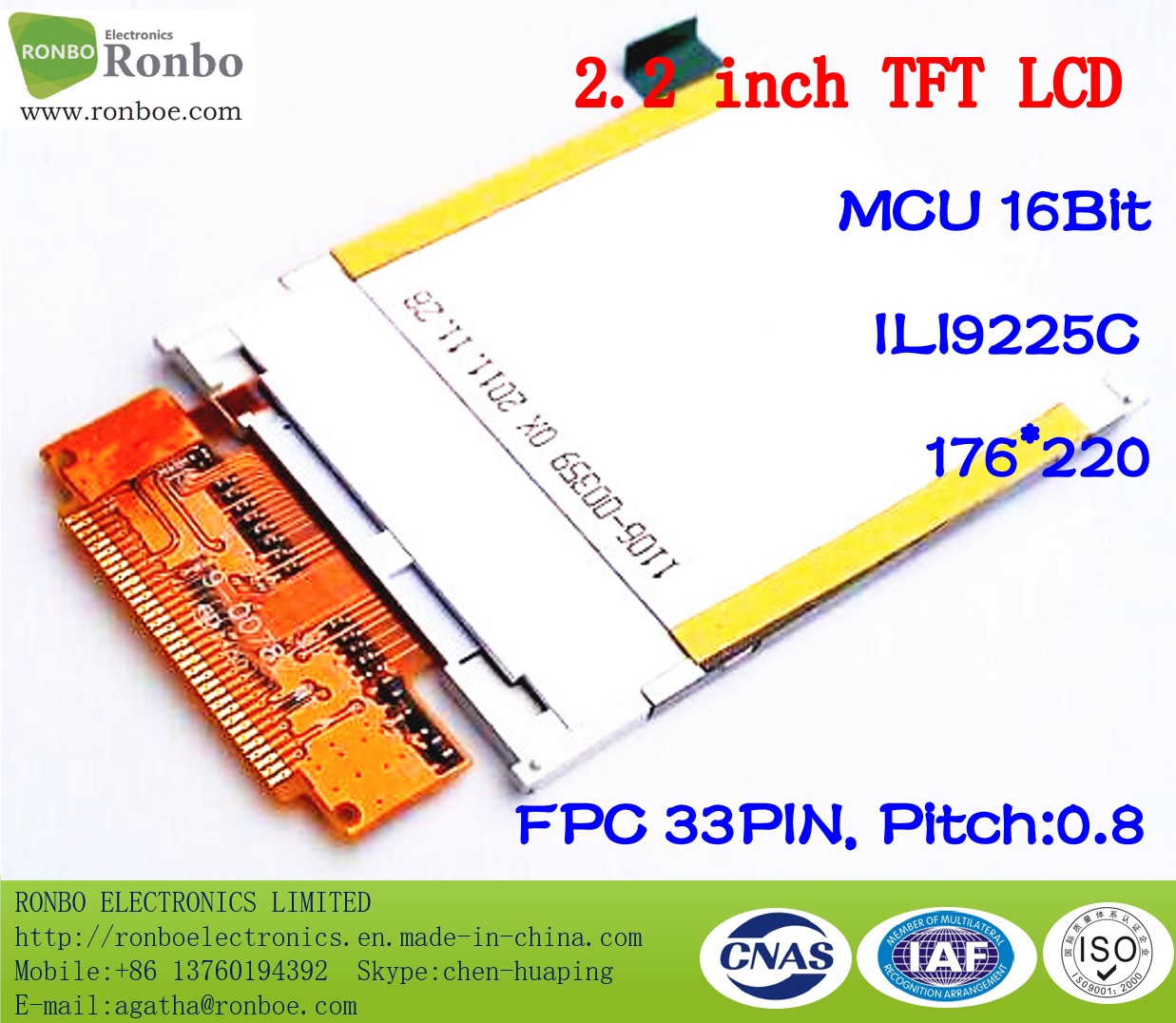

Model: 2.2" QCIF 176*220 MCU 16Bit 33Pin Industrial TFT LCD PANEL
Specification:
Model NO.: | RB022D33N06A |
Screen Size: | 2.2" |
Resolution: | 176*220 |

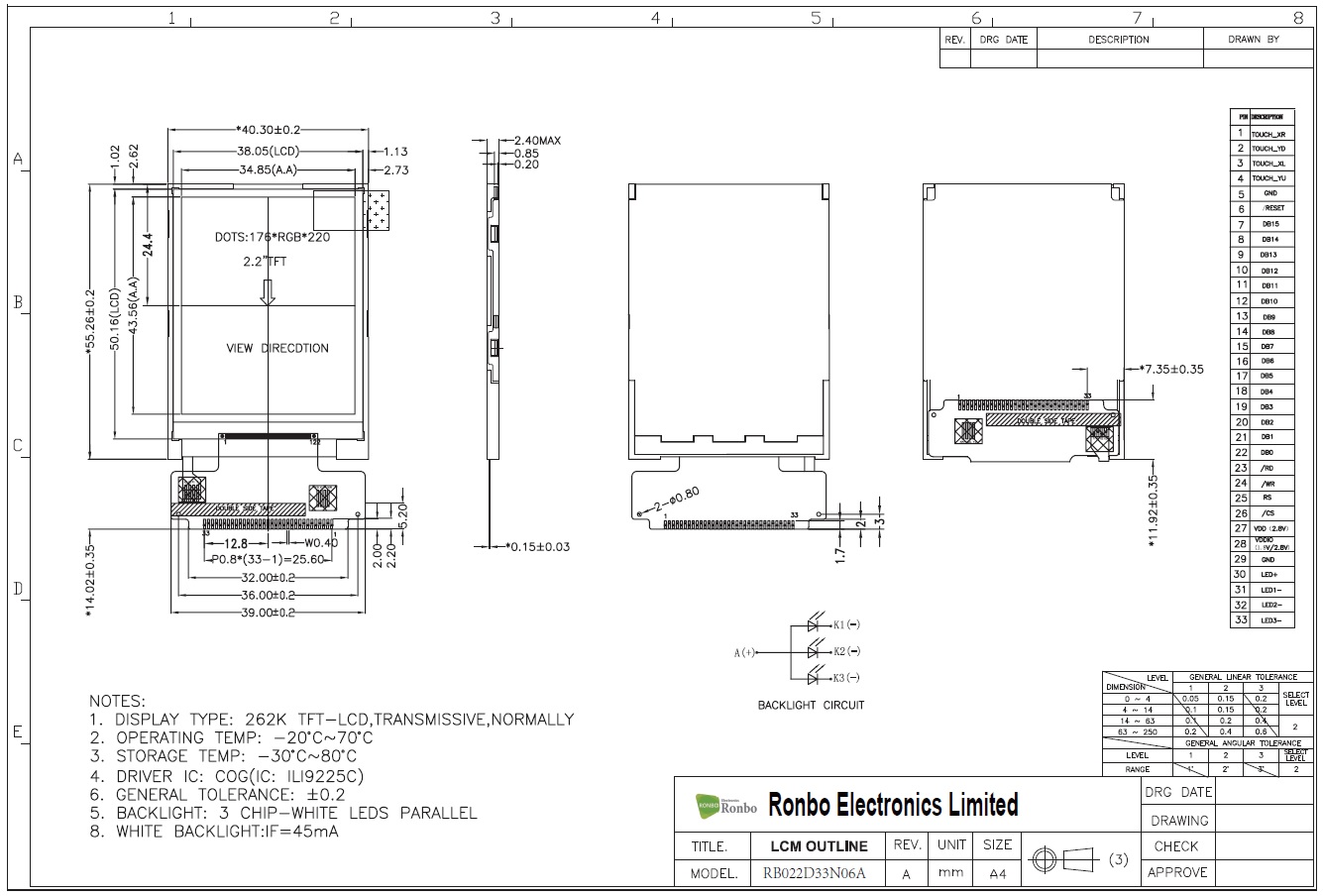

Module size(W*H*T): | 40.3*55.26*2.4mm |
Active area (W*H): | 33.85*43.56mm |
Controller: | ILI9225C |
Brightness: | 3 White LED |
Display Type: | 262K |
Operating Temperature:- | -20 ~ 70ºC |
Interface: | MCU 16 Bit，FPC 33PIN, Pitch:0.8mm |
Ronbo Electronics Ltd., located at Dongguan, China, is one of the leading display suppliers. Its production line includes small to medium size LCD, TFT, and OLED modules for a variety of industrial and consumable application. We are one of the leading display providers of monochrome character LCD modules, graphic LCD modules, alphanumeric LCD panel & TFT modules. High-quality LCD modules are made based on our experienced engineering knowledge, well-managed supply chain.
Besides standard modules, our experience R&D staff can either support you value-added program or make customized product according to your specification
Moreover, our company has passed ISO 9001, ISO14001 certifications as well as RoHS.
Our website is http://www.ronboe.com
