RB024D37N12A

RB024D37N12A
RB024D37N12A

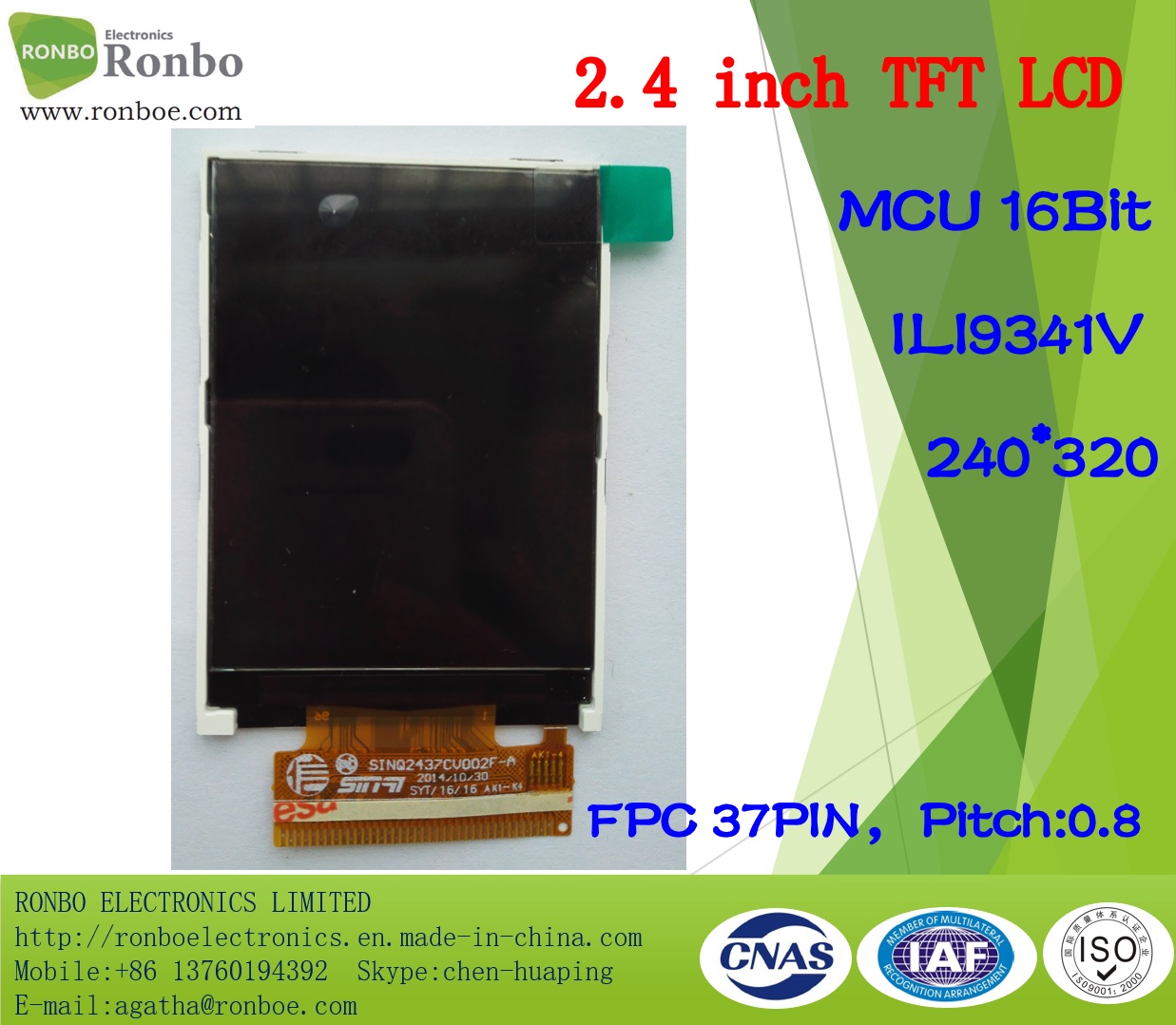

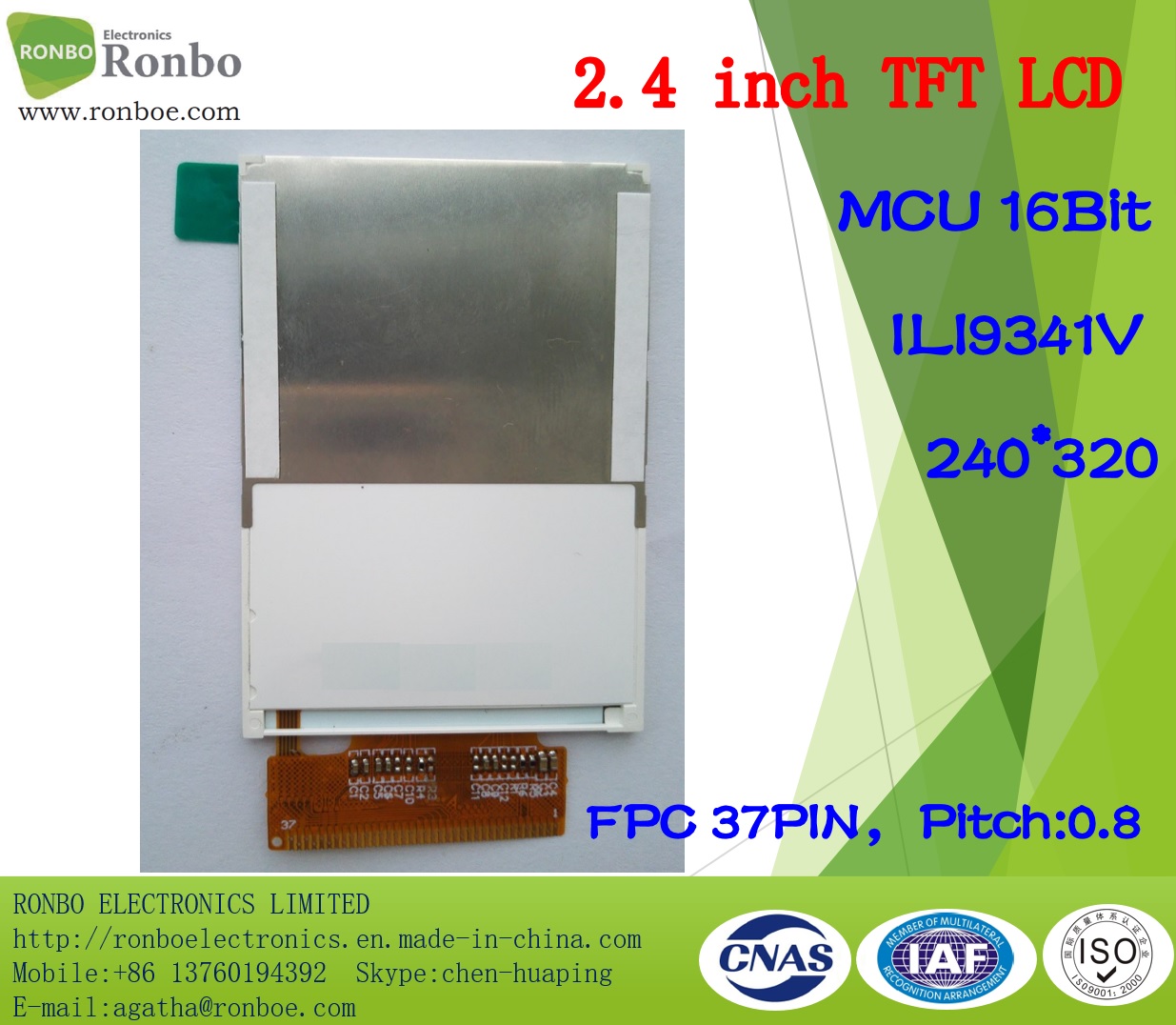

Model: 2.4" 240*320 MCU 37Pin Wide View Angle TFT LCD With TOUCH SCREEN
Specification:

Model   NO.:

RB024D37N12A

Screen   Size:

2.4"

Resolution:

240*320

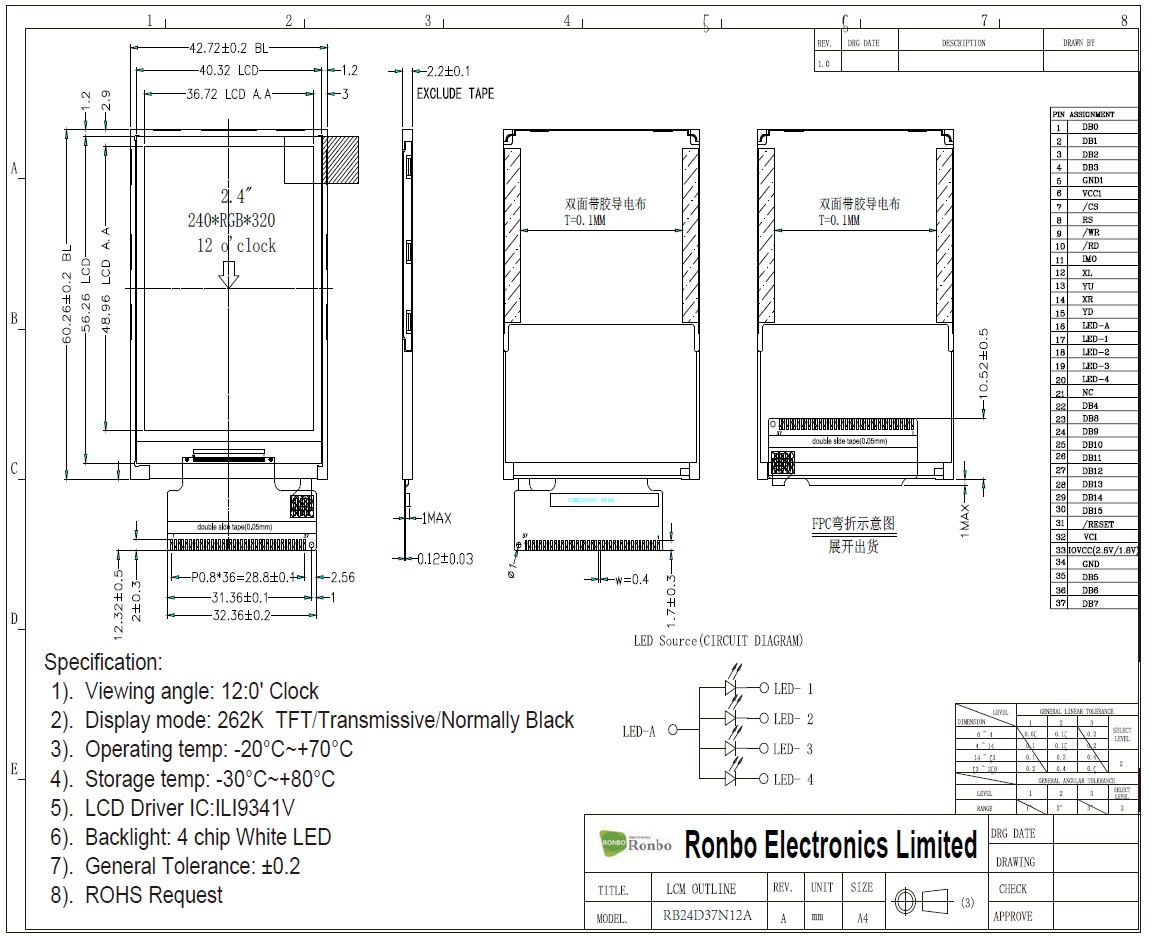

Module   size(W*H*T):

42.72*60.26*2.2mm

Active   area (W*H):

36.72*48.96mm

Controller:

ILI9341V

Brightness:

4   White LED

Display   Type:

262K

Operating   Temperature:-

-20   ~ 70ºC

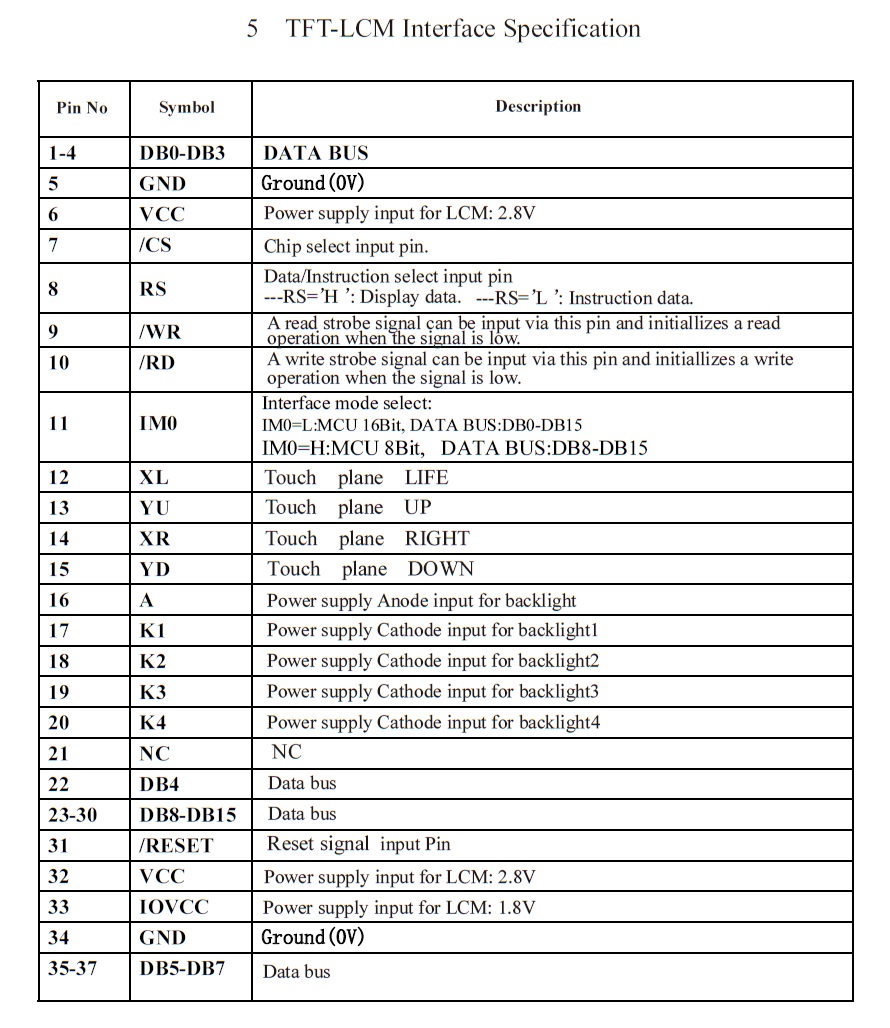

Interface:

MCU   16Bit,FPC 37PIN,Pitch:0.8mm




Ronbo Electronics Ltd., located at Dongguan, China, is one of the leading display suppliers. Its production line includes small to medium size LCD, TFT, and OLED modules for a variety of industrial and consumable application. We are one of the leading display providers of monochrome character LCD modules, graphic LCD modules, alphanumeric LCD panel & TFT modules. High-quality LCD modules are made based on our experienced engineering knowledge, well-managed supply chain.


Besides standard modules, our experience R&D staff can either support you value-added program or make customized product according to your specification


Moreover, our company has passed ISO 9001, ISO14001 certifications as well as RoHS.

Our website is
http://www.ronboe.com
