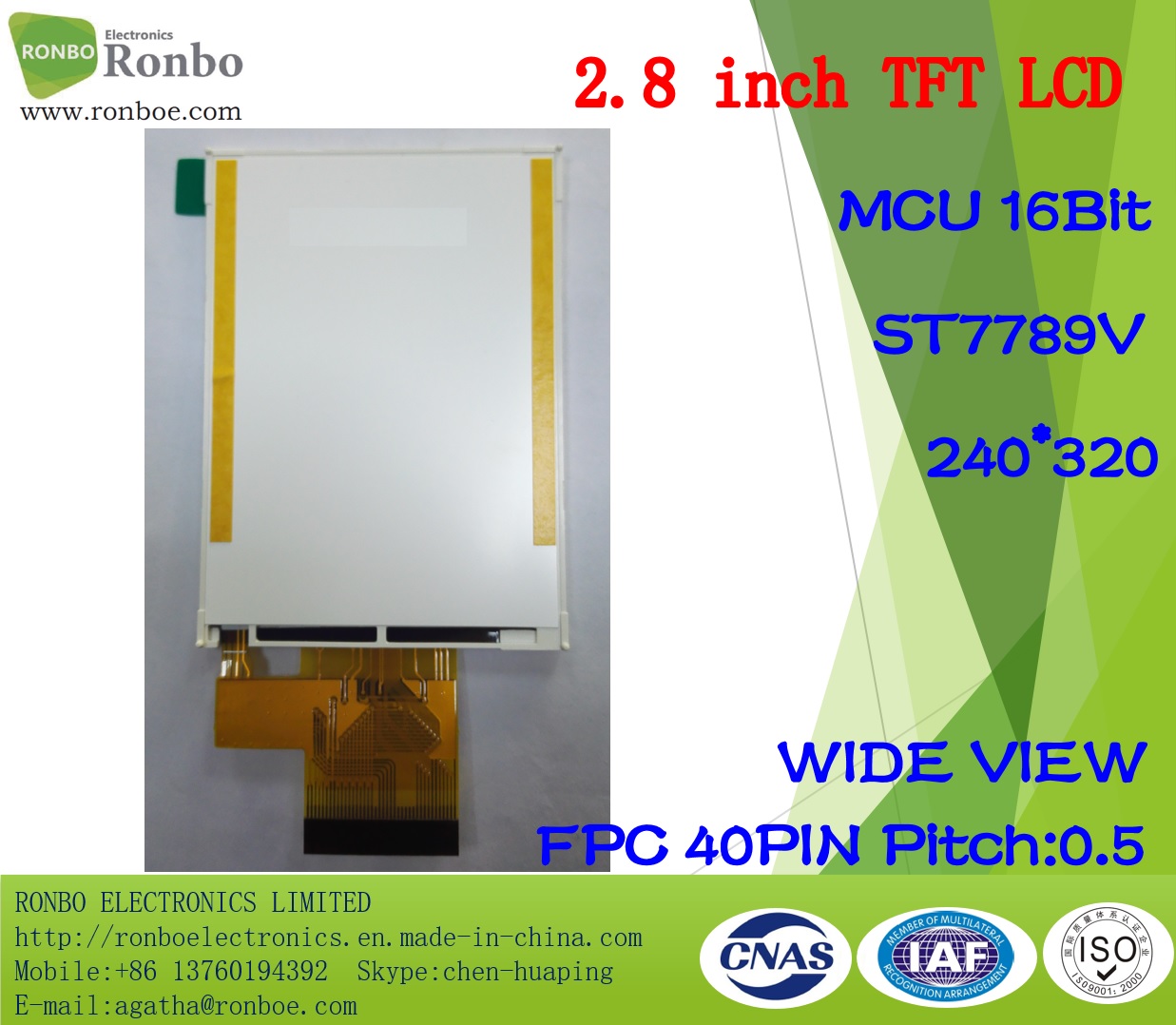

Model: 2.8 Inch 240x320 MCU 16Bit,IC:ST7789V,TFT LCD Display Option Touch Screen
Specification:

Model   NO.:

RB028D40N07A

Screen   Size:

2.8"

Resolution:

240*320

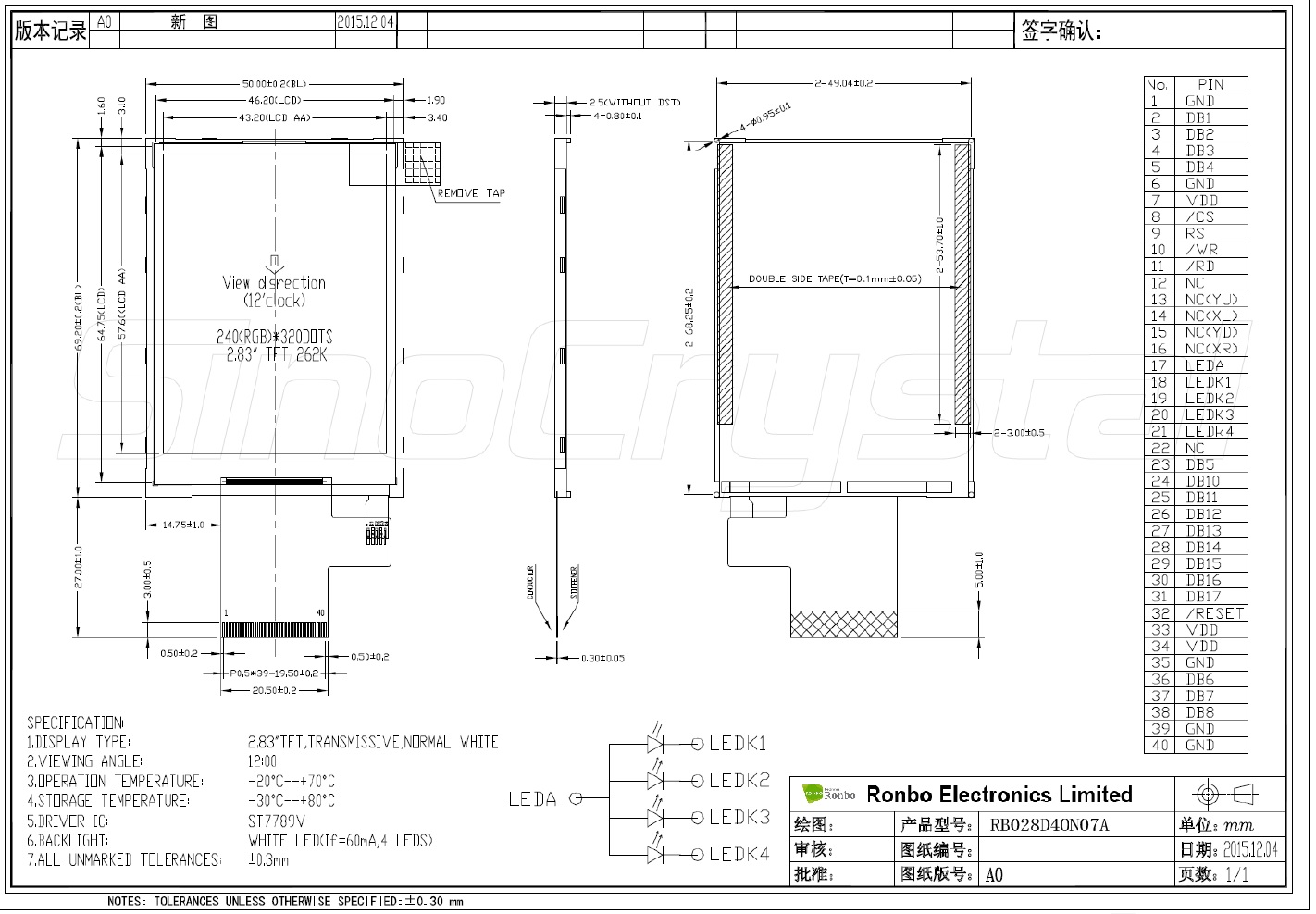

Module   size(W*H*T):

50.0*69.2*2.5mm

Active   area (W*H):

43.2*57.6mm

Controller:

ST7789V

Brightness:

4   White LED 260 Cd/m2

Display   Type:

262K

Operating   Temperature:-

-20   ~  70ºC

Interface:

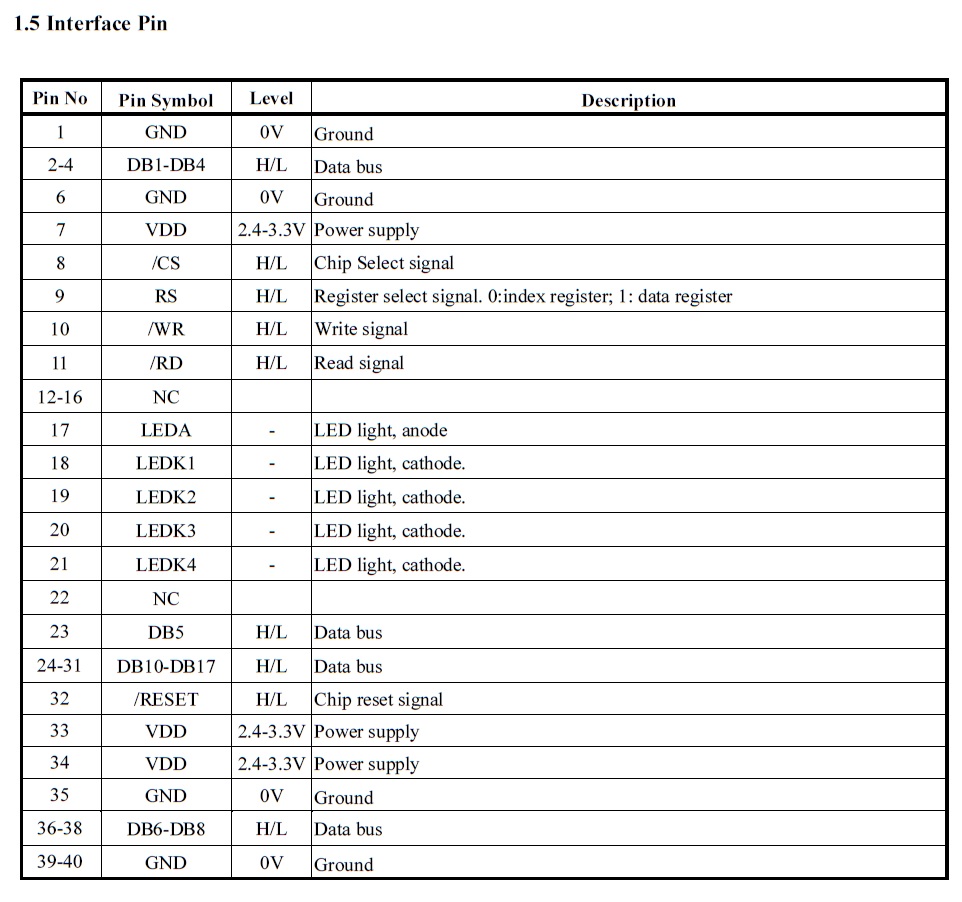

MCU   16Bit,FPC 40PIN,Pitch:0.5mm




Ronbo Electronics Ltd., located at Dongguan, China, is one of the leading display suppliers. Its production line includes small to medium size LCD, TFT, and OLED modules for a variety of industrial and consumable application. We are one of the leading display providers of monochrome character LCD modules, graphic LCD modules, alphanumeric LCD panel & TFT modules. High-quality LCD modules are made based on our experienced engineering knowledge, well-managed supply chain.


Besides standard modules, our experience R&D staff can either support you value-added program or make customized product according to your specification


Moreover, our company has passed ISO 9001, ISO14001 certifications as well as RoHS.
