RB030D39T04A

RB030D39T04A
RB030D39T04A

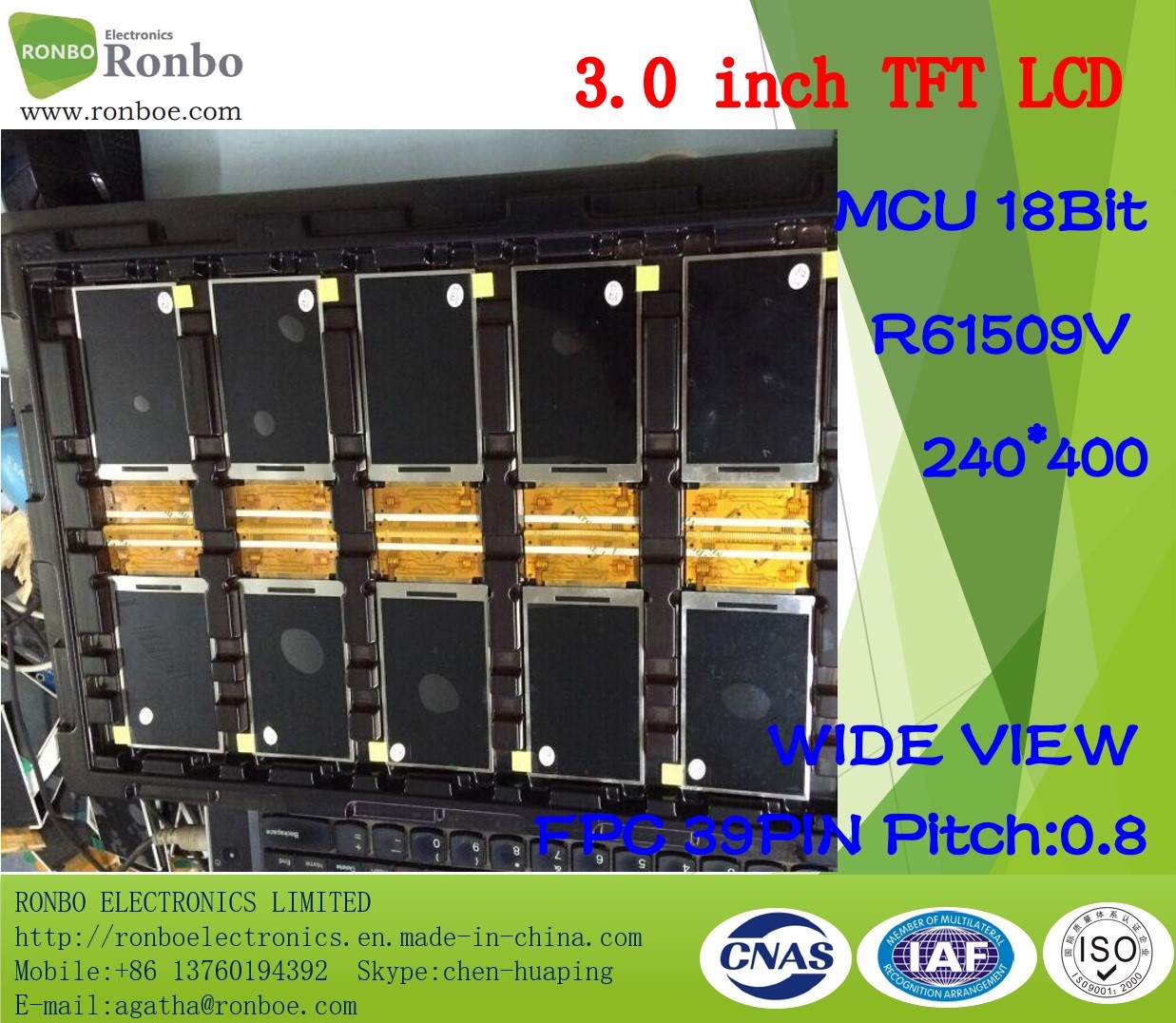

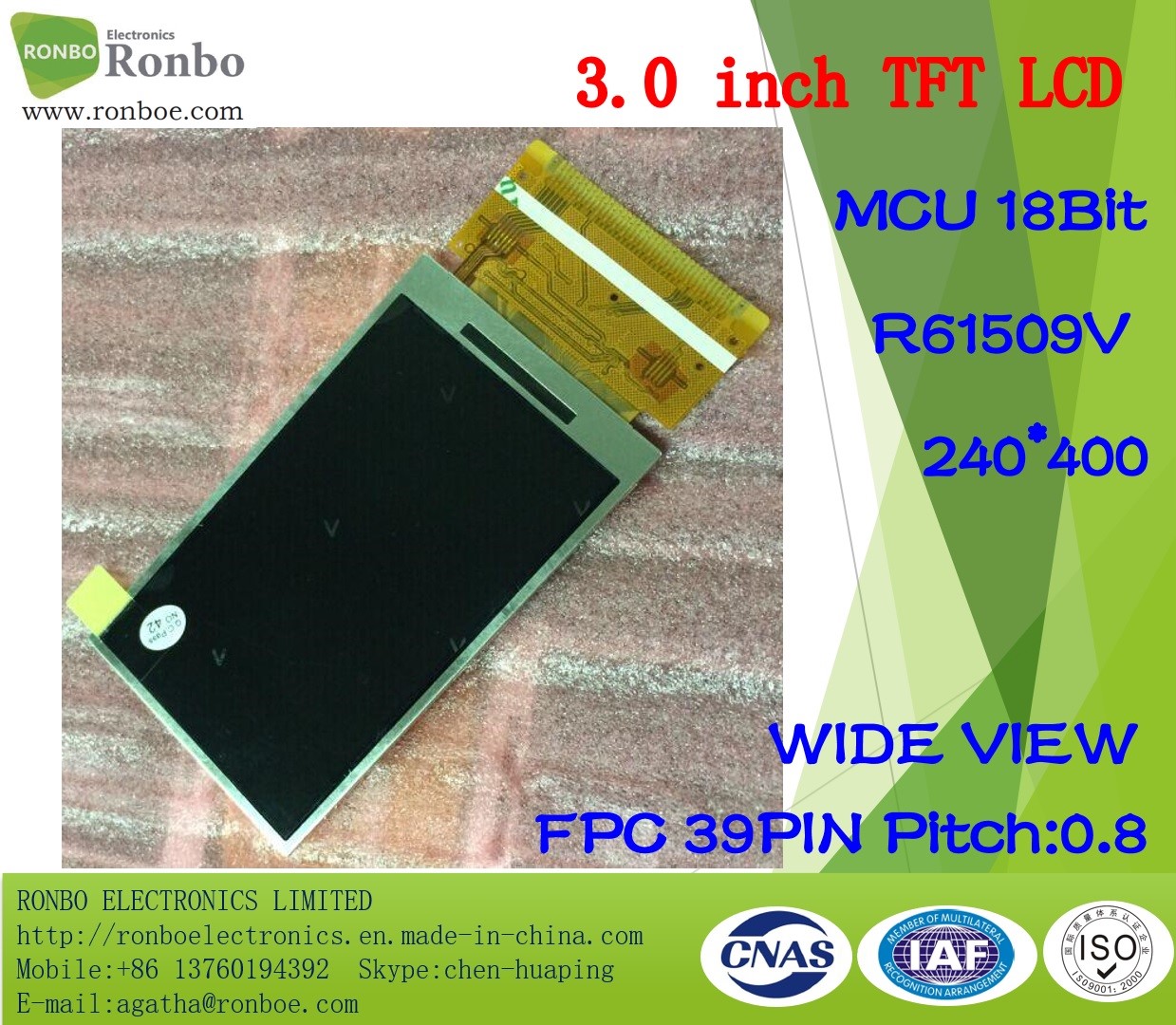

Model: 3.0" 240*400 MCU 18Bit 39pin,IC:ILI9327,ODM High Brightness TFT LCD Panel
Specification:

Model   NO.:

RB030D39T04A

Screen   Size:

3.0"

Resolution:

240*400

Module   size(W*H*T):

45.04*76.00*2.05mm

Active   area (W*H):

38.88*64.8mm

Controller:

R61509V   or ILI9327

Brightness:

5   White LED

Display   Type:

TN

Operating   Temperature:

-20   ~ 70ºC

Interface:

MCU   18Bit,FPC 39PIN Pitch:0.8mm





Ronbo Electronics Ltd., located at DongGuang, China, is one of the leading display suppliers. Its production line includes small to medium size LCD, TFT, and OLED modules for a variety of industrial and consumable application. We are one of the leading display providers of monochrome character LCD modules, graphic LCD modules, alphanumeric LCD panel & TFT modules. High-quality LCD modules are made based on our experienced engineering knowledge, well-managed supply chain.


Besides standard modules, our experience R&D staff can either support you value-added program or make customized product according to your specification


Moreover, our company has passed ISO 9001, ISO14001 certifications as well as RoHS.
