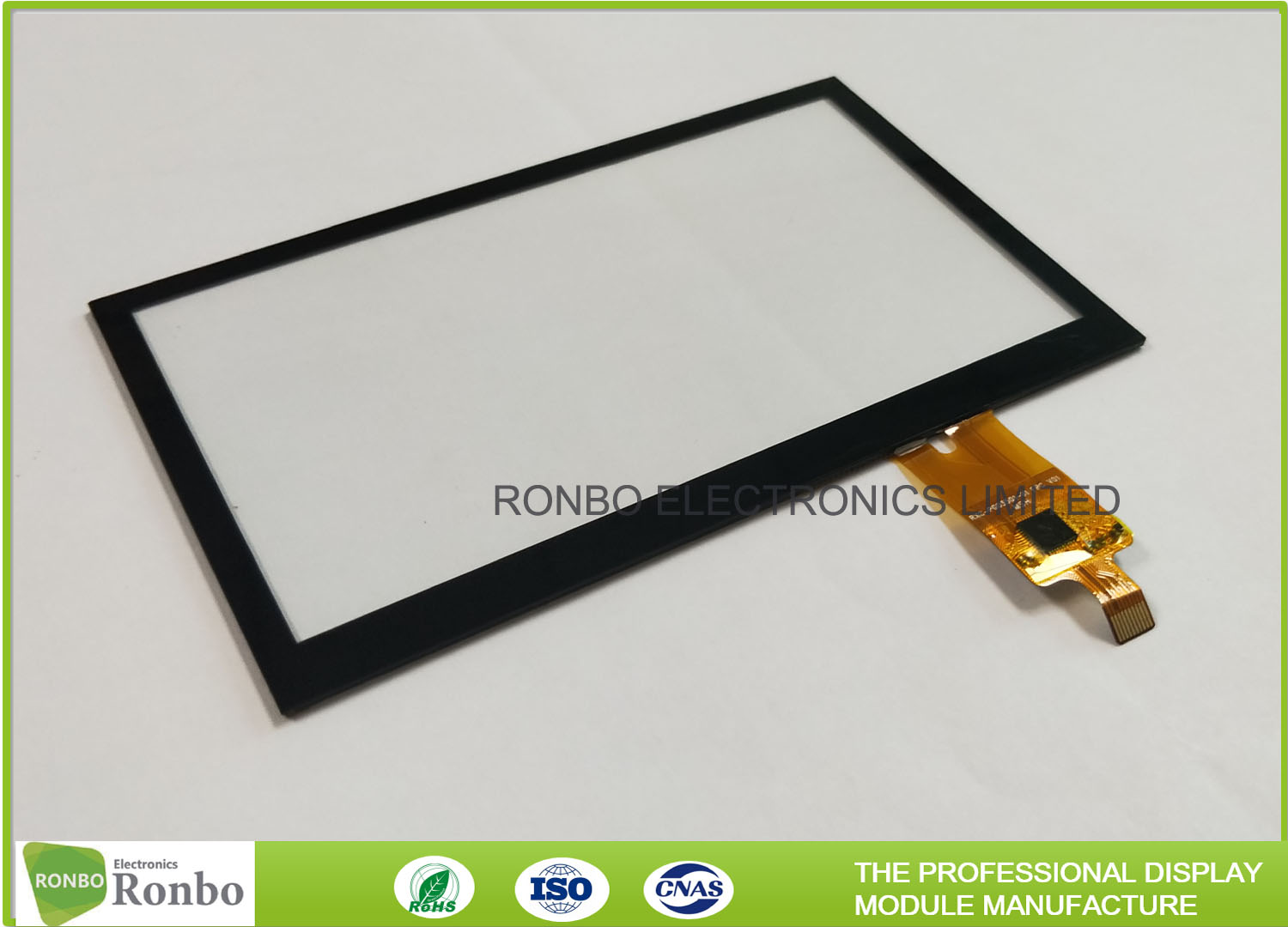

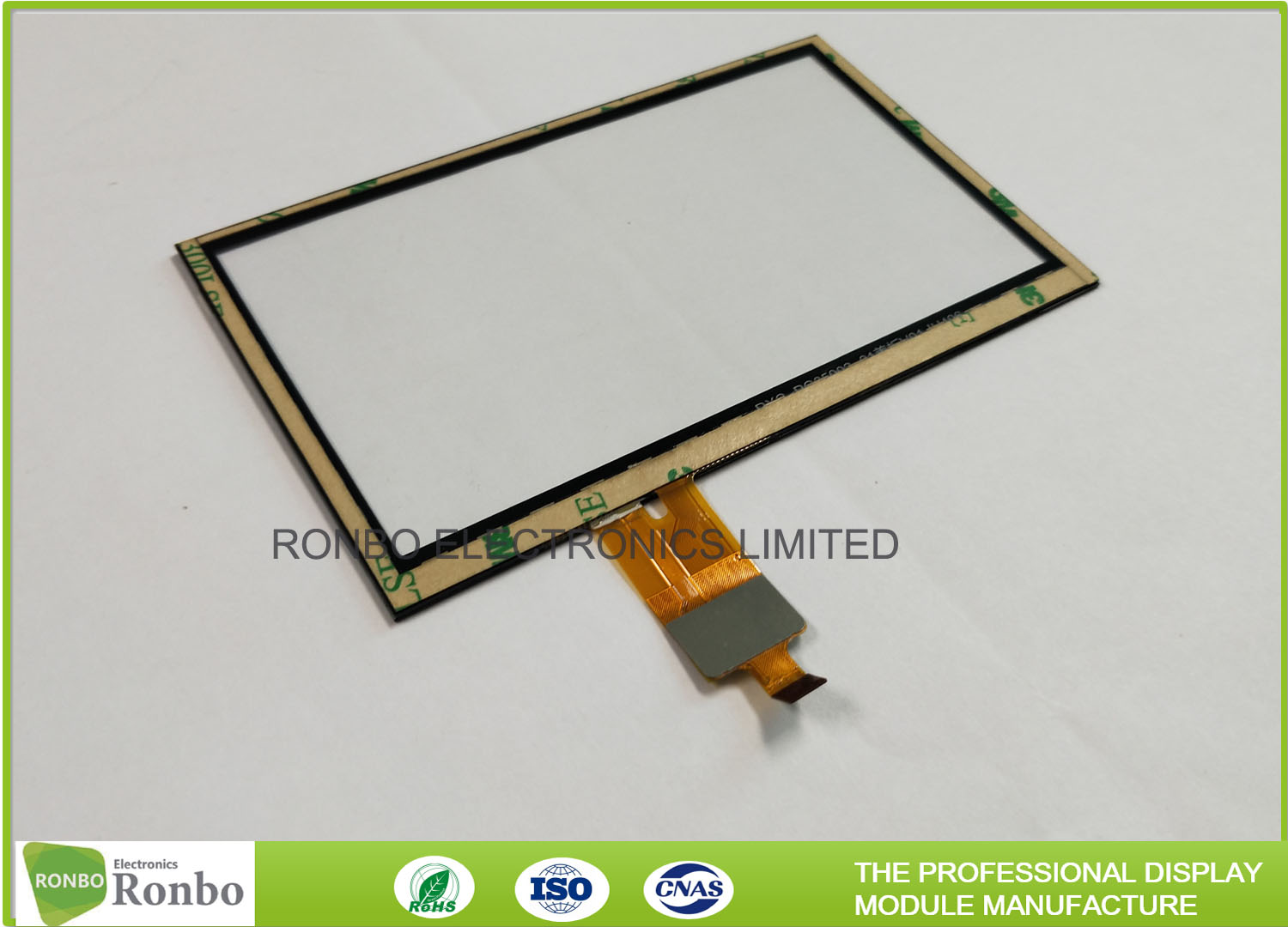

High Hardness Tempered Glass 5.0” 480x272 G G Multi-touch Capacitive Touch Panel Screen


Model NO.:

RXC-GG05022-01

Screen Size:5.0 inch
Resolution:480*272
Outside Dimension(W*H):119.8x74.5mm

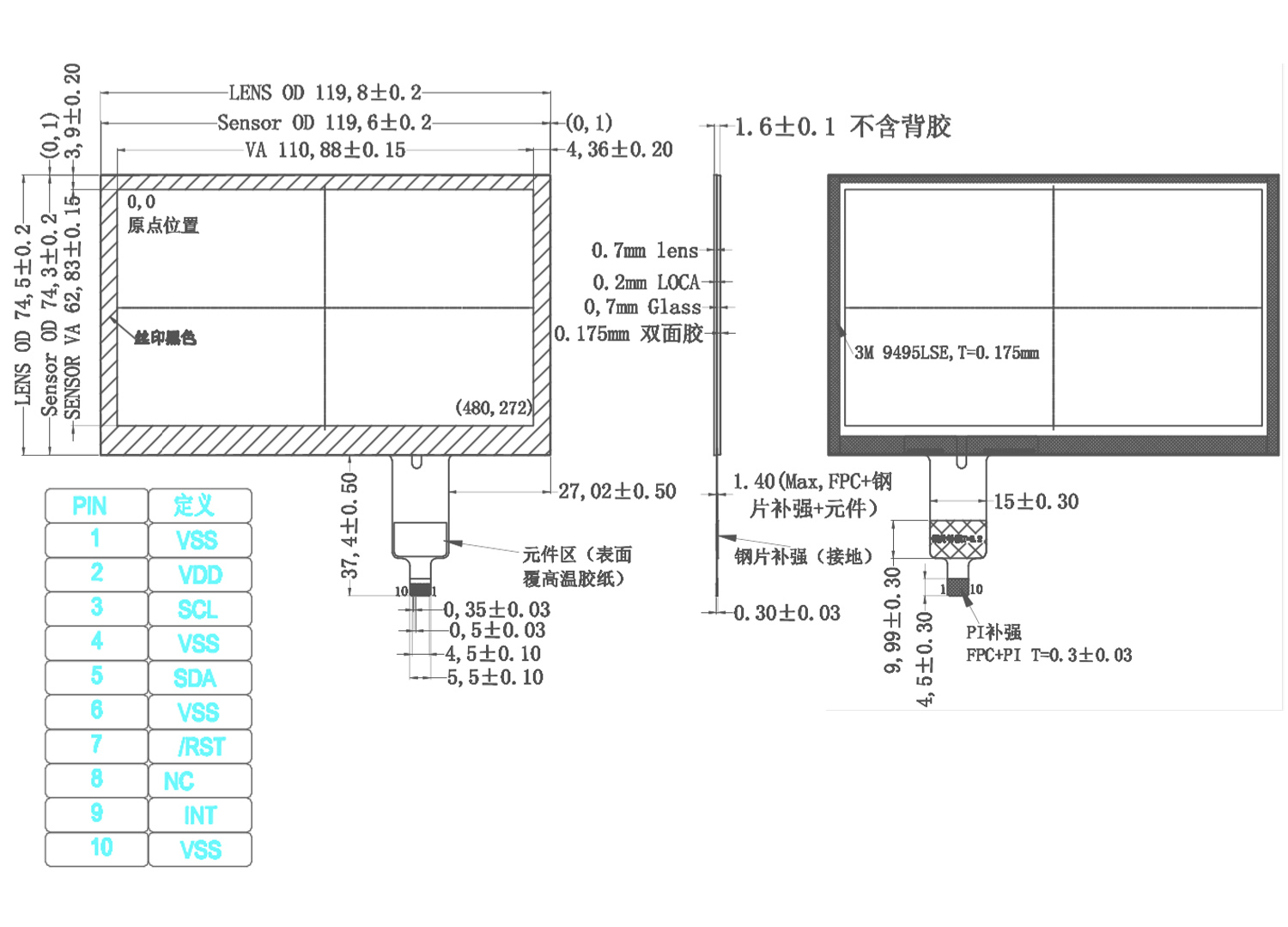

Viewing Area(W*H):110.88x62.83mm
Touch type:Multi-touch capacitive touch panel
Structure:G G
Surface Treatment:Customized
Cover / Sensor Thickness:Cover:0.7mm, Sensor:0.7mm
Total Thickness:1.6mm (don’t including Double Tape)
Controller:FT5216 or equivalent
Touch Action Force:30~60g
Operating Voltage:2.8V~3.3V
Transmittance:≥80%
Surface Hardness:≥6H
Interface:IIC
Pin NO:10Pin
Pin pitch:0.5mm
Connecting type:FPC Connector
Operating system support:Linux, Android, Windows, etc
Operating Temperature:-20 ~  70ºC
Storage Temperature:-30 ~  80ºC





Operation Principle:

Capacitive touch panel works through body's current induction. When finger is on or close to touch panel surface, due to body electric field, the user and touch panel surface forms one coupling capacitance.

For high frequency current, capacitance is direct conductor, then fingers suck a small current from the contact point, through amplifying and accurately calculating this current signal,

Finally the controller works out the touch point position



Projected Capacitive Touch Screen Technology:

  • Projected Capacitive Technology permits more accurate and flexible operation by etching the conductive layer on the touch screen.

  • Projected Capacitive Touch Screen uses multiple layers of glass or film with optical bonding in assembly process.

  • Cover lens is usually made by tempered glass which can stand against shock and impact.

  • Projected Capacitive touch panels are embedded with high performance IC and users can enlarge, shrink, rotate, flip and drag pages easily due to the multi-touch gesture support (multi touch screen).

Comparison between Capacitive Touch Panel and Resistive Touch Panel
Capacitive Touch PanelResistive Touch Panel
Touch (no pressure needed)Press (pressure activated)
No calibration requiredCalibration required (resistance drift on film)
Better Durability, No significant agingDisplay turns white when aging
Handles high temperatureFilm breaks down at high temperature
Better Transparency, less optical power neededLow transmission
Can be vandal-proof (thick glass/plastic)Easily damaged (thin top layer)
Scratch Resistant (with glass)Prone to scratch
Stylus not a mustNeed stylus, easy to lose


Product Specification:

The structures explanation:

* P G=PET Glass (cover lens is PET and touch sensor is glass).

* G G=Glass Glass (cover lens is glass and touch sensor is glass).

* G F/F=Glass Film Film (cover lens is glass and touch sensor is film film).

* CG= Cover Glass, OD= Outside Dimension, VA= Viewing Area.





Custom Projected Capacitive Touch Screen:

  • Our capacitive touch panel design can be suitable for housing design from the customers to cover their lens or replace the physical buttons on its original module.

  • we are also capable of doing the customized shape needed to suit for customer's mechanical design.

  • With the assistance of the simulation software, equipment with high accuracy and simplifying assembly process, we are capable of making the sample in shorter period and with lower development charge.

Custom Capacitive Touch Panel_1.jpg

          Lens’s Features

►Shape: Irregular and hole

►Color: Silk printing, Logo

►Glass brand: AGC, Corning, CSG, ETC

►Treatments: AG, AR, AF, Anti-explosion

►Thickness: 0.55mm, 0.7mm, 1.0mm, 1.1mm, 1.8mm, 2.0mm, 3.0mm, 4.0mm

         Sensor Features

►Sensor material: Glass, Film, Film / Film

►Thickness:0.125mm,0.4mm,0.55mm,0.7mm,1.1mm

►FPC: Shape design optional

►IC: Focaltech, Goodix, Cypress, EETI

►Interface: IIC, USB, RS232, SPI

            Assembly



►Optical Bonding with OCA



►Double faced adhesive tape

Product Application:

Telecommunication DevicesTelephone, interphone, watch, tablet PC, radio, etc
Consumer ProductsCamera, DVD player, toy, Cell Phone, game player, etc
Technical EquipmentElevator controller, Industrial machine, etc
Office AutomationPrinter, scanner, attendance machine, fax machine, etc
Home AppliancesAir-condition display, refrigerator, electric cooker, video doorbell, etc
AutomobileGPS, video player, speedometer, audio broadcast, etc
IT ProductsCamera, handheld digital video, projector, media play, tablet PC, etc
Medical EquipmentUltrasound machine, therapeutic equipment Blood pressure meter, etc



Our Advantage:

Rich experienceGood knowledge of the displays market to put together solutions that add value and provide a unique proposition for the client
Advanced EquipmentFull automatic FPC&IC bonding machine, film attaching machine, CNC machine, polish machine etc advance production equipment ensure product quality
Quality AssuranceAdvance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment
Fast responseQuickly realize your customized ideas, and have a sample ready in short time
Low MOQDepends on product
Stable supply1~10 years supply period
Extensive rangeProviding complete solution from Mono to Color LCD module, Optical bonding between display to cover glass as well as cover glass to touch screen
Large production capacityOperation capacity 2KK monthly
Quality guaranteeRoHS compliant
ManagementISO 9001:2008, ISO 14001:2004
