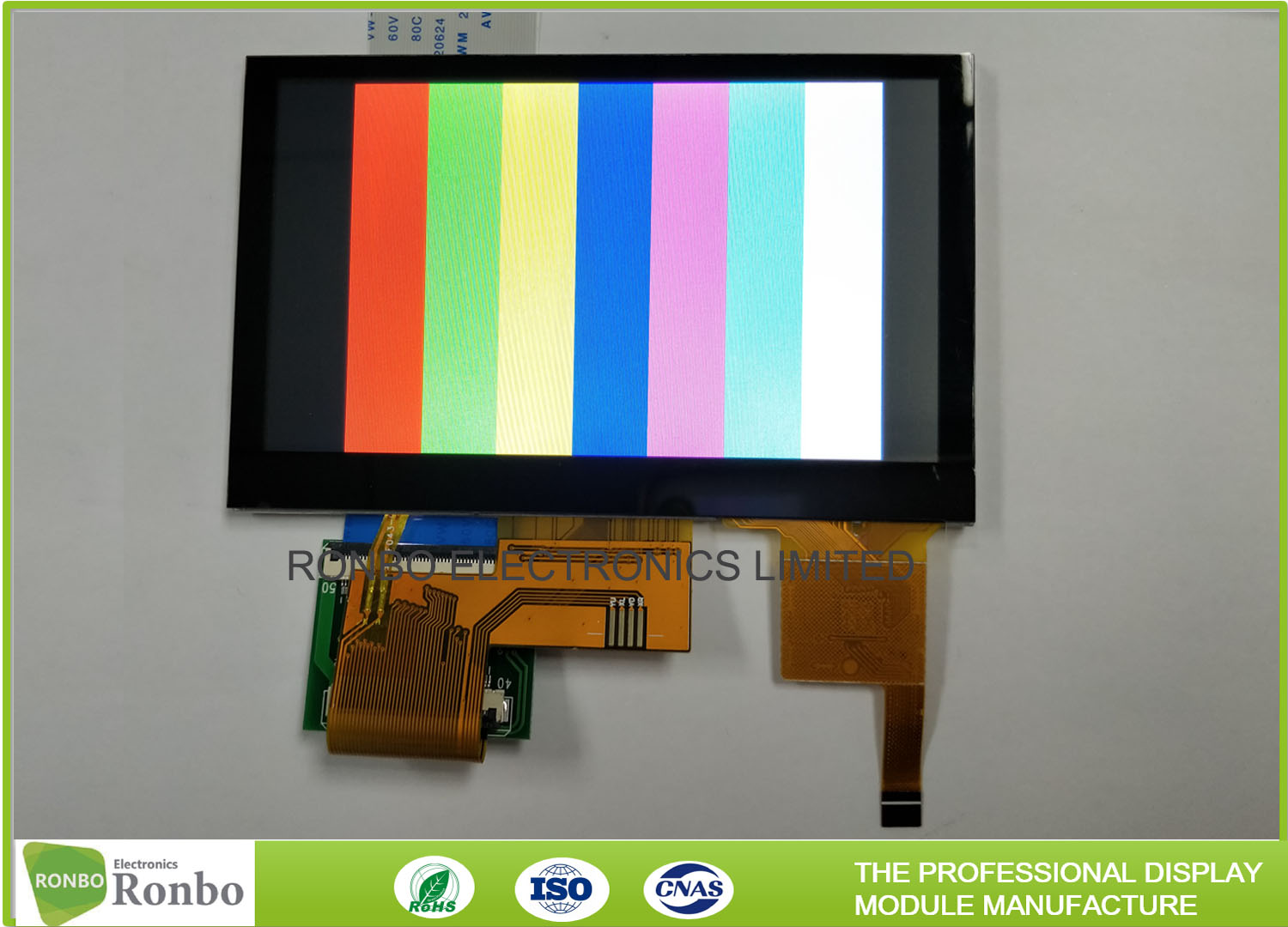

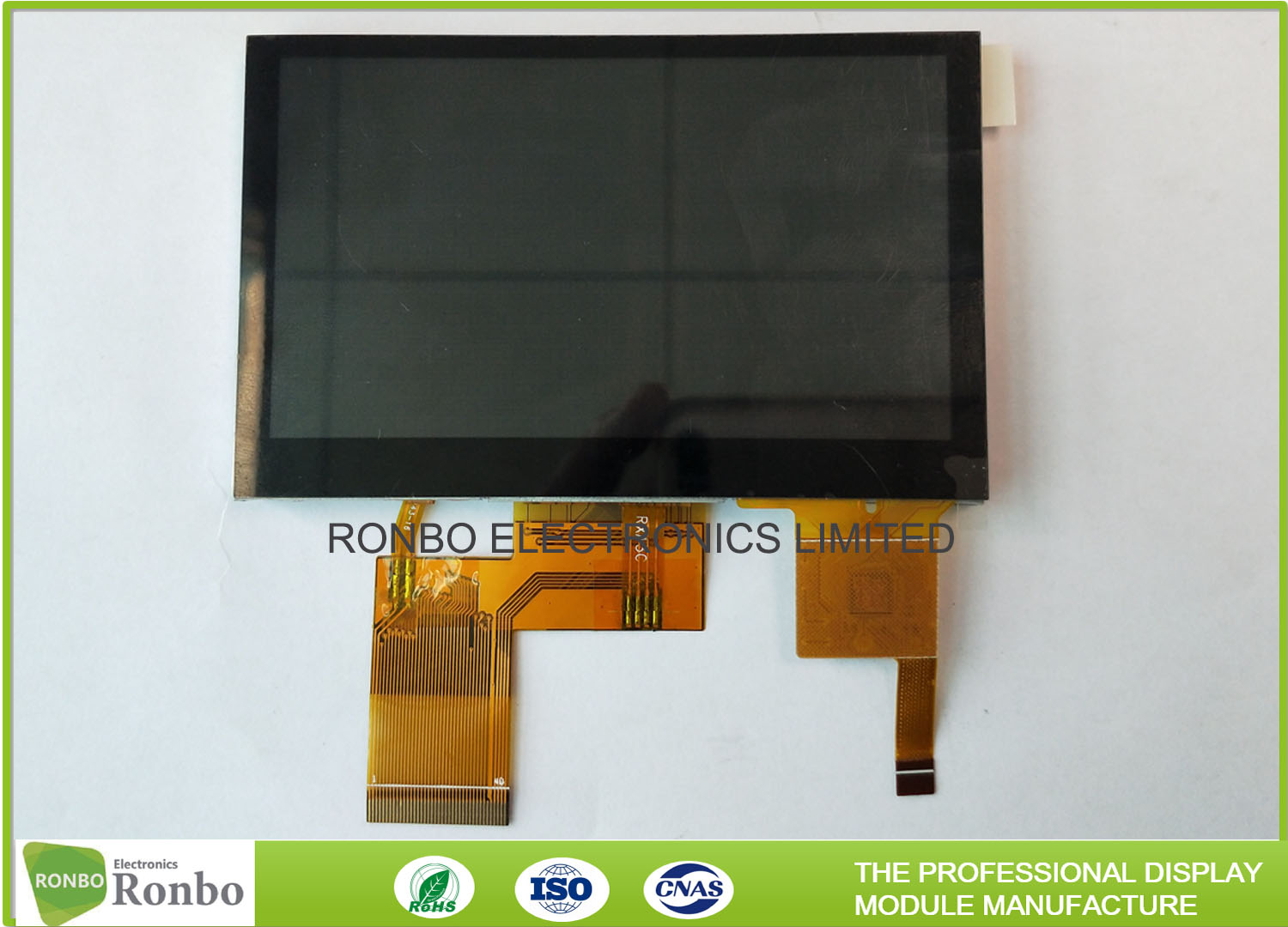

High Brightness 4.3 inch Capacitive Touch Screen LCD Display bonding 480x272 TFT LCD Module


Main Specification
Model NO.:RB043D40N06A-GG01
Screen Size:4.3”
Display typeTN
Resolution:480*272
Viewing direction:12 o’clock

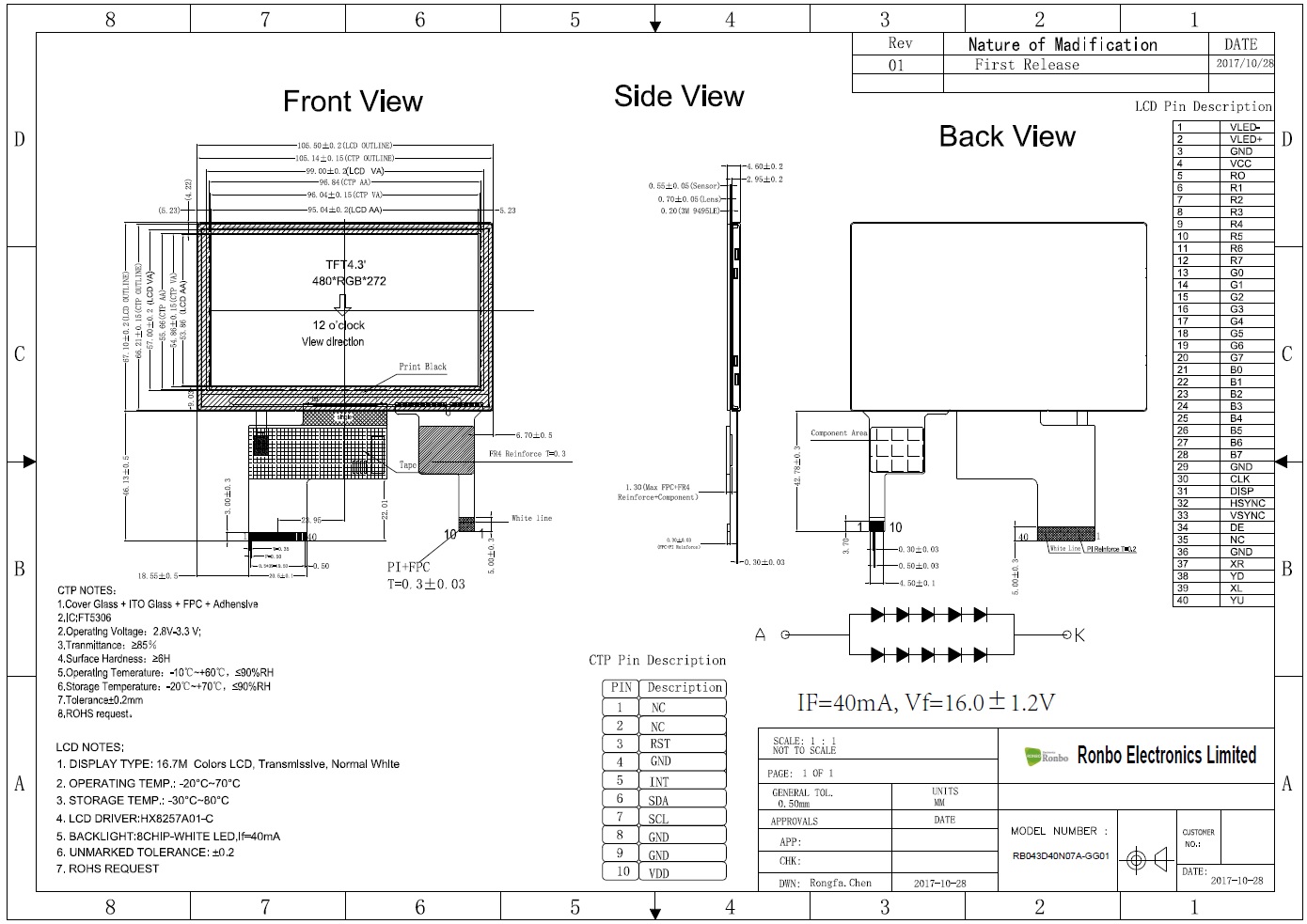

Module size(W*H*T):105.5*67.2*4.6mm
Active area (W*H):95.04*53.86mm
Brightness:450cd/m²
Operating Temperature:-20 ~  70ºC
Storage Temperature:-30 ~  80ºC
LCD SpecificationController:HX8257A01-C or equivalent
Backlight:

5S2P=10 WLED

If=40mA, Vf =16.0V

Contrast500
Interface:RGB
Pin NO:
40Pin
Pin pitch0.5mm
Connecting typeFPC Connector
CTP SpecificationTouch typeMulti-touch capacitive touch panel
Structure:G G
Surface Treatment:Customized
Sensor/CG Thickness:0.55/0.7mm
Total Thickness:1.4mm (don’t including Double Tape)
Controller:FT5306 or equivalent
Touch Action Force:30~60g
Operating Voltage::2.8V~3.3V
Transmittance:≥86%
Surface Hardness:≥6H
Interface:IIC
Pin NO:10Pin
Pin pitch0.5mm
Connecting typeFPC Connector
Operating system support:Linux, Android, Windows

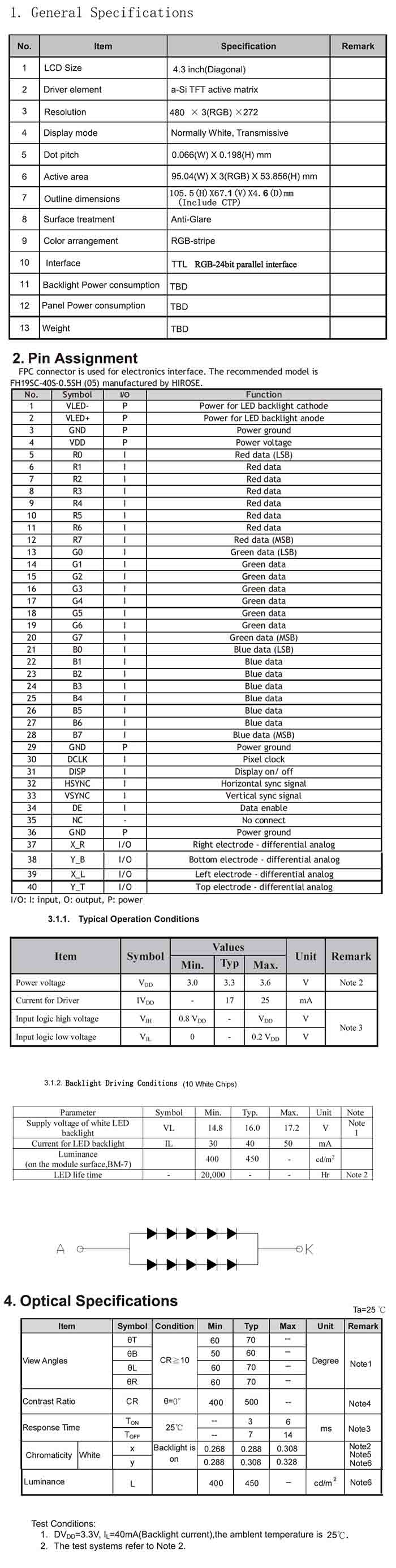

 Product Specification:

CTP structures explanation:

* P / G=PET Glass (cover lens is PET and touch sensor is glass).

* G / G=Glass Glass (cover lens is glass and touch sensor is glass).

* G / F / F=Glass Film Film (cover lens is glass and touch sensor is film film).

* C / G= Cover Glass, OD= Outside Dimension, VA= Viewing Area.



* It is a TFT LCD Display bonding with Capacitive Touch Screen.

* Backlight with different brightness is customized according to your request.

* It is Standard TFT LCD Module and Capacitive Touch Screen.

* It can be customized for LCD and Touch screen.

* Experienced Team for Your Custom Solution.

* RoHS compliant.





Custom Projected Capacitive Touch Screen:

  • Our capacitive touch panel design can be suitable for housing design from the customers to cover their lens or replace the physical buttons on its original module.

  • we are also capable of doing the customized shape needed to suit for customer's mechanical design.

  • With the assistance of the simulation software, equipment with high accuracy and simplifying assembly process, we are capable of making the sample in shorter period and with lower development charge.

Custom Capacitive Touch Panel_1.jpg

          Lens’s Features

►Shape: Irregular and hole

►Color: Silk printing, Logo

►Glass brand: AGC, Corning, CSG, ETC

►Treatments: AG, AR, AF, Anti-explosion

►Thickness: 0.55mm, 0.7mm, 1.0mm, 1.1mm, 1.8mm, 2.0mm, 3.0mm, 4.0mm

         Sensor Features

►Sensor material: Glass, Film, Film / Film

►Thickness:0.125mm,0.4mm,0.55mm,0.7mm,1.1mm

►FPC: Shape design optional

►IC: Focaltech, Goodix, Cypress, EETI

►Interface: IIC, USB, RS232, SPI

            Assembly



►Optical Bonding with OCA



►Double faced adhesive tape

Product Application:

Telecommunication DevicesTelephone, interphone, watch, tablet PC, radio, etc
Consumer ProductsCamera, DVD player, toy, Cell Phone, game player, etc
Technical EquipmentElevator controller, Industrial machine, etc
Office AutomationPrinter, scanner, attendance machine, fax machine, etc
Home AppliancesAir-condition display, refrigerator, electric cooker, video doorbell, etc
AutomobileGPS, video player, speedometer, audio broadcast, etc
IT ProductsCamera, handheld digital video, projector, media play, tablet PC, etc
Medical EquipmentUltrasound machine, therapeutic equipment Blood pressure meter, etc



Our Advantage:

Rich experienceGood knowledge of the displays market to put together solutions that add value and provide a unique proposition for the client
Advanced EquipmentFull automatic FPC&IC bonding machine, film attaching machine, CNC machine, polish machine etc advance production equipment ensure product quality
Quality AssuranceAdvance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment
Fast responseQuickly realize your customized ideas, and have a sample ready in short time
Low MOQDepends on product
Stable supply1~10 years supply period
Extensive rangeProviding complete solution from Mono to Color LCD module, Optical bonding between display to cover glass as well as cover glass to touch screen
Large production capacityOperation capacity 2KK monthly
Quality guaranteeRoHS compliant
ManagementISO 9001:2008, ISO 14001:2004



FAQ:

Q: What is the MOQ?

A: It depends on different products. Please keep in touch with sales to confirm the MOQ.



Q: What about the delivery time?

A: Ready-made Sample: within 1 week

    Custom Sample: 1~2 weeks

    Mass production: 4-6 weeks



Q: Does your product have any warranty?

A: Yes, we offer 12 months warranty for our products.



Q: What's your payment method?

A: For samples: payment in advance.

    For mass production: 30% deposit and 70% balance before shipment.



Q: What's your shipping method?

A: We provide comprehensive shipping methods.

For small quantity orders we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.

    For large quantity orders we ship by buyer's cargo agent in China,

    we can also ship by Air transportation or sea transportation.



Q: Do you offer custom solution?

A: Yes, we can offer custom solution if standard products couldn't meet buyer' requirements.
