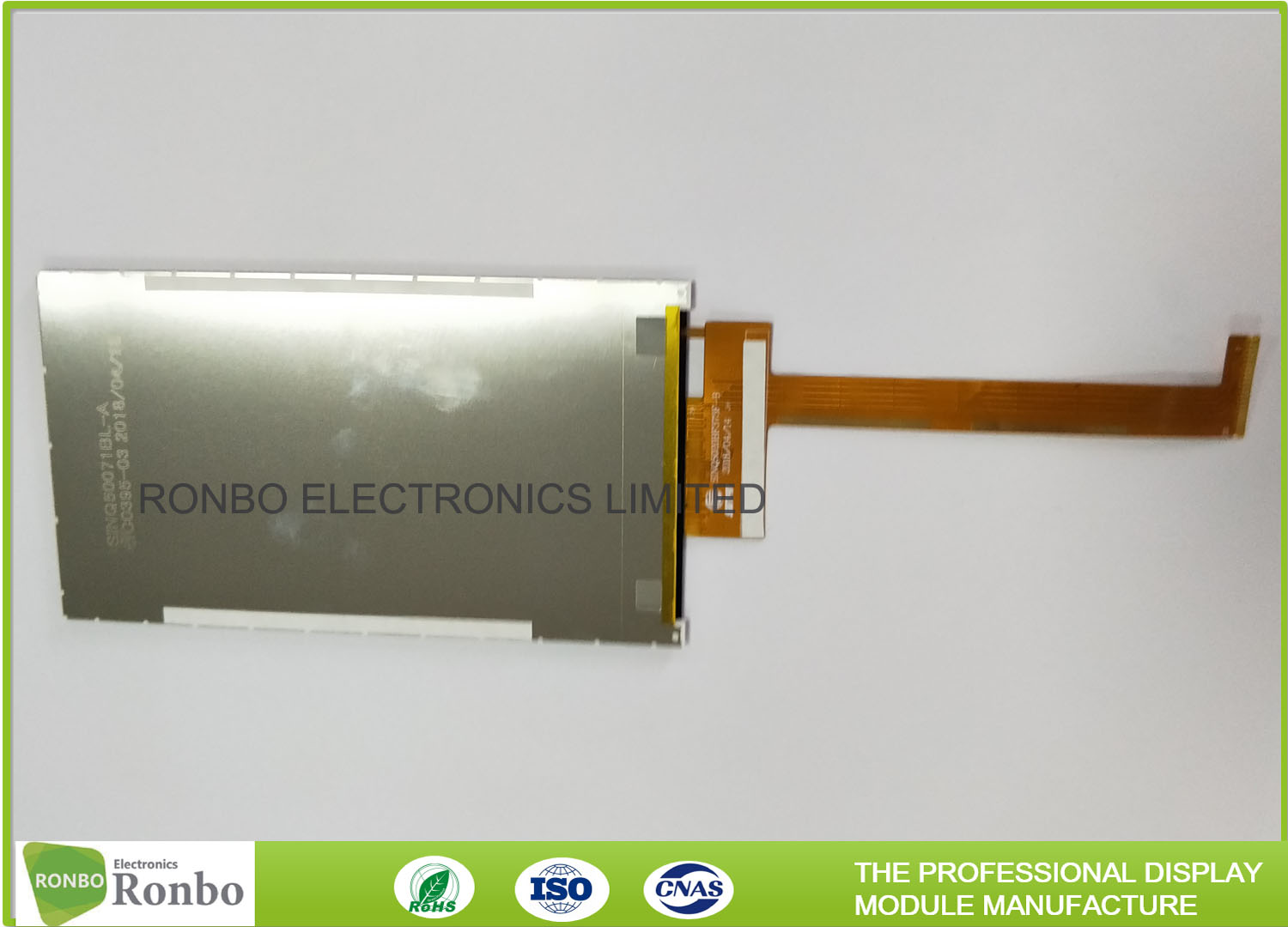

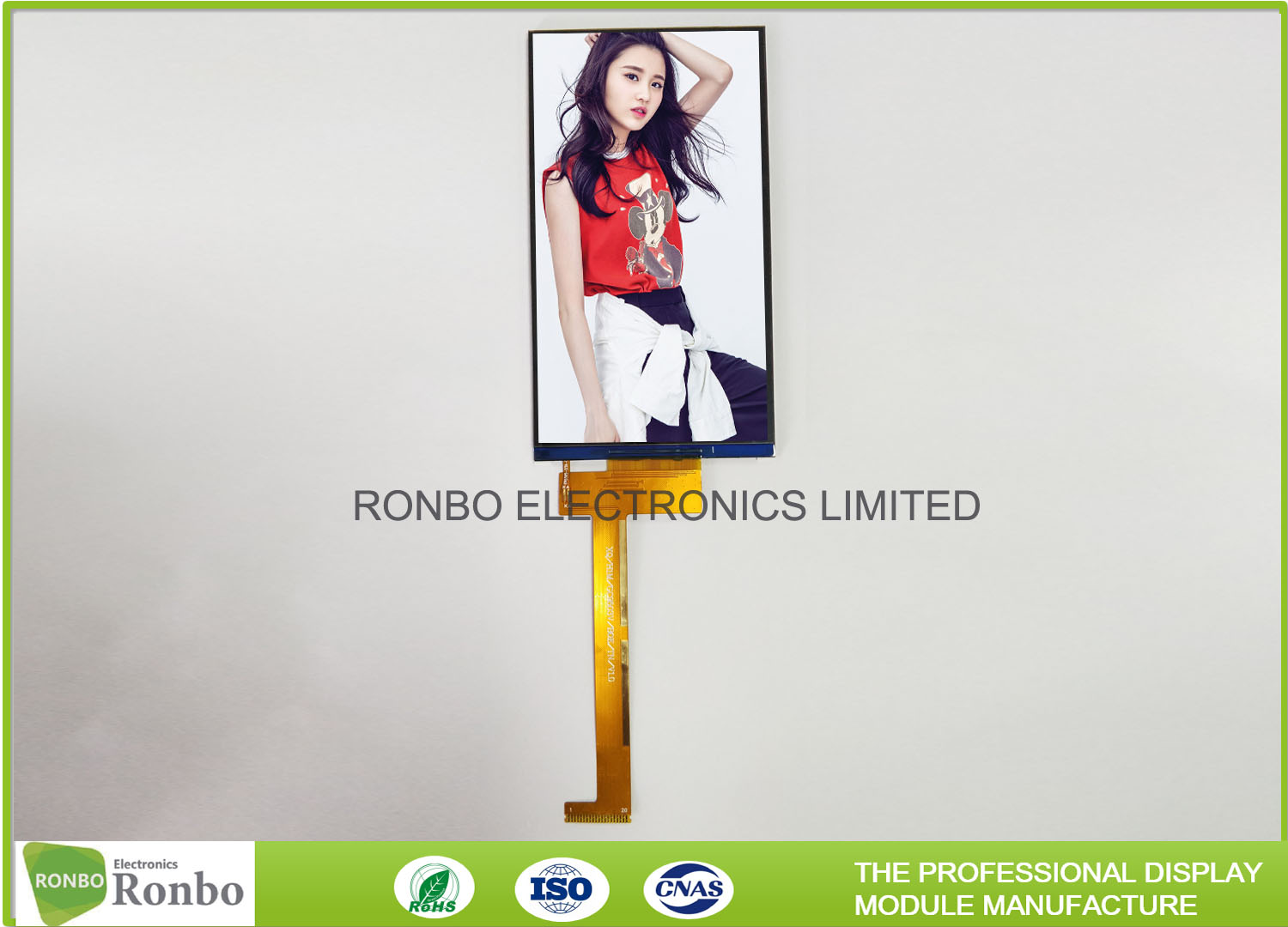

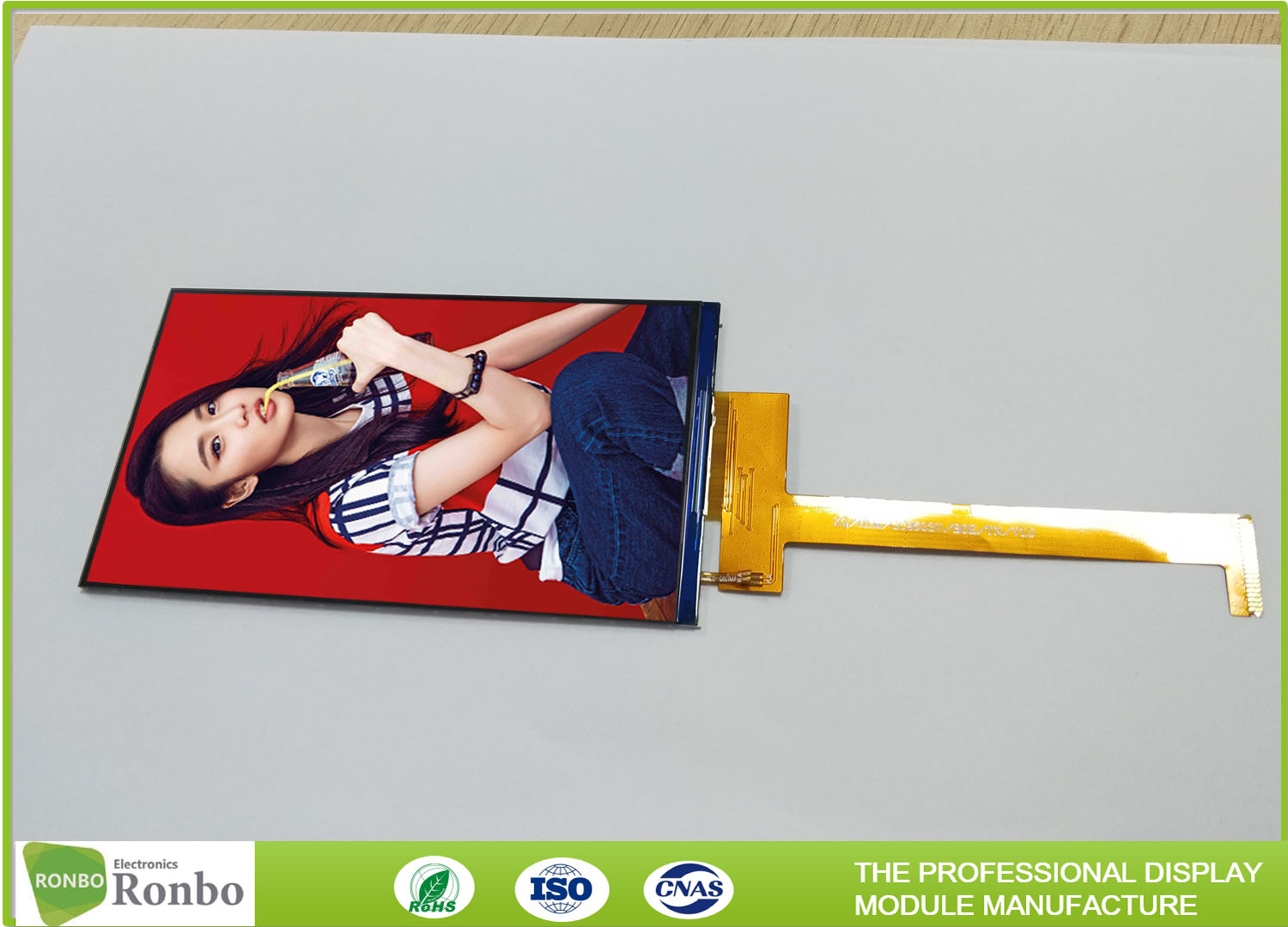

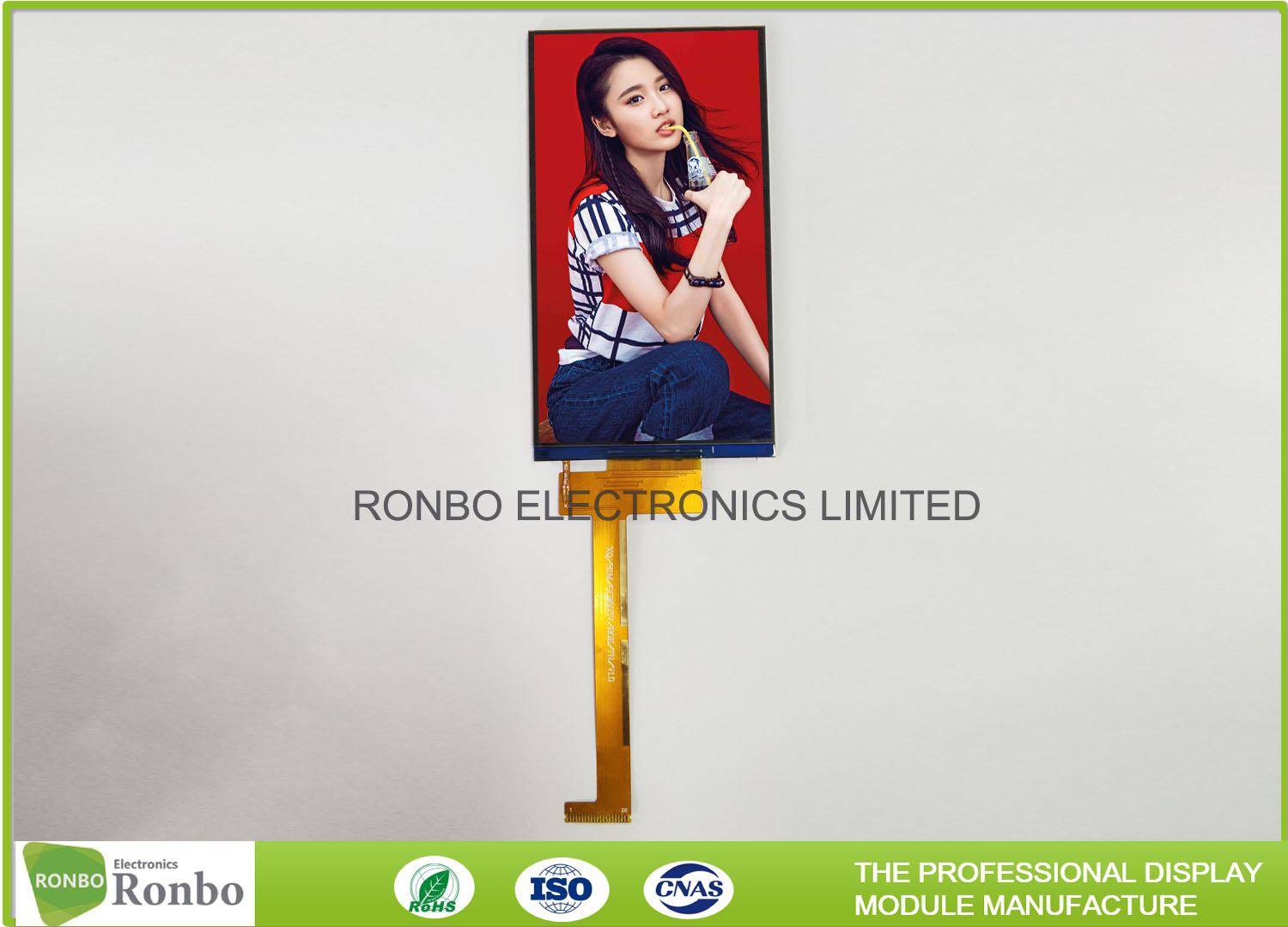

Customizable 5.0 Inch FWVGA 480x854 TFT LCD Module With MIPI Interface


Model NO.:

RB050M20N373A

Screen Size:5.0"
Display typeTN
Resolution:480*854
Viewing direction:12:00 Clock

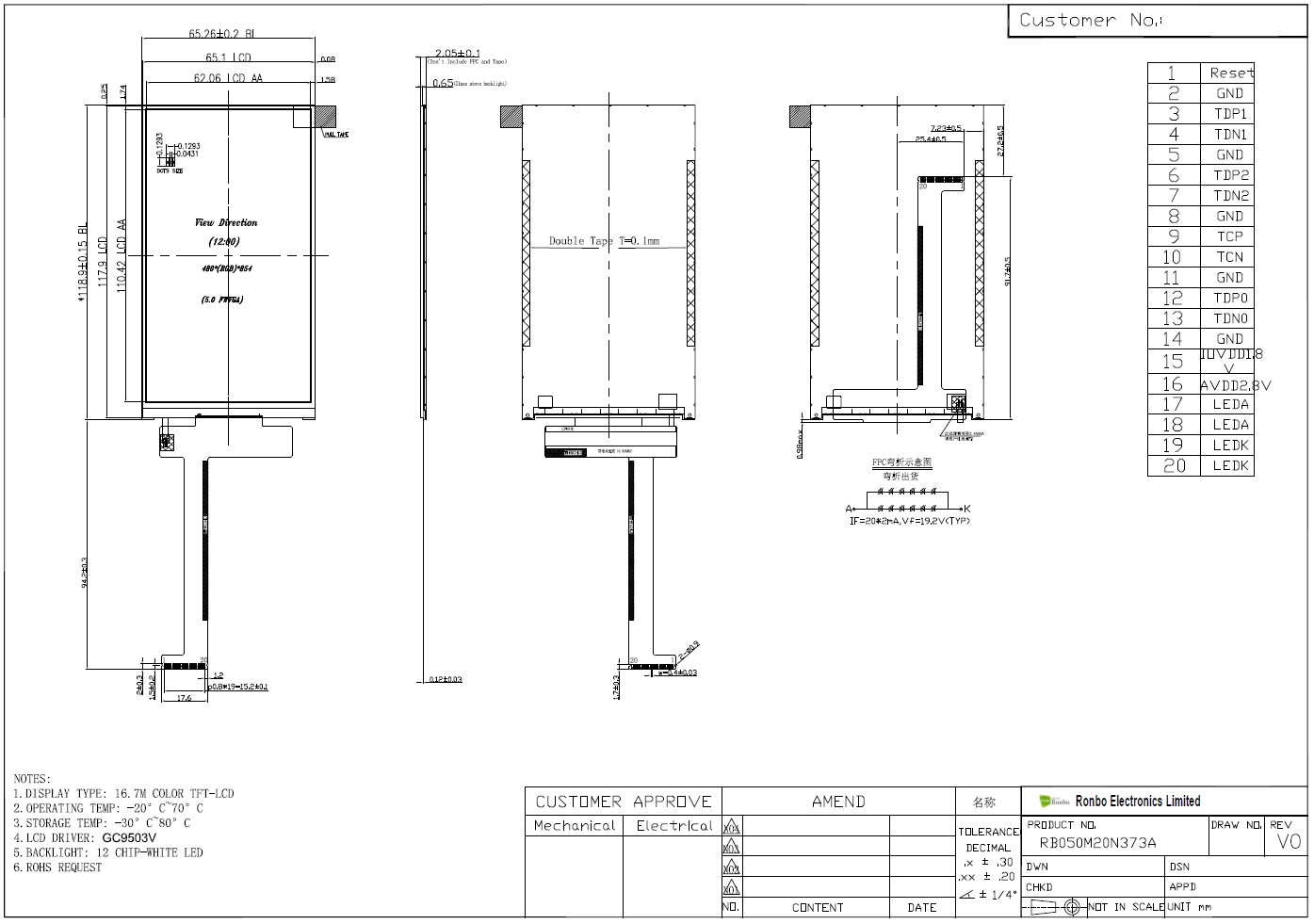

Module size(W*H*T):65.26(W)X118.9(H)X2.05(T)
Active area (W*H):62.06(W) ×110.42 (H)
Brightness:500cd/m²
Backlight:

2S6P=12 WLED

If=40mA, Vf=19.2V

Contrast800
Interface:MIPI
Pin NO:20Pins
Pin pitch0.8mm
Connecting typeSoldering FPC Connector
Operating Temperature:-20 ~  70ºC
Storage Temperature-30 ~  80ºC


Product Specification:

* It is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a FTF LCD panel, driver IC, FPC and backlight unit.

* Backlight with different brightness is customized according to your request.

* Capacitive & Resistive touch panel/ Demo board is available for your option.

* It’s Standard and Ready-made TFT LCD Module.

* Experienced Team for Your Custom Solution.

* RoHS compliant.



Absolute Maximum Ratings

ITEMSymbolMINMAXUNITS
Power supply voltage 1VCC2.53.3V
Power supply voltage 1IOVCC1.653.3V
Operating temperatureTopr-20 70
Storage temperatureTstg-30 80
HumidityRH---90%(Max40°C)RH


Interface Description

PIN NO.PIN NAMEDESCRIPTION
1RESETReset Signal
2GNDSystem Ground
3TDP1Positive Polarity Of Low Voltage Differential Data 2 Signal
4TDN1Negative Polarity Of Low Voltage Differential Data 2 Signal
5GNDSystem Ground
6TDP2Positive Polarity Of Low Voltage Differential Data 3 Signal
7TDN2Negative Polarity Of Low Voltage Differential Data 3 Signal
8GNDSystem Ground
9TCPPositive Polarity Of Low Voltage Differential Clock Signal
10TDNNegative Polarity Of Low Voltage Differential Clock Signal
11GNDSystem Ground
12TDP0Positive Polarity Of Low Voltage Differential Data 1 Signal
13TDN0Negative Polarity Of Low Voltage Differential Data 1 Signal
14GNDSystem Ground
15IOVDD 1.8VPower Supply For LCD 1.8/2.8V
16AVDD 2.8VPower Supply For LCD 2.8V
17LEDAPower Supply For LED Backlight Anode Input
18

LEDA


Power Supply For LED Backlight Anode Input
19LEDKPower Supply For LED Backlight Cathode Input
20LEDKPower Supply For LED Backlight Cathode Input


Packaging & Shipping & Delivery
  Packaging Details:

All the products are packed in right way to keep it safe.

For small sizes of products we use tray   carton,

For bigger sizes we use foam slot   carton.

we also design packages according to customers' requirements



Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.

  For large quantity orders: we ship by buyer's cargo agent in China,

  we can also ship by air or sea transportation by our cargo agent.



  Delivery Details:

  Ready-made Sample: within 1 week

  Custom Sample: 1~2 weeks

  Mass production: 3-4 weeks





Product Application:

Telecommunication DevicesTelephone, interphone, watch, tablet PC, radio, etc
Consumer ProductsCamera, DVD player, toy, Cell Phone, game player, etc
Technical EquipmentElevator controller, Industrial machine, etc
Office AutomationPrinter, scanner, attendance machine, fax machine, etc
Home AppliancesAir-condition display, refrigerator, electric cooker, video doorbell, etc
AutomobileGPS, video player, speedometer, audio broadcast, etc
IT ProductsCamera, handheld digital video, projector, media play, tablet PC, etc
Medical EquipmentUltrasound machine, therapeutic equipment Blood pressure meter, etc



FAQ:

Q: What is the MOQ?

A: It depends on different products. Please keep in touch with sales to confirm the MOQ.



Q: What about the delivery time?

A: Ready-made Sample: within 1 week

    Custom Sample: 1~2 weeks

    Mass production: 4-6 weeks



Q: Does your product have any warranty?

A: Yes, we offer 12 months warranty for our products.



Q: What's your payment method?

A: For samples: payment in advance.

    For mass production: 30% deposit and 70% balance before shipment.



Q: What's your shipping method?

A: We provide comprehensive shipping methods.

For small quantity orders we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.

    For large quantity orders we ship by buyer's cargo agent in China,

    we can also ship by Air transportation or sea transportation.



Q: Do you offer custom solution?

A: Yes, we can offer custom solution if standard products couldn't meet buyer' requirements.
