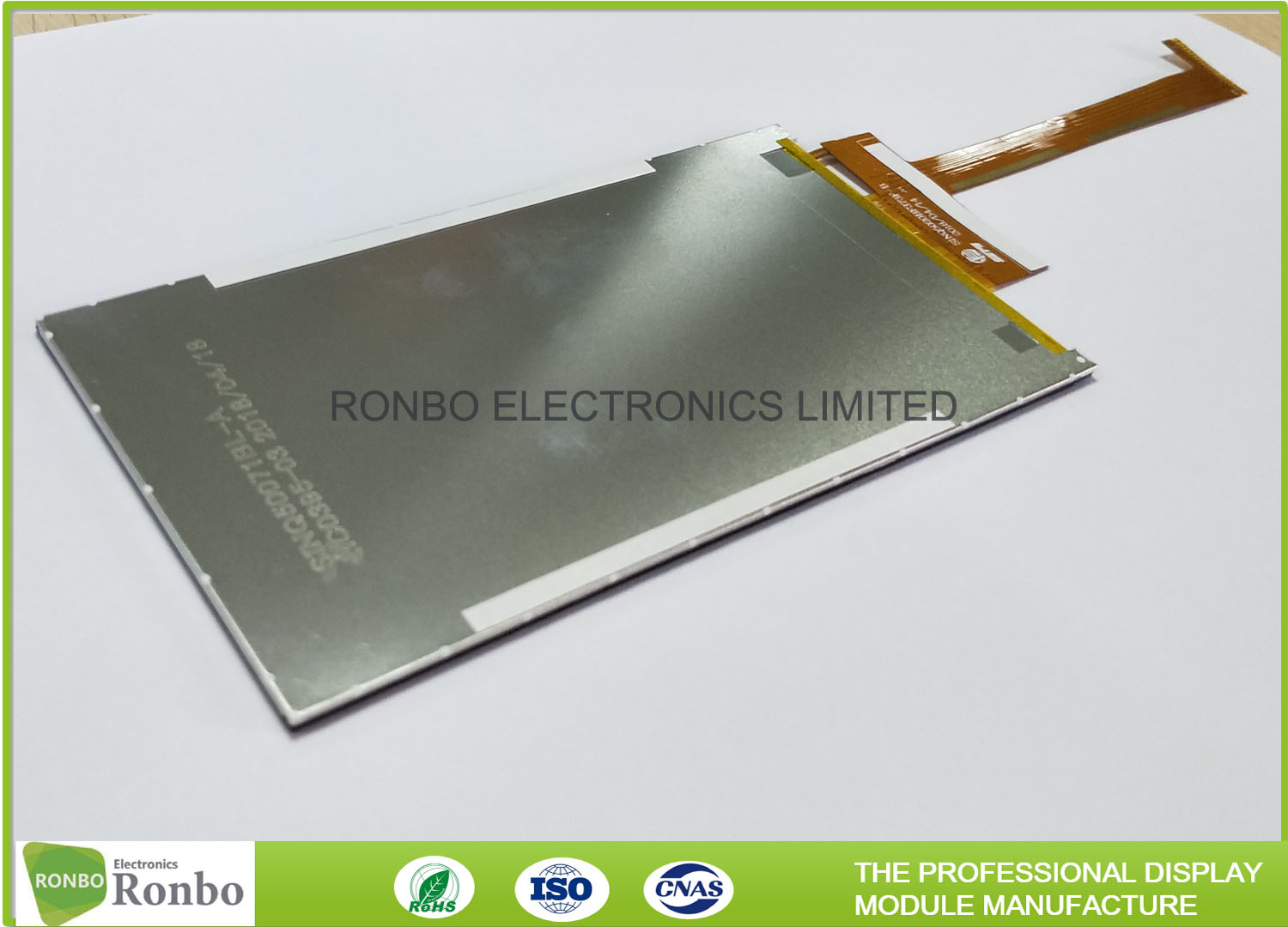

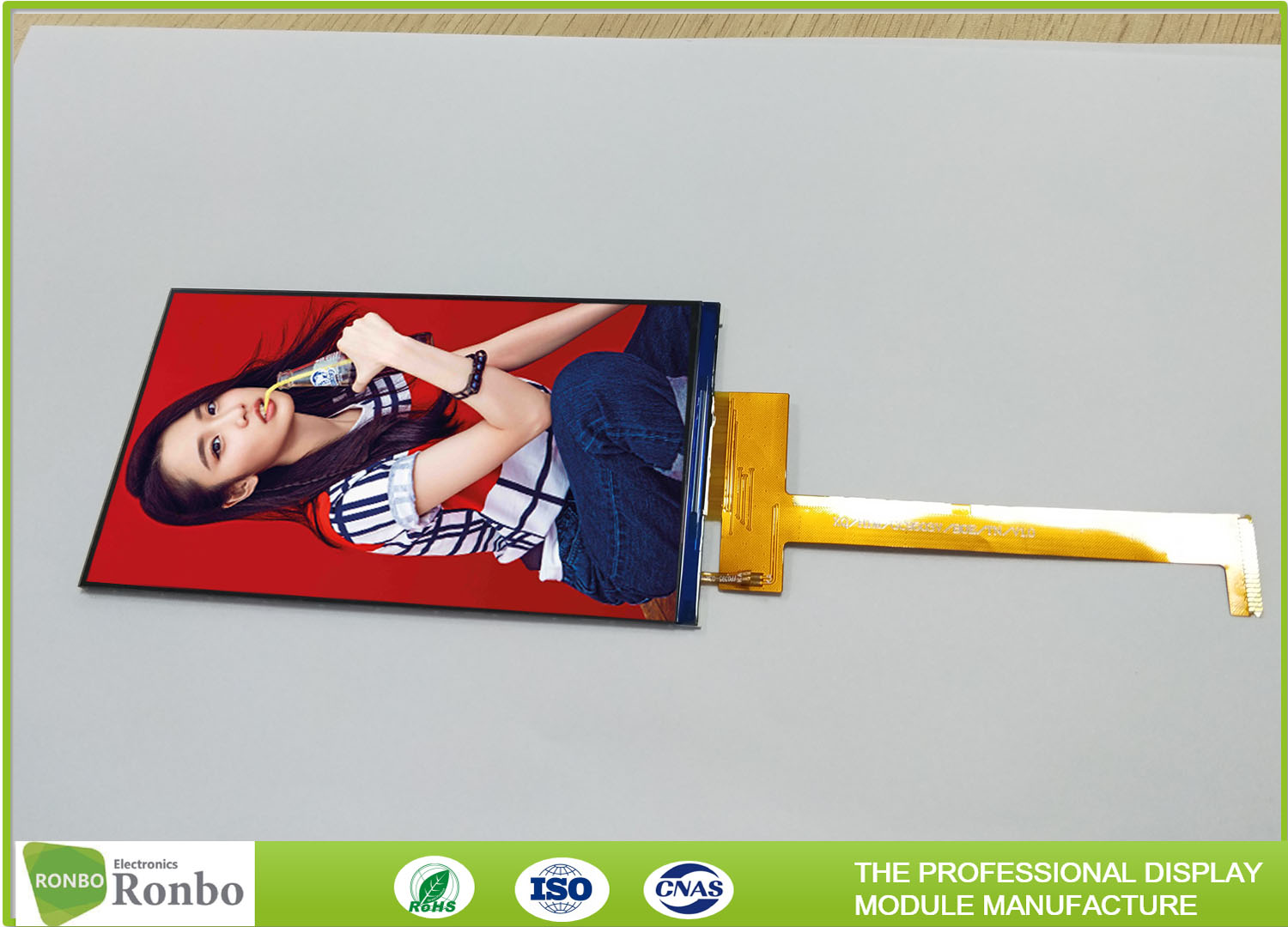

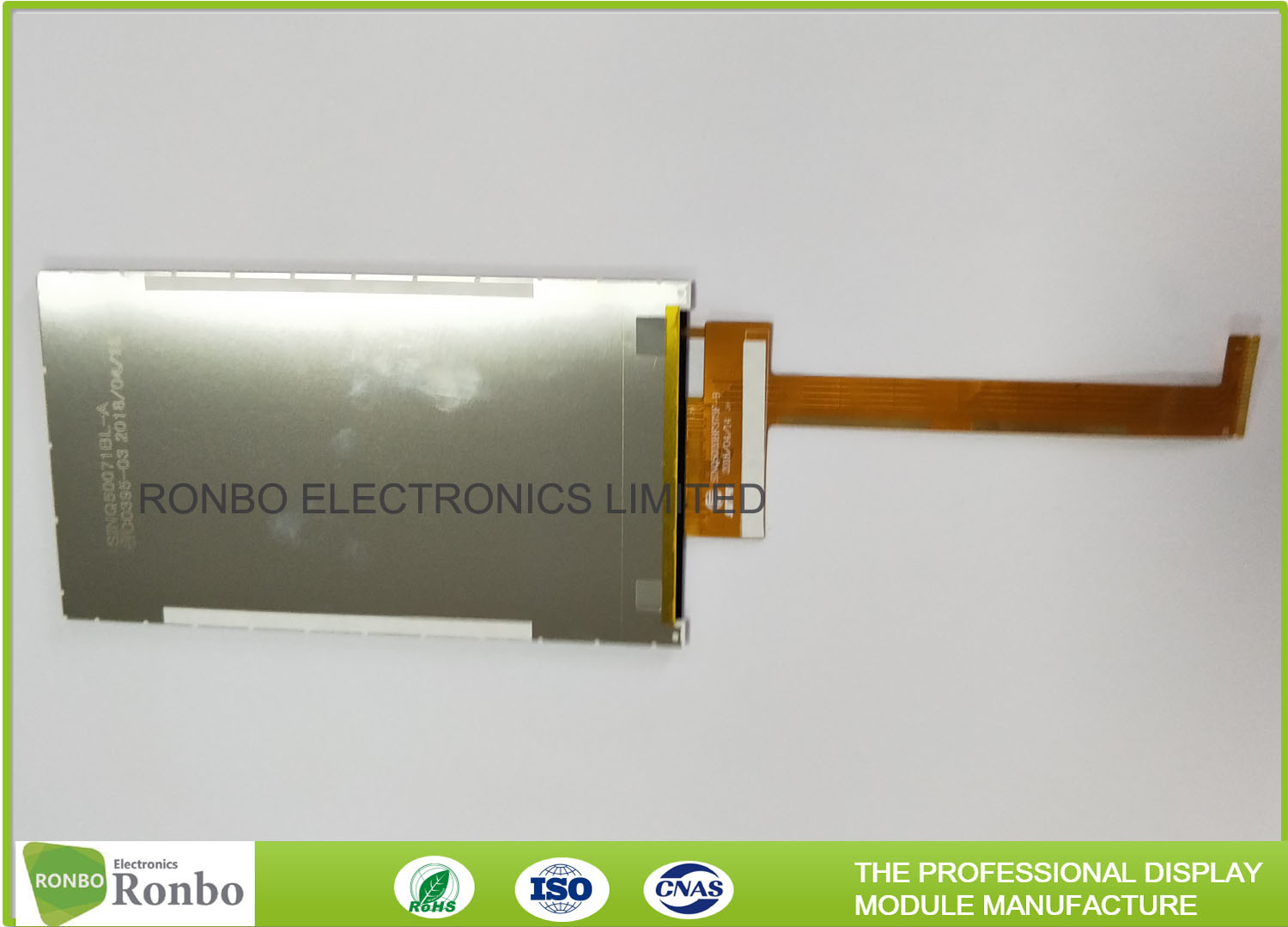

5.0" 480x854 Sunlight Readable TFT LCD Screen 800Cd/m² High Brightness TFT Panel


Model NO.:

RB050M20N373A

Screen Size:5.0"
Display typeTN
Resolution:480*854
Viewing direction:12:00 Clock
Module size(W*H*T):65.26(W)X118.9(H)X2.05(T)
Active area (W*H):62.06(W) ×110.42 (H)
Brightness:800cd/m²
Backlight:

2S6P=12 WLED

If=40mA, Vf=19.2V

Contrast800
Interface:MIPI
Pin NO:20Pins
Pin pitch0.8mm
Connecting typeSoldering FPC Connector
Operating Temperature:-20 ~  70ºC
Storage Temperature-30 ~  80ºC


Product Specification:

* If customers would need sunlight readable displays solution for the applications, High Brightness TFT Display solution is as a good solution.

* High brightness TFT LCD panel is featured with brightness up from 800 nits to 1100 nits.

* This models is also available in resistive touch panel and capacitive touch panel, but the brightness would be affected after adding the touch panel.

* Sunlight Readable LCD Modules (High Brightness TFT Display) is suitable for outdoor applications, for example, outdoor measuring equipment.



Absolute Maximum Ratings

ITEMSymbolMINMAXUNITS
Power supply voltage 1VCC2.53.3V
Power supply voltage 1IOVCC1.653.3V
Operating temperatureTopr-20 70
Storage temperatureTstg-30 80
HumidityRH---90%(Max40°C)RH


Interface Description

PIN NO.PIN NAMEDESCRIPTION
1RESETReset Signal
2GNDSystem Ground
3TDP1Positive Polarity Of Low Voltage Differential Data 2 Signal
4TDN1Negative Polarity Of Low Voltage Differential Data 2 Signal
5GNDSystem Ground
6TDP2Positive Polarity Of Low Voltage Differential Data 3 Signal
7TDN2Negative Polarity Of Low Voltage Differential Data 3 Signal
8GNDSystem Ground
9TCPPositive Polarity Of Low Voltage Differential Clock Signal
10TDNNegative Polarity Of Low Voltage Differential Clock Signal
11GNDSystem Ground
12TDP0Positive Polarity Of Low Voltage Differential Data 1 Signal
13TDN0Negative Polarity Of Low Voltage Differential Data 1 Signal
14GNDSystem Ground
15IOVDD 1.8VPower Supply For LCD 1.8/2.8V
16AVDD 2.8VPower Supply For LCD 2.8V
17LEDAPower Supply For LED Backlight Anode Input
18

LEDA


Power Supply For LED Backlight Anode Input
19LEDKPower Supply For LED Backlight Cathode Input
20LEDKPower Supply For LED Backlight Cathode Input
