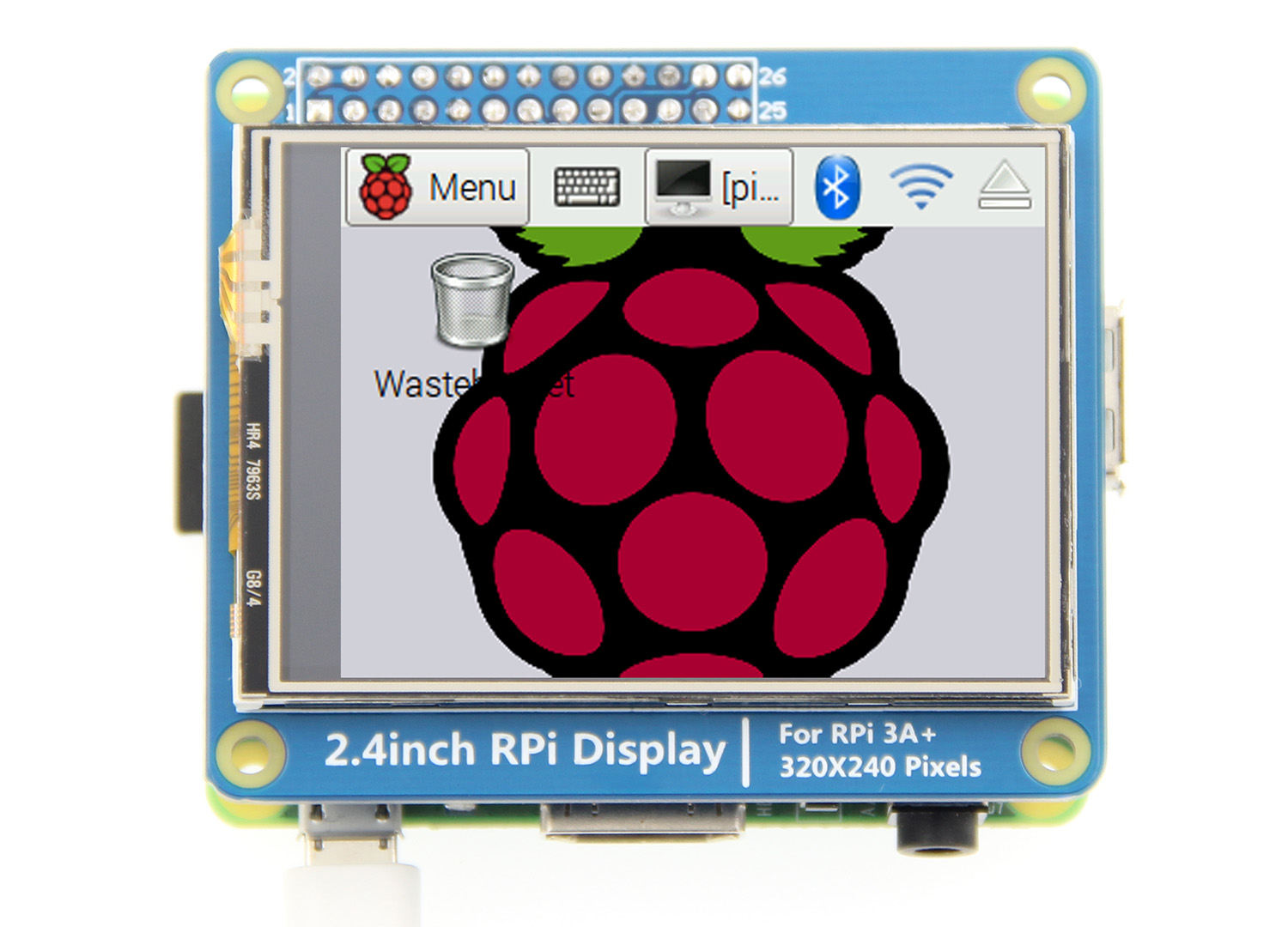

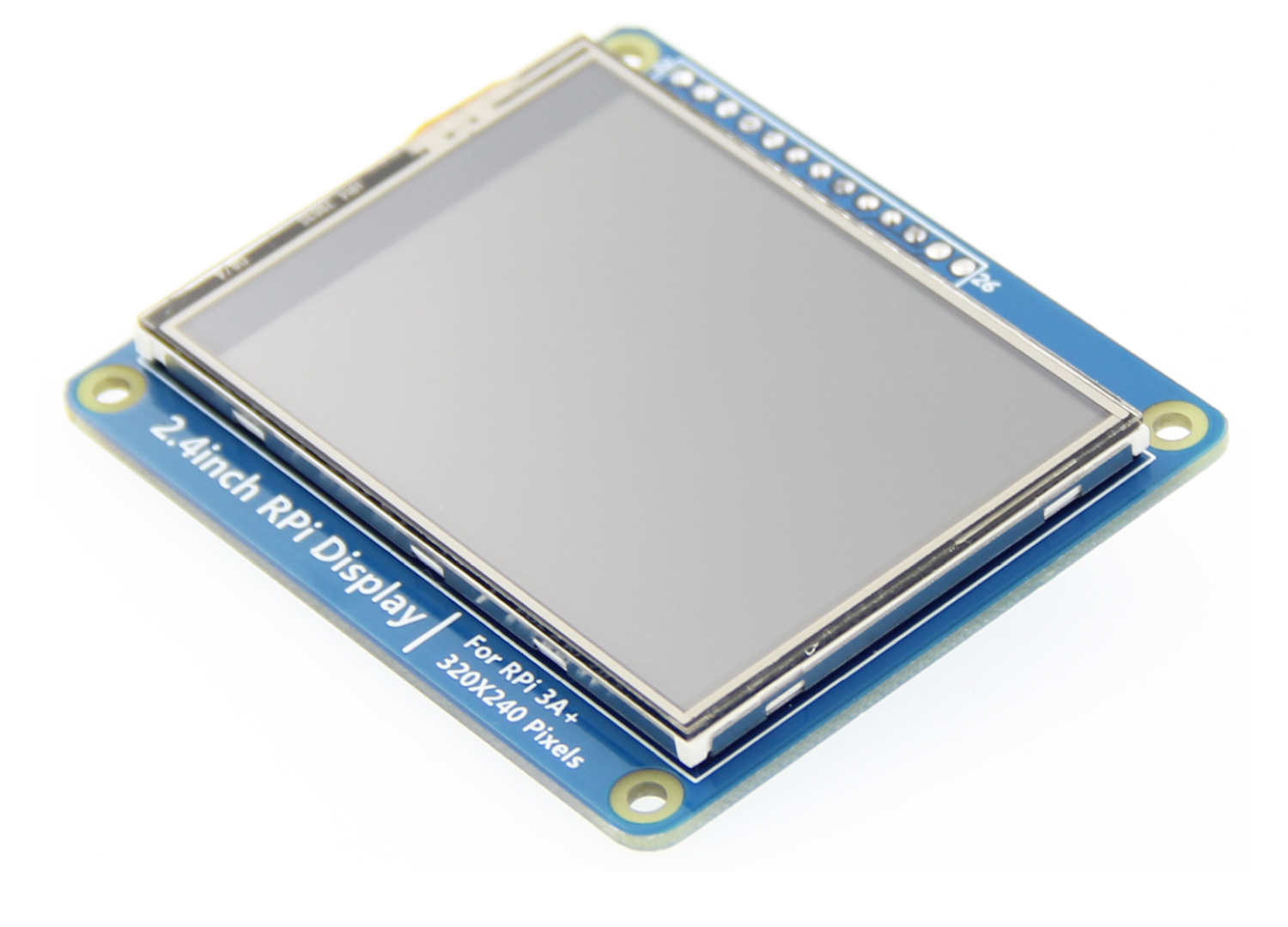

Raspberry Pi 3A 2.4inch 320x240 Raspberry Pi LCD Display SPI Interface With Resistive Touch Screen
| Name | Description |
| SKU | MPI2411 |
| Screen Size | 2.4inch |
| LCD Type | TFT |
| Module Interface | SPI |
| Resolution | 320*240 (Pixel) |
| Active Area | 36.72x48.96(mm) |
| Touch Screen Controller | XPT2046 |
| LCD Driver IC | ILI9341 |
| Backlight | LED |
| Power Consumption | 0.08A*5V |
| Operating Temperature(℃) | -20~60 |
| Module PCB Size | 56.00x65.00(mm) |
Rough Weight (Package containing)(g) | 37 (g) |
Product Specification:
2.4inch standard display with physical resolution of 320×240
SPI interface with resistive touch screen for touch control
perfectly compatible and can be directly inserted into any version of the Raspberry Pi (Raspberry Pi ZeroW, A, A , B, B , 2B, 3B, 3B )
Support for Raspbian/Ubuntu/Kali systems, Provide driver, image, and online wiki guidance documents
This product has passed CE and RoHS certification

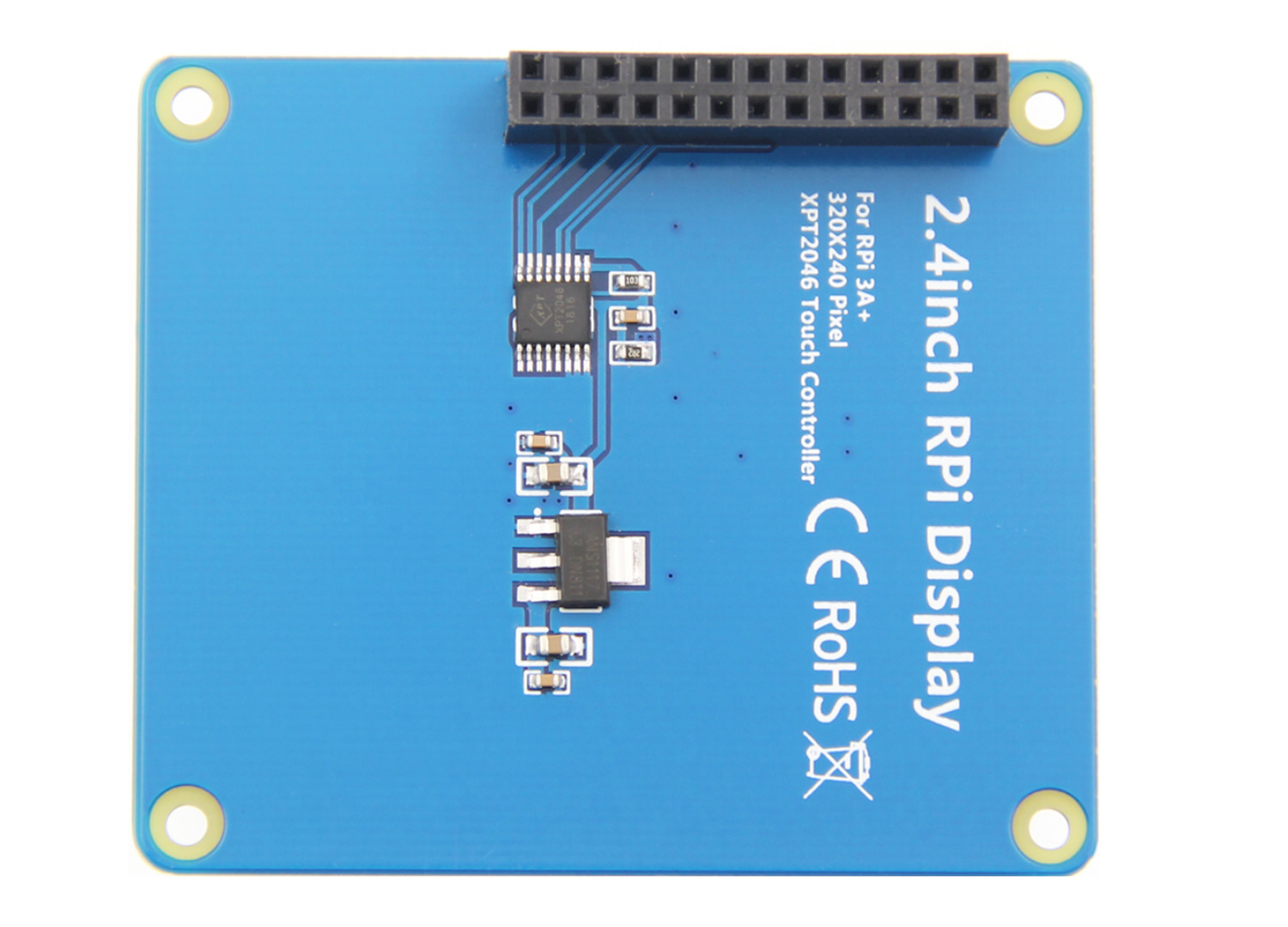

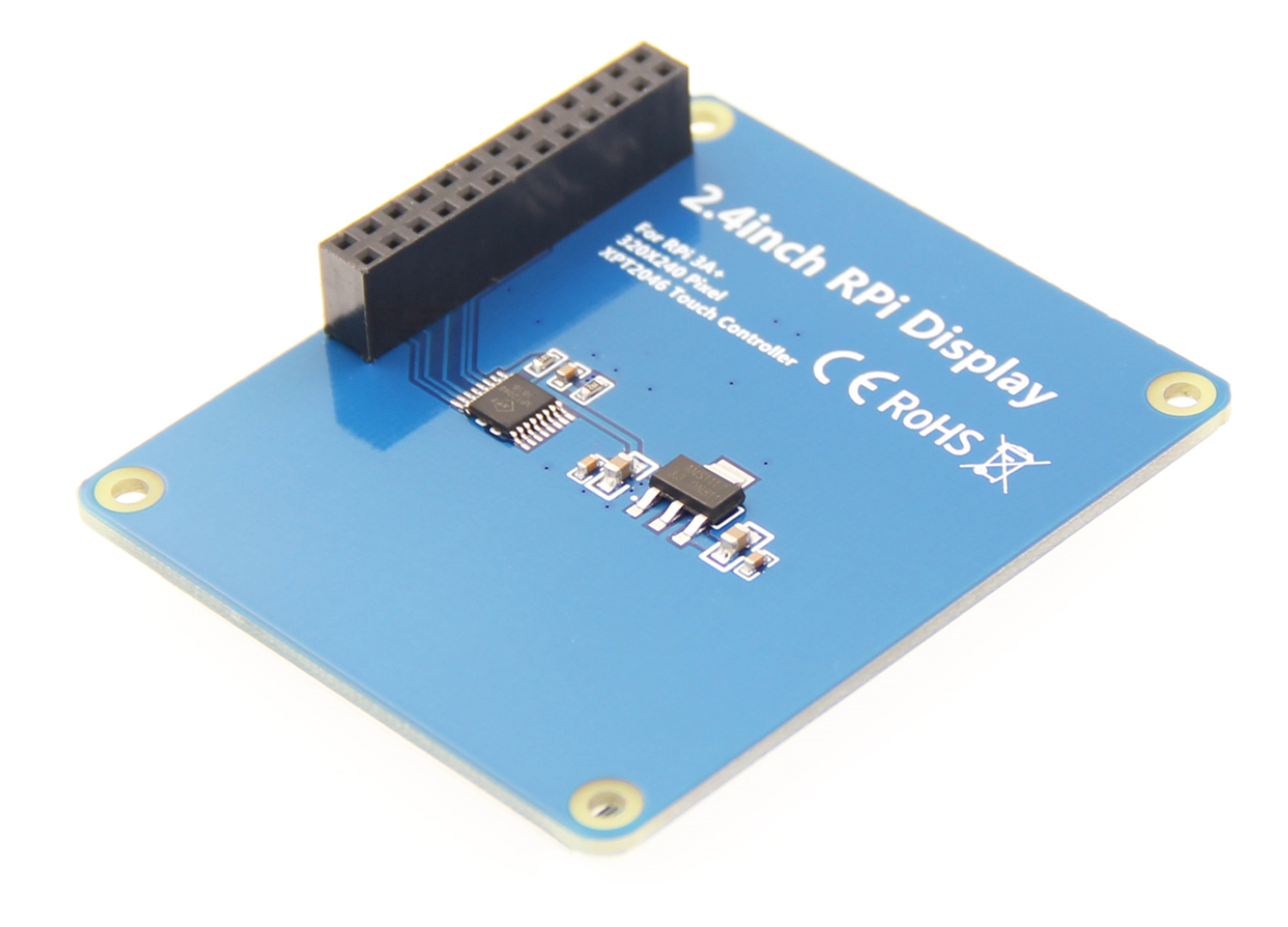

Hardware Description:

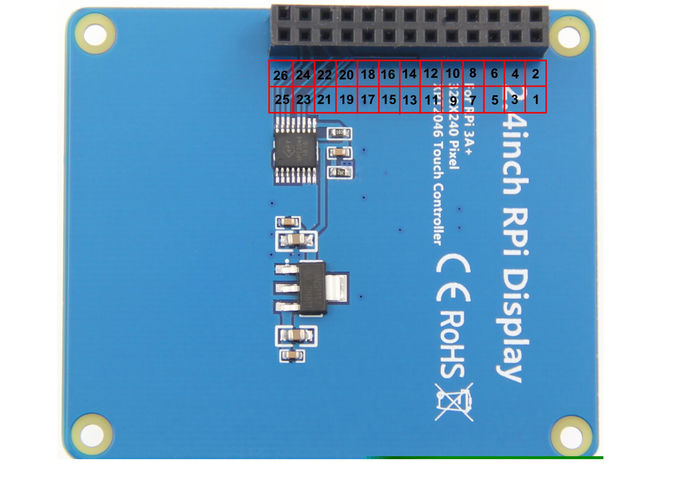

Interface Definition:
| Pin Number | Identification | Description |
|---|---|---|
| 1, 17 | 3.3V | Power supply (3.3V power input) |
| 2, 4 | 5V | Power supply (5V power input) |
| 3, 5, 7, 8, 10, 12, 16,18,22 | NC | Not connected |
| 6, 9, 14, 20, 25 | GND | Power ground |
| 11 | TP_IRQ | The touch panel is interrupted, and it is detected that the touch panel is pressed low. |
| 15 | LCD_RS | Instruction/data register selection, low level is instruction, high level is data |
| 19 | LCD_SI / TP_SI | LCD display / touch panel SPI data input |
| 21 | TP_SO | Touch panel SPI data output |
| 13 | RST | Reset signal, low reset |
| 23 | LCD_SCK / TP_SCK | LCD display / touch panel SPI clock signal |
| 24 | LCD_CS | LCD chip select signal, low level enable |
| 26 | TP_CS | Touch panel chip select signal, low level enable |

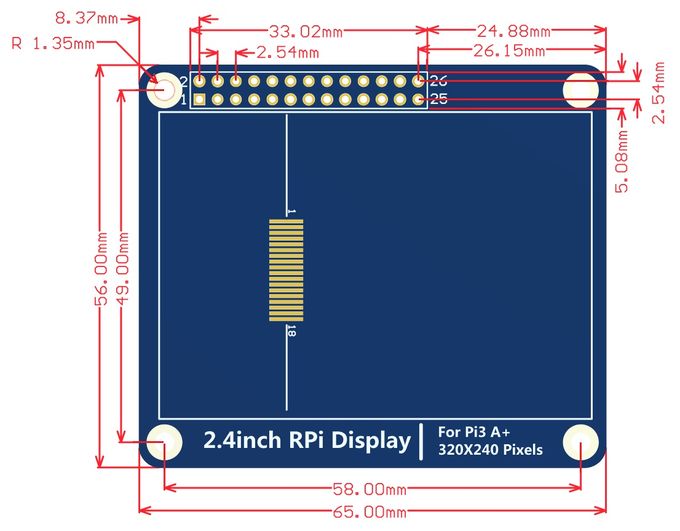

Product Size:
Product Application:
| Telecommunication Devices | Telephone, Interphone, Smart Watch, Tablet PC, PDA |
| Consumer Products | Camera, DVD Player, Cell Phone, Game Player, Digital Photo Frame, Ｅ-Book Reader, Mp3 Player, MP4 PMP, Netbook PC |
| Technical Equipment | Elevator Controller, Industrial Machine, Security Ｍonitor, POS |
| Office Automation | Printer, Scanner, Fax Machine, Desktop Monitor, Desktop Monitor |
| Home Appliances | Air-condition Display, Refrigerator, Video Doorbell, Smart Machine |
| Automobile Display | GPS, Protable Navigation, Video Player, Speedometer, Recorder |
| IT Products | Digital Video, Media Player, Advertising Machine |
| Medical Equipment | Ultrasound Machine, Medial Monitor, Medical Imaging, Healthcare |
