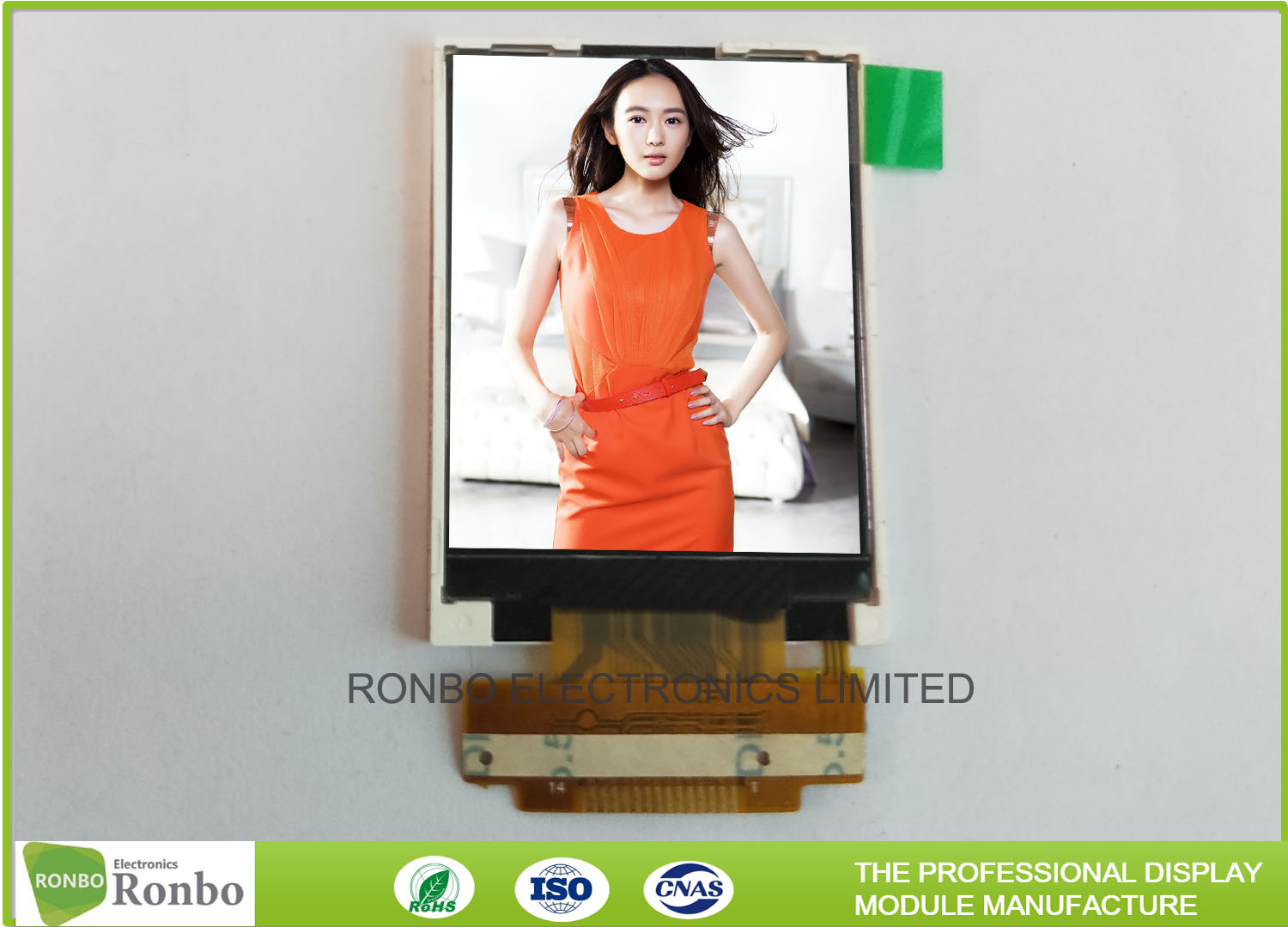

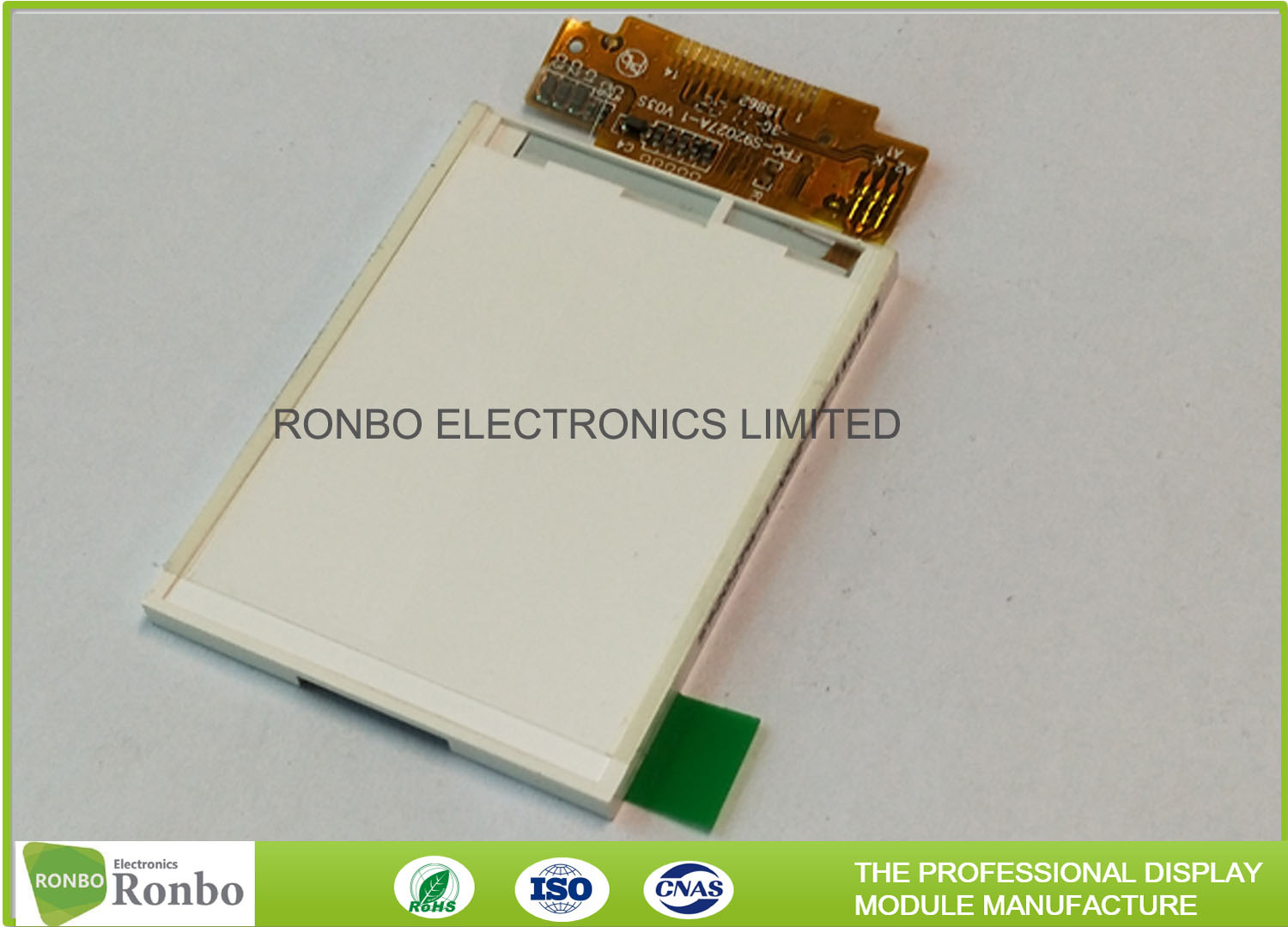

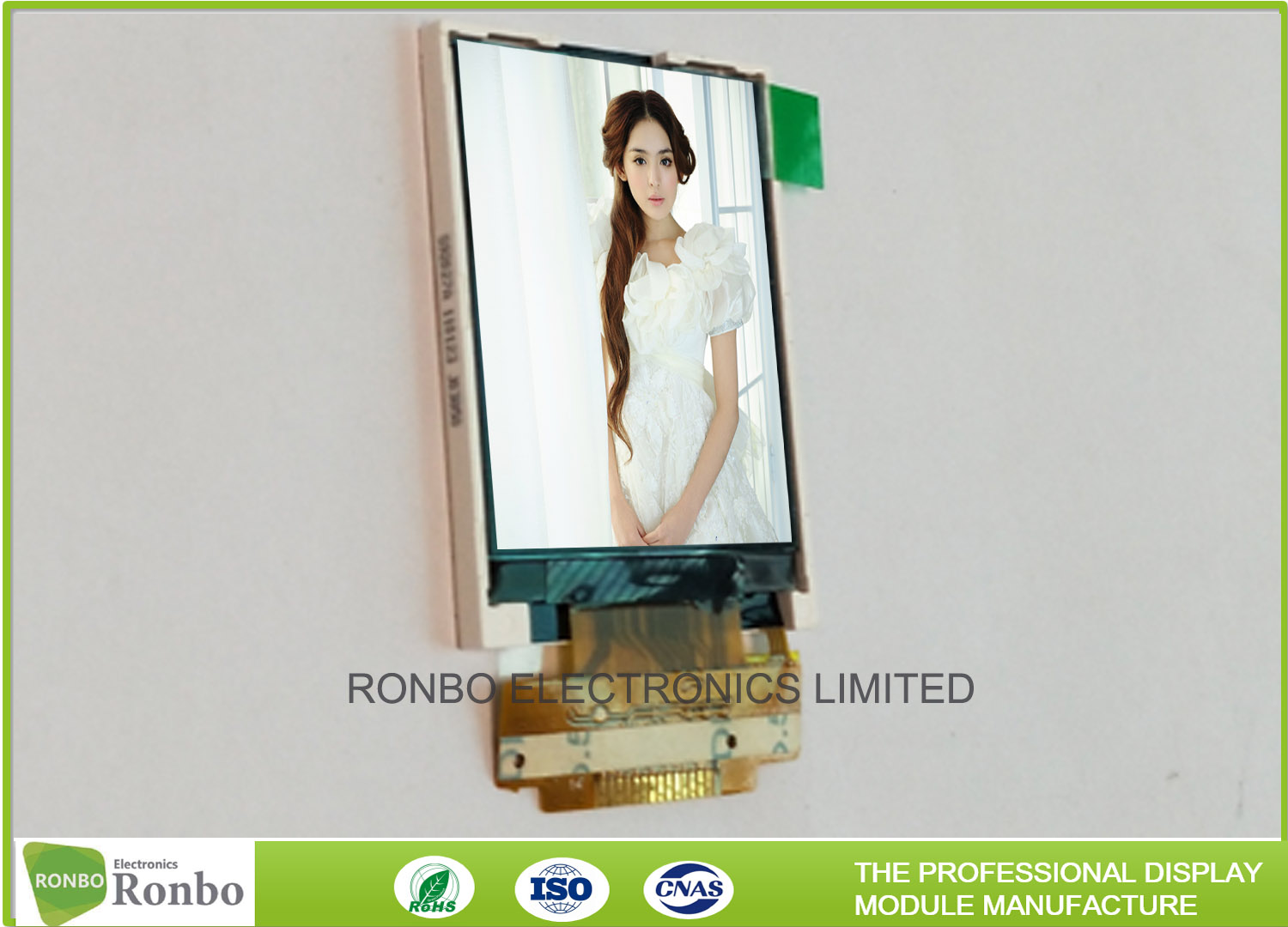

14Pin SPI Interface 1.77" 128x160 Small LCD Dispay Replace TIANMA TM018FDZ52


Model NO.:
RB017D14N05A
Screen Size:1.77"
Display type:TN
Resolution:128*160
Viewing direction:12 O'CLOCK
Module size(W*H*T):34.0*46.0*2.6mm
Active area (W*H):28.03*35.04mm
Brightness:200cd/m²
Backlight:

1S3P=3 WLED If=60mA, Vf =3.2V

Contrast:350
Interface:SPI
Pin NO:14Pin
Pin pitch:0.8mm
Connecting type:FPC Soldering Connector
Operating Temperature:-20 ~  70ºC
Storage Temperature:-30 ~  80ºC


Product Specification:

* It is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC and backlight unit.

* Backlight with different brightness is customized according to your request.

* Capacitive & Resistive touch panel/ Demo board is available for your option.

* It's Standard and Ready-made TFT LCD Module.

* Experienced Team for Your Custom Solution.

* RoHS compliant.

00_TFT LCD_004_01.jpg


00_TFT LCD_01_产品描述.jpg

Packaging & Shipping & Delivery
  Packaging Details:

All the products are packed in right way to keep it safe.

For small sizes of products we use tray   carton,

For bigger sizes we use foam slot   carton.

we also design packages according to customers' requirements



Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.

  For large quantity orders: we ship by buyer's cargo agent in China,

  we can also ship by air or sea transportation by our cargo agent.



  Delivery Details:

  Ready-made Sample: within 1 week

  Custom Sample: 1~2 weeks

  Mass production: 3-4 weeks





Product Application:

Telecommunication DevicesTelephone, interphone, watch, tablet PC, radio, etc
Consumer ProductsCamera, DVD player, toy, Cell Phone, game player, etc
Technical EquipmentElevator controller, Industrial machine, etc
Office AutomationPrinter, scanner, attendance machine, fax machine, etc
Home AppliancesAir-condition display, refrigerator, electric cooker, video doorbell, etc
AutomobileGPS, video player, speedometer, audio broadcast, etc
IT ProductsCamera, handheld digital video, projector, media play, tablet PC, etc
Medical EquipmentUltrasound machine, therapeutic equipment Blood pressure meter, etc



Our Advantage:

Rich experienceGood knowledge of the displays market to put together solutions that add value and provide a unique proposition for the client
Advanced EquipmentFull automatic FPC&IC bonding machine, film attaching machine, CNC machine, polish machine etc advance production equipment ensure product quality
Quality AssuranceAdvance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment
Fast responseQuickly realize your customized ideas, and have a sample ready in short time
Low MOQDepends on product
Stable supply1~10 years supply period
Extensive rangeProviding complete solution from Mono to Color LCD module, Optical bonding between display to cover glass as well as cover glass to touch screen
Large production capacityOperation capacity 2KK monthly
Quality guaranteeRoHS compliant
ManagementISO 9001:2008, ISO 14001:2004



FAQ:

Q: What is the MOQ?

A: It depends on different products. Please keep in touch with sales to confirm the MOQ.



Q: What about the delivery time?

A: Ready-made Sample: within 1 week

    Custom Sample: 1~2 weeks

    Mass production: 4-6 weeks



Q: Does your product have any warranty?

A: Yes, we offer 12 months warranty for our products.



Q: What's your payment method?

A: For samples: payment in advance.

    For mass production: 30% deposit and 70% balance before shipment.



Q: What's your shipping method?

A: We provide comprehensive shipping methods.

For small quantity orders we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.

    For large quantity orders we ship by buyer's cargo agent in China,

    we can also ship by Air transportation or sea transportation.



Q: Do you offer custom solution?

A: Yes, we can offer custom solution if standard products couldn't meet buyer' requirements.
