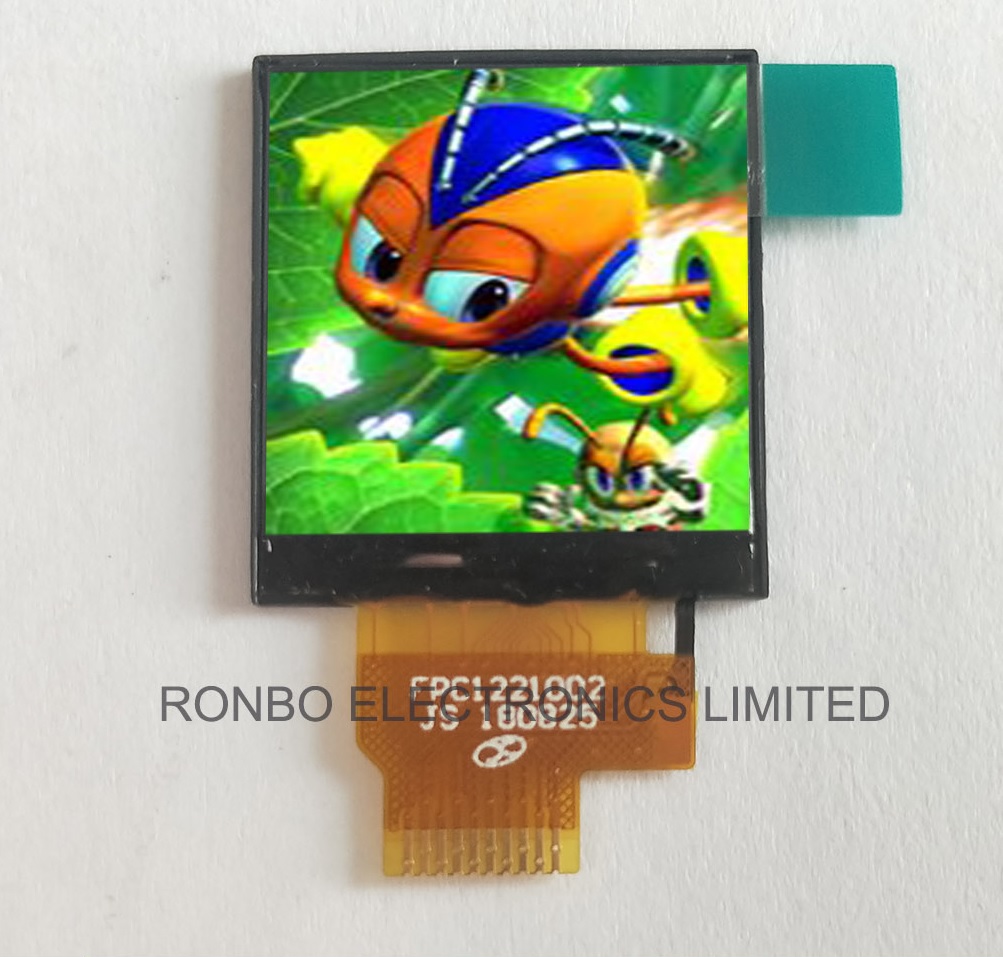

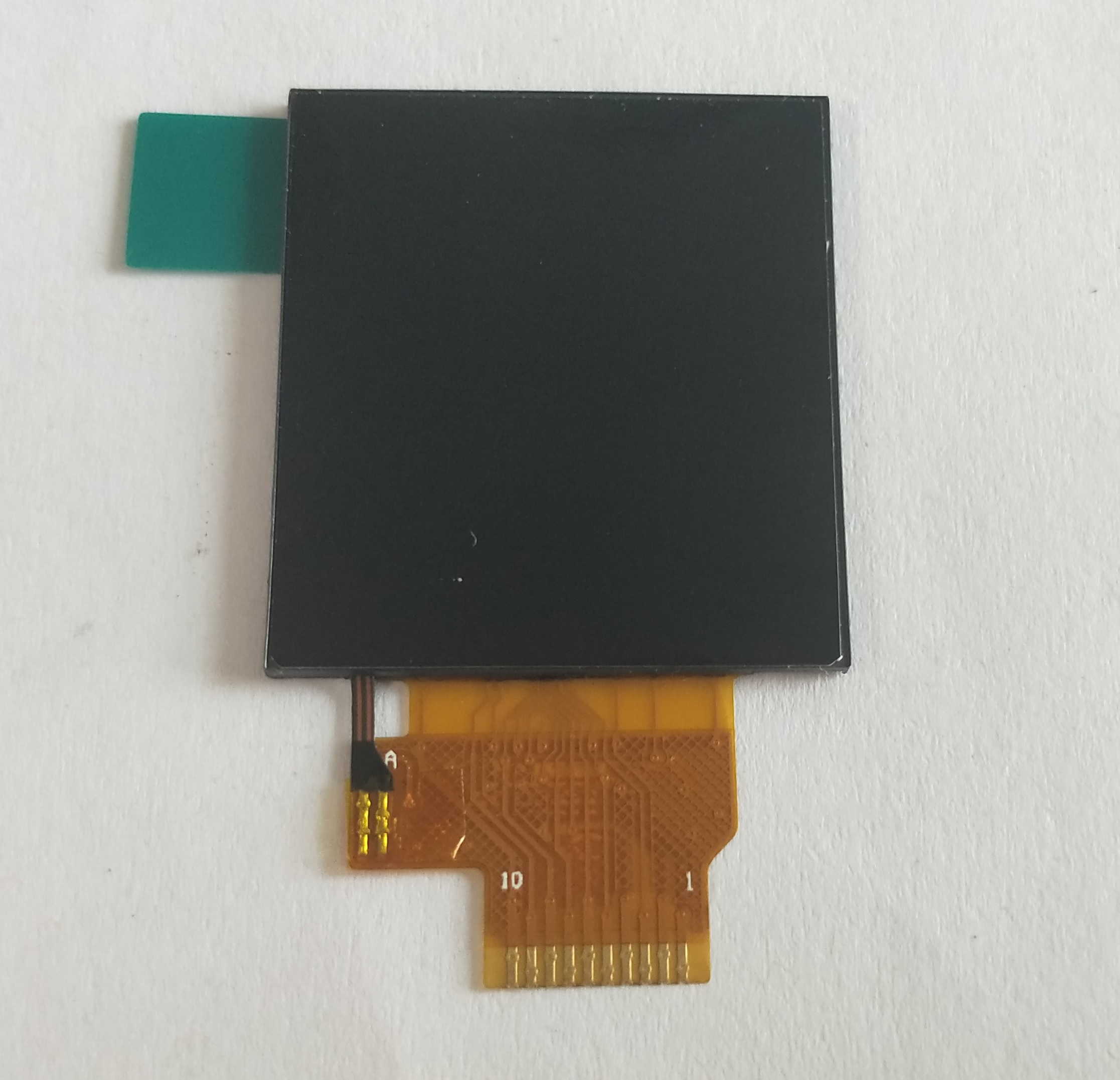

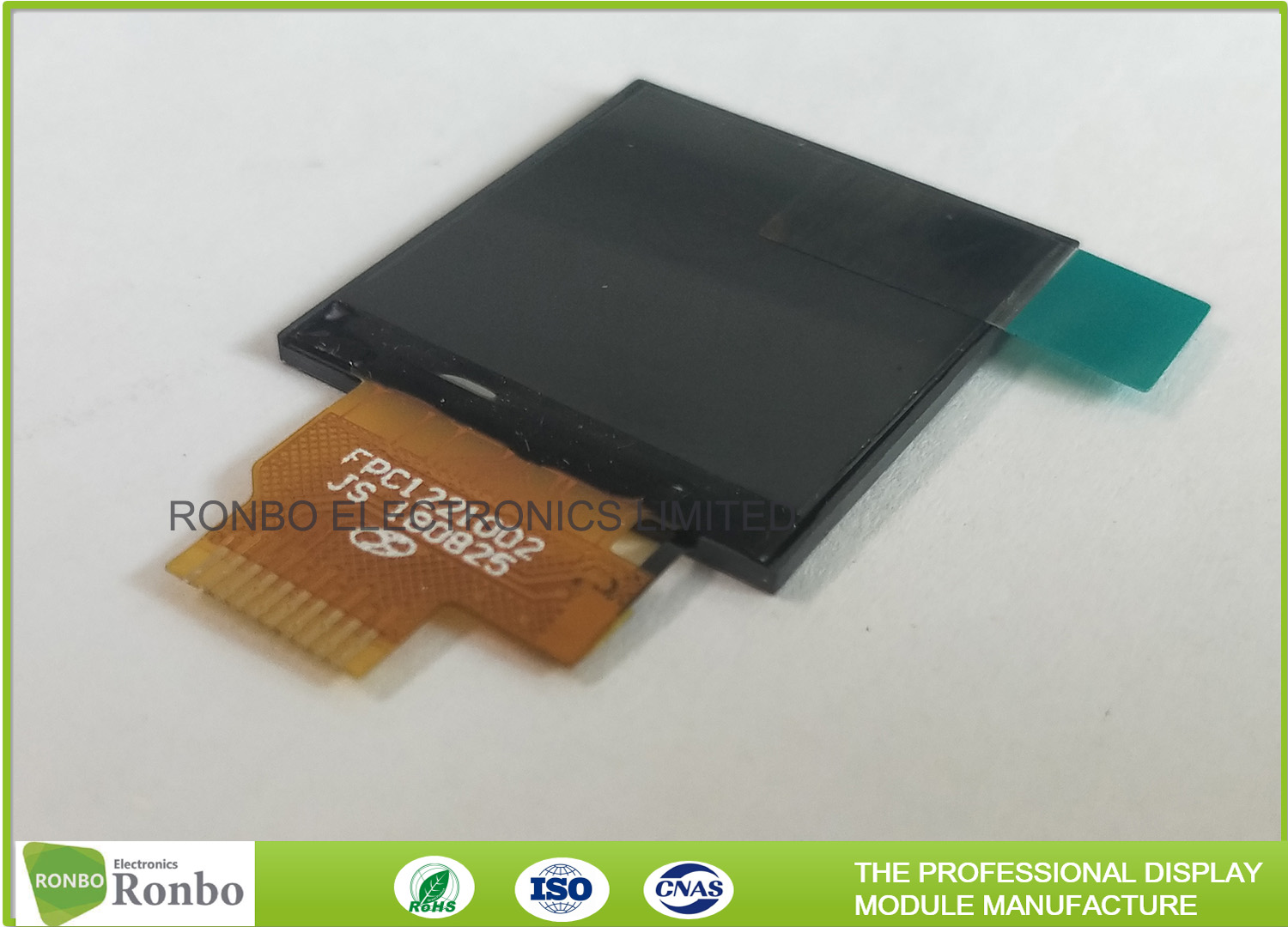

Square LCD Screen 1.22 Inch IPS Resolution 240*240 Small Smart Watch TFT LCD Display

Model NO.:RB0122B1002A
Screen Size:1.22"
Display type:IPS
Resolution:240*240
Viewing direction:ALL
Module size(W*H*T):25.76*28.16*1.5mm
Active area (W*H):21.96*21.96mm
Brightness:250cd/m²
Backlight:

1S2P=2 WLED If=40mA, Vf =3.2V

Contrast:800
Interface:SPI
Pin NO:10Pin
Pin pitch:0.7mm
Connecting type:FPC Soldering Connector
Operating Temperature:-20 ~  70ºC
Storage Temperature:-30 ~  80ºC



Square LCD Screen 1.22 Inch IPS Resolution 240*240 Small Smart Watch TFT LCD Display


Product Specification:

* It is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a IPS LCD panel, driver IC, FPC and backlight unit.

* Backlight with different brightness is customized according to your request.

* Capacitive & Resistive touch panel/ Demo board is available for your option.

* It's Standard and Ready-made IPS LCD Module.

* Experienced Team for Your Custom Solution.

* RoHS compliant.




Interface Description:

PIN NO.PIN NAMEDESCRIPTION
1LED_APower Supply For LED Backlight Anode Input
2LED_KPower Supply For LED Backlight Cathode Input
3SDASerial data input
4SCLthe serial interface clock
5RESETThe Reset Input
6NCNot Control
7CSChip Select Pin
8IOVDDPower Supply For LCD 1.8/2.8V
9AVDD 2.8VPower Supply For LCD 2.8V
10GNDSystem Ground
