TFT LCD Display

1_TFT LCD Display_横幅.jpg

     TFT LCD Displays are available in various sizes from 1.22"  to 15.0" TFT LCD.  they are including options of TFT panel, TFT LCM with controller board, color LCD module, and wide operating temperatures of -20°C to  70°C or -30°C to  80°C.
     They are available in various graphic display resolutions including QVGA (240 x 320), WQVGA (480x272),WVGA (800x480), 1024x600, XGA (1024x768), WXGA(1280x800) and son on.  and there are various interface available including MCU, RGB, TTL, LVDS, MIPI and so on.

     These LCD Displays are options of bonding with Resistive or Capacitive touch Screen using OCA or Double Tape, and are options of Driver Board and assistant funtion samples.

     The list below is our standard offering, please click into detail informaiton. However, We have many more customized solution and special sizes available as options. Please contact us for more information.

Image Size Model No Resolution Module size
(W*H*Tmm)
Active Area
(W*Hmm)
Controller IC Brightness Display Type Interface
2.8" RB028D35T02A 240*320 50.0*69.2*3.45 43.2*57.6 ST7789S 4 White LED 262K MCU 8Bit, FPC 35PIN Pitch:0.8mm
2.8" RB028D37T04A 240*320 50.0*69.2*3.30 43.2*57.6 ILI9341V 6 White LED 262K MCU 8Bit, FPC 37PIN Pitch:1.0mm
2.8" RB028D40N07A 240*320 50.0*69.2*2.5 43.2*57.6 ST7789V 4 White LED 250 Cd/m2 262K MCU 16Bit, FPC 40PIN Pitch:0.5mm
3.0" RB030D40N01A 960*240 74.91*43.04*2.3 65.52*36.84 ILI8961A2 4 White LED 262K RGB 24Bit, FPC 40PIN Pitch:0.5mm
3.0" RB030D40N02A 240*400 45.04*77.00*2.55 38.88*64.8 ILI9327 4 White LED 262K MCU 16Bit, FPC 40PIN Pitch:0.5mm
3.0" RB030D39T04A 240*400 45.04*76.00*2.05 38.88*64.8 R61509V or ILI9327 5 White LED TN MCU 18Bit, FPC 39PIN Pitch:0.8mm
3.2" RB032D46N01A 240*320 55.94*77.6*2.5 48.6*64.8 ILI9341V 5 White LED TN MCU 18/16/9Bit, FPC 46PIN Pitch:1.0
3.5" RB035D28T01A 320*480 54.66*82.94*3.4 49.0*73.4 ILI9488 6 White LED 262K MCU 8Bit, FPC 28PIN Pitch:0.8mm
3.5" RB035D40T02A 320*480 54.5*83.0*3.25 49.0*73.4 ILI9488 6 White LED 262K MCU 8Bit, FPC 40PIN Pitch:0.8mm
3.5" RB035D45T04A 320*480 54.48*84.71*3.4 49.0*73.4 HX8357D 6 White LED 262K MCU 18Bit, FPC 45PIN Pitch:0.3mm
3.5" RB035D45N05A 320*480 55.26*84.69*2.4 49.0*73.4 ILI9488 6 White LED 262K MCU 18Bit, FPC 45PIN Pitch:0.3mm

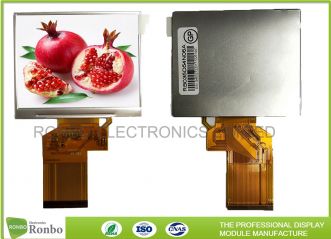

3.5" RB035D54N06A 320*240 76.9*63.9*3.2 70.08*52.56 HX8238D 300cd/m² TN,6H RGB 24Bit,FPC 54PIN, Pitch:0.5
3.5" RB035D45T07A 320*480 54.48*84.71*3.4 48.96*73.44 ST7793S 6 White LED 262K MCU 16Bit, FPC 45PIN Pitch:0.3mm
3.5" RB035D39N08A 320*480 54.48*84.71*2.2 49.0*73.4 ST7796S 6 White LED 262K SPI&MCU 16/18Bit FPC 39PIN Pitch:0.3mm
3.5" RB035D28N09A 320*480 54.5*83.0*2.1 48.96*73.44 ST7793S 6 White LED 262K MCU 16Bit, FPC 28PIN 0.8Pitch
3.5" RB035D45T11A 320*480 54.48*84.71*3.4 48.96*73.44 ST7793S 6 White LED 262K MCU 16/18Bit, FPC 45PIN 0.5Pitch
3.5" RB035D60N12A 240*320 64.0*85.0*4.11 53.64*71.52 ILI9341 6 White LED 262K RGB18Bit SPI, FPC 60PIN 0.5Pitch
4.0" RB040D25N02A 480*800 57.14*96.85*2.05 51.84*86.4 ILI9806E 8 White LED 16.7M MIPI-DSI, FPC 25PIN Pitch:0.6mm
4.0 RB040D25N03A 320*480 60.88*94.57*2.3 55.68*83.52 ILI9488 8 White LED 262K COLORS "MIPI-DSI FPC 25PIN P0.8"
4.0 RB040D30N04A 272*480 53.77*97.3*2.25 49.37*87.12 ILI9488 8 White LED 262K COLORS "MCU 8Bit FPC 30PIN P0.8"
4.0 RB040D37T05A 240*400 57.4*97.2*3.35 51.84*86.4 ST7793 8 White LED 262K COLORS "MCU 8Bit FPC 37PIN P0.8"
4.3" RB043D20N01A 480*800 60.96*104.5*2.2 56.16*93.6 ILI9806H 10 White LED 400 Cd/m2 16.7M MIPI-DSI, FPC 20PIN Pitch:0.8mm
4.3" RB043D40N03A 480*272 105.5*67.2*3.05 95.04*53.86 - 300cd/m² TN, 12H RGB 24Bit,FPC 40PIN, Pitch:0.5

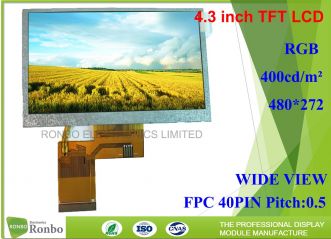

4.3" RB043D40N06A 480*272 105.5*67.2*3.0 95.04*53.86 - 400cd/m² TN, 12H RGB 24Bit, FPC 40PIN Pitch:0.5

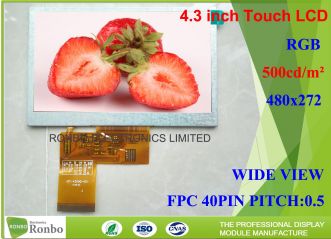

4.3" RB043D40N07A 480*272 105.5*67.2*3.0 95.04*53.86 - 500cd/m² TN, 12H RGB 24Bit,FPC 40PIN, Pitch:0.5
5.0" RB050D40N03A 800*480 120.7*75.8*3.1 108.0*64.8 HX8264D&HX8664B 12 White LED 300 cd/m² 16.7M RGB 24Bit, FPC 40PIN Pitch:0.5mm
5.0" RB050D40N04A 480*272 120.7*75.8*3.1 110.88*62.83 ILI6480 12 White LED 200 cd/m² 262K RGB 24Bit, FPC 40PIN Pitch:0.5mm
5.0" RB050D40N05A 800*480 120.7*75.9*3.05 108.0*64.8 ILI6122/ILI5960 12 White LED 300 cd/m² 16.7M RGB 24Bit, FPC 40PIN Pitch:0.5mm
5.0" RB050M24N07A 480*854 66.56*121.0*2.2 62.1*110.4 ST7701 400cd/m² TN,12H MIPI, FPC 24PIN, Pitch:0.4
5.0" RB050D31N10A 480*854 66.4*120*2.08 61.56*109.53 OTM8009A 12 White LED 300 cd/m² 16.7M MCU 16Bit, FPC 31PIN Pitch:0.3mm
